EXL-148

< REMOVAL AND INSTALLATION >

HAZARD SWITCH

HAZARD SWITCH

Removal and Installation

INFOID:0000000009175410

REMOVAL

1. Remove cluster lid C. Refer to

IP-22, "CLUSTER LID C : Removal and Installation"

.

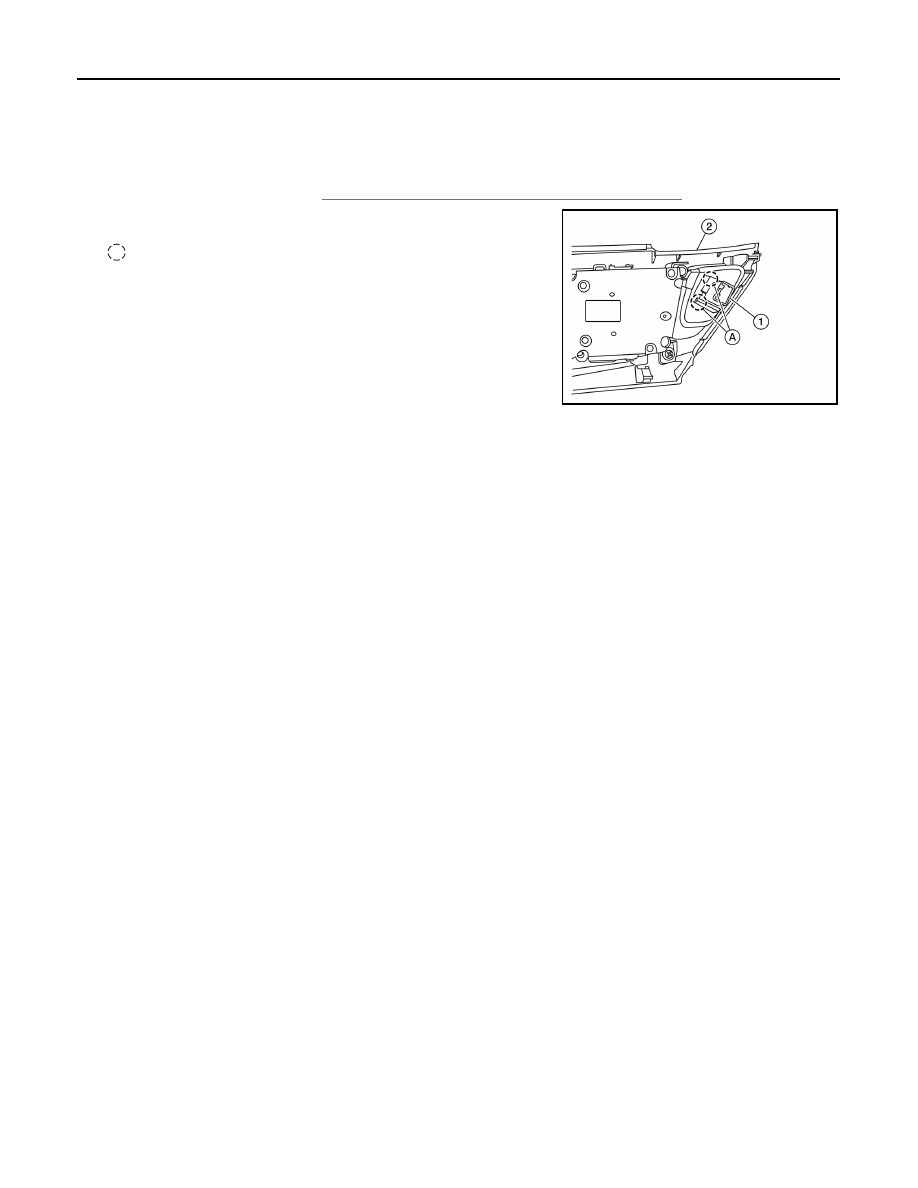

2. Release the pawls (A) and remove the hazard switch (1) from

cluster lid C (2).

:Pawl

INSTALLATION

Installation is in the reverse order of removal.

ALLIA1191ZZ

REAR COMBINATION LAMP

EXL-149

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REAR COMBINATION LAMP

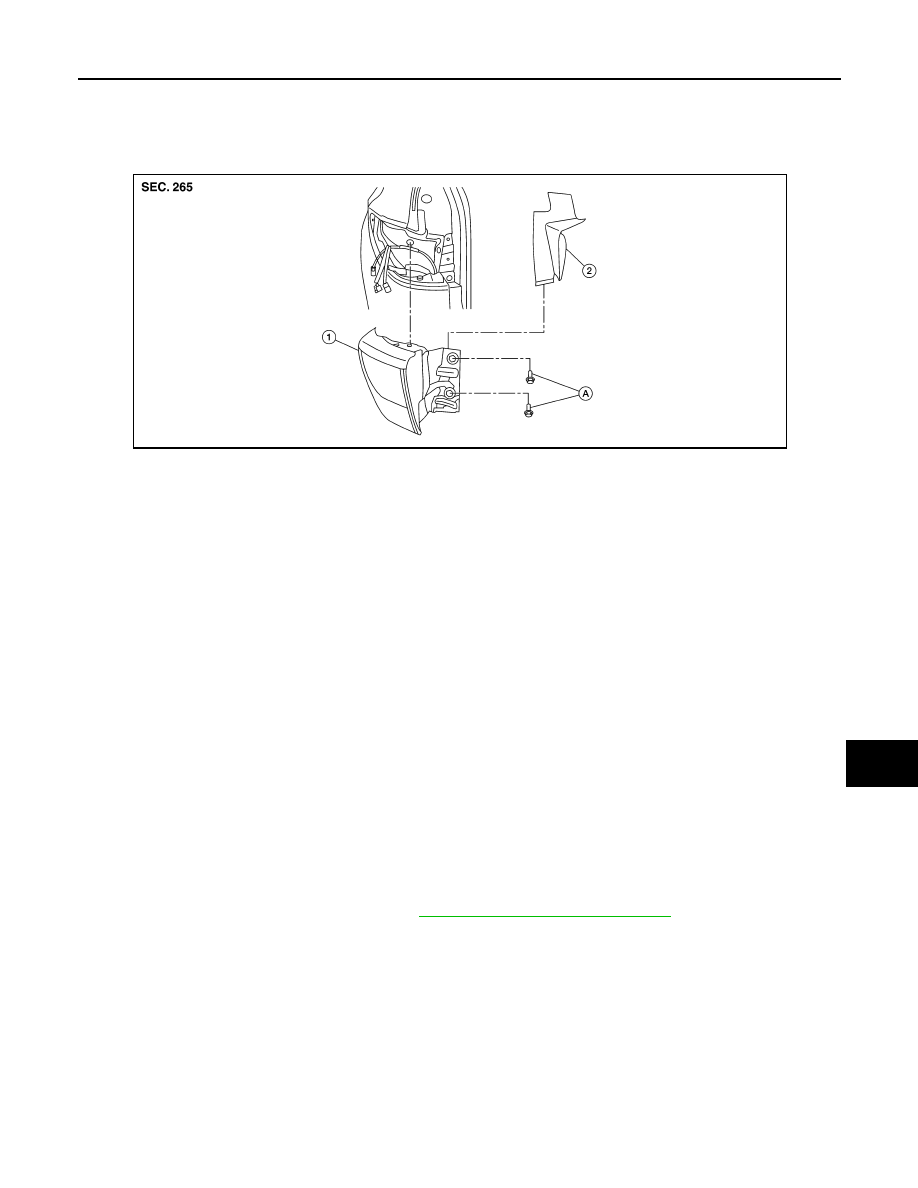

Exploded View

INFOID:0000000009175411

Removal and Installation

INFOID:0000000009175412

REAR COMBINATION LAMP

Removal

1. Release clips using a suitable tool and remove rear combination lamp bolt cover.
2. Remove rear combination lamp bolts.
3. Pull rear combination lamp rearward.
4. Disconnect the harness connector from the rear combination lamp and remove.

Installation

Installation is in the reverse order of removal.

REAR TURN SIGNAL LAMP BULB

WARNING:

Do not touch bulb by hand while it is lit or right after being turned OFF. Burning may result.

CAUTION:

• Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent

damage to bulb.

• Do not leave the bulb out of the lamp reflector for a long time because dust, moisture, smoke, etc.

may affect the performance of the lamp.

Removal

1. Remove the rear combination lamp. Refer to

EXL-149, "Removal and Installation"

2. Rotate the rear turn signal lamp socket counterclockwise and remove.
3. Remove the bulb from rear turn signal bulb socket.

Installation

Installation is in the reverse order of removal.

STOP/TAIL LAMP BULB

WARNING:

Do not touch bulb by hand while it is lit or right after being turned OFF. Burning may result.

CAUTION:

• Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent

damage to bulb.

1.

Rear combination lamp

2.

Rear combination lamp bolt cover

A. Bolt

AWLIA2031ZZ

EXL-150

< REMOVAL AND INSTALLATION >

REAR COMBINATION LAMP

• Do not leave the bulb out of the lamp reflector for a long time because dust, moisture, smoke, etc.

may affect the performance of the lamp.

Removal

1. Remove the rear combination lamp. Refer to

EXL-149, "Removal and Installation"

2. Rotate the stop/tail lamp socket counterclockwise and remove.
3. Remove the bulb from stop/tail lamp bulb socket.

Installation

Installation is in the reverse order of removal.

SIDE MARKER LAMP BULB

WARNING:

Do not touch bulb by hand while it is lit or right after being turned OFF. Burning may result.

CAUTION:

• Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent

damage to bulb.

• Do not leave the bulb out of the lamp reflector for a long time because dust, moisture, smoke, etc.

may affect the performance of the lamp.

Removal

1. Remove the rear combination lamp. Refer to

EXL-149, "Removal and Installation"

2. Rotate the side marker lamp socket counterclockwise and remove.
3. Remove the bulb from side marker bulb socket.

Installation

Installation is in the reverse order of removal.

HIGH-MOUNTED STOP LAMP

EXL-151

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HIGH-MOUNTED STOP LAMP

Removal and Installation

INFOID:0000000009175413

REMOVAL

1. Remove rear spoiler. Refer to

EXT-41, "Removal and Installation"

.

INSTALLATION

Installation is in the reverse order of removal.

HIGH-MOUNTED STOP LAMP BULB

The high-mounted stop lamp bulb is LED and is serviced as part of the high-mounted stop lamp. Refer to

EXL-

151, "Removal and Installation"
