DAYTIME LIGHT SYSTEM INOPERATIVE

DAYTIME LIGHT SYSTEM INOPERATIVE

Description

INFOID:0000000009175398

The daytime light system is inoperative even though the combination switch (lighting and turn signal switch)

and parking brake switch are in the normal setting, also whenever the engine is operating.

Diagnosis Procedure

INFOID:0000000009175399

1.

CHECK DAYTIME LIGHT OPERATION

1. Perform BCM(HEADLAMP) DAYTIME RUNNING LIGHT active test. Refer to

BCS-18, "HEADLAMP :

CONSULT Function (BCM - HEADLAMP)"

.

2. Check that the daytime lights turn on.
Is the inspection results normal?

YES

>> Replace BCM. Refer to

BCS-80, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK DAYTIME LIGHT RELAY FUSE

1. Turn ignition switch OFF.

2. Check that the following fuse is not blown.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace the blown fuse after repairing the affected circuit.

3.

CHECK DAYTIME LIGHT BULBS

Check that the daytime light bulbs are not open.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace the bulbs.

4.

PERFORM DAYTIME LIGHT CIRCUIT INSPECTION

Check the daytime light circuit. Refer to

EXL-112, "Diagnosis Procedure"

.

Is the inspection results normal?

YES

>> Replace IPDM E/R. Refer to

PCS-32, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning part.

Unit

Fuse No.

Capacity

Daytime light

43

10 A

HEADLAMP

EXL-137

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PERIODIC MAINTENANCE

HEADLAMP

Inspection

INFOID:0000000009175400

PREPARATION BEFORE ADJUSTING

Before performing aiming adjustment, check the following:

• Ensure all tires are inflated to correct pressure.

• Place vehicle and screen on level surface.

• Ensure there is no load in vehicle other than the driver (or equivalent weight placed in driver's position).

• Coolant and engine oil filled to correct level, and fuel tank full.

• Remove cargo and/or luggage to maintain an unloaded vehicle condition.

• Confirm spare tire, jack and tools are properly stowed.

• Carefully wipe off any dirt from headlamp lens.

CAUTION:

Do not use organic solvent (thinner, gasoline etc.)

• Place a driver or equivalent weight of 68.5 kg (150 lb) on the driver seat.

• By hand, bounce the front and rear of the vehicle to settle the suspension and eliminate any static load.

• Place the front tires in the straight ahead position.

• Aim each headlamp individually and ensure other headlamp beam pattern is blocked from screen.

NOTE:

• For headlamp aiming details, refer to regulations in your area.

• By regulation, no means for horizontal aim adjustment is provided from the factory; only vertical aim is

adjustable.

• Use adjusting screw to perform aiming adjustment.

• Perform headlamp aiming if:

- The vehicle front body has been repaired.

- The front combination lamp has been removed or replaced.

- Any outfitting has been installed.

- The vehicle’s standard load condition has been substantially increased.

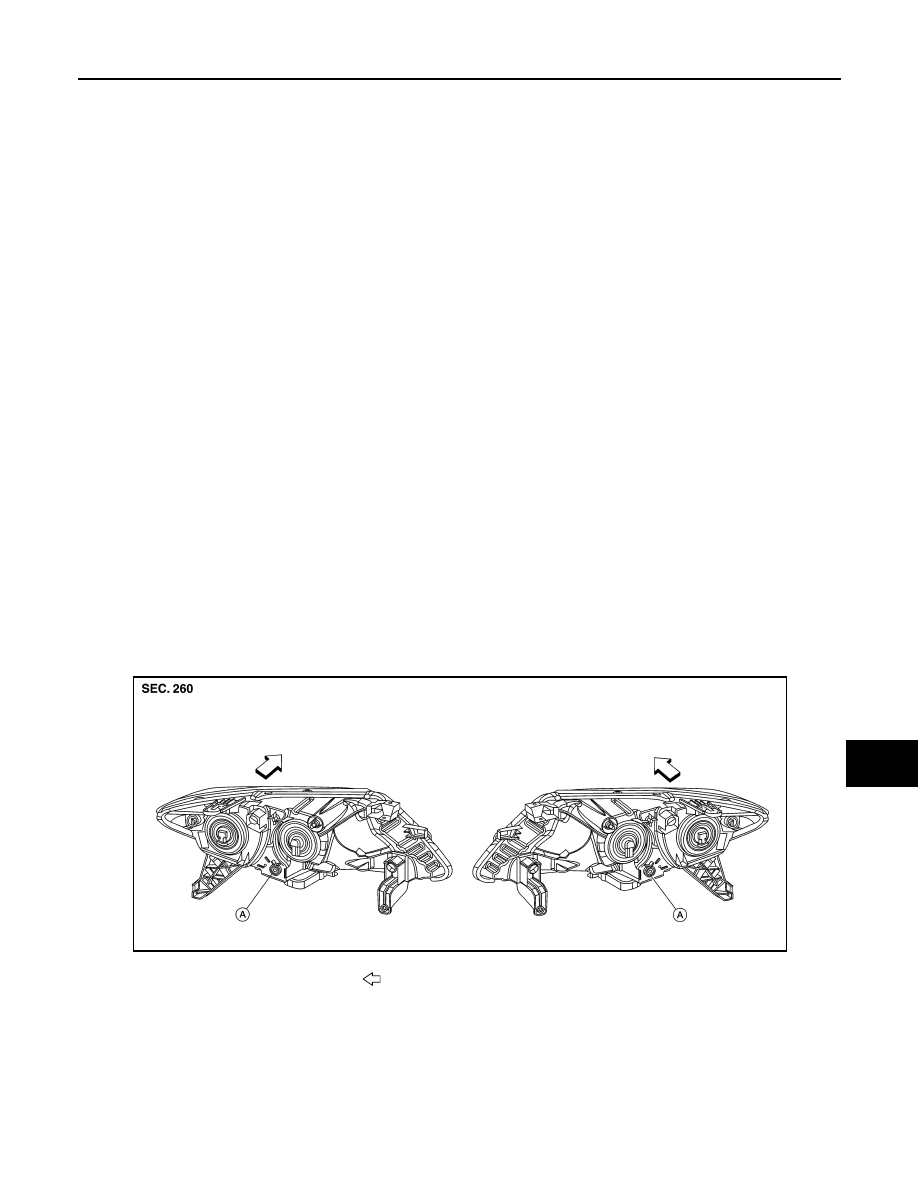

AIMING ADJUSTMENT SCREW

A. Headlamp HI/LO (UP/DOWN)

adjustment screw

Front

AWLIA2198ZZ

EXL-138

< PERIODIC MAINTENANCE >

HEADLAMP

Aiming Adjustment Procedure

INFOID:0000000009175401

Aiming Chart

LOW BEAM AND HIGH BEAM

NOTE:

• Basic illuminating area for evaluation and/or adjustment should be within range shown on aiming chart.
1. Use adjustment screw to perform aiming adjustment.

• Ensure fog lamps (if equipped) are turned off.

2. Block the opposite headlamp from projecting a beam pattern onto the adjustment screen, using a suitable

object. Aim each headlamp individually.

CAUTION:

Do not cover the lens surface with tape etc. The lens is made of resin.

3. Place the screen on the same level and flat surface as the vehicle.

NOTE:

• Surface should be free of any debris that would cause a difference between the headlamp center and

the adjustment screen.

4. Face the front of the vehicle to the screen and measure distance between the headlamp center and the

screen surface.

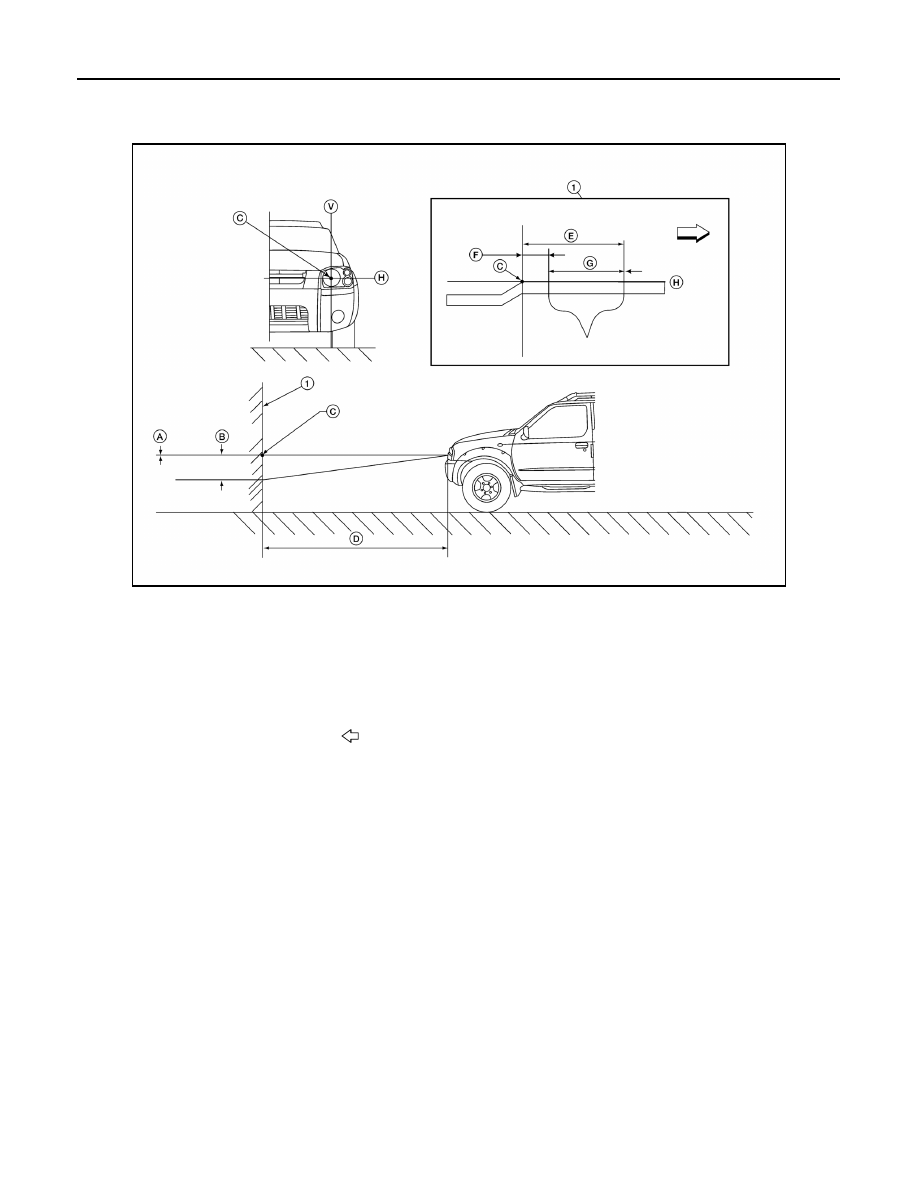

AWLIA1960ZZ

1.

Adjustment screen

A.

Highest cutoff line height

B.

Lowest cutoff line height

C.

Headlamp bulb center (H-V point)

D.

Distance of headlamp aiming
screen from vehicle 7.62 m (25 ft)

E.

Maximum aim evaluation distance
from vertical center on aiming
screen 399 mm (3

°R)

F.

Minimum aim evaluation distance
from vertical center on aiming
screen 133 mm (1

°R)

G.

Aim evaluation area

H.

Horizontal aiming evaluation line

V.

Vertical aiming evaluation line

Right

A (Highest cutoff line height)

-13.3 mm (-0.5 in)

0.1

° up

B (Lowest cutoff line height)

 53.2 mm (2.1 in)

0.4

° down

HEADLAMP

EXL-139

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

5. Start the engine and turn the headlamp on.
6. Determine the preferred vertical aim range dimensions, using the aiming chart.
7. Measure the projected beam within the aim evaluation segment on the screen.
8. Adjust the beam pattern of each headlamp until the aim evaluation segment (the area relative to both the

highest and lowest cutoff line height) is positioned within the vertical aim range dimensions shown on the

aiming chart.

Distance (D) between the headlamp center and the screen

: 7.62 m (25 ft)
