Nissan Pathfinder. Manual - part 558

REAR TIMING CHAIN CASE

EM-71

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

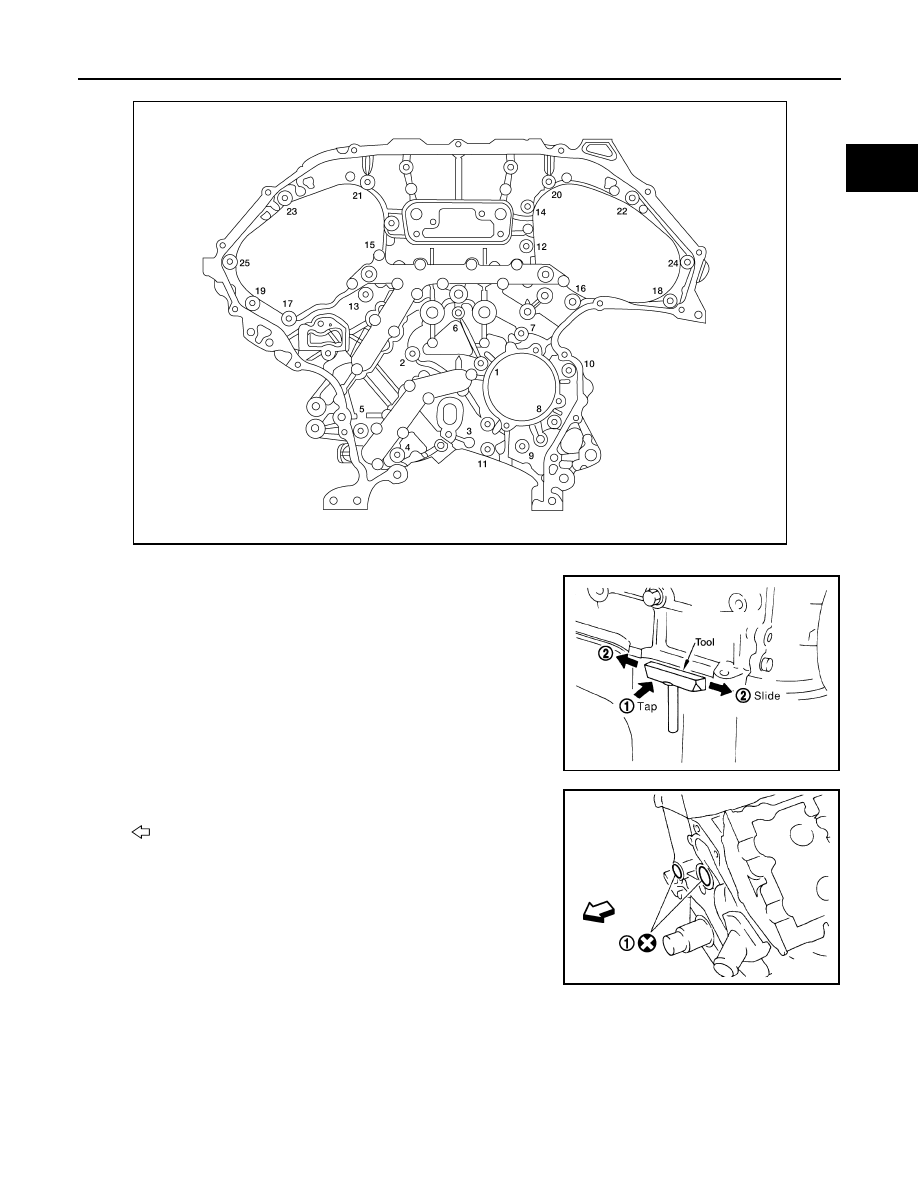

a. Loosen and remove the rear timing chain case bolts in the reverse order shown.

b. Cut the sealant using Tool and remove the rear timing chain case.

• After removing the bolts, separate the mating surface and

remove the old liquid gasket using Tool.

CAUTION:

Do not damage the mating surfaces.

• Tap the seal cutter to insert it (1).

• In areas where the Tool is difficult to use, lightly tap to slide it

(2).

6. Remove O-rings (1) from cylinder block.

CAUTION:

Do not reuse O-rings.

AWBIA0710ZZ

Tool number

: KV10111100 (J-37228)

WBIA0566E

: Engine front

JPBIA0090ZZ

EM-72

< REMOVAL AND INSTALLATION >

REAR TIMING CHAIN CASE

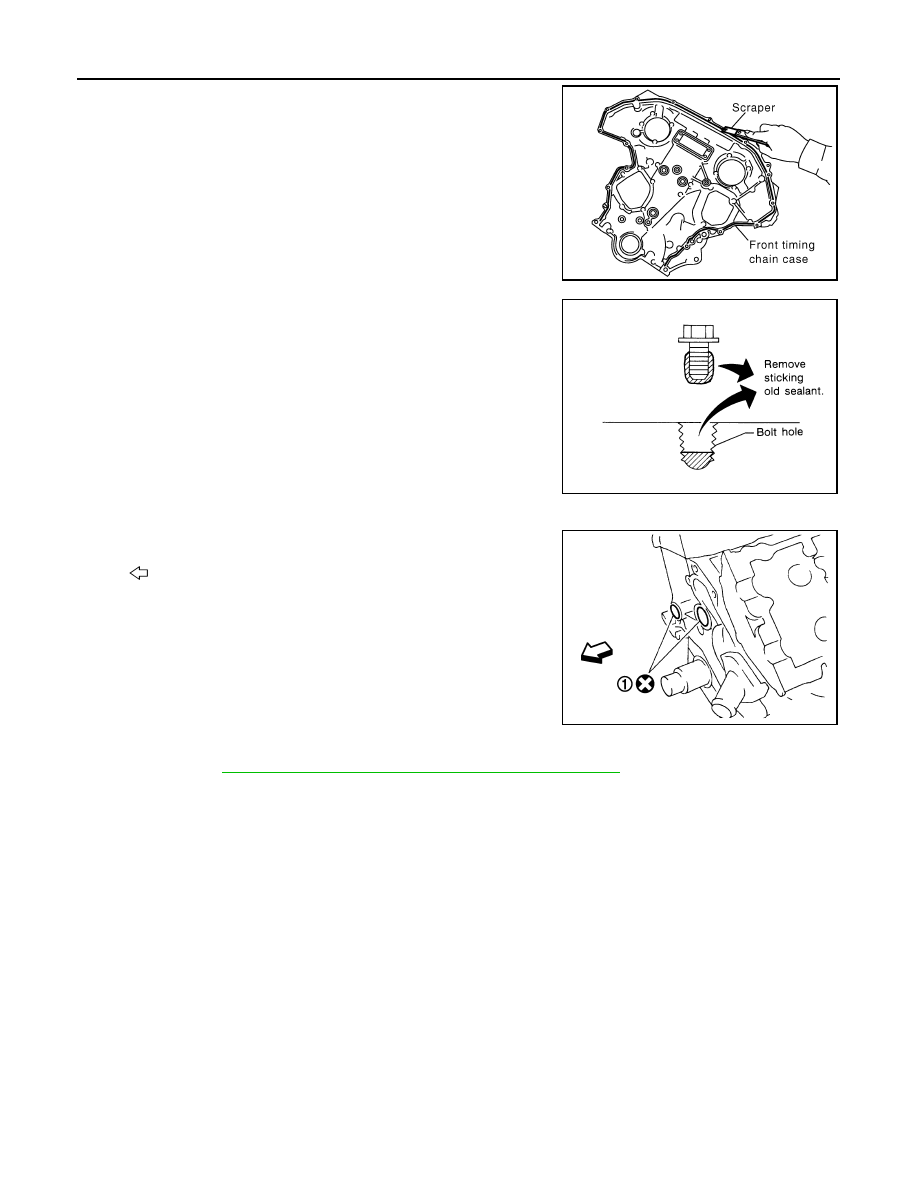

7. Use a scraper to remove all of the old Silicone RTV Sealant from

the front and rear timing chain case and opposite mating sur-

faces.

CAUTION:

Do not damage the mating surfaces.

8. Remove all old Silicone RTV Sealant from all the bolt holes and

bolts.

CAUTION:

Do not damage the threads or mating surfaces.

INSTALLATION

1. Install O-rings (1) on cylinder block.

CAUTION:

Do not reuse O-rings.

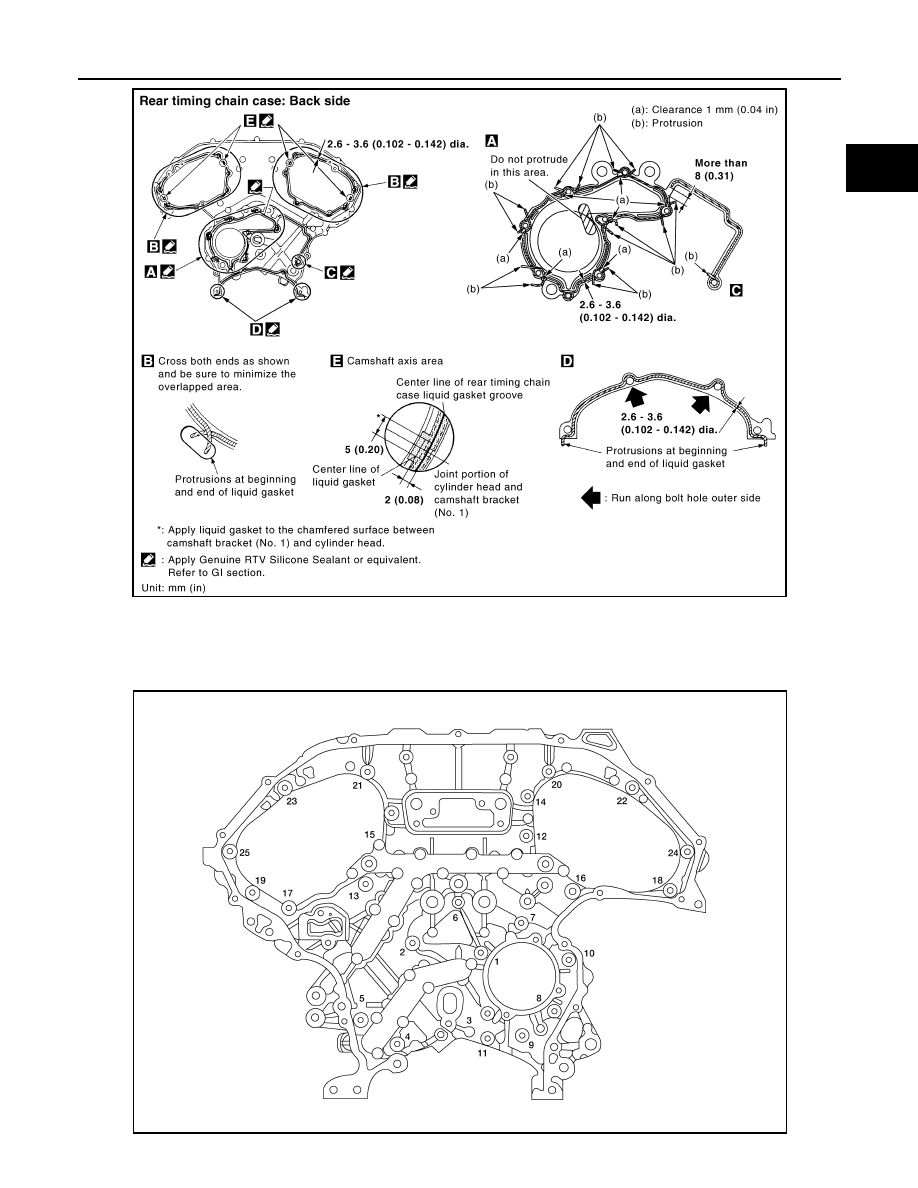

2. Apply Genuine Silicone RTV Sealant or equivalent, to the rear timing chain case using suitable tool as

shown. Refer to

GI-22, "Recommended Chemical Products and Sealants"

.

CAUTION:

• Installation should be done within 5 minutes after applying liquid gasket.

• Do not fill the engine with engine oil for at least 30 minutes after the components are installed to

allow the sealant to cure.

• Wipe off liquid gasket where it touches the engine coolant passage at point “a”.

• Follow the installation instructions for applying the liquid gasket. Pay particular attention to the

water pump and cylinder area.

SEM428G

SEM161F

: Engine front

JPBIA0090ZZ

REAR TIMING CHAIN CASE

EM-73

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

3. Align the rear timing chain case and water pump assembly with the dowel pins (RH and LH) on the cylin-

der block and install the case. Make sure the O-rings stay in place during installation.

a. Tighten the bolts in the numerical order as shown. There are two bolt lengths used. Follow the chart below

for proper bolt length specifications.

PBIC2680E

AWBIA0710ZZ

EM-74

< REMOVAL AND INSTALLATION >

REAR TIMING CHAIN CASE

b. After all bolts are initially tightened, retighten them to the specification in the numerical order as shown.

NOTE:

If liquid gasket protrudes, wipe it off immediately.

4. Install the timing chains (primary and secondary). Refer to

EM-62, "Removal and Installation"

.

5. Install the front timing chain case. Refer to

EM-54, "Removal and Installation"

.

6. Install the upper oil pan. Refer to

EM-37, "Removal and Installation (Upper Oil Pan)"

.

7. Install the engine assembly. Refer to

EM-102, "2WD : Removal and Installation"

 (2WD) or

EM-107, "4WD

: Removal and Installation"

 (4WD).

Bolt length

Bolt position

Torque specification

20 mm (0.79 in)

1, 2, 3, 6, 7, 8, 9, 10 12.7 N·m (1.3 kg-m, 9 ft-lb)

16 mm (0.63 in)

All except the
above

12.7 N·m (1.3 kg-m, 9 ft-lb)
