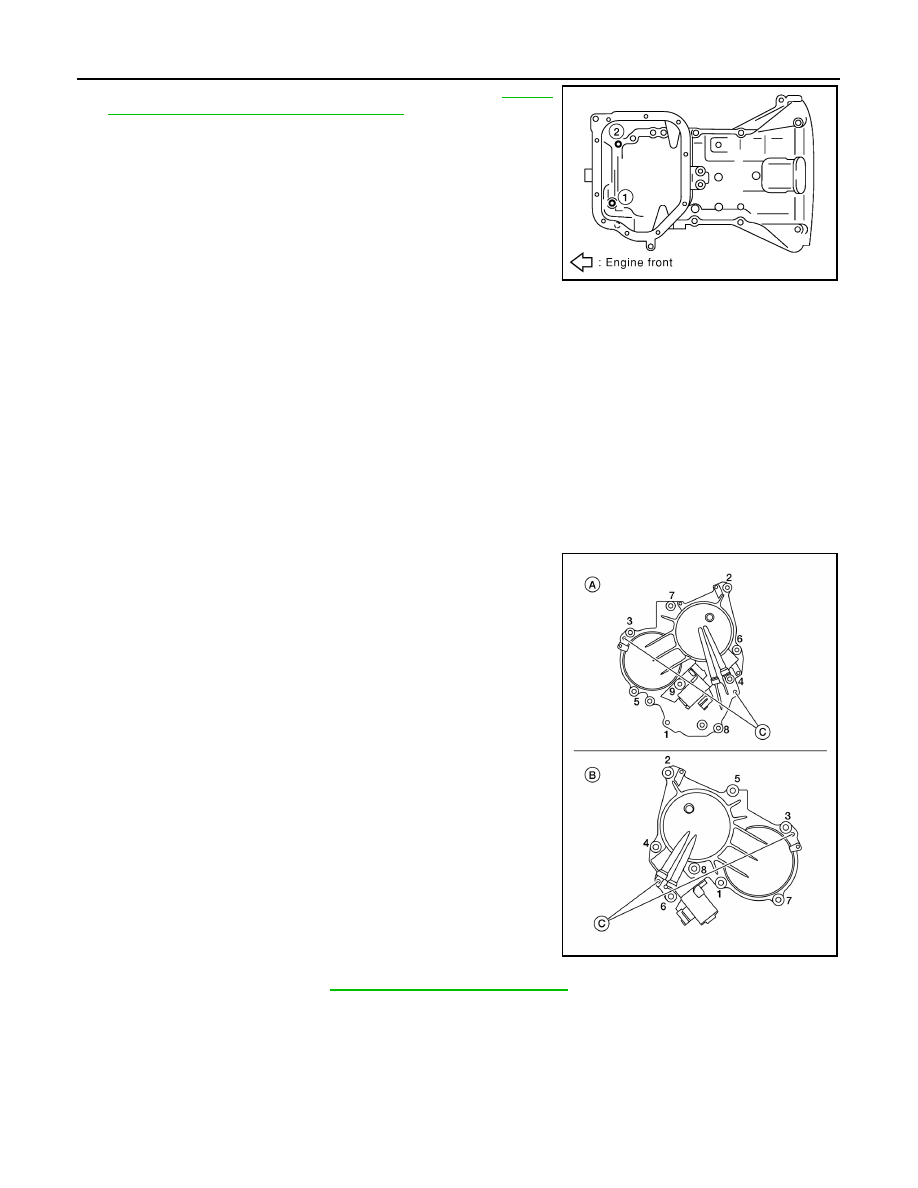

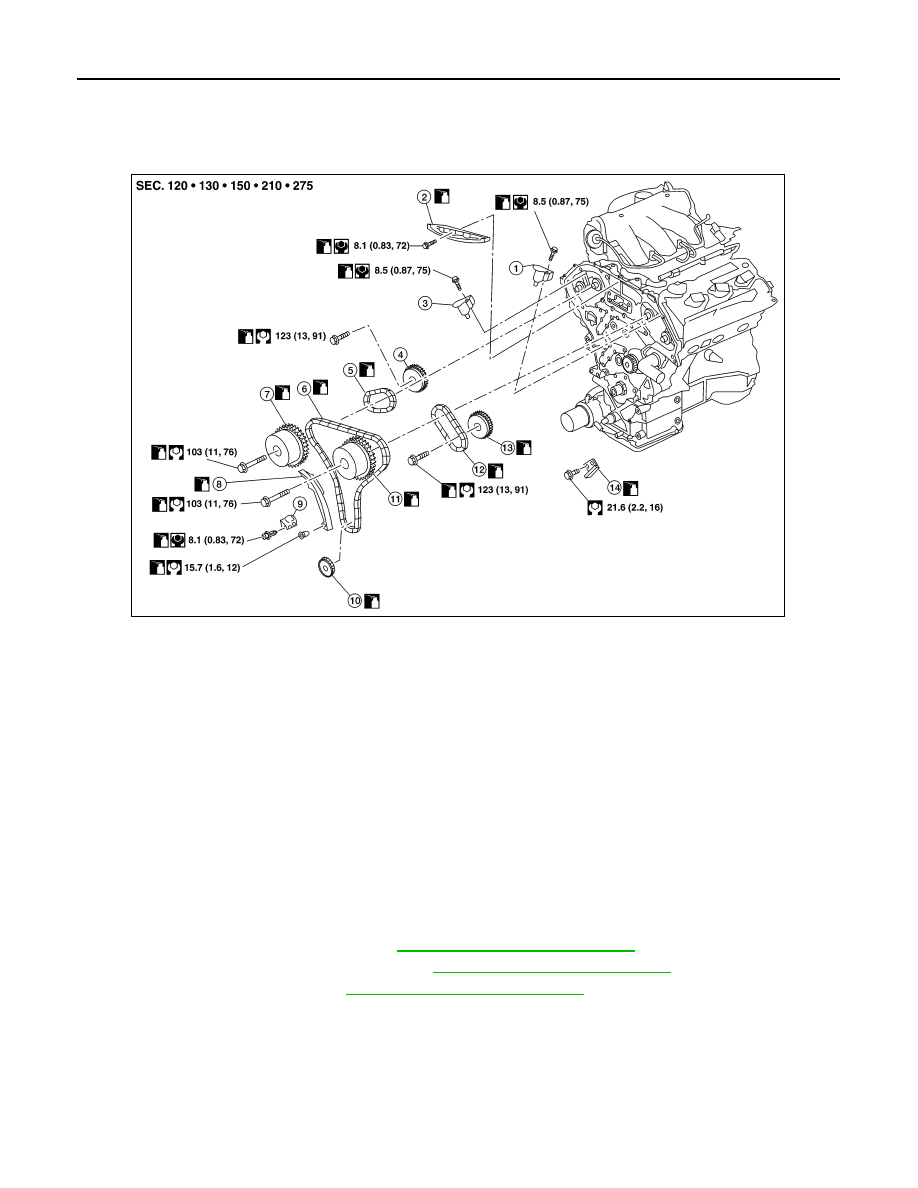

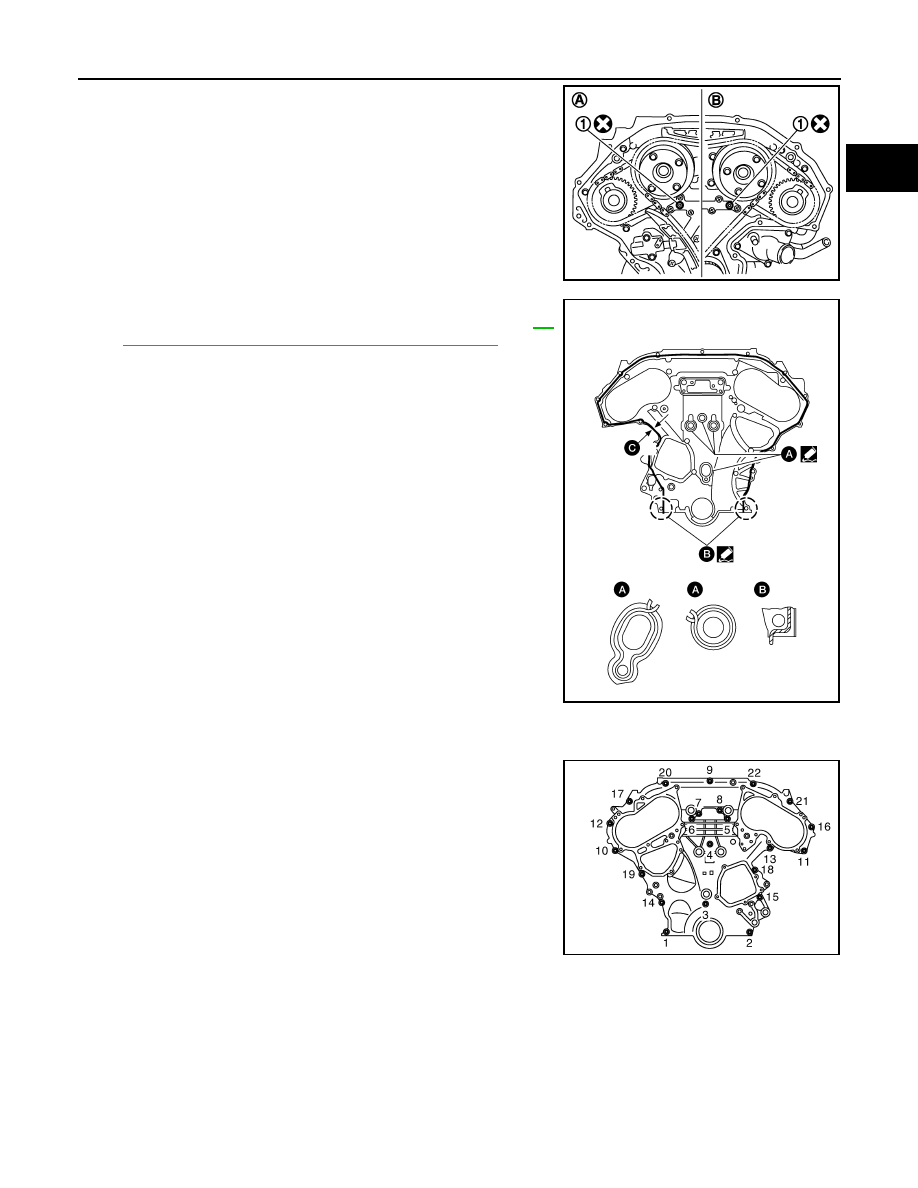

FRONT TIMING CHAIN CASE EM-59 < REMOVAL AND INSTALLATION > C D E F G H I J K L M A EM N P O 3. Install new O-rings (1) on rear timing chain case. CAUTION: Do not reuse O-rings. 4. Apply liquid gasket to front timing chain case as shown. • Use Genuine Silicone RTV Sealant or equivalent. Refer to 22, "Recommended Chemical Products and Sealants" . • Before installation, wipe off the protruding liquid gasket. • (C): 2.6 - 3.6 mm (0.102 - 0.142 in) diameter. CAUTION: • Installation should be done within 5 minutes after apply- ing liquid gasket. • Do not fill the engine with engine oil for at least 30 min- utes after the components are installed to allow the liquid gasket to cure. 5. Install the front timing chain case by aligning the dowel pin on the rear timing chain case with the dowel pin hole in front timing chain case. 6. Loosely install the front timing chain case bolts. 7. Tighten the front timing chain case bolts in the order shown. • Retighten the front timing chain case bolts in the order shown. (A) : Bank 1 (RH) (B) : Bank 2 (LH) JPBIA1111ZZ ALBIA0252ZZ Bolt position Bolt diameter : 8 mm (0.31 in) 3 – 22 : 6 mm (0.24 in) Bolt position Tightening specification : 28.4 N·m (2.9 kg-m, 21 ft-lb) 3 – 22 : 12.7 N·m (1.3 kg-m, 9 ft-lb) JPBIA1640ZZ |
