FUEL INJECTOR AND FUEL TUBE

EM-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Insert until you hear a “click” sound and actually feel the engagement.

• To avoid misidentification of engagement with a similar sound, be sure to perform the next step.

d. Pull quick connector by hand holding position. Check it is completely engaged (connected) so that it does

not come out from fuel tube.

e. Install quick connector cap (3) to quick connector.

• Install quick connector cap with arrow (A) on surface facing in

direction of quick connector (fuel feed hose side).

CAUTION:

If quick connector cap cannot be installed smoothly, quick

connector may have not been installed correctly. Check

connection again.

f.

Secure fuel feed hose to clamp of quick connector cap.

8. Installation of the remaining components is in the reverse order of removal.

Inspection

INFOID:0000000009177918

INSPECTION AFTER INSTALLATION

Check For Fuel Leaks

1. Turn ignition switch “ON” with the engine stopped. With fuel pressure applied to fuel piping, check for fuel

leaks at connection points. Repair as necessary.

NOTE:

Use mirrors for checking at points out of clear sight.

2. Start the engine. With engine speed increased, check again for fuel leaks at connection points. Repair as

necessary.

WARNING:

Do not touch the engine immediately after stopped, as the engine becomes extremely hot.

NOTE:

Use mirrors for checking on connections out of the direct line of sight.

• Perform procedures for “Throttle Valve Closed Position Learning” after finishing repairs. Refer to

EC-

142, "Work Procedure"

.

• If electric throttle control actuator is replaced, perform procedures for “Idle Air Volume Learning” after

finishing repairs. Refer to

EC-143, "Work Procedure"

.

(1)

: Fuel feed hose

(2)

: Fuel tube

(B)

: Upper view

JPBIA0039ZZ

EM-52

< REMOVAL AND INSTALLATION >

INTAKE VALVE TIMING CONTROL

INTAKE VALVE TIMING CONTROL

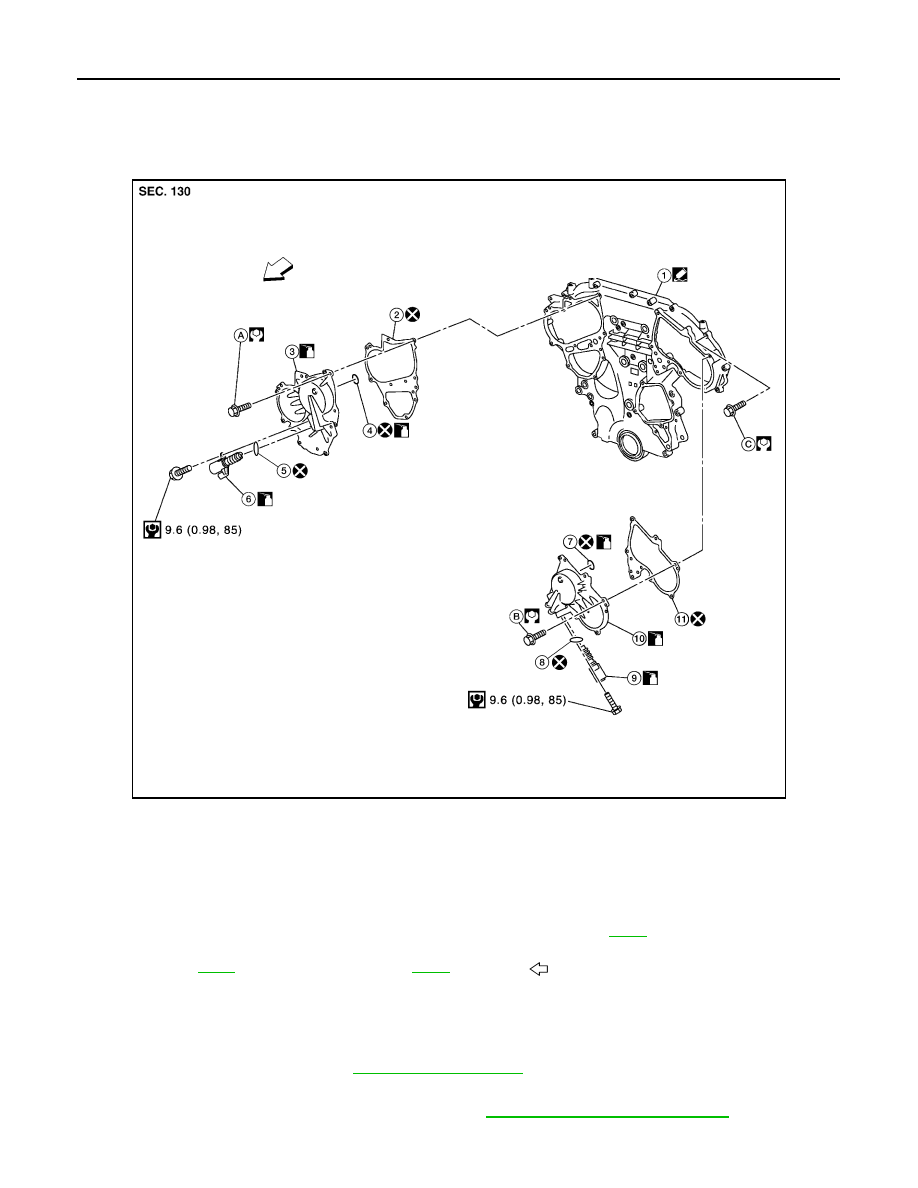

Exploded View

INFOID:0000000009177919

Intake Valve Timing Control Solenoid Valve (LH)

INFOID:0000000009177920

REMOVAL

1. Remove the front air duct. Refer to

EM-24, "Exploded View"

.

2. Remove coolant reservoir hose and tank.
3. Remove the washer fluid reservoir filler neck. Refer to

WW-54, "Removal and Installation"

.

4. Disconnect intake valve timing control solenoid valve harness connector.

AWBIA1635ZZ

1.

Front timing chain case

2.

Intake valve timing control
cover gasket (RH)

3.

Intake valve timing control cover (RH)

4.

Intake valve timing control cov-
er O-ring (RH)

5.

Intake valve timing control
solenoid valve O-ring (RH)

6.

Intake valve timing control solenoid valve
(RH)

7.

Intake valve timing control cov-
er O-ring (LH)

8.

Intake valve timing control
solenoid valve O-ring (LH)

9.

Intake valve timing control solenoid valve
(LH)

10. Intake valve timing control cov-

er (LH)

11. Intake valve timing control

cover gasket (LH)

A.

 Refer to

EM-54

B.

 Refer to

EM-54

C.

 Refer to

EM-54

Engine front

INTAKE VALVE TIMING CONTROL

EM-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

5. Remove intake valve timing control solenoid valve and O-ring from intake valve timing control cover.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Replace the O-ring for the intake valve timing control solenoid valve with a new one, then lubricate

O-ring with engine before installing.

Intake Valve Timing Control Solenoid Valve (RH)

INFOID:0000000009177921

REMOVAL

1. Remove the front air duct. Refer to

EM-24, "Exploded View"

.

2. Remove the engine room cover. Refer to

EM-23, "Exploded View"

.

3. Remove coolant reservoir hose and tank.
4. Remove the washer fluid reservoir filler neck. Refer to

WW-54, "Removal and Installation"

.

5. Remove electric power steering oil pump and bracket. Refer to

ST-52, "Removal and Installation"

.

6. Support engine using suitable tool.
7. Remove upper engine mount and bracket. Refer to

EM-102, "2WD : Exploded View"

.

8. Disconnect intake valve timing control solenoid valve harness connector.
9. Remove intake valve timing control solenoid valve and O-ring from intake valve timing control cover.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-rings.

• Replace the O-ring for the intake valve timing control solenoid valve with a new one, then lubricate

O-ring with engine oil before installing.

Intake valve timing control solenoid valve bolt : 9.6 N·m (0.98 kg-m, 85 in-lb)

Intake valve timing control solenoid valve bolt

: 9.6 N·m (0.98 kg-m, 85 in-lb)

EM-54

< REMOVAL AND INSTALLATION >

FRONT TIMING CHAIN CASE

FRONT TIMING CHAIN CASE

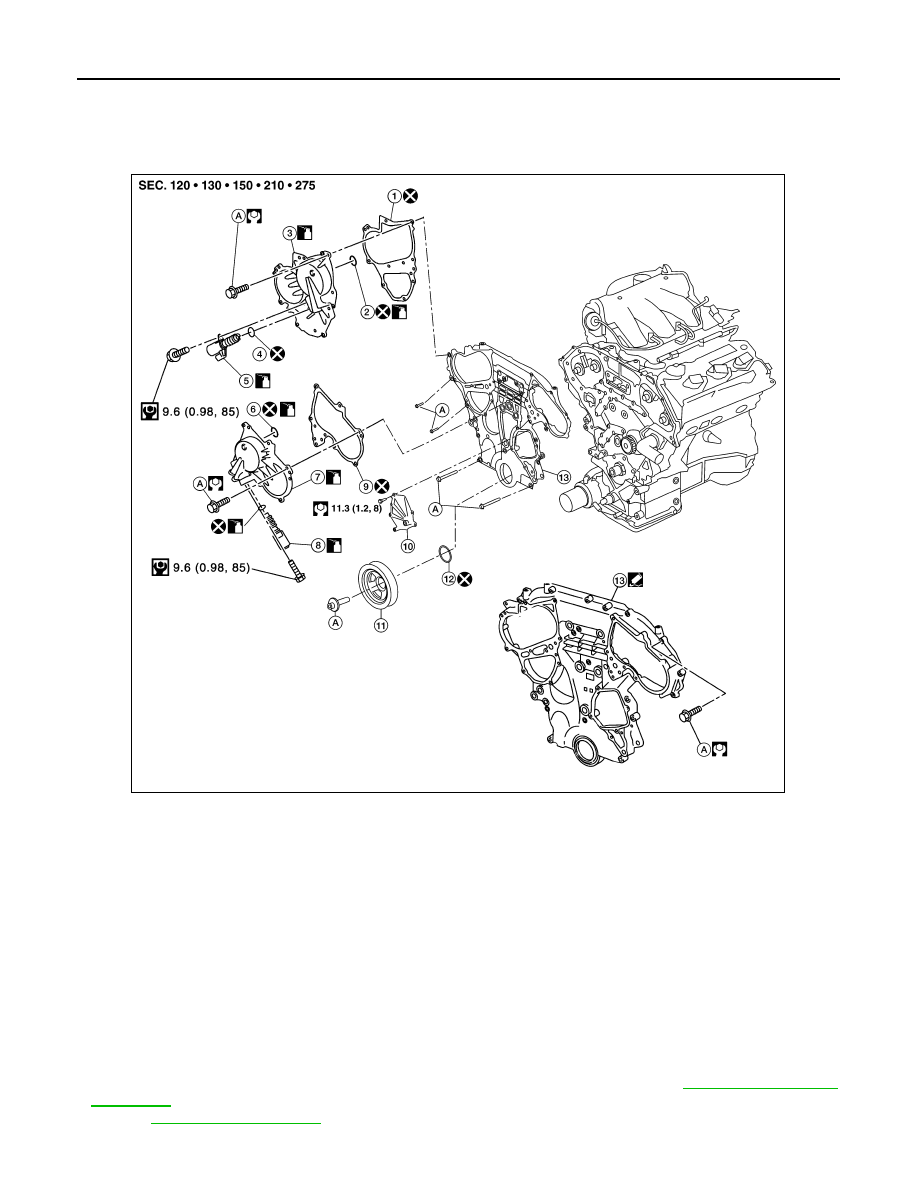

Exploded View

INFOID:0000000009177922

Removal and Installation

INFOID:0000000009177923

NOTE:

• This section describes the procedure for removal/installation of the front timing chain case in vehicle and

without removing the oil pan (upper). Remove the engine prior to following this procedure if the engine is to

be removed to facilitate other repairs.

• To remove the rear timing chain case, remove the engine from the vehicle. Refer to

EM-70, "Removal and

Installation"

• Refer to

EM-62, "Exploded View"

 for component parts location.

1.

Intake valve timing control cover
gasket (RH)

2.

Intake valve timing control cover
O-ring (RH)

3.

Intake valve timing control cover
(RH)

4.

Intake valve timing control sole-
noid valve O-ring (RH)

5.

Intake valve timing control cover
solenoid valve (RH)

6.

Intake valve timing control cover
O-ring (LH)

7.

Intake valve timing control cover
(LH)

8.

Intake valve timing control sole-
noid valve (LH)

9.

Intake valve timing control cover
gasket (LH)

10. Water pump cover

11. Crankshaft pulley

12. Front oil seal

13. Front timing chain case

A.

Follow installation procedure

AWBIA1636ZZ
