OIL PAN AND OIL STRAINER

EM-39

< REMOVAL AND INSTALLATION >

14. Remove front cover gasket and rear oil seal retainer gasket.

15. If re-installing the original oil pan, remove the old sealant from

the mating surfaces using a scraper.

• Also remove the old sealant from mating surface of the cylin-

der block.

• Remove the old sealant from the bolt holes and threads.

CAUTION:

Do not scratch or damage the mating surfaces when clean-

ing off the old sealant.

INSPECTION AFTER REMOVAL

Clean debris from oil strainer.

INSTALLATION

1. Install oil strainer and tighten bolt to specified torque. Refer to

EM-36, "Exploded View"

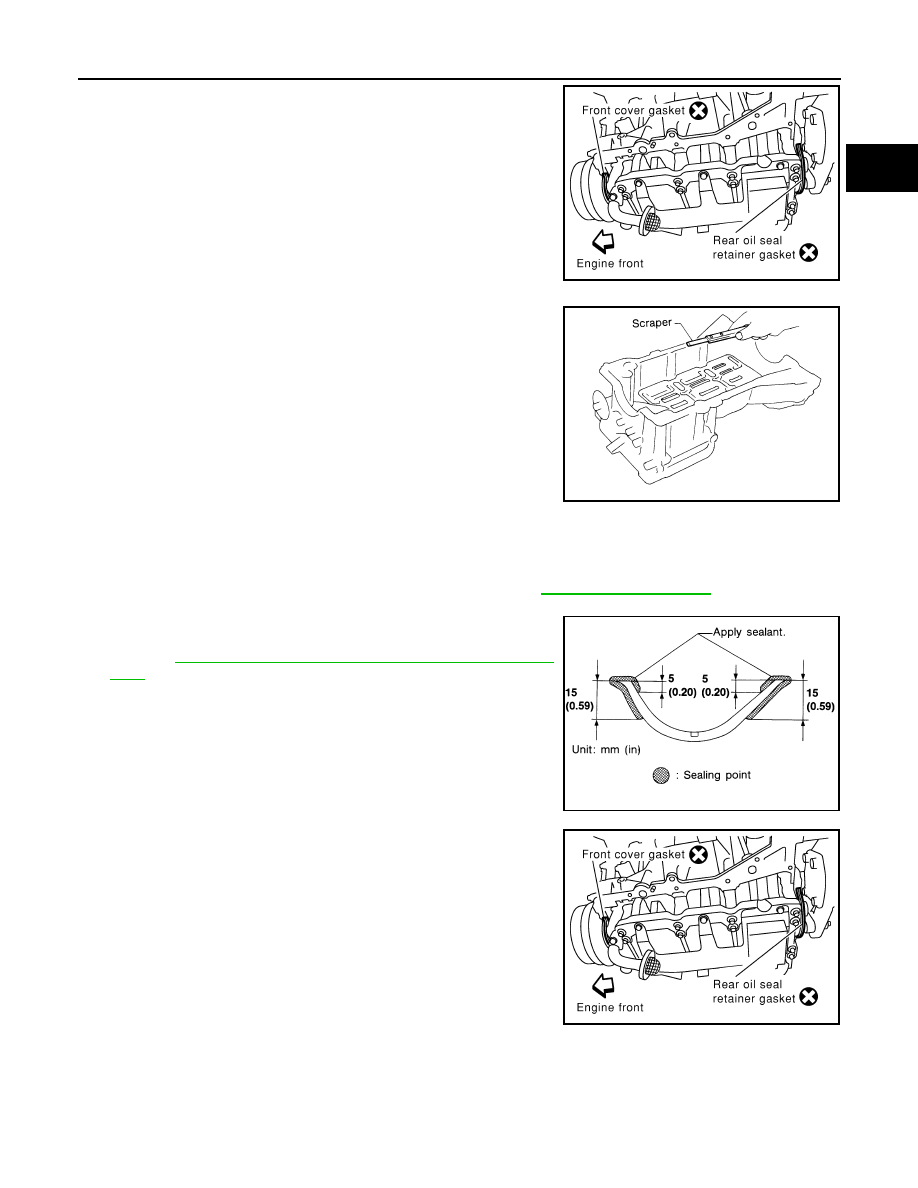

2. Apply Genuine Silicone RTV Sealant or equivalent to the front

cover gasket and the rear oil seal retainer gasket as shown.

Refer to

ants"

CAUTION:

• Installation should be done within 5 minutes after apply-

ing liquid gasket.

• Do not fill the engine with engine oil for at least 30 min-

utes after the components are installed to allow the seal-

ant to cure.

3. Install the front cover gasket and rear oil seal retainer gasket as

shown.

CAUTION:

Do not reuse front cover gasket or rear oil seal retainer gas-

ket.

WBIA0328E

MEM108A

SEM964E

WBIA0328E

EM-40

< REMOVAL AND INSTALLATION >

OIL PAN AND OIL STRAINER

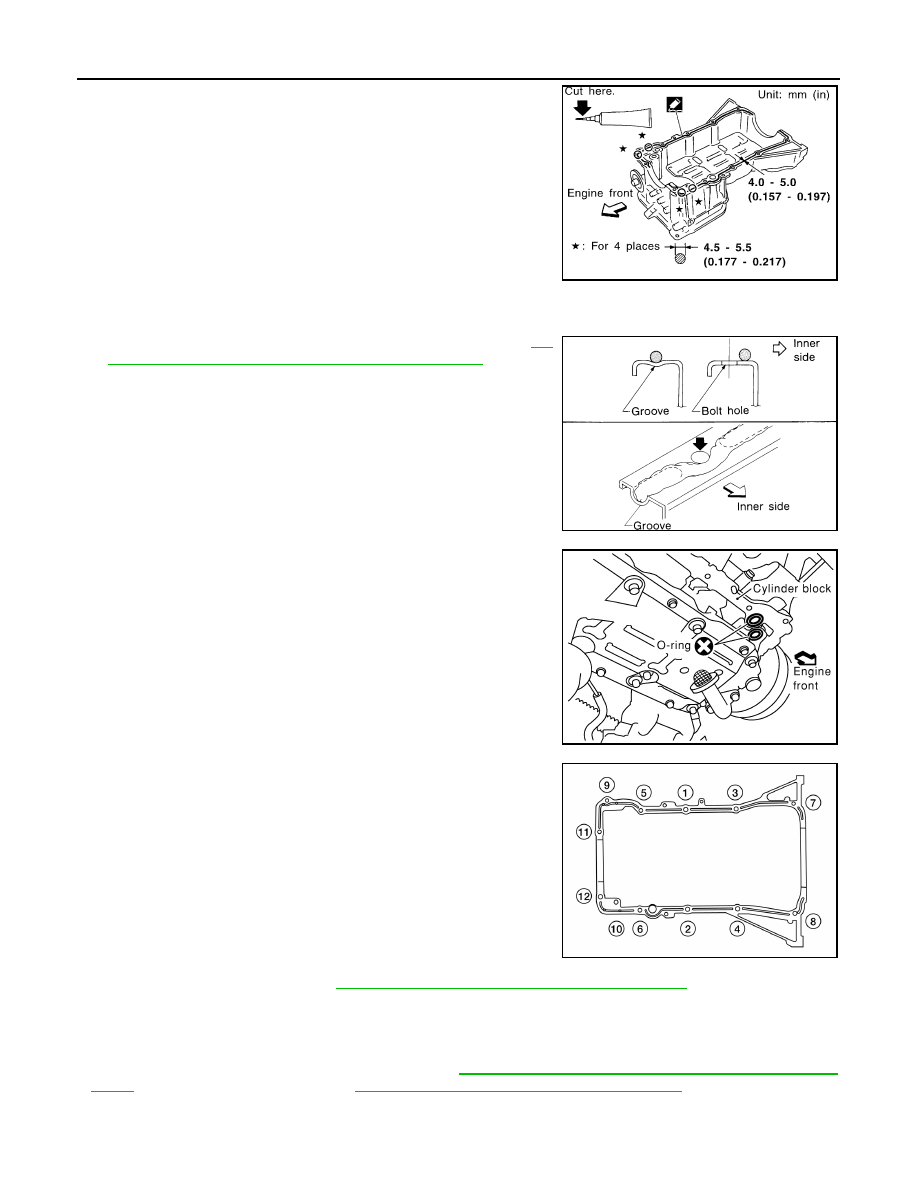

4. Apply a bead of sealant to the cylinder block mating surface of

the upper oil pan as shown.

CAUTION:

• Installation should be done within 5 minutes after apply-

ing liquid gasket.

• Do not fill the engine with engine oil for at least 30 min-

utes after the components are installed to allow the seal-

ant to cure.

NOTE:

• Apply liquid gasket to the outside of bolt holes 5, 6, 10, 11 and

12.

• Apply liquid gasket to the inside of the other bolt holes.

a. Be sure the sealant is applied 4.0 - 5.0 mm (0.157 - 0.197 in) as shown. Increase the bead to 4.5 - 5.5 mm

(0.177 - 0.217 in) at the four places indicated.

b. Use Genuine Silicone RTV Sealant, or equivalent. Refer to

GI-

5. Install new O-rings on the cylinder block and oil pump body.

CAUTION:

Do not reuse O-rings.

6. Install the upper oil pan.

• Tighten bolts (1) and (2) to specification within five minutes of

applying the liquid gasket.

• Tighten the remaining upper oil pan bolts to specification in the

order shown.

CAUTION:

• Installation should be done within 5 minutes after apply-

ing liquid gasket.

• Do not fill the engine with engine oil for at least 30 min-

utes after the components are installed to allow the seal-

ant to cure.

7. Install the lower oil pan. Refer to

EM-36, "Removal and Installation (Lower Oil Pan)"

8. Installation of the remaining components is in the reverse order of removal.

INSPECTION AFTER INSTALLATION

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If there is less than

required quantity, fill to the specified level. Refer to

MA-15, "FOR USA AND CANADA : Fluids and Lubri-

cants"

(United States and Canada) or

MA-16, "FOR MEXICO : Fluids and Lubricants"

(Mexico).

• Use procedure below to check for fuel leaks.

• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leaks

at connection points.

SEM185FA

SEM159F

WBIA0327E

AWBIA1212GB

OIL PAN AND OIL STRAINER

EM-41

< REMOVAL AND INSTALLATION >

• Start engine. With engine speed increased, check again for fuel leaks at connection points.

• Run engine to check for unusual noise and vibration.

NOTE:

If hydraulic pressure inside timing chain tensioner drops after removal and installation, slack in the guide

may generate a pounding noise during and just after engine start. However, this is normal. Noise will stop

after hydraulic pressure rises.

• Warm up engine thoroughly to make sure there are no leaks of fuel, exhaust gas, or any oils/fluids including

engine oil and engine coolant.

• Bleed air from passages in lines and hoses, such as in cooling system.

• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to spec-

ified level, if necessary.

• Summary of the inspection items:

*Power steering fluid, brake fluid, etc.

Item

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leaks

Level

Engine oil

Level

Leaks

Level

Transaxle Fluid

CVT Models

Leaks

Level/Leaks

Leaks

Level/Leaks

Leaks

Level/Leaks

Other oils and fluids*

Level

Leaks

Level

Fuel

Leaks

Exhaust gas

—

Leaks

—

EM-42

< REMOVAL AND INSTALLATION >

IGNITION COIL

IGNITION COIL

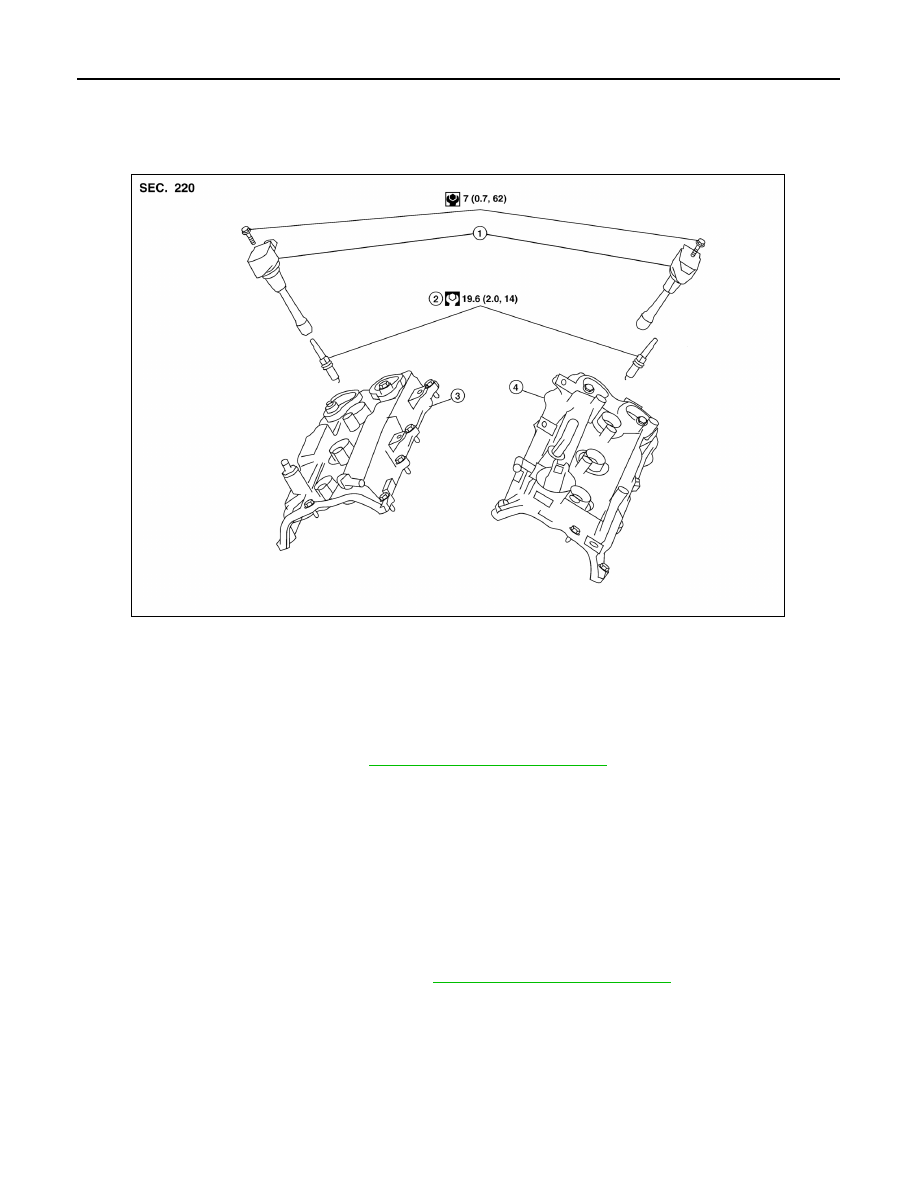

Exploded View

INFOID:0000000009177910

Removal and Installation (LH)

INFOID:0000000009177911

REMOVAL

1. Remove engine room cover. Refer to

EM-23, "Removal and Installation"

2. Disconnect ignition coil harness connector.
3. Remove the ignition coil.

CAUTION:

Do not shock ignition coil.

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation (RH)

INFOID:0000000009177912

REMOVAL

1. Remove the intake manifold collector. Refer to

EM-26, "Removal and Installation"

2. Disconnect ignition coil harness connector.
3. Remove the ignition coil.

CAUTION:

Do not shock ignition coil.

INSTALLATION

Installation is in the reverse order of removal.

Ignition coil

Spark plug

Rocker cover (RH)

Rocker cover (LH)

AWBIA1226GB
