EC-442

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

MALFUNCTION INDICATOR LAMP

MALFUNCTION INDICATOR LAMP

Component Function Check

INFOID:0000000009178373

1.

CHECK MIL FUNCTION

1. Turn ignition switch ON.

2. Check that MIL illuminates.
Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

EC-443, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009178374

1.

CHECK DTC

Check that DTC UXXXX is not displayed.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Perform trouble diagnosis for DTC UXXXX.

2.

CHECK COMBINATION METER FUNCTION

Check combination meter function. Refer to

MWI-19, "CONSULT Function (METER/M&A)"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace.

3.

CHECK INTERMITTENT INCIDENT

Check intermittent incident. Refer to

GI-49, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-82, "Removal and Installation"

.

NO

>> Repair or replace error-detected parts.

ON BOARD REFUELING VAPOR RECOVERY (ORVR)

EC-443

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

ON BOARD REFUELING VAPOR RECOVERY (ORVR)

Component Function Check

INFOID:0000000009178375

1.

CHECK ORVR FUNCTION

Check whether the following symptoms are present.

• Fuel odor from EVAP canister is strong.

• Cannot refuel/Fuel odor from the fuel filler opening is strong while refueling.
Are any symptoms present?

YES

>> Proceed to

EC-444, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009178376

1.

INSPECTION START

Check whether the following symptoms are present.

A: Fuel odor from EVAP canister is strong.

B: Cannot refuel/Fuel odor from the fuel filler opening is strong while refueling.
A or B

A

>> GO TO 2.

B

>> GO TO 7.

2.

CHECK EVAP CANISTER

1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor

attached. Refer to

FL-18, "Removal and Installation"

.

2. Weigh the EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor

attached.

The weight should be less than 2.1 kg (4.6 lb).

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 4.

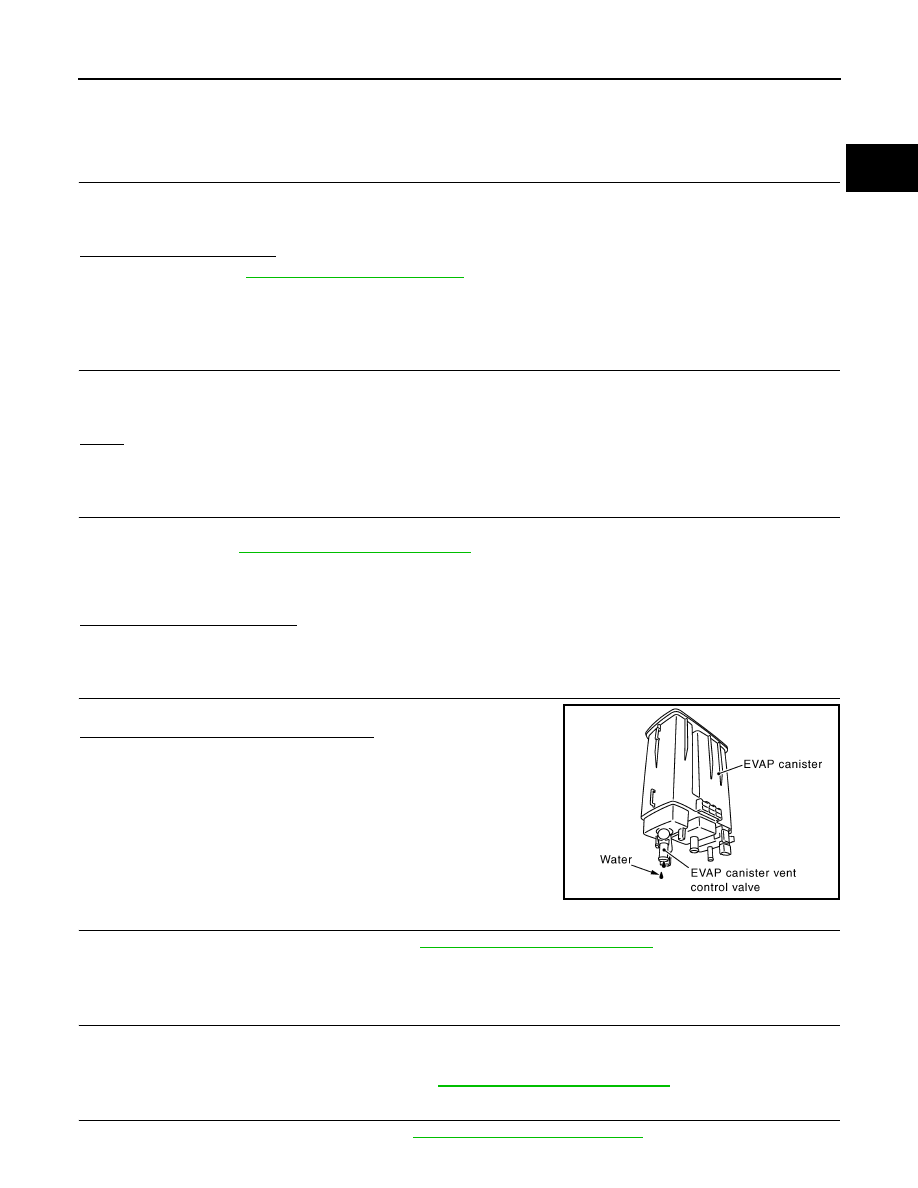

3.

CHECK IF EVAP CANISTER IS SATURATED WITH WATER

Check if water will drain from EVAP canister
Does water drain from the EVAP canister?

YES

>> GO TO 4.

NO

>> GO TO 6.

4.

REPLACE EVAP CANISTER

Replace EVAP canister with a new one. Refer to

FL-18, "Removal and Installation"

.

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the EVAP hose between EVAP canister and vehicle frame for clogging or poor connection.

>> Repair or replace EVAP hose. Refer to

FL-20, "Removal and Installation"

.

6.

CHECK REFUELING EVAP VAPOR CUT VALVE

Check refueling EVAP vapor cut valve. Refer to

EC-446, "Component Inspection"

.

JMBIA1134GB

EC-444

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

ON BOARD REFUELING VAPOR RECOVERY (ORVR)

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace refueling EVAP vapor cut valve with fuel tank. Refer to

FL-18, "Removal and Installation"

.

7.

CHECK EVAP CANISTER

1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor

attached. Refer to

FL-18, "Removal and Installation"

.

2. Weigh the EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor

attached.

The weight should be less than 2.1 kg (4.6 lb).

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> GO TO 9.

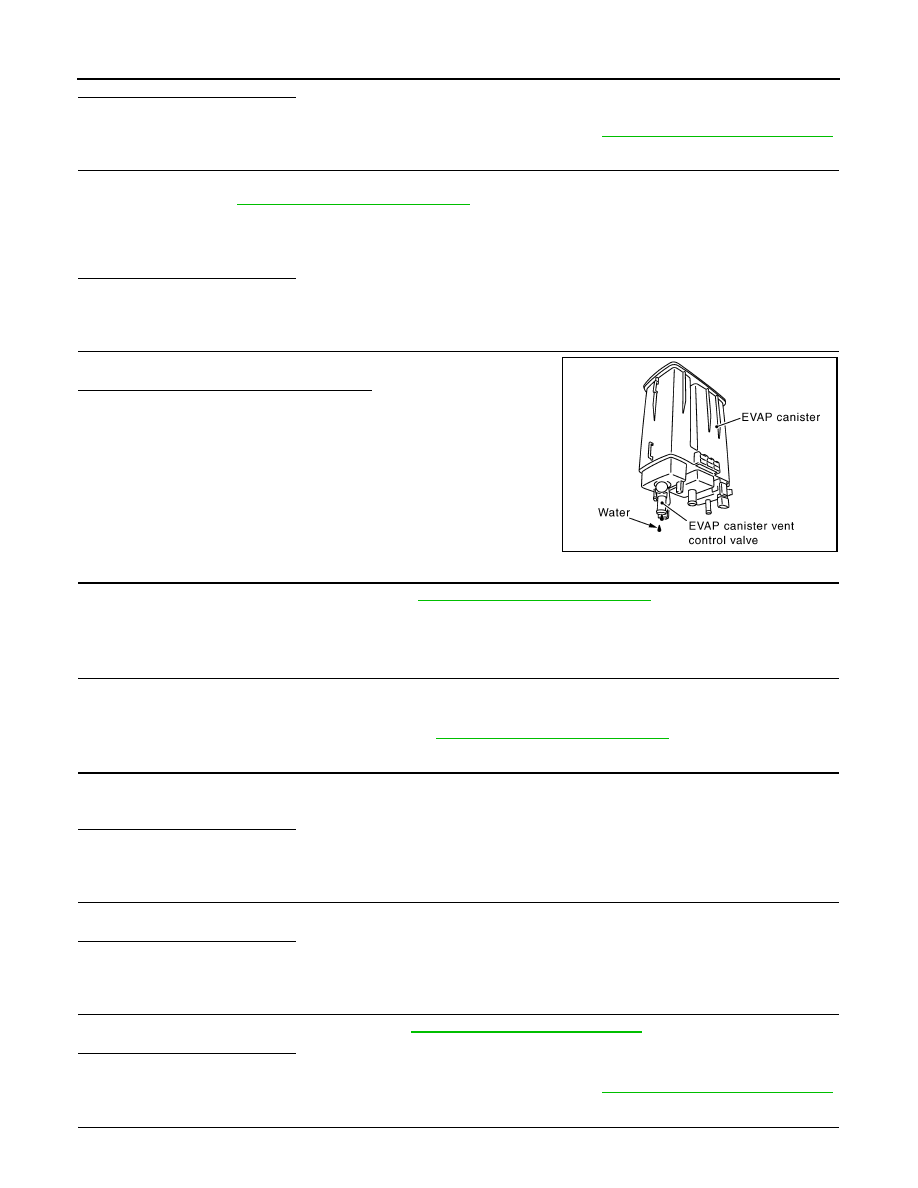

8.

CHECK IF EVAP CANISTER IS SATURATED WITH WATER

Check if water will drain from EVAP canister.
Does water drain from the EVAP canister?

YES

>> GO TO 6.

NO

>> GO TO 11.

9.

REPLACE EVAP CANISTER

Replace EVAP canister with a new one. Refer to

FL-18, "Removal and Installation"

.

>> GO TO 10.

10.

DETECT MALFUNCTIONING PART

Check the EVAP hose between EVAP canister and vehicle frame for clogging or poor connection.

>> Repair or replace EVAP hose. Refer to

FL-20, "Removal and Installation"

.

11.

CHECK VENT HOSES AND VENT TUBES

Check hoses and tubes between EVAP canister and refueling control valve for clogging, kinks, looseness and

improper connection.
Is the inspection result normal?

YES

>> GO TO 12.

NO

>> Repair or replace hoses and tubes.

12.

CHECK FILLER NECK TUBE

Check recirculation line for clogging, dents and cracks.
Is the inspection result normal?

YES

>> GO TO 13.

NO

>> Replace filler neck tube.

13.

CHECK REFUELING EVAP VAPOR CUT VALVE

Check refueling EVAP vapor cut valve. Refer to

EC-446, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 14.

NO

>> Replace refueling EVAP vapor cut valve with fuel tank. Refer to

FL-18, "Removal and Installation"

.

14.

CHECK FUEL FILLER TUBE

Check filler neck tube and hose connected to the fuel tank for clogging, dents and cracks.

JMBIA1134GB

ON BOARD REFUELING VAPOR RECOVERY (ORVR)

EC-445

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> GO TO 15.

NO

>> Replace fuel filler tube. Refer to

FL-13, "Removal and Installation"

.

15.

CHECK ONE-WAY FUEL VALVE-I

Check one-way valve for clogging.
Is the inspection result normal?

YES

>> GO TO 16.

NO

>> Repair or replace one-way fuel valve with fuel tank. Refer to

FL-13, "Removal and Installation"

.

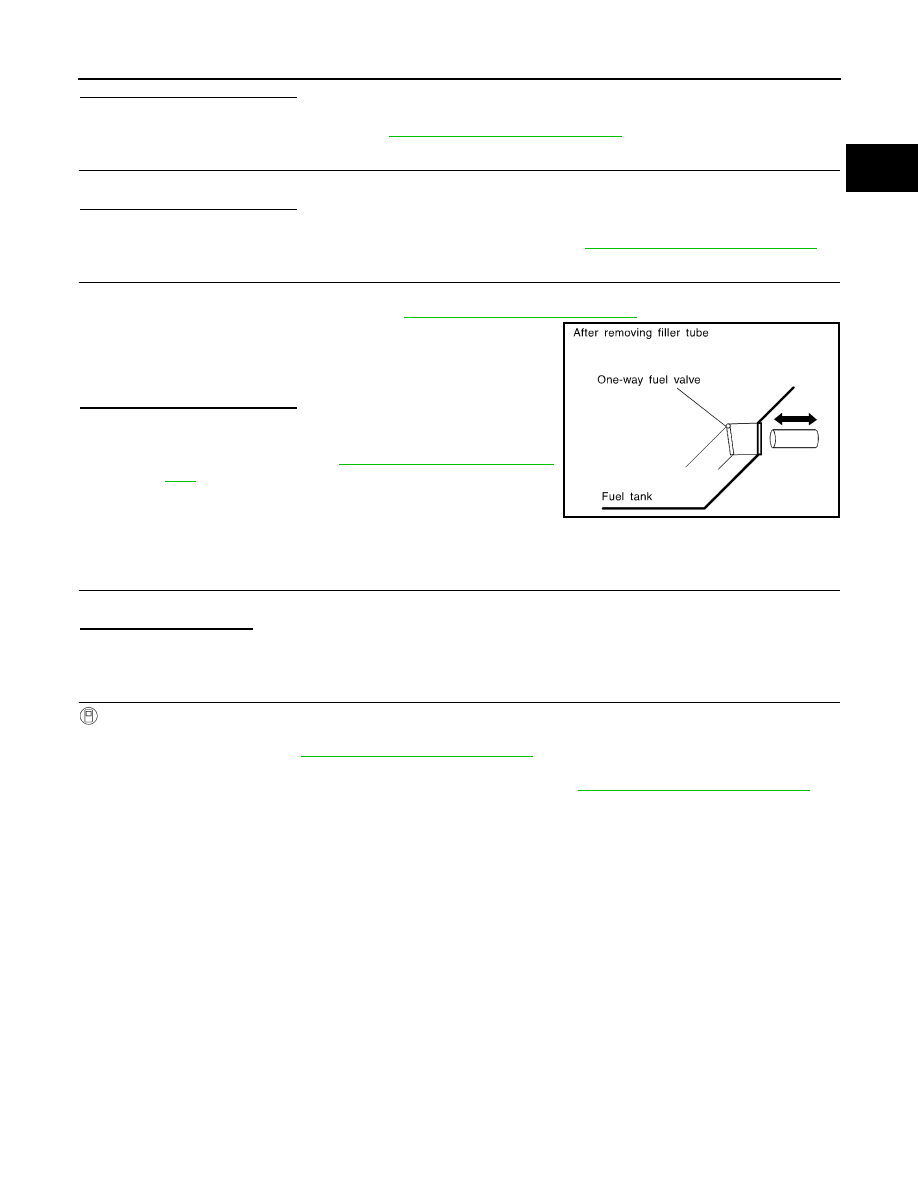

16.

CHECK ONE-WAY FUEL VALVE-II

1. Check that fuel is drained from the tank.

2. Remove fuel filler tube and hose. Refer to

FL-13, "Removal and Installation"

.

3. Check one-way fuel valve for operation as per the following.

When a stick is inserted, the valve should open, when removing

stick it should close.

Do not drop any material into the tank.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace fuel filler tube or replace one-way fuel valve

with fuel tank. Refer to

FL-13, "Removal and Installa-

tion"

.

Component Inspection

INFOID:0000000009178377

1.

INSPECTION START

Will CONSULT be used?
Will CONSULT be used?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK REFUELING EVAP VAPOR CUT VALVE

With CONSULT

1. Turn ignition switch OFF.

2. Remove fuel tank. Refer to

FL-13, "Removal and Installation"

.

3. Drain fuel from the tank as per the following:

-

Remove fuel feed hose located on the fuel gauge retainer. Refer to

FL-13, "Removal and Installation"

.

-

Connect a spare fuel hose, one side to fuel gauge retainer where the hose was removed and the other

side to a fuel container.

-

Drain fuel using “FUEL PUMP RELAY” in “ACTIVE TEST” mode with CONSULT.

4. Check refueling EVAP vapor cut valve for being stuck to close as per the following.

Blow air into the refueling EVAP vapor cut valve (from the end of EVAP/ORVR line hose), and check that

the air flows freely into the tank.

5. Check refueling EVAP vapor cut valve for being stuck to open as per the following.

-

Connect vacuum pump to hose end.

-

Remove fuel gauge retainer with fuel gauge unit.

Always replace O-ring with new one.

-

Turn fuel tank upside down.

SEF665U
