Nissan Pathfinder. Manual - part 419





DLN-118

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: R145K1]

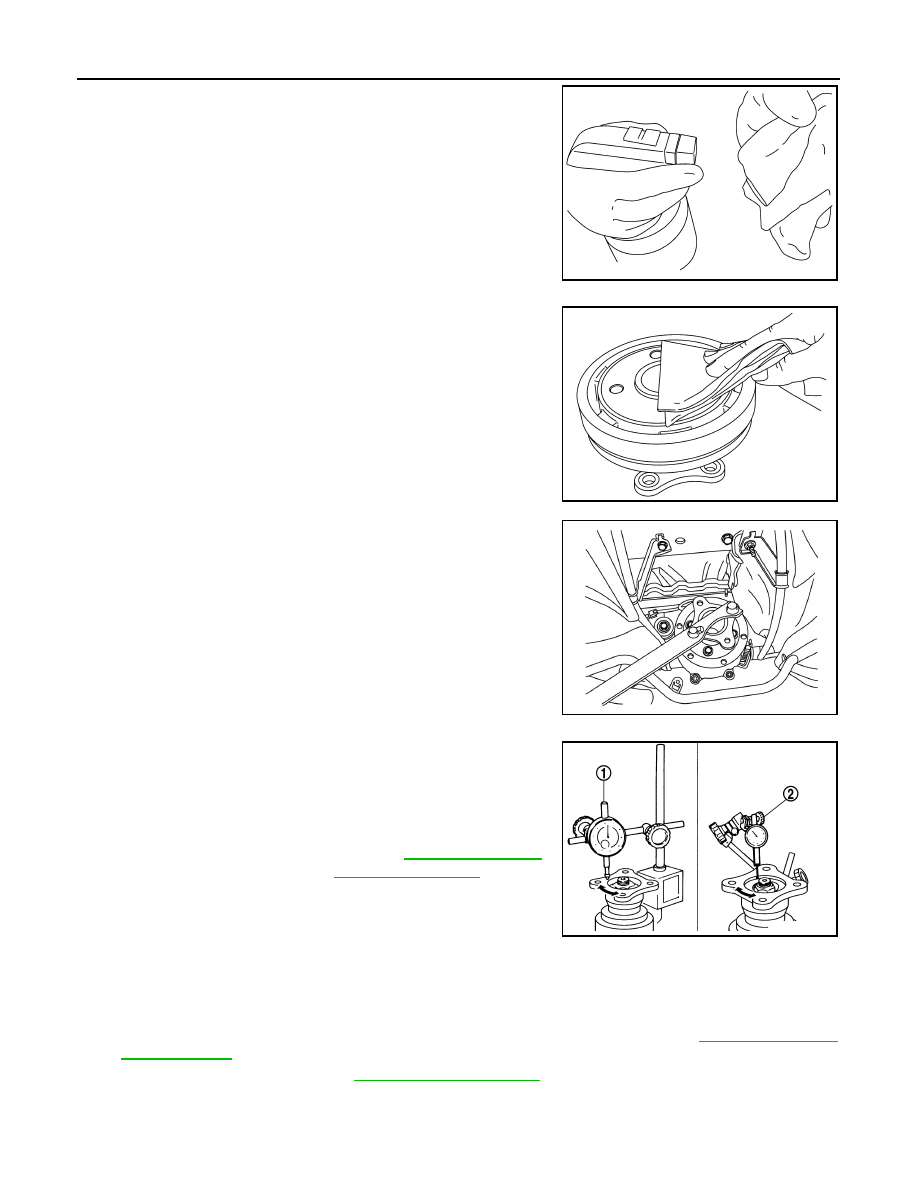

TORSIONAL DAMPER

1. Spray alcohol on a cotton cloth four times per part.

CAUTION:

Always use a new cotton cloth.

2. Wipe the mounting surface of electric controlled coupling

five times.

CAUTION:

Complete the work within 180 seconds to prevent alco-

hol from evaporating.

3. Install torsional damper lock nuts, using suitable tool, and

tighten to the specified torque.

CAUTION:

Do not reuse torsional damper lock nuts.

4. Check torsional damper runout as follows:

• Rotate torsional damper and check for runout on the torsional

damper face (inner side of the bolt holes) using a dial indicator

(1). Also check for runout on the inner side of the torsional

damper using a test indicator (2).

• If the runout value is outside the runout limit, follow the proce-

dure below to adjust.

- Check for runout while changing the phase between the tor-

sional damper and electric controlled coupling by 90

° step,

and search for the position where the runout value is the minimum.

- If the runout value is still outside of the runout limit after the phase has been changed, replace the tor-

sional damper.

- If the runout value is still outside of the runout limit after torsional damper has been replaced, possible

cause will be a damaged electric controlled coupling. Repair as necessary. Refer to

DLN-121, "Removal

and Installation"

.

5. Install rear propeller shaft. Refer to

DLN-103, "Exploded View"

.

JSDIA3062ZZ

JSDIA3063ZZ

ALDIA0307ZZ

Torsional damper runout

: Refer to

DLN-98, "Compan-

ion Flange Runout"

.

JSDIA2539ZZ

SIDE OIL SEAL

DLN-119

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: R145K1]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

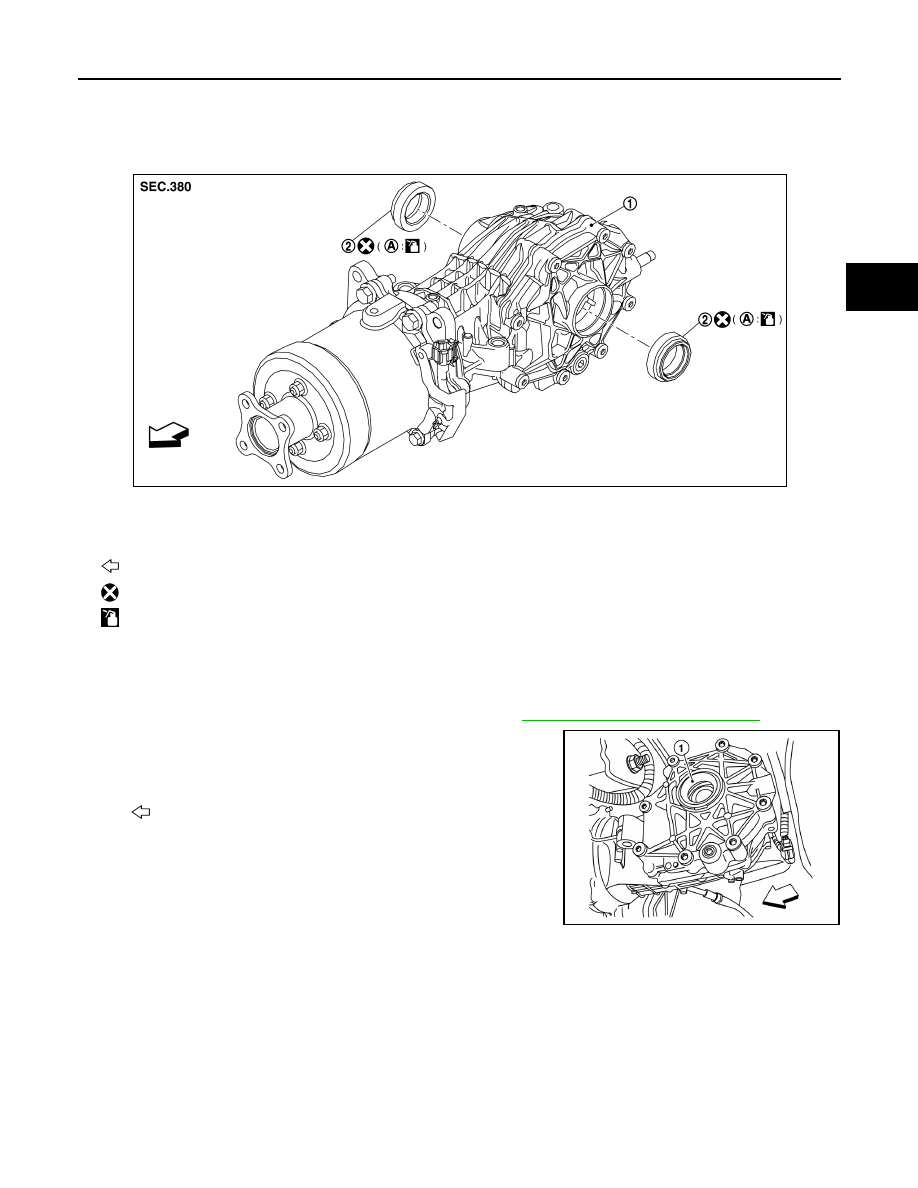

SIDE OIL SEAL

Exploded View

INFOID:0000000009177822

Removal and Installation

INFOID:0000000009177823

REMOVAL

1. Remove rear drive shaft (LH or RH) as necessary. Refer to

RAX-9, "Removal and Installation"

.

2. Remove side oil seal (1), using suitable tool.

CAUTION:

Be careful not to damage gear carrier and side cover.

INSTALLATION

1.

Final drive assembly

2.

Side oil seal

A.

Oil seal lip

: Vehicle front

: Always replace after every disassembly.

: Apply gear oil.

JSDIA3030ZZ

: Front

ALDIA0284ZZ

DLN-120

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: R145K1]

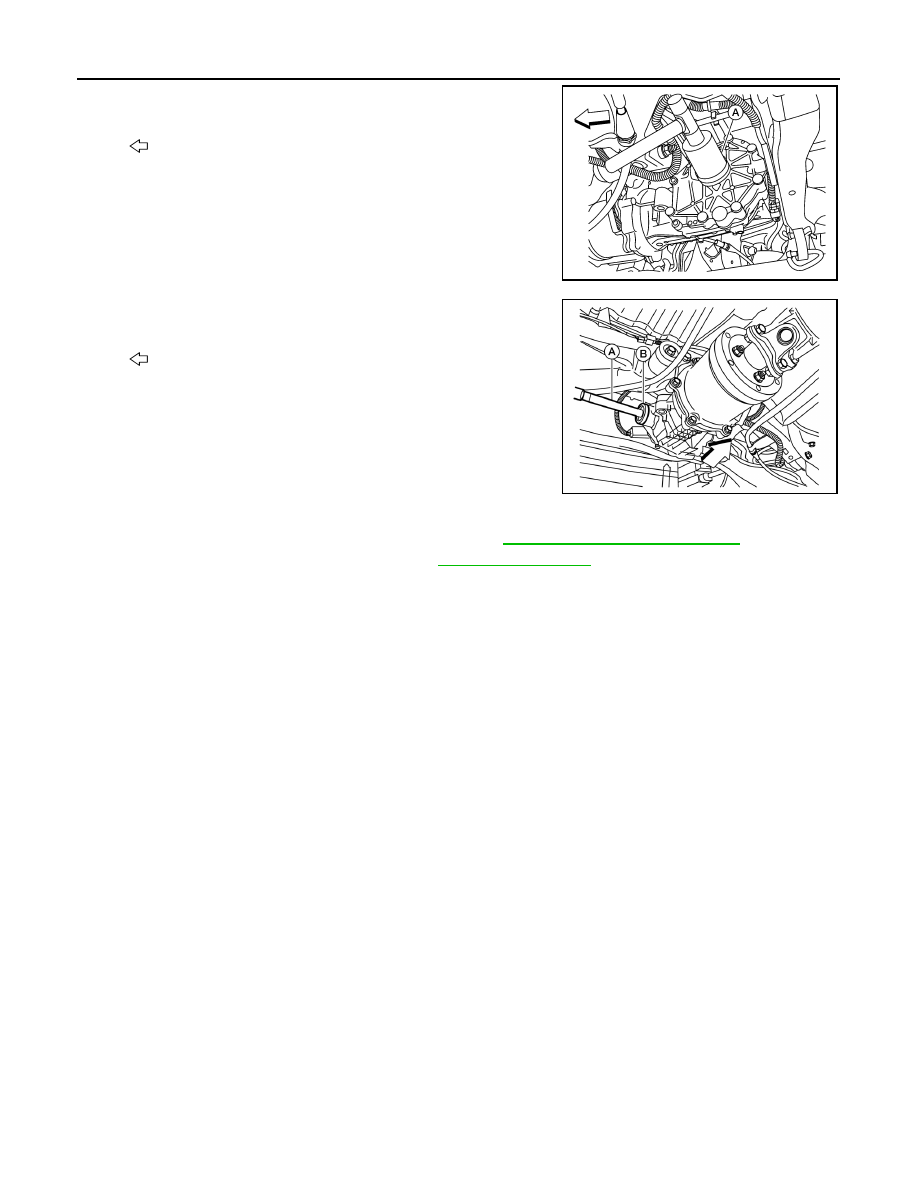

SIDE OIL SEAL

1. Install side oil seal (cover side) until it becomes flush with the

carrier end, using tool (A).

CAUTION:

• Do not reuse oil seal.

• When installing, do not incline oil seals.

• Apply gear oil onto side oil seal lip.

2. Install side oil seal (carrier side) until it becomes flush with the

carrier end, using tool (A) and tool (B).

CAUTION:

• Do not reuse oil seal.

• When installing, do not incline oil seals.

• Apply gear oil onto side oil seal lip.

3. Install rear drive shaft (LH or RH) as necessary. Refer to

RAX-9, "Removal and Installation"

.

4. Check oil level and check for oil leaks. Refer to

DLN-115, "Inspection"

.

: Front

Tool number

(A): KV40105740 ( — )

AWDIA1055ZZ

: Front

Tool number

(A): ST35325000 ( — )
(B): KV31103000 (J-38982)

ALDIA0309ZZ

ELECTRIC CONTROLLED COUPLING

DLN-121

< REMOVAL AND INSTALLATION >

[REAR FINAL DRIVE: R145K1]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

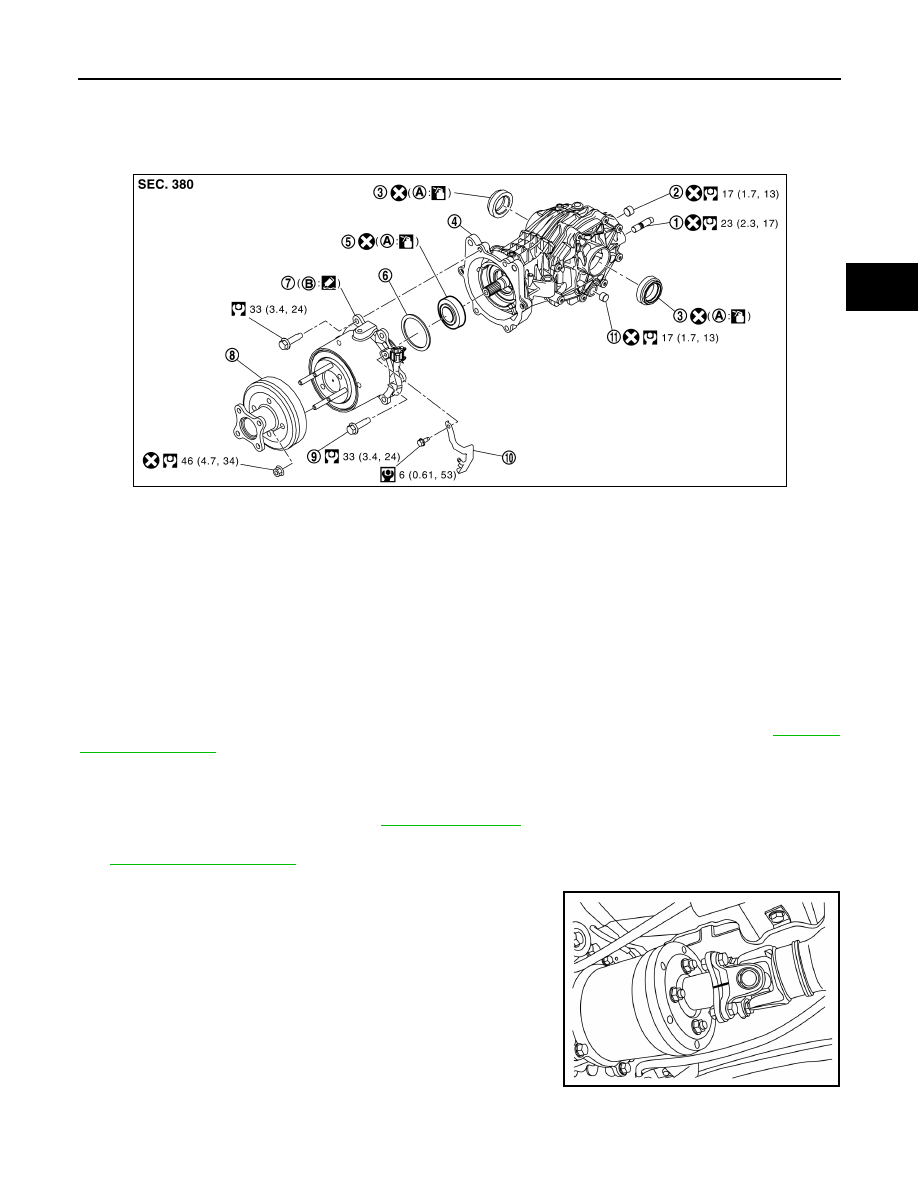

ELECTRIC CONTROLLED COUPLING

Exploded View

INFOID:0000000009704408

Removal and Installation

INFOID:0000000009704409

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

CAUTION:

When replacing rear final drive assembly, perform writing unit characteristics. Refer to

DLN-113,

"Work Procedure"

.

REMOVAL

1. Move the shift selector to the neutral position, and then release the parking brake.
2. Drain rear differential gear oil. Refer to

DLN-115, "Draining"

.

3. Remove rear propeller shaft from the torsional damper, and support the end of the propeller shaft. Refer to

DLN-103, "Exploded View"

.

CAUTION:

For matching marks, use paint. Do not damage propeller shaft

flange yokes, final drive torsional damper or transfer compan-

ion flange.

1.

Stud bolt

2.

Filler plug

3.

Side oil seal

4.

Final drive assembly

5.

Front oil seal

6.

Wave washer

7.

Electric controlled coupling

8.

Torsional damper

9.

Reamer bolt

10. Harness bracket

11. Drain plug

A.

Oil seal lip

B.

Final drive mounting face

JSDIA3032GB

ALDIA0282ZZ
