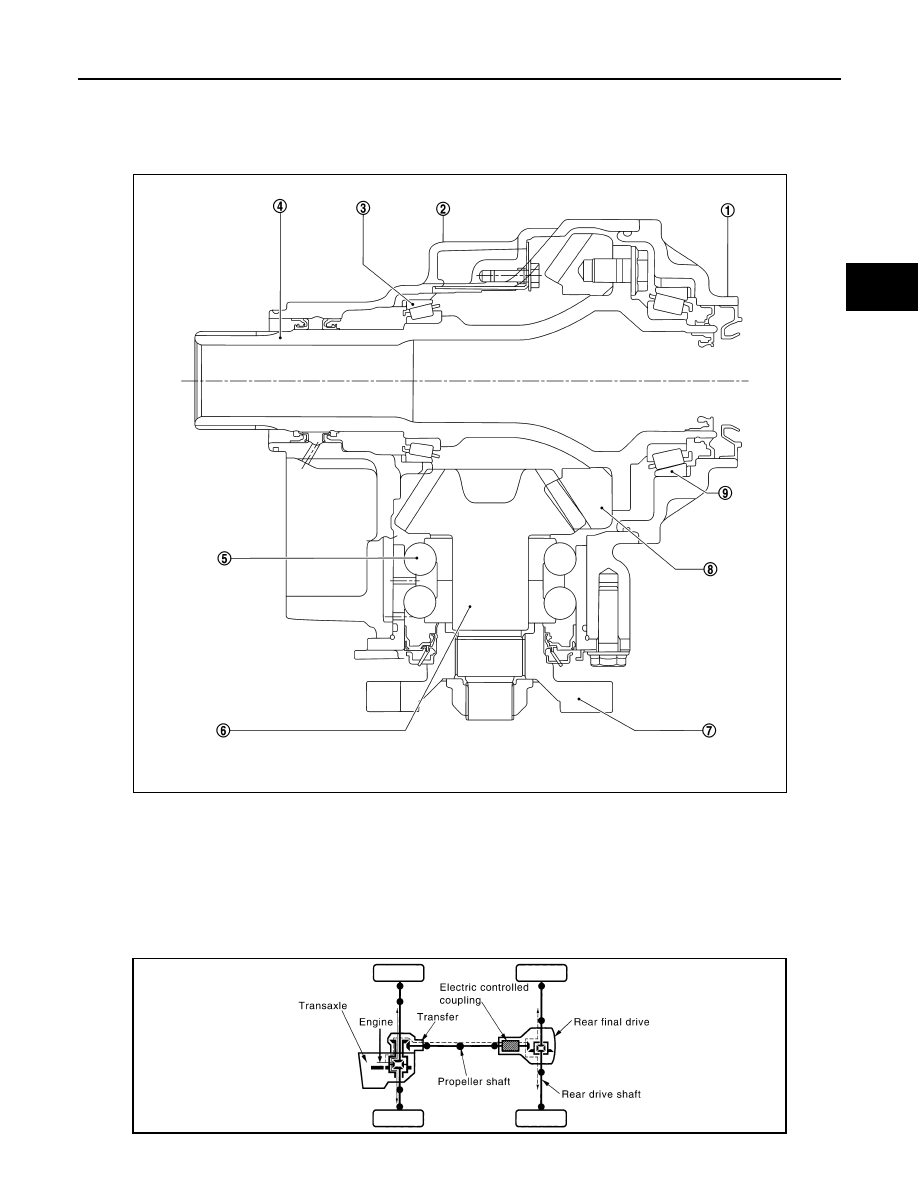

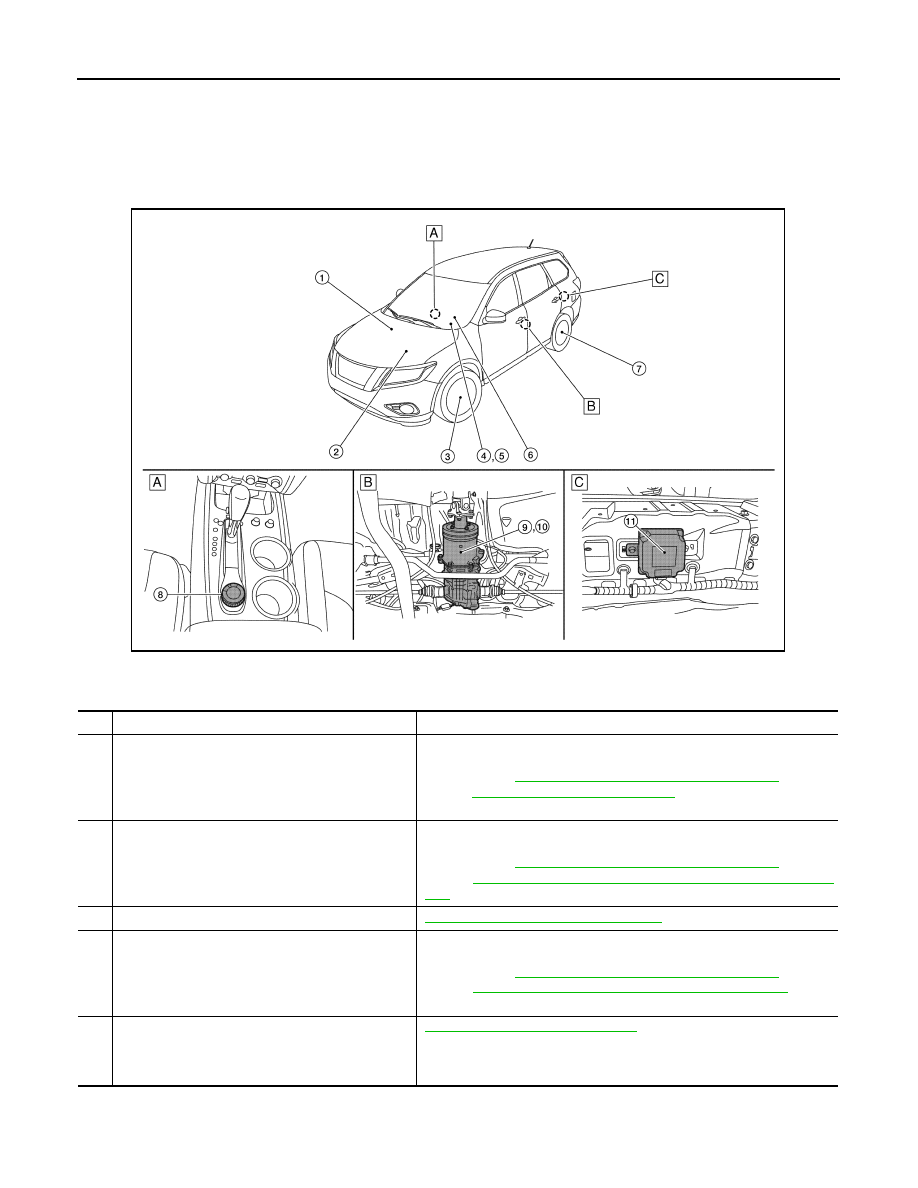

DLN-10 < SYSTEM DESCRIPTION > [TRANSFER: TY21C] COMPONENT PARTS SYSTEM DESCRIPTION COMPONENT PARTS Component Parts Location INFOID:0000000009177706 A. Center console area B. Rear final drive assembly C. Inside storage room No. Component parts Reference/Function 1 ABS actuator and electric unit (control unit) Transmits/receives the signals for control of 4WD system via CAN com- DLN-15, "4WD SYSTEM : System Description" BRC-7, "Component Parts Location" for detailed installation loca- tion. 2 ECM Transmits/receives the signals for control of 4WD system via CAN com- DLN-15, "4WD SYSTEM : System Description" Refer to EC-14, "ENGINE CONTROL SYSTEM : Component Parts Loca- for detailed installation location. 3 Front wheel sensor BRC-9, "Wheel Sensor and Sensor Rotor" 4 Combination meter Transmits/receives the signals for control of 4WD system via CAN com- DLN-15, "4WD SYSTEM : System Description" MWI-6, "METER SYSTEM : Component Parts Location" for de- tailed installation location. 5 Vehicle information display DLN-11, "Vehicle Information Display" • 4WD mode indicator ALDIA0374ZZ |
