Nissan Pathfinder. Manual - part 314

DLK-22

< SYSTEM DESCRIPTION >

SYSTEM (INTELLIGENT KEY SYSTEM)

SYSTEM (INTELLIGENT KEY SYSTEM)

INTELLIGENT KEY SYSTEM

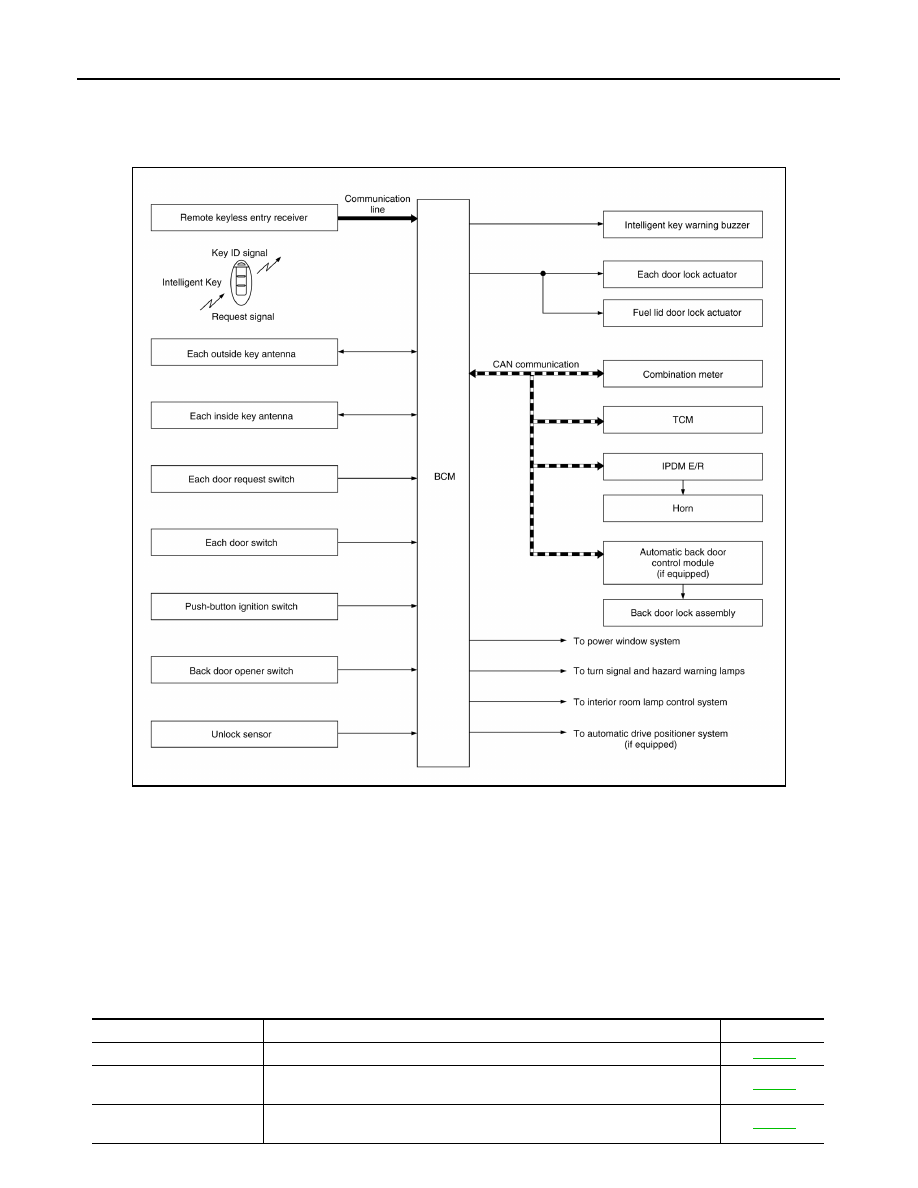

INTELLIGENT KEY SYSTEM : System Diagram

INFOID:0000000009175609

INTELLIGENT KEY SYSTEM : System Description

INFOID:0000000009175610

• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/

unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-

tion using two-way communication between the Intelligent Key and the vehicle (BCM).

CAUTION:

The driver should always carry the Intelligent Key.

• The settings for each function can be changed with CONSULT.

• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT.

ALKIA2860GB

Function

Description

Refer

Door lock

Lock/unlock can be performed by pressing the request switch.

DLK-23

Back door opener

The back door can be opened by carrying the Intelligent Key and pressing the
back door opener switch.

DLK-26

Remote keyless entry

Lock/unlock can be performed by pressing the remote controller button of the In-
telligent Key.

DLK-27

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-23

< SYSTEM DESCRIPTION >

DLK

DOOR LOCK FUNCTION

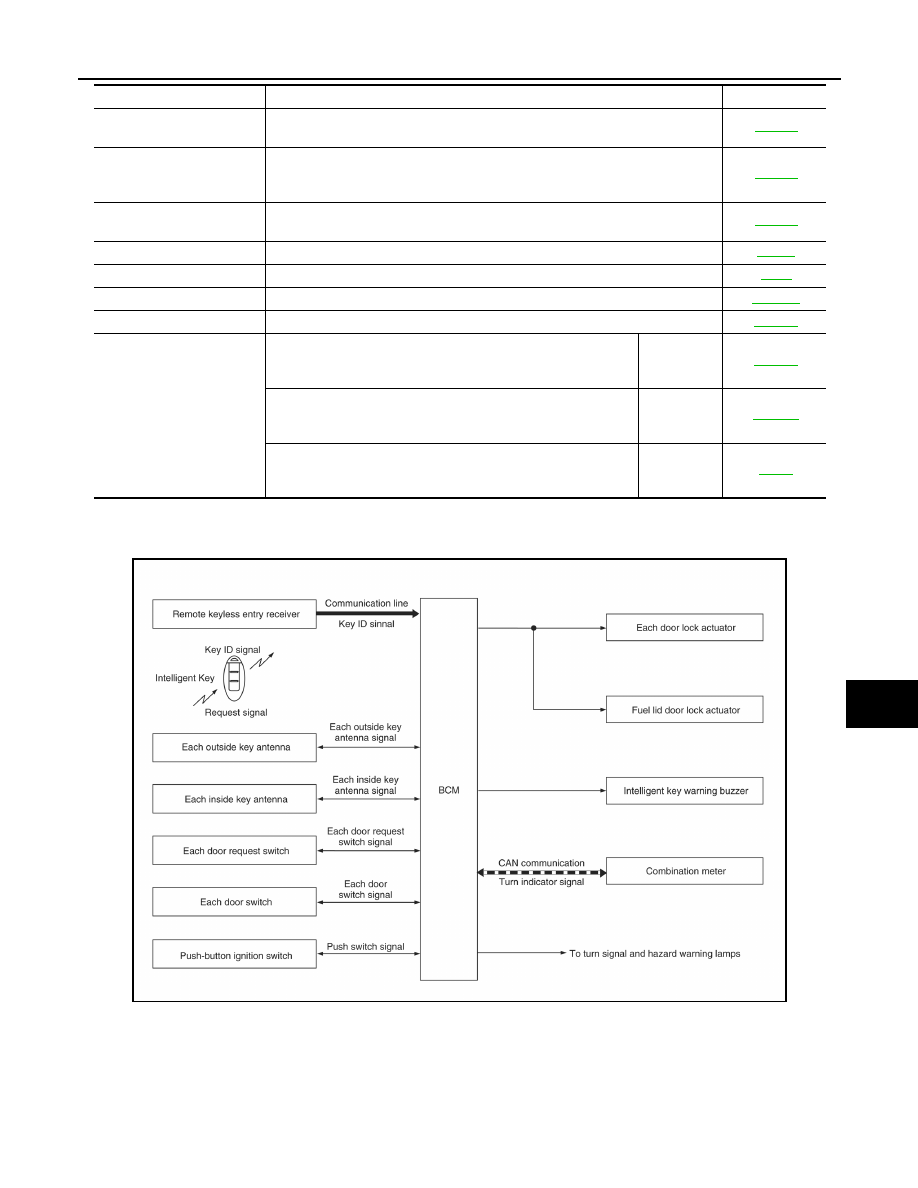

DOOR LOCK FUNCTION : System Diagram

INFOID:0000000009175611

DOOR LOCK FUNCTION : System Description

INFOID:0000000009175612

Only when pressing the door request switch it is possible to lock and unlock the door by carrying the Intelligent

Key.

OPERATION DESCRIPTION

Key reminder

The key reminder buzzer sounds a warning if the door is locked with the key left
inside the vehicle.

DLK-30

Welcome light

When the Intelligent Key is carried, and vehicle doors are approached, the BCM
illuminates interior room lamps and operates heart beat operation of the push-
button ignition switch.

DLK-33

Warning

If an action that does not meet the operating condition of the Intelligent Key sys-
tem is taken, the buzzer sounds to inform the driver.

DLK-34

Engine start

The engine can be turned on while carrying the Intelligent Key.

SEC-9

Interior room lamp control

Interior room lamp is controlled according to door lock/unlock state.

INL-6

Power window

Power window can be operated by Intelligent Key button operation.

PWC-10

Panic alarm

When Intelligent Key panic alarm button is pressed, horn sounds.

SEC-14

Intelligent Key interlock

Setting of auto driving position can be automatically set, accord-
ing to key ID of Intelligent Key to the position that is registered in
advance.

Automatic
drive posi-
tioner

ADP-12

Setting of air conditioning system can be set according to key ID
of Intelligent Key to the setting value that is set before turning ig-
nition switch OFF.

Air condi-
tioning sys-
tem

HAC-18

Setting of multi AV system can be set according to key ID of In-
telligent Key to the setting value that is set before turning ignition
switch OFF.

Multi AV sys-
tem

AV-17

Function

Description

Refer

ALKIA2524GB

DLK-24

< SYSTEM DESCRIPTION >

SYSTEM (INTELLIGENT KEY SYSTEM)

• When the BCM detects that each door request switch is pressed, it activates the outside key antenna and

inside key antenna corresponding to the pressed door request switch and transmits the request signal to the

Intelligent Key. Then check that the Intelligent Key is near the door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.

• BCM locks/unlocks each doors (except back door).

• BCM sounds Intelligent Key warning buzzer (lock: 2 times, unlock: 1 time) and blinks hazard warning lamps

(lock: 2 times, unlock: 1 time) at the same time as a reminder.

OPERATION CONDITION

If the following conditions are satisfied, door lock/unlock operation is performed if the door request switch is

operated.

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be locked/unlocked from outside of the vehicle with
a spare Intelligent Key as long as key IDs are different.

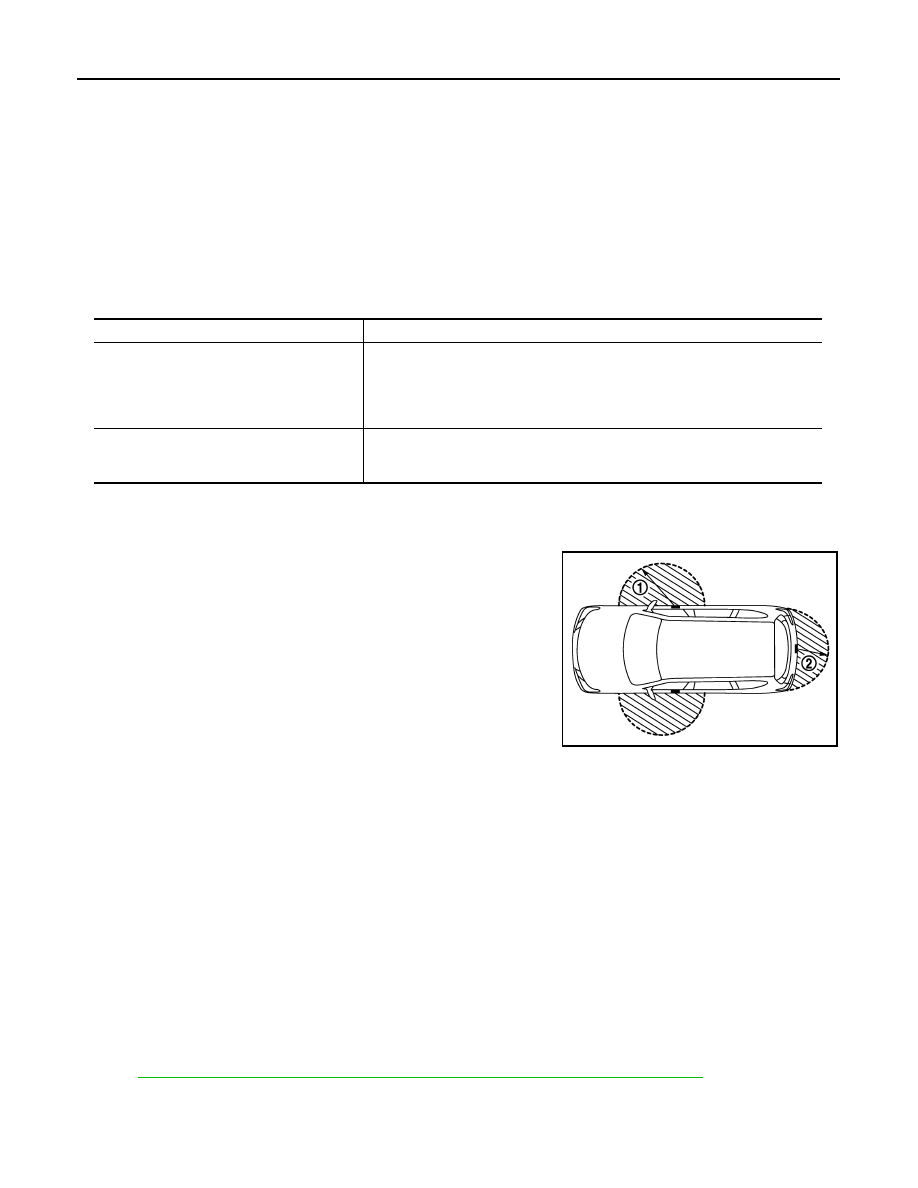

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock/unlock function

is in the range of approximately 80 cm (31.50 in) surrounding the

driver, passenger door handles (1) and back door handle (2). How-

ever, this operating range depends on the ambient conditions.

SELECTIVE UNLOCK FUNCTION

Lock Operation

When a LOCK signal is sent from door request switch (driver side, passenger side, back door), all doors and

fuel filler lid are locked.

Unlock Operation

• When an UNLOCK signal from driver side door request switch is transmitted, driver side door and fuel filler

lid are unlocked. When another UNLOCK signal is transmitted within 60 seconds, all other doors (except

back door) are unlocked.

• When an UNLOCK signal from passenger side door request switch is transmitted, passenger side door is

unlocked. When another UNLOCK signal is transmitted within 60 seconds, all other doors (except back

door) and fuel filler lid are unlocked.

• When an UNLOCK signal from back door request switch is transmitted, back door open permission is set.

When another UNLOCK signal is transmitted within 60 seconds, all doors (except back door) and fuel filler

lid are unlocked.

How To Change Selective Unlock Operation Mode

Selective unlock operation mode can be changed using CONSULT.

Refer to

BCS-21, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

HAZARD AND BUZZER REMINDER FUNCTION

During lock or unlock operation by each door request switch, the hazard warning lamps and Intelligent Key

warning buzzer blinks or honks as a reminder.

Each door request switch operation

Operation condition

Lock

• All doors are closed.
• Panic alarm is not activated.
• P (Park) position warning is not activated.
• Intelligent Key is outside the vehicle.
• Intelligent Key is within outside key antenna detection area*.

Unlock

• Panic alarm is not activated.
• Intelligent Key is outside the vehicle.
• Intelligent Key is within outside key antenna detection area*.

JMKIA5224ZZ

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-25

< SYSTEM DESCRIPTION >

DLK

Operating Function Of Hazard And buzzer Reminder

Hazard and buzzer reminder does not operate in the following conditions.

• Ignition switch position is ON.

• Door is open (only lock operation).

How To Change Hazard And Buzzer Reminder Mode

Hazard and buzzer reminder mode can be changed using CONSULT.

Refer to

BCS-21, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

AUTO DOOR LOCK FUNCTION

After door is unlocked by door request switch operation and if 60 seconds or more passes without performing

the following operation, all doors and fuel filler lid are automatically locked. However, operation check function

does not activate.

How To Change Auto Door Lock Operation Mode

Auto door lock operation mode can be changed using CONSULT.

Refer to

BCS-21, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

LIST OF OPERATION RELATED PARTS

Parts marked with

× are the parts related to operation.

BACK DOOR OPEN FUNCTION

Operation

Hazard warning lamp blinks

Intelligent Key warning buzzer honks

Unlock

Once

Lock

Twice

Operating condition

• Door switch is ON (door is open).
• Door is locked.
• Push switch is pressed.

Function

llige

Key

te ke

ess e

try re

or swi

tch

or re

t s

itc

or lo

Fue

l l

ato

y a

ten

Out

de ke

y a

ten

CAN co

ati

tem

BCM

Hazard warning

lamp

lli

nt Key

rnin

g buz

-bu

tto

n ign

iti

swi

tch

Door lock/unlock function

Hazard reminder function

Selective unlock function

Auto door lock function
