DLK-14

< SYSTEM DESCRIPTION >

COMPONENT PARTS

INTELLIGENT KEY SYSTEM : Component Parts Location

INFOID:0000000009175601

ALKIA2463ZZ

COMPONENT PARTS

DLK-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

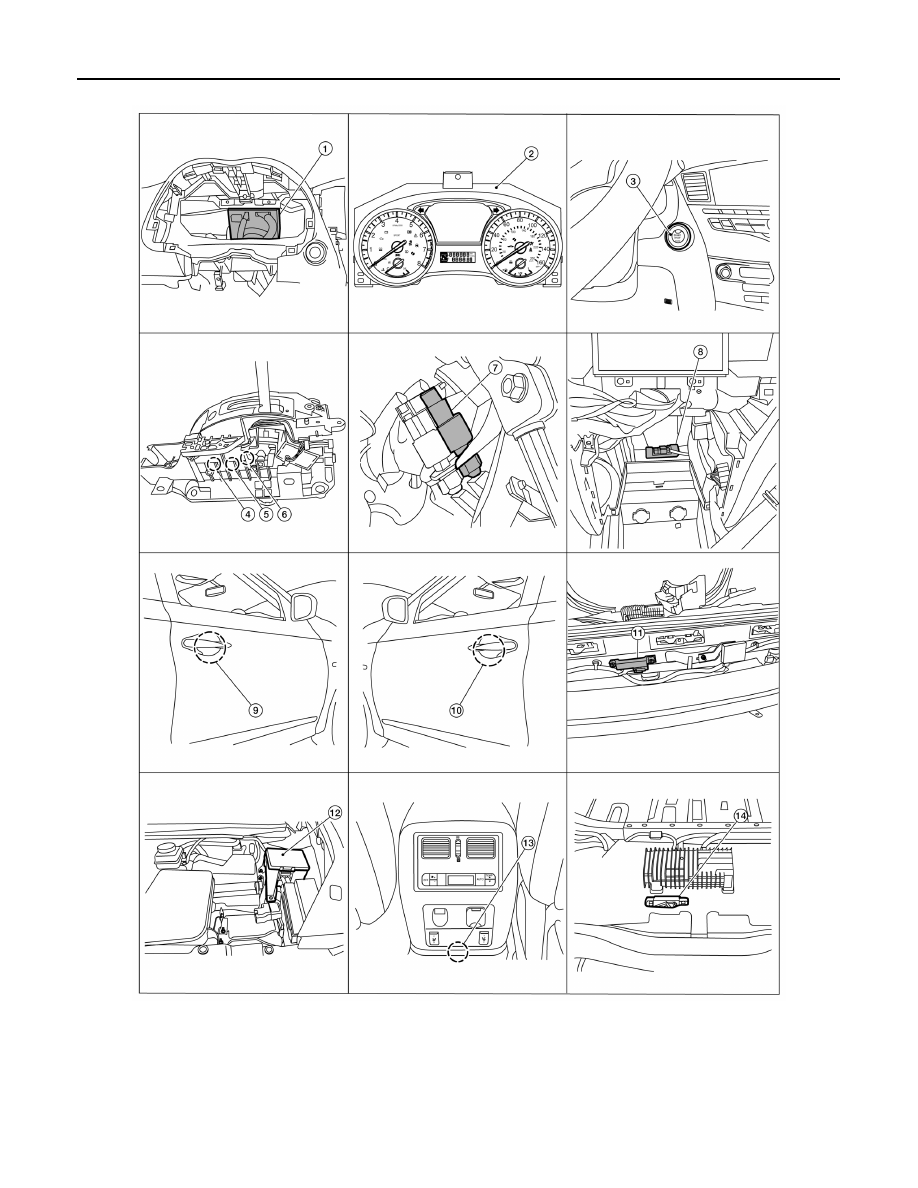

1.

BCM (view with combination meter
removed)

2.

Combination meter

3.

Push button ignition switch

4.

CVT shift selector (P (Park) position
switch) (view with center console re-
moved)

5.

CVT shift selector (Shift lock sole-
noid)  (view with center console re-
moved)

6.

CVT shift selector (P (Park) position
switch)  (view with center console re-
moved)

ALKIA2809ZZ

DLK-16

< SYSTEM DESCRIPTION >

COMPONENT PARTS

INTELLIGENT KEY SYSTEM : Component Description

INFOID:0000000009175602

INTEGRATED HOMELINK TRANSMITTER
INTEGRATED HOMELINK TRANSMITTER : Component Parts Location

INFOID:0000000009175603

7.

Stop lamp switch

8.

Inside key antenna (instrument cen-
ter)

9.

Front outside handle RH (RH re-
quest switch and outside key anten-
na passenger side)

10. Front outside handle LH (LH request

switch and outside key antenna driv-
ers side)

11. Outside key antenna (rear bumper)

(view with rear bumper cover re-
moved)

12. IPDM E/R

13. Inside key antenna (console)

14. Inside key antenna (luggage room)

(view with rear carpet removed)

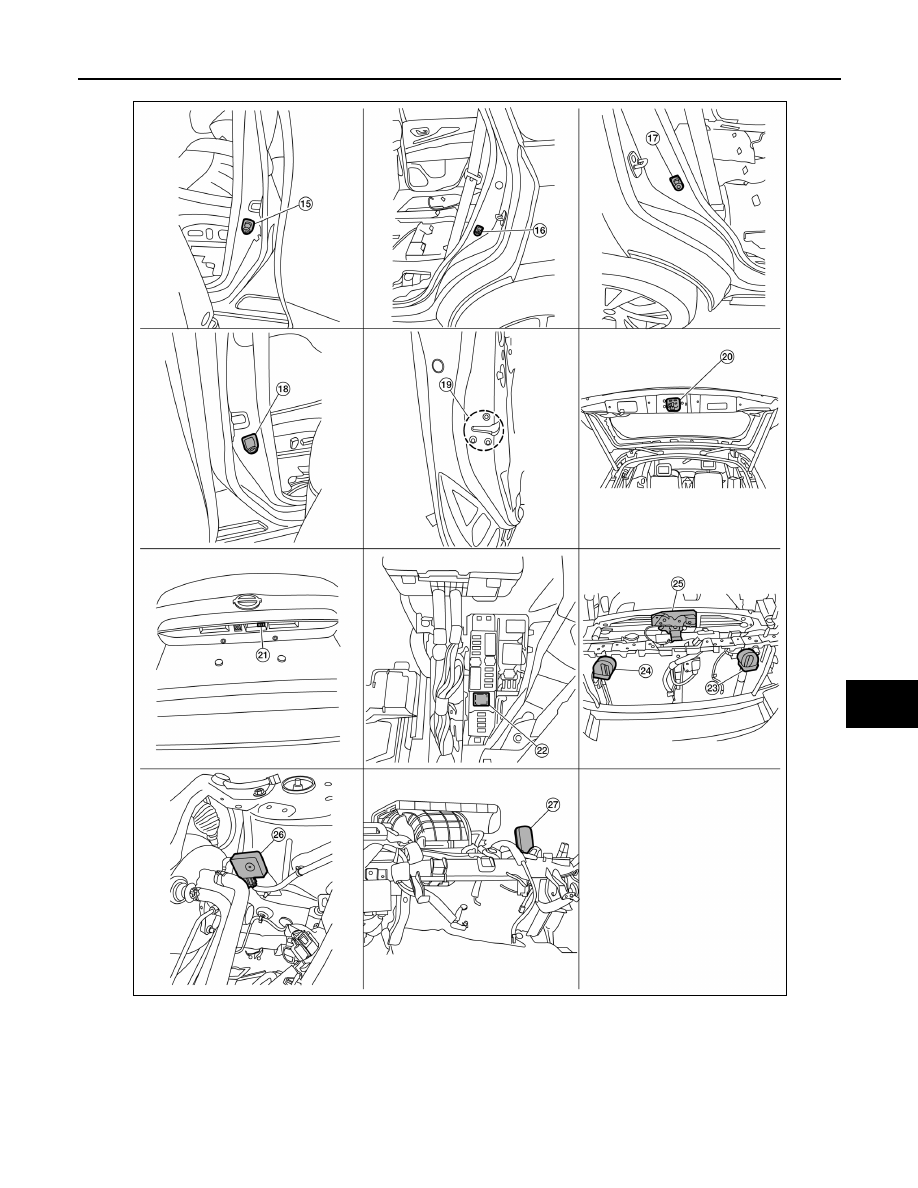

15. Front door switch LH

16. Rear door switch LH

17. Rear door switch RH

18. Front door switch RH

19. Front door lock assembly LH

20. Back door lock assembly

21. Back door opener switch

22. Horn relay

23. Horn (low)

24. Horn (high)

25. Hood switch

26. Intelligent Key warning buzzer

27. Remote keyless entry receiver (view

with instrument panel removed)

Item

Function

BCM

Controls the Intelligent Key system.

Back door opener switch

Inputs back door open/close condition to BCM.

Door lock actuator

Output lock/unlock signal from BCM and locks/unlocks each door.

Stop lamp switch

Inputs the brake pedal position condition to BCM.

Push button ignition switch

Inputs the push button ignition switch ON/OFF condition to BCM.

Hood switch

Inputs hood open/close condition to BCM.

Door switch

Inputs door open/close condition to BCM.

Remote keyless entry receiver

Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM.

Request switch

Inputs lock/unlock operation to BCM.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

Outside key antenna

Detects if Intelligent Key is outside the vehicle.

Inside key antenna

Detects if Intelligent Key is inside the vehicle.

Combination meter

Display, buzzer (combination meter) and KEY warning lamp are installed to combination meter.

Intelligent Key warning buzzer

Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound.

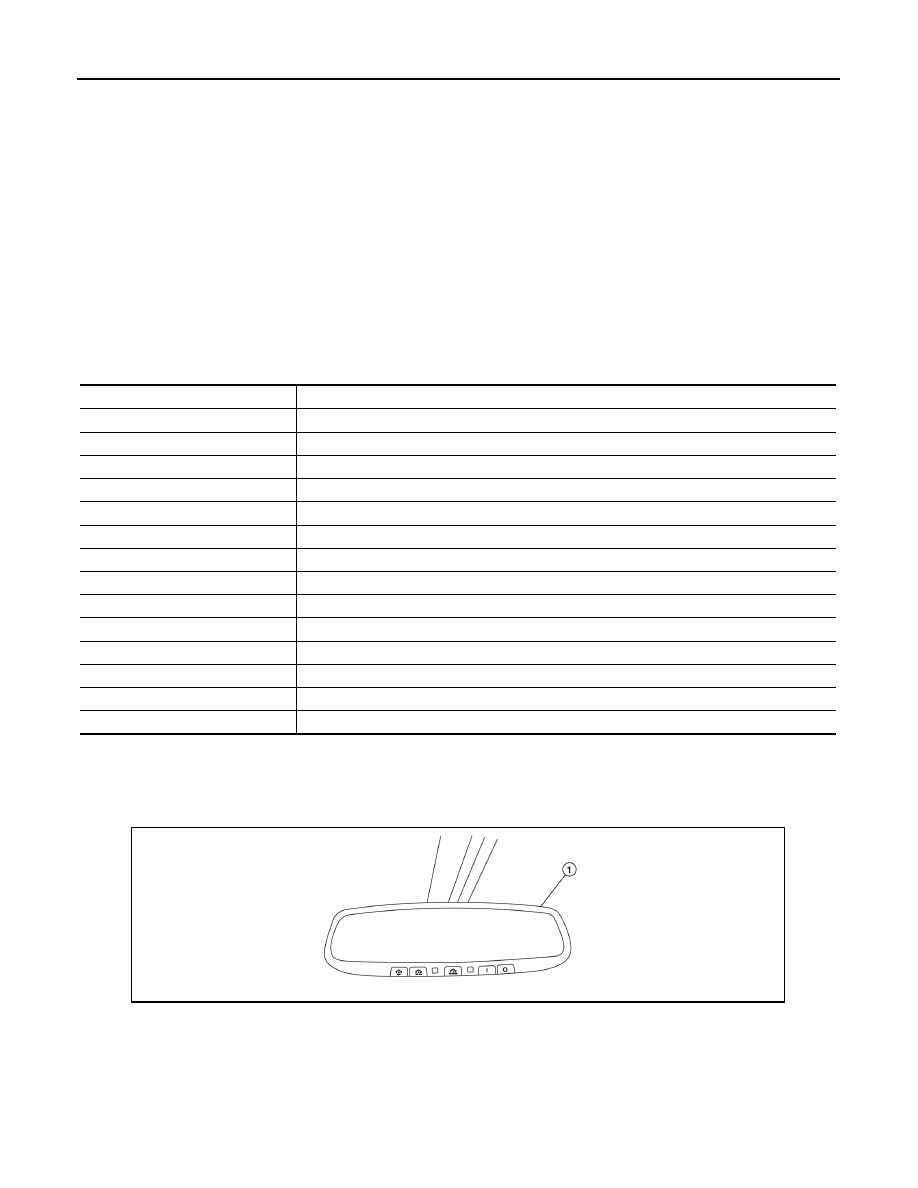

1.

Auto anti-dazzling inside mirror

ALKIA2461ZZ

COMPONENT PARTS

DLK-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTEGRATED HOMELINK TRANSMITTER : Component Description

INFOID:0000000009175604

AUTOMATIC BACK DOOR SYSTEM

Item

Function

Homelink universal transceiver

A maximum of 3 radio signals can be stored and transmitted to operate the garage door, etc.
