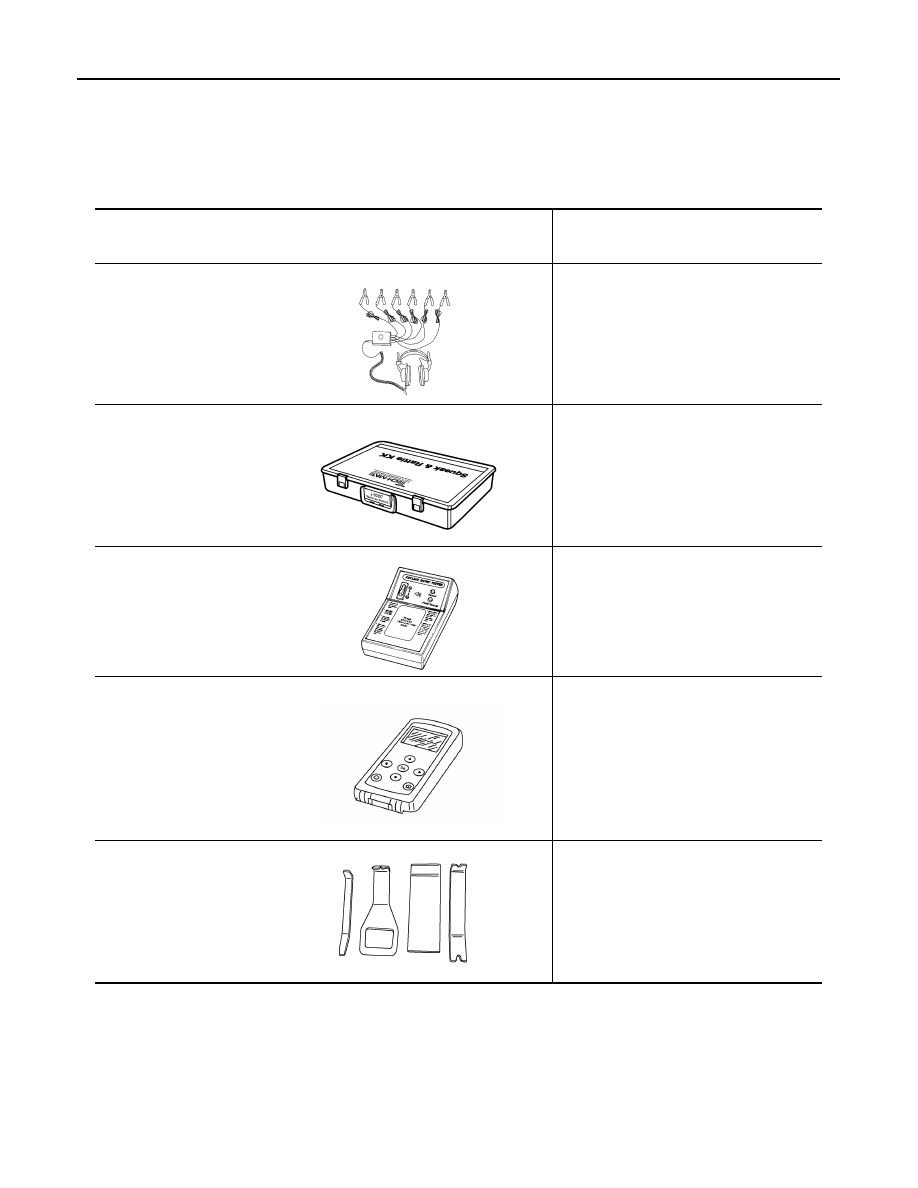

Special Service Tool

INFOID:0000000009175597

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-39570)
Chassis Ear

Locating the noise

—

(J-50397)
NISSAN Squeak and Rat-
tle Kit

Repairing the cause of noise

—

(J-43241)
Remote Keyless Entry
Tester

Used to test keyfobs

—

(J-50190)
Signal Tech II

• Activate and display TPMS transmitter

IDs

• Display tire pressure reported by the

TPMS transmitter

• Read TPMS DTCs
• Register TPMS transmitter IDs
• Check Intelligent Key relative signal

strength

• Confirm vehicle Intelligent Key antenna

signal strength

—

(J-46534)
Trim Tool Set

Removing trim components

SIIA0993E

ALJIA1232ZZ

ALEIA0131ZZ

AWJIA0483ZZ

PREPARATION

DLK-11

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Commercial Service Tool

INFOID:0000000009175598

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine ear

Locating the noise

Power tool

Loosening nuts, screws and bolts

SIIA0995E

PIIB1407E

DLK-12

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

POWER DOOR LOCK SYSTEM
POWER DOOR LOCK SYSTEM : Component Parts Location

INFOID:0000000009175599

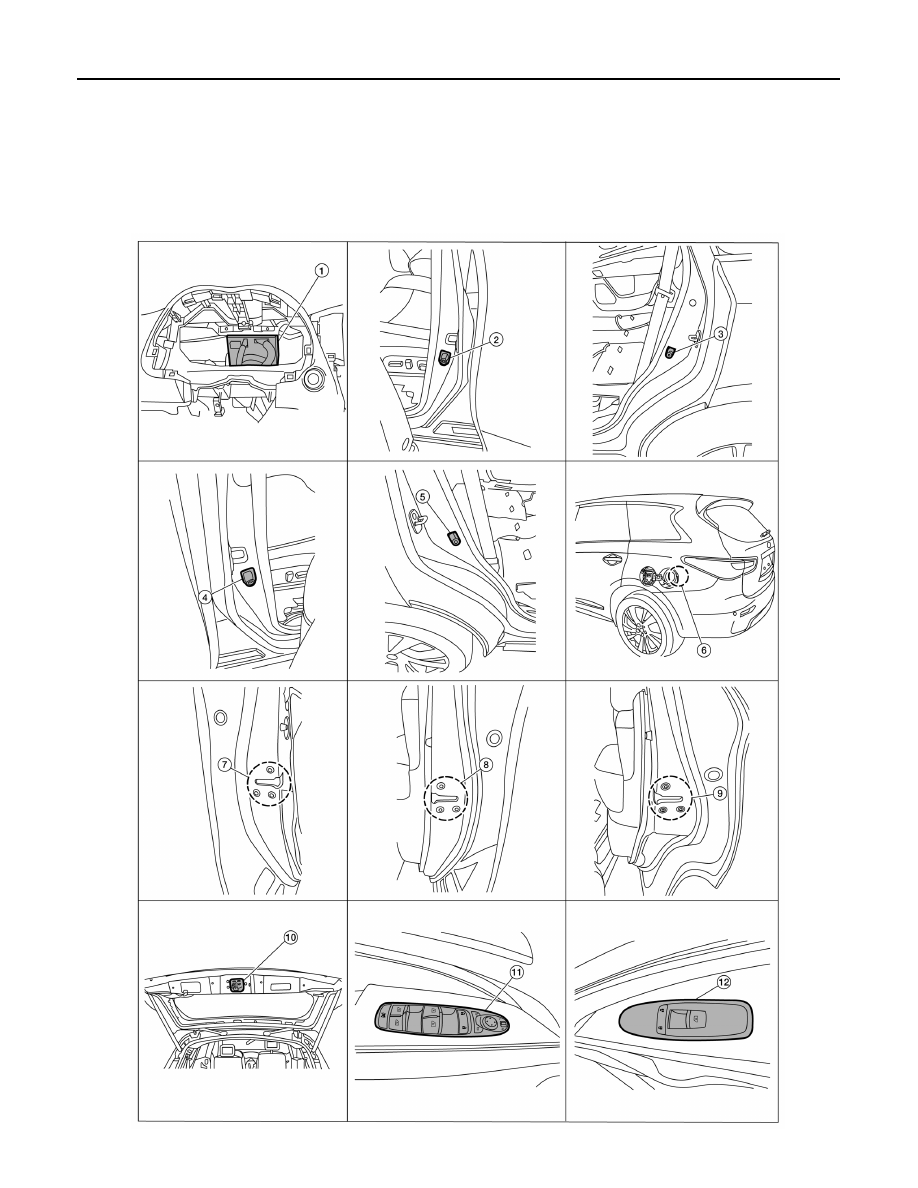

ALKIA2460ZZ

COMPONENT PARTS

DLK-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

POWER DOOR LOCK SYSTEM : Component Description

INFOID:0000000009175600

INTELLIGENT KEY SYSTEM

1.

BCM (view with combination meter
removed)

2.

Front door switch LH

3.

Rear door switch LH

4.

Front door switch RH

5.

Rear door switch RH

6.

Fuel lid door lock actuator

7.

Front door lock assembly LH

8.

Front door lock actuator RH

9.

Rear door lock actuator RH (LH sim-
ilar)

10. Back door lock assembly

11. Main power window and door lock/

unlock switch

12. Power window and door lock/unlock

switch RH

Item

Function

BCM

Controls the door lock system

Door switch

Inputs door open/close condition to BCM

Door lock and unlock switch

• Detects if door lock and unlock switch is press/release
• Integrated in the main power window and door lock/unlock switch and  power window and

door lock/unlock switch (RH)

Door lock actuator

Output lock/unlock signal from BCM and locks/unlocks each door

Fuel lid door lock actuator

Output lock/unlock signal from BCM and locks/unlocks fuel filler lid
