HANDLING PRECAUTIONS FOR PLASTICS

BRM-5

< PRECAUTION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

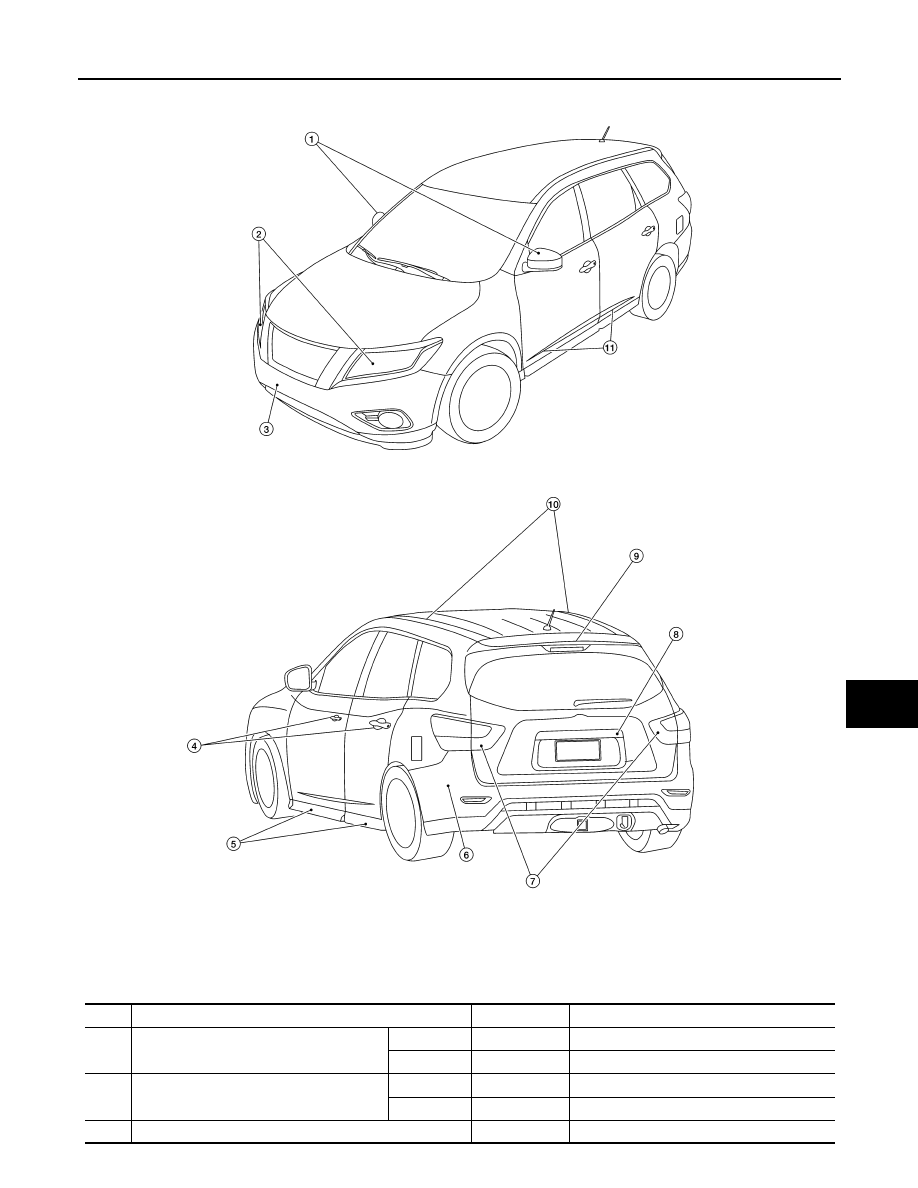

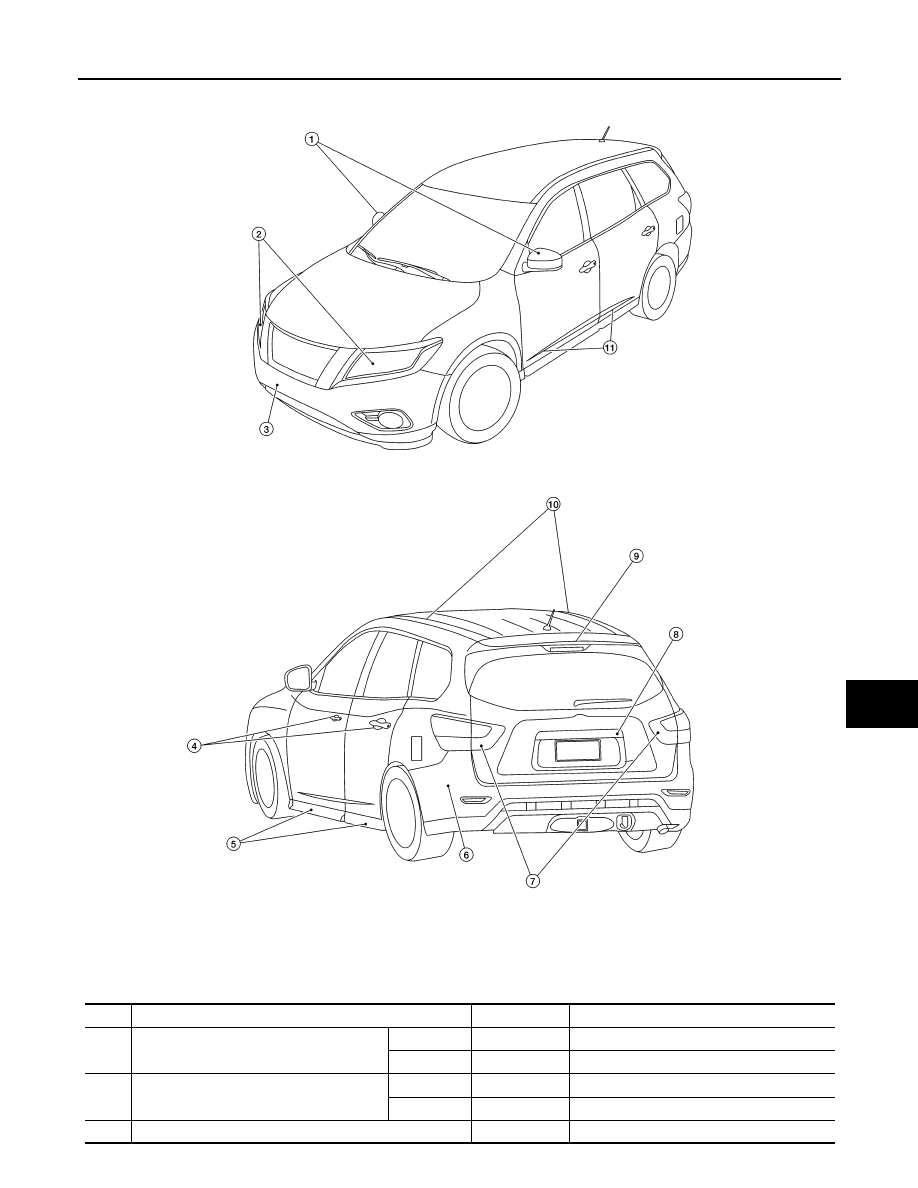

LOCATION OF PLASTIC PARTS

ALKIA2823ZZ

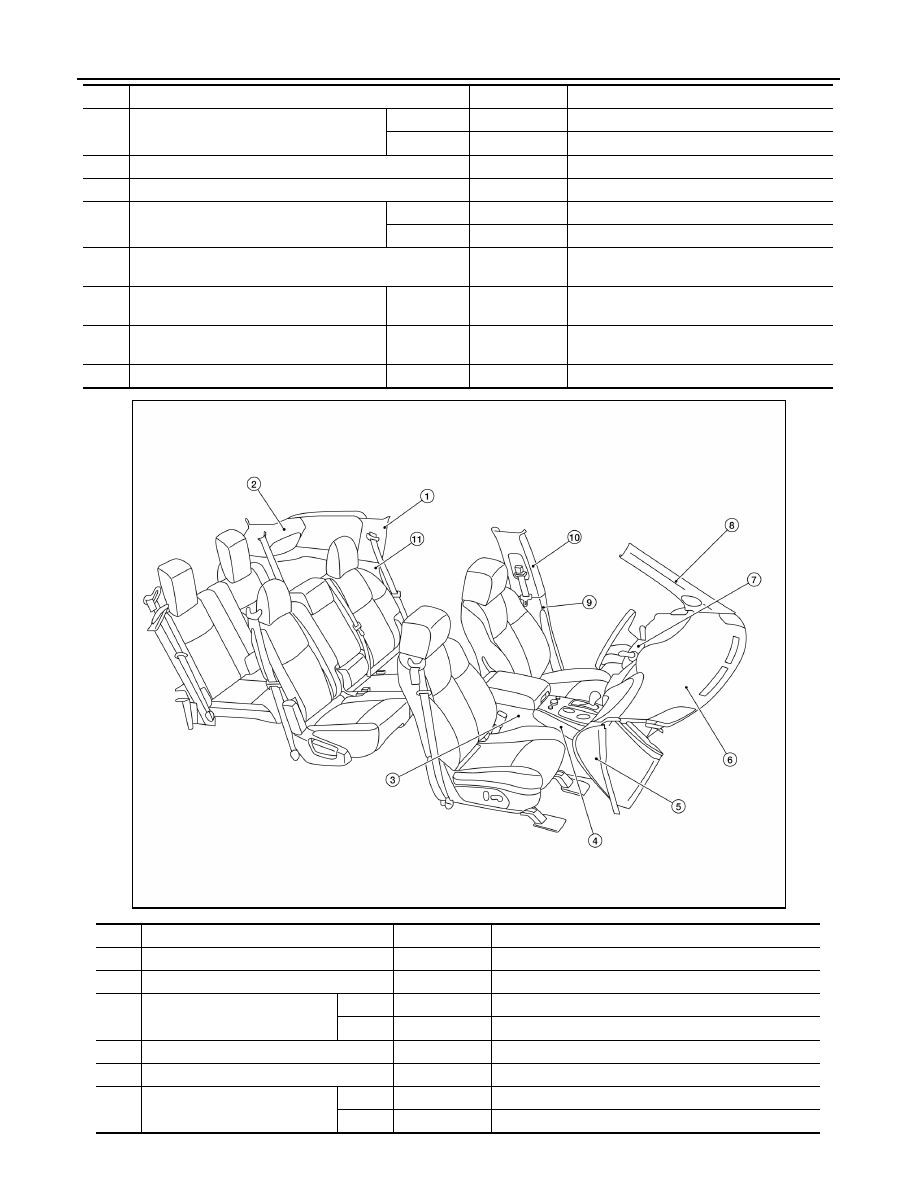

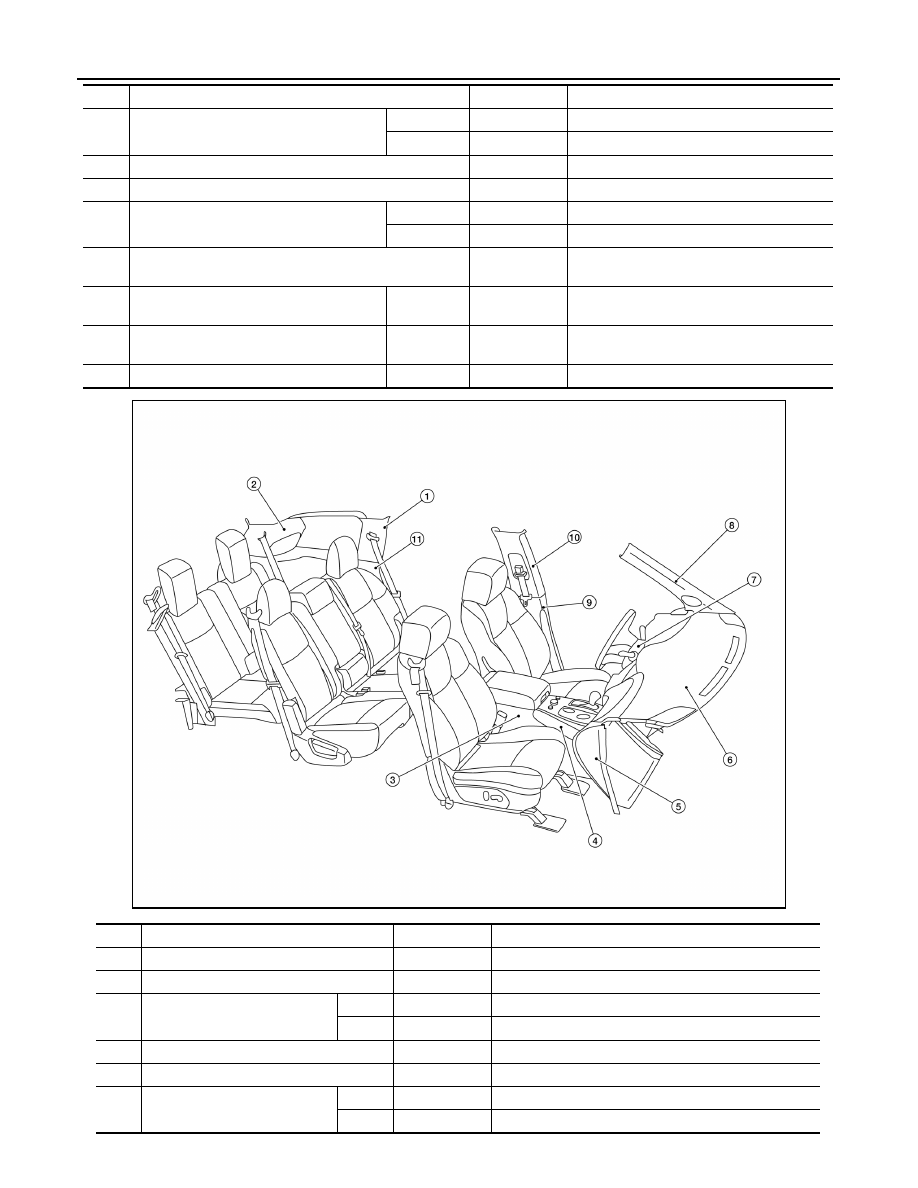

Item

Component

Abbreviation

Material

1.

Door mirror

Base

PA

Polyamide (Nylon)

Housing

ABS

Acrylonitrile Butadiene Styrene

2.

Front combination lamp

Lens

PC

Polycarbonate

Housing

PP

Polypropylene

3.

Front bumper fascia

PP

Polypropylene

BRM-6

< PRECAUTION >

HANDLING PRECAUTIONS FOR PLASTICS

4.

Outside door handle

Grip

PC

Polycarbonate

Escutcheon

PA

Polyamide (Nylon)

5.

Sill molding

TPO

Thermoplastic Olefine

6.

Rear bumper fascia

PP

Polypropylene

7.

Rear combination lamp

Lens

PMMA

Poly Methyl Methacrylate

Housing

ASA

Acrylonitrile Styrene Acrylate

8.

Back door outer finisher (upper/lower)

ABS + PC

Acrylonitrile Butadiene Styrene + Polycarbon-
ate

9.

Rear spoiler

ABS + PC

Acrylonitrile Butadiene Styrene + Polycarbon-
ate

10.

Roof side molding

ABS + PC

Acrylonitrile Butadiene Styrene + Polycarbon-
ate

11.

Body side molding

PC

Polycarbonate

Item

Component

Abbreviation

Material

ALKIA2371ZZ

Item

Component

Abbreviation

Material

1.

Rear pillar finisher

PP

Polypropylene

2.

Back pillar finisher

PP

Polypropylene

3.

Center console assembly

Base

PP + EPDM

Polypropylene + Ethylene Propylene (Diene) copolymer

Box

ABS + PC

Acrylonitrile Butadiene Styrene + Polycarbonate

4.

CVT shift selector finisher

ABS + PC

Acrylonitrile Butadiene Styrene + Polycarbonate

5.

Instrument panel side finisher

PP + EPDM

Polypropylene + Ethylene Propylene (Diene) copolymer

6.

Instrument panel

Base

PPC

Polypropylene Composite

Skin

PET

Polyester

HANDLING PRECAUTIONS FOR PLASTICS

BRM-7

< PRECAUTION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

7.

Steering column covers

PP

Polypropylene

8.

Front pillar finisher

Core

PP

Polypropylene

Skin

PET

Polyester

9.

Center pillar lower finisher

PP

Polypropylene

10.

Center pillar upper finisher

Core

PP

Polypropylene

11.

Luggage side finisher

PP

Polypropylene

Item

Component

Abbreviation

Material

BRM-8

< PRECAUTION >

REPAIRING HIGH STRENGTH STEEL

REPAIRING HIGH STRENGTH STEEL

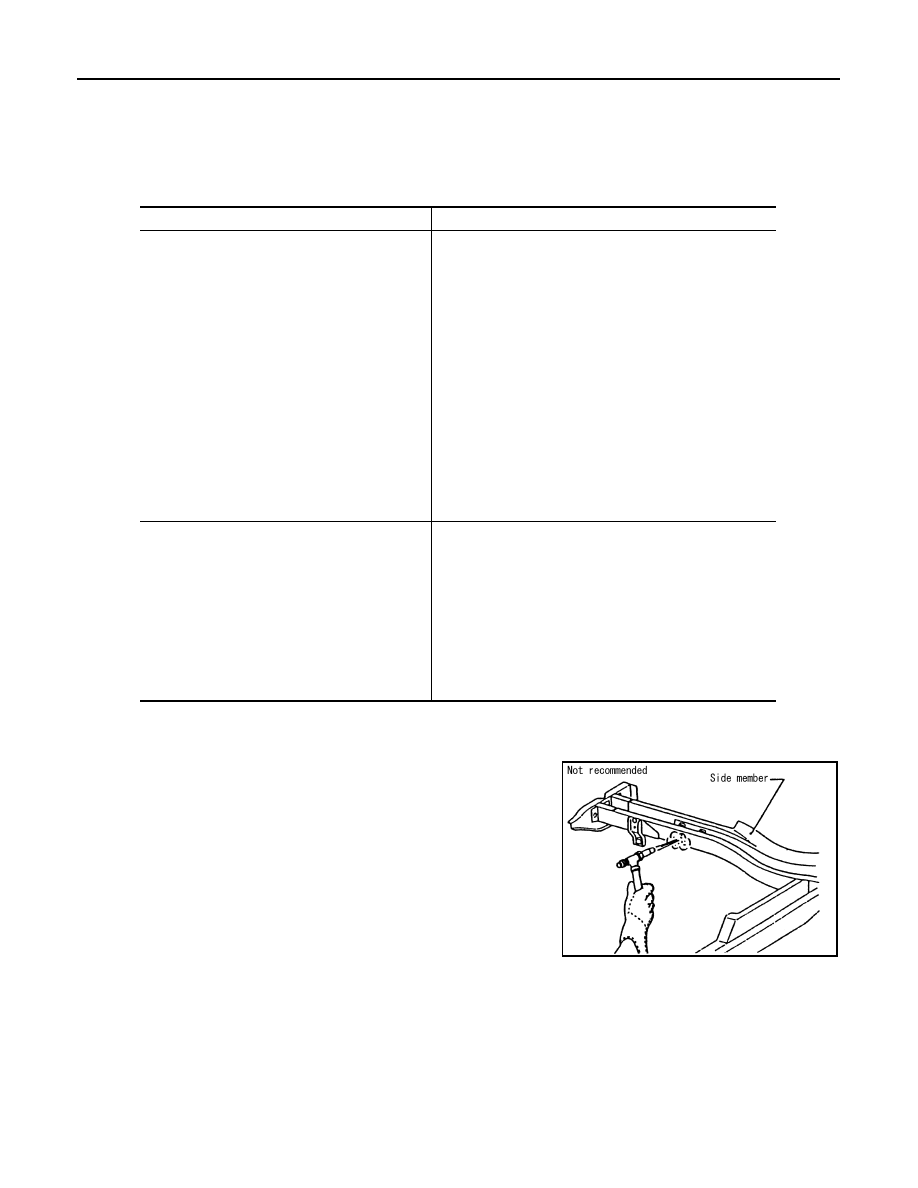

High Strength Steel (HSS)

INFOID:0000000009176366

High strength steel is used for body panels in order to reduce vehicle weight.

Accordingly, precautions in repairing automotive bodies made of high strength steel are described below:

Read the following precautions when repairing HSS:
1. Additional points to consider:

• The repair of reinforcements (such as side members) by heat-

ing is not recommended since it may weaken the component.

When heating is unavoidable, do not heat HSS parts above

550

°C (1,022°F).

Verify heating temperature with a thermometer.

(Crayon-type and other similar type thermometers are appro-

priate.)

Tensile strength

Major applicable parts

370 - 590 MPa

• Lower front and rear hoodledge
• Upper hoodledge
• Side  dash
• Roof bow No. 2 and No.4
• 3rd, crossmember

(Front floor component part)

• Inner sill
• Rear side member assembly
• Lower dash
• 2nd, 4th, 5th, and 7th crossmember
• Front side member outrigger
• 2nd crossmember extension
• Seatbelt anchor reinforcement
• Center pillar reinforcement
• Front seat inner and outer mounting bracket
• Side member outrigger
• Rear floor front extension
• Other reinforcements

780 - 1350 MPa

• Front side member assembly
• Front side member closing plate assembly
• Front side member extension
• Front side member extension front
• Outer roof rail reinforcement

(Side body assembly component part)

• Front suspension inner and outer mounting bracket
• Inner sill
• Front pillar upper reinforcement
• Center pillar outer reinforcement
• Front side member stiffener

PIIA0115E
