ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-43

< ECU DIAGNOSIS INFORMATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

C1130

ENGINE SIGNAL 1

BRC-77, "DTC Logic"

C1140

ACTUATOR RLY

BRC-78, "DTC Logic"

C1142

PRESS SEN CIRCUIT

BRC-80, "DTC Logic"

C1143

ST ANG SEN CIRCUIT

BRC-82, "DTC Logic"

C1144

ST ANG SEN SIGNAL

BRC-84, "DTC Logic"

C1145

YAW RATE SENSOR

BRC-85, "DTC Logic"

C1146

SIDE G SEN CIRCUIT

C1155

BR FLUID LEVEL LOW

BRC-88, "DTC Logic"

C1160

DECEL G SEN SET

BRC-90, "DTC Logic"

C1164

CV 1

BRC-91, "DTC Logic"

C1165

CV 2

C1170

VARIANT CODING

BRC-93, "DTC Logic"

C1197

VACUUM SENSOR

BRC-94, "DTC Logic"

C1198

VACUUM SEN CIR

BRC-96, "DTC Logic"

C1199

BRAKE BOOSTER

BRC-98, "DTC Logic"

C119A

VACUUM SEN VOLT

BRC-100, "DTC Logic"

U1000

CAN COMM CIRCUIT

BRC-102, "DTC Logic"

DTC

Display Item

Refer to

BRC-44

< WIRING DIAGRAM >

[VDC/TCS/ABS]

BRAKE CONTROL SYSTEM

WIRING DIAGRAM

BRAKE CONTROL SYSTEM

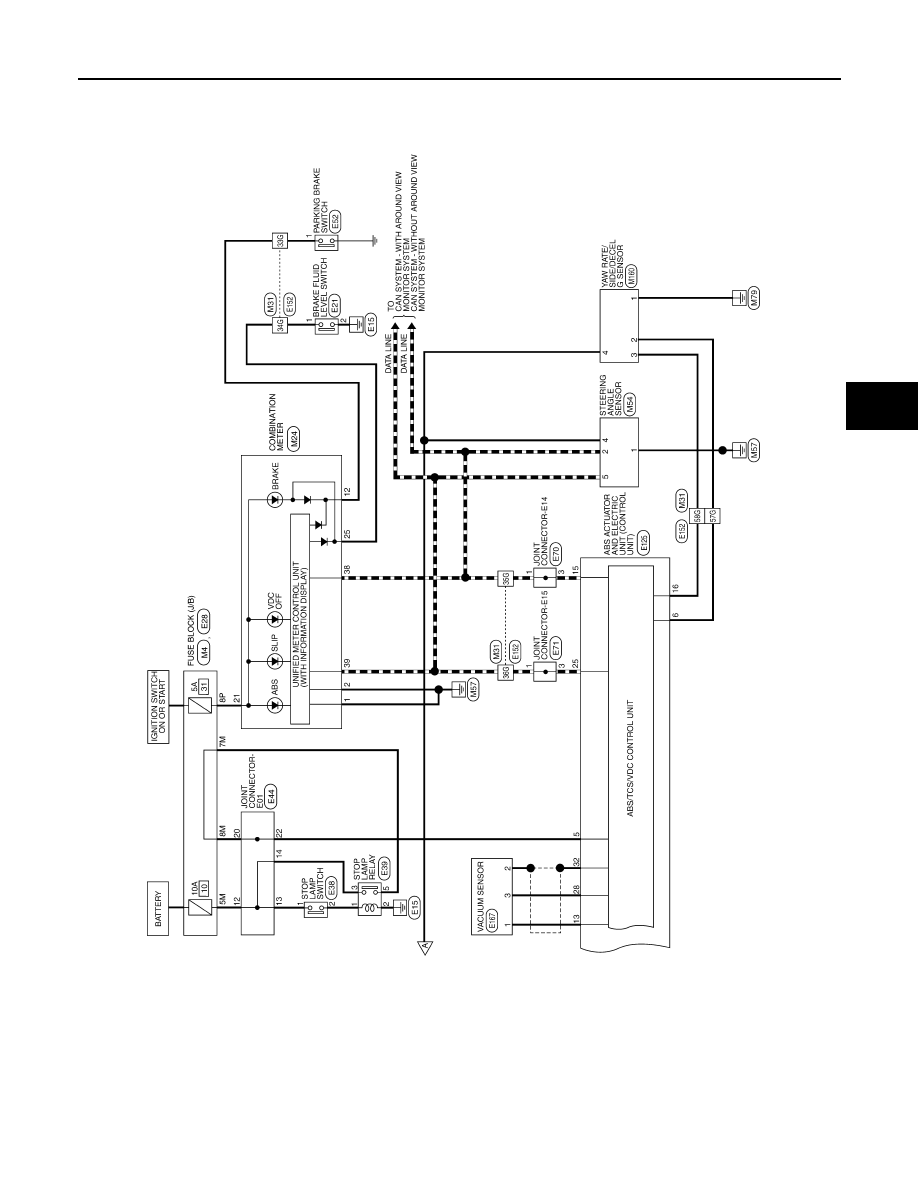

Wiring Diagram

INFOID:0000000009177262

AAFWA0090GB

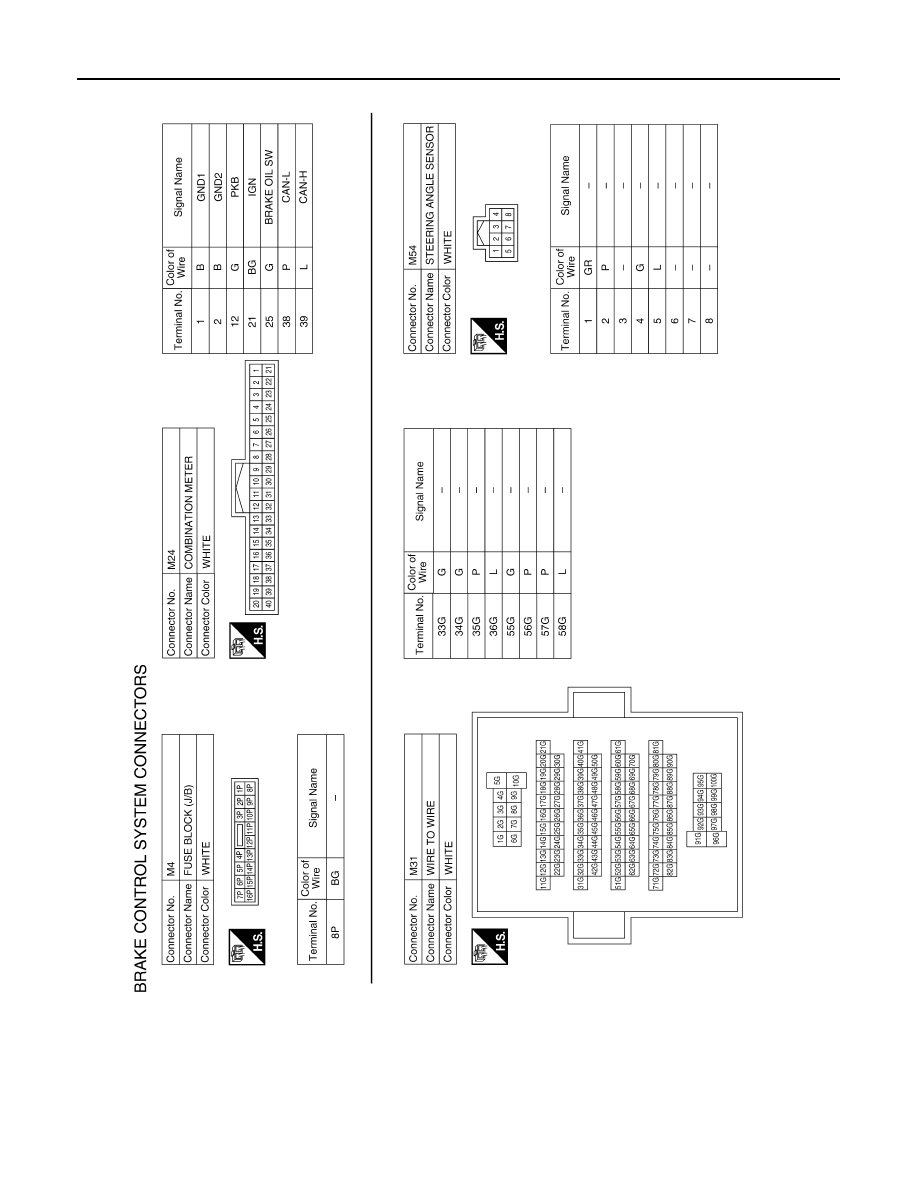

BRAKE CONTROL SYSTEM

BRC-45

< WIRING DIAGRAM >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABFWA0360GB

BRC-46

< WIRING DIAGRAM >

[VDC/TCS/ABS]

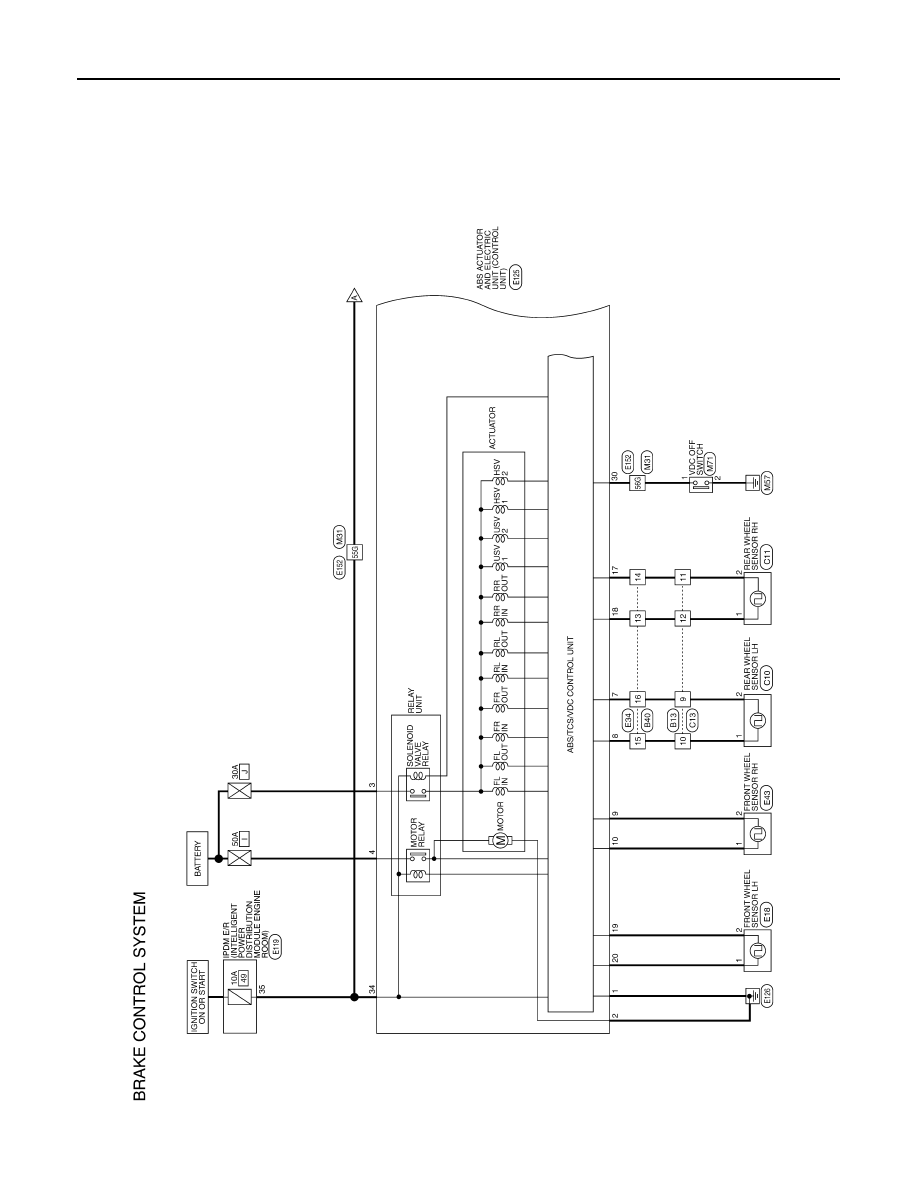

BRAKE CONTROL SYSTEM

ABFIA0723GB
