WIRING DIAGRAM

WARNING CHIME SYSTEM

Wiring Diagram

INFOID:0000000009174321

ABNWA1834GB

WCS-18

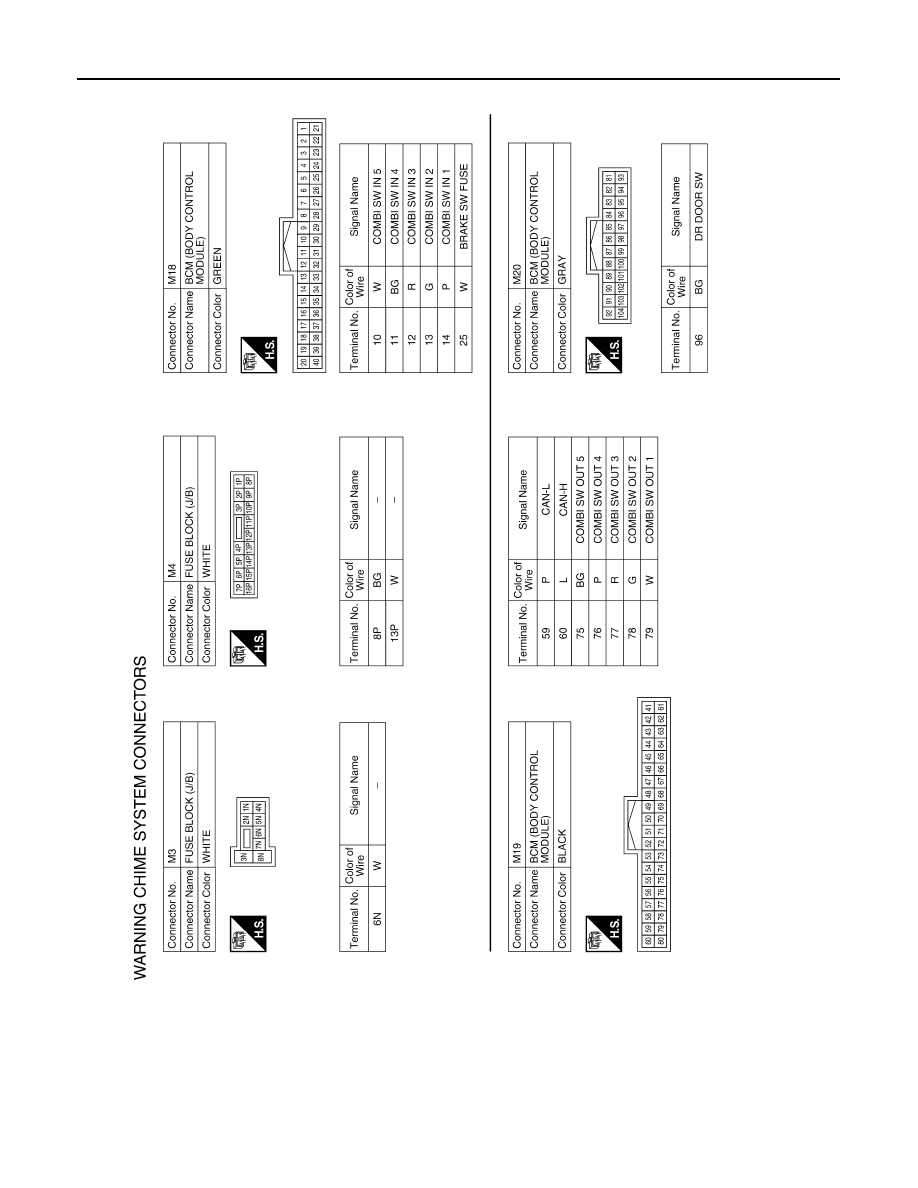

< WIRING DIAGRAM >

WARNING CHIME SYSTEM

AANIA1154GB

WCS

WARNING CHIME SYSTEM

WCS-19

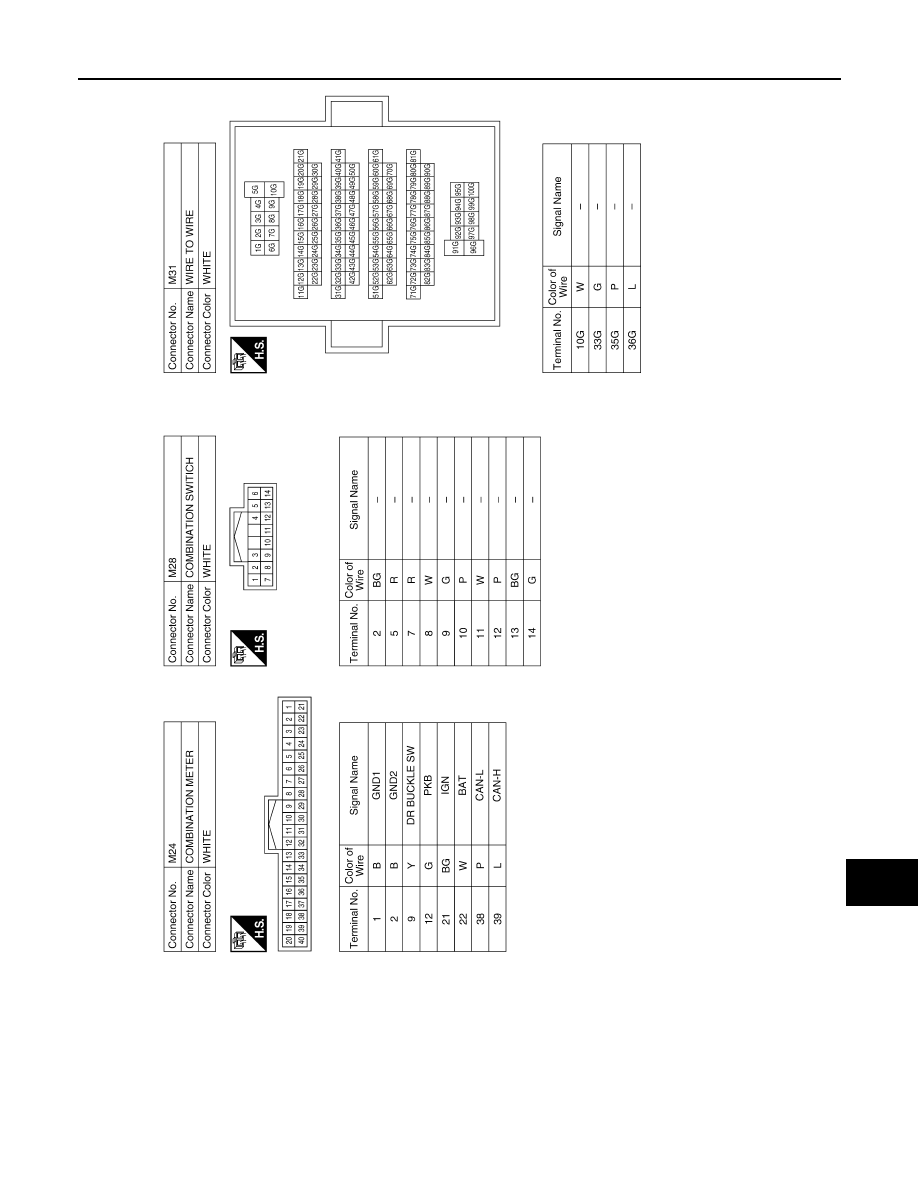

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AANIA1155GB

WCS-20

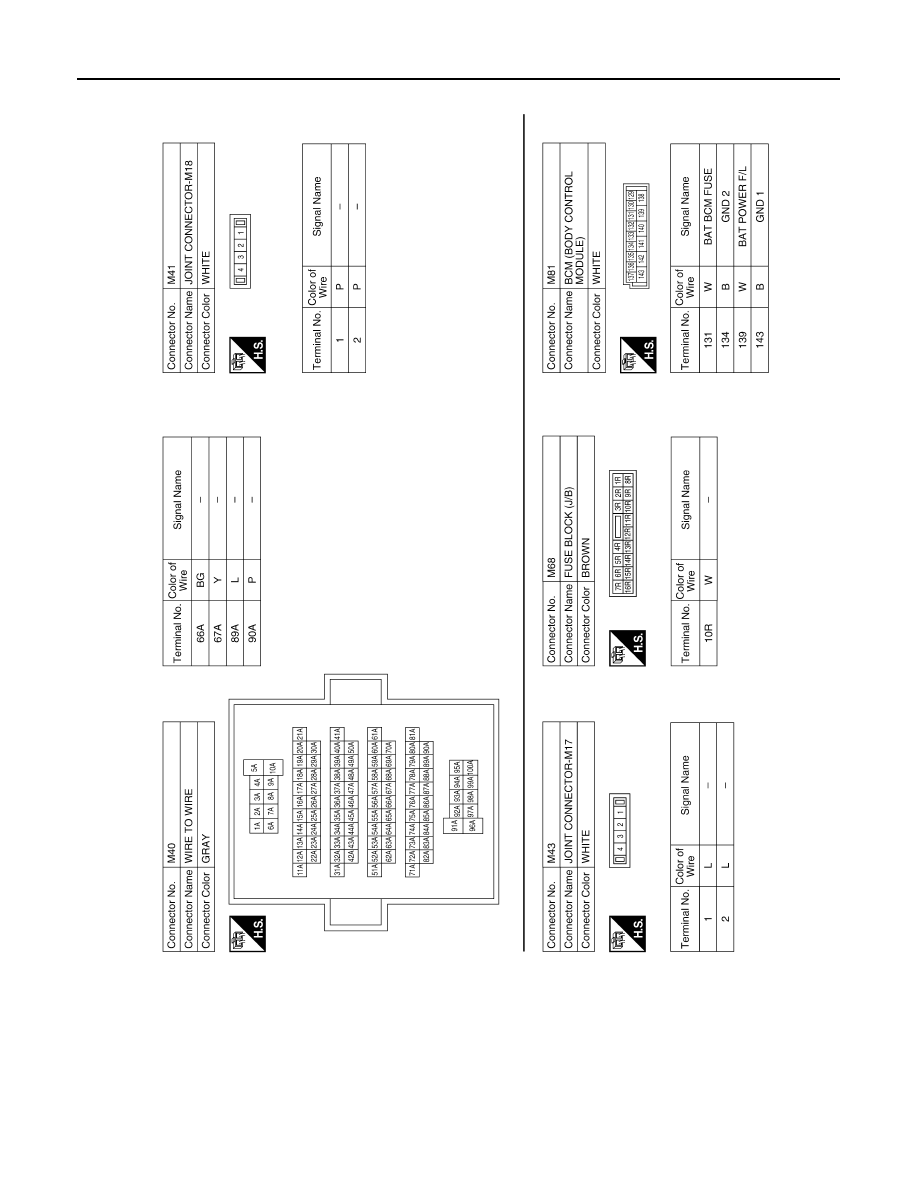

< WIRING DIAGRAM >

WARNING CHIME SYSTEM

ABNIA4767GB
