CONTENTS

WARNING CHIME SYSTEM

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

SYSTEM DESCRIPTION  ..............................

4

COMPONENT PARTS  ........................................

4

Component Parts Location ........................................

4

Component Description .............................................

5

SYSTEM ..............................................................

6

WARNING CHIME SYSTEM  .......................................

6

WARNING CHIME SYSTEM : System Diagram .......

6

WARNING CHIME SYSTEM : System Description

......

6

LIGHT REMINDER WARNING CHIME  .......................

6

LIGHT REMINDER WARNING CHIME : System
Diagram .....................................................................

6

LIGHT REMINDER WARNING CHIME : System
Description ................................................................

6

SEAT BELT WARNING CHIME  ..................................

7

SEAT BELT WARNING CHIME : System Diagram

......

7

SEAT BELT WARNING CHIME : System Descrip-
tion ............................................................................

7

PARKING BRAKE RELEASE WARNING CHIME ......

7

PARKING BRAKE RELEASE WARNING CHIME
: System Diagram ......................................................

7

PARKING BRAKE RELEASE WARNING CHIME
: System Description  .................................................

7

DIAGNOSIS SYSTEM (COMBINATION
METER) ...............................................................

9

Description ................................................................

9

CONSULT Function (METER/M&A)  .........................

9

DIAGNOSIS SYSTEM (BCM)  ...........................

14

COMMON ITEM  .........................................................

14

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM)  .....................................................

14

BUZZER .....................................................................

15

BUZZER : CONSULT Function (BCM - BUZZER) ....

15

ECU DIAGNOSIS INFORMATION ..............

16

BCM, COMBINATION METER  .........................

16

List of ECU Reference .............................................

16

WIRING DIAGRAM ......................................

17

WARNING CHIME SYSTEM .............................

17

Wiring Diagram ........................................................

17

BASIC INSPECTION  ...................................

25

DIAGNOSIS AND REPAIR WORKFLOW  ........

25

Work Flow ................................................................

25

DTC/CIRCUIT DIAGNOSIS  .........................

27

POWER SUPPLY AND GROUND CIRCUIT  ....

27

COMBINATION METER  ............................................

27

COMBINATION METER : Diagnosis Procedure  .....

27

BCM (BODY CONTROL MODULE)  ..........................

27

BCM (BODY CONTROL MODULE) : Diagnosis
Procedure ................................................................

28

METER BUZZER CIRCUIT  ...............................

29

Description ...............................................................

29

Component Function Check  ....................................

29

Diagnosis Procedure ..............................................

29

SEAT BELT BUCKLE SWITCH SIGNAL CIR-
CUIT ..................................................................

30

Description ...............................................................

30

Component Function Check ..................................

30

WCS-2

Diagnosis Procedure .............................................

30

Component Inspection ............................................

31

SYMPTOM DIAGNOSIS  .............................

32

WARNING CHIME SYSTEM SYMPTOMS ........

32

Symptom Table  ......................................................

32

THE LIGHT REMINDER WARNING DOES
NOT SOUND ......................................................

33

Description ..............................................................

33

Diagnosis Procedure  ..............................................

33

THE SEAT BELT WARNING CONTINUES
SOUNDING, OR DOES NOT SOUND ...............

34

Description ..............................................................

34

Diagnosis Procedure ...............................................

34

THE PARKING BRAKE RELEASE WARNING
CONTINUES SOUNDING, OR DOES NOT
SOUND ..............................................................

35

Description ..............................................................

35

Diagnosis Procedure ...............................................

35

WCS

PRECAUTIONS

WCS-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009730850

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

WCS-4

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

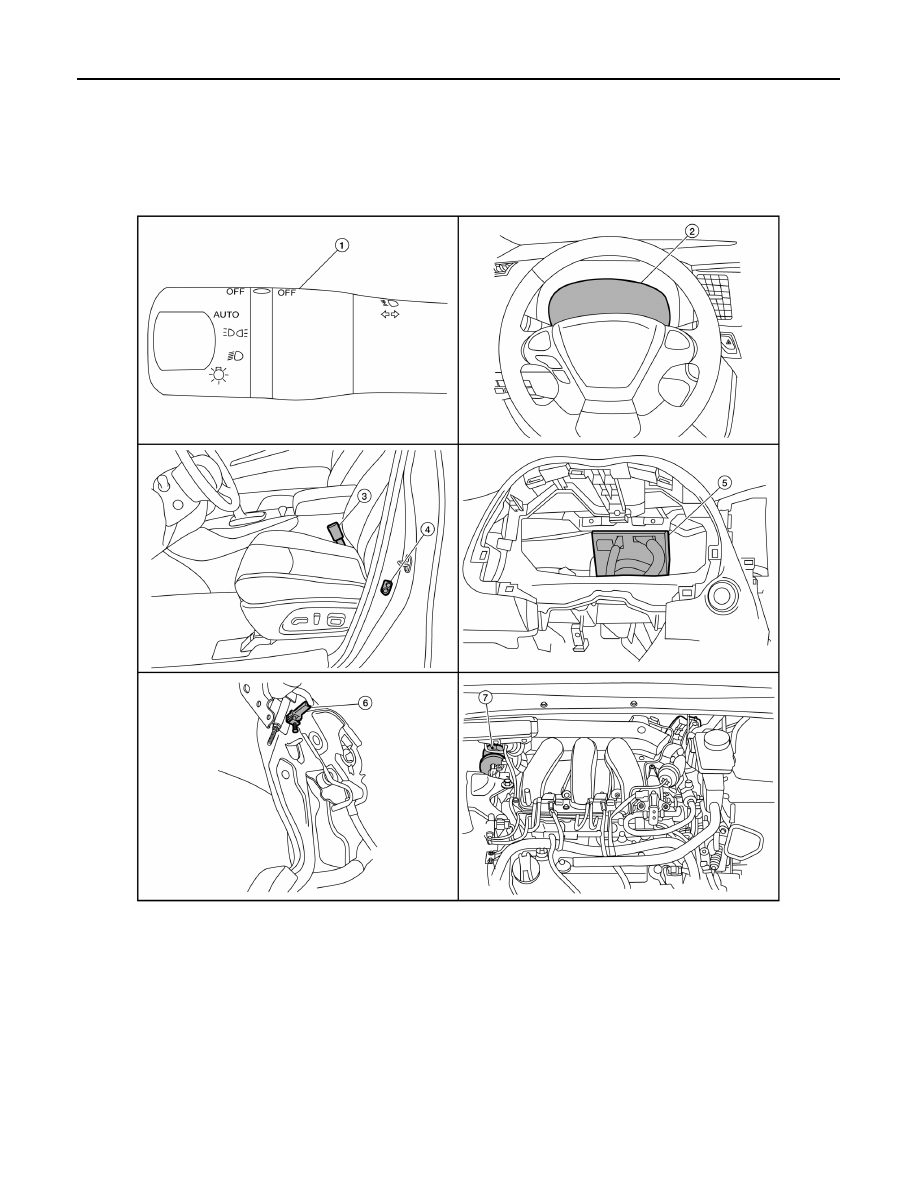

Component Parts Location

INFOID:0000000009174306

1.

Combination switch (lighting and turn
signal switch)

2.

Combination meter

3.

Seat belt buckle switch (driver seat)

4.

Front door switch LH

5.

BCM (view with combination meter
removed)

6.

Parking brake switch

7.

ABS actuator and electric unit (control
unit)

AWNIA2728ZZ
