DUCTS AND GRILLES

VTL-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

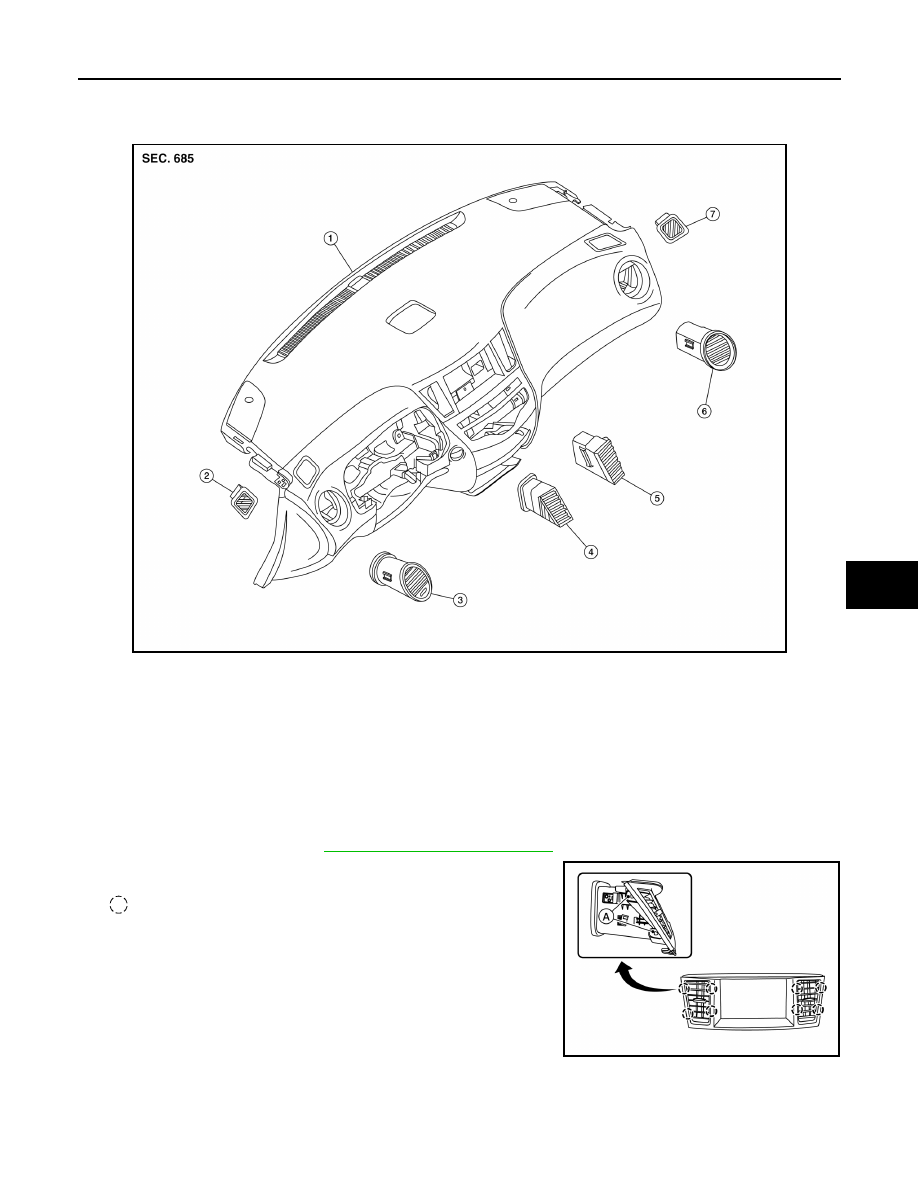

Exploded View

INFOID:0000000009176700

CENTER VENTILATOR GRILLE
CENTER VENTILATOR GRILLE : Removal and Installation

INFOID:0000000009176701

REMOVAL

1. Remove cluster lid D. Refer to

IP-24, "Removal and Installation"

.

2. Release the center ventilator grille pawls (A) from cluster lid D

using a suitable tool.

: Pawl

3. Remove the center ventilator grille.

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0533ZZ

1.

Instrument panel

2.

Side defroster grille (LH)

3.

Side ventilator grille (LH)

4.

Center ventilator grille (LH)

5.

Center ventilator grille (RH)

6.

Side ventilator grille (RH)

7.

Side defroster grille (RH)

ALIIA0541ZZ

VTL-16

< REMOVAL AND INSTALLATION >

DUCTS AND GRILLES

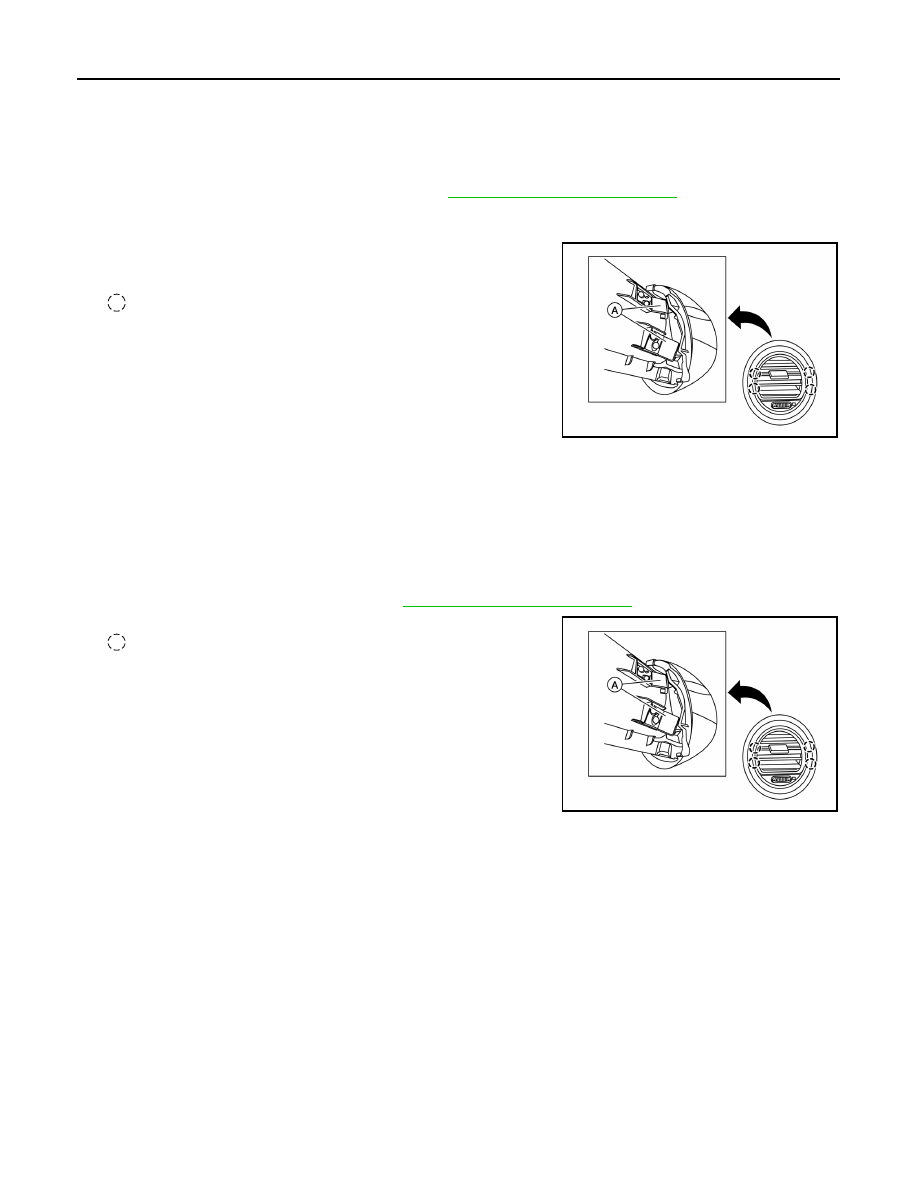

SIDE VENTILATOR GRILLE
SIDE VENTILATOR GRILLE : Removal and Installation - LH

INFOID:0000000009176702

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-25, "Removal and Installation"

.

2. Release the side ventilator grille pawls (A) using a suitable tool.

CAUTION:

Apply protective tape around the side ventilator grille and

instrument panel prior to removal to protect components

from damage.

: Pawl

3. Remove the side ventilator grille.

INSTALLATION

Installation is in the reverse order of removal.

SIDE VENTILATOR GRILLE : Removal and Installation - RH

INFOID:0000000009755009

REMOVAL

1. Remove the glove box assembly. Refer to

IP-26, "Removal and Installation"

.

2. Release the side ventilator grille pawls (A) using a suitable tool.

: Pawl

CAUTION:

Apply protective tape around the side ventilator grille and

instrument panel prior to removal to protect components

from damage.

3. Remove the side ventilator grille.

INSTALLATION

Installation is in the reverse order of removal.

SIDE DEFROSTER GRILLE
SIDE DEFROSTER GRILLE : Removal and Installation

INFOID:0000000009176703

REMOVAL

ALIIA0535ZZ

ALIIA0535ZZ

DUCTS AND GRILLES

VTL-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

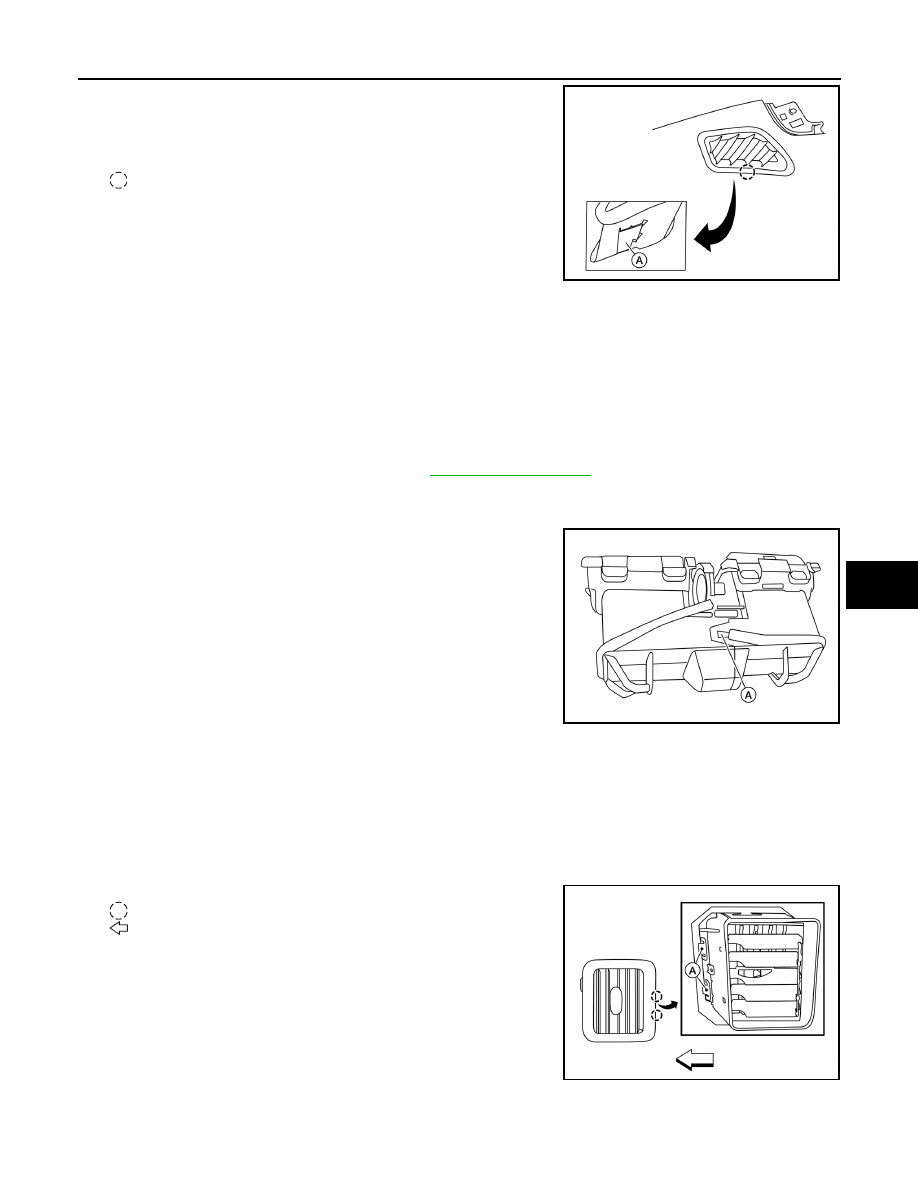

1. Release the side defroster grille pawl (A) using a suitable tool.

CAUTION:

Apply protective tape around the instrument panel and side

defroster grille prior to removal to prevent components

from damage.

: Pawl

2. Remove the side defroster grille.

INSTALLATION

Installation is in the reverse order of removal.

REAR CENTER VENTILATOR GRILLE
REAR CENTER VENTILATOR GRILLE : Removal and Installation

INFOID:0000000009176704

REMOVAL

1. Remove center console rear finisher. Refer to

IP-18, "Exploded View"

.

2. Remove the rear center ventilator duct from the center console rear finisher.
3. Release the clips, then remove the rear center ventilator grille.
4. Release the pawl (A) to separate the rear center ventilator grille

(if necessary).

INSTALLATION

Installation is in the reverse order of removal.

REAR VENTILATOR GRILLE
REAR VENTILATOR GRILLE : Removal and Installation

INFOID:0000000009176705

REMOVAL

1. Release the rear ventilator grille pawls (A) using a suitable tool.

: Pawl

: Front

2. Remove the rear ventilator grille.

INSTALLATION

ALIIA0534ZZ

ALIIA0543ZZ

ALIIA0536ZZ

VTL-18

< REMOVAL AND INSTALLATION >

DUCTS AND GRILLES

Installation is in the reverse order of removal.
