Nissan Pathfinder. Manual - part 1151

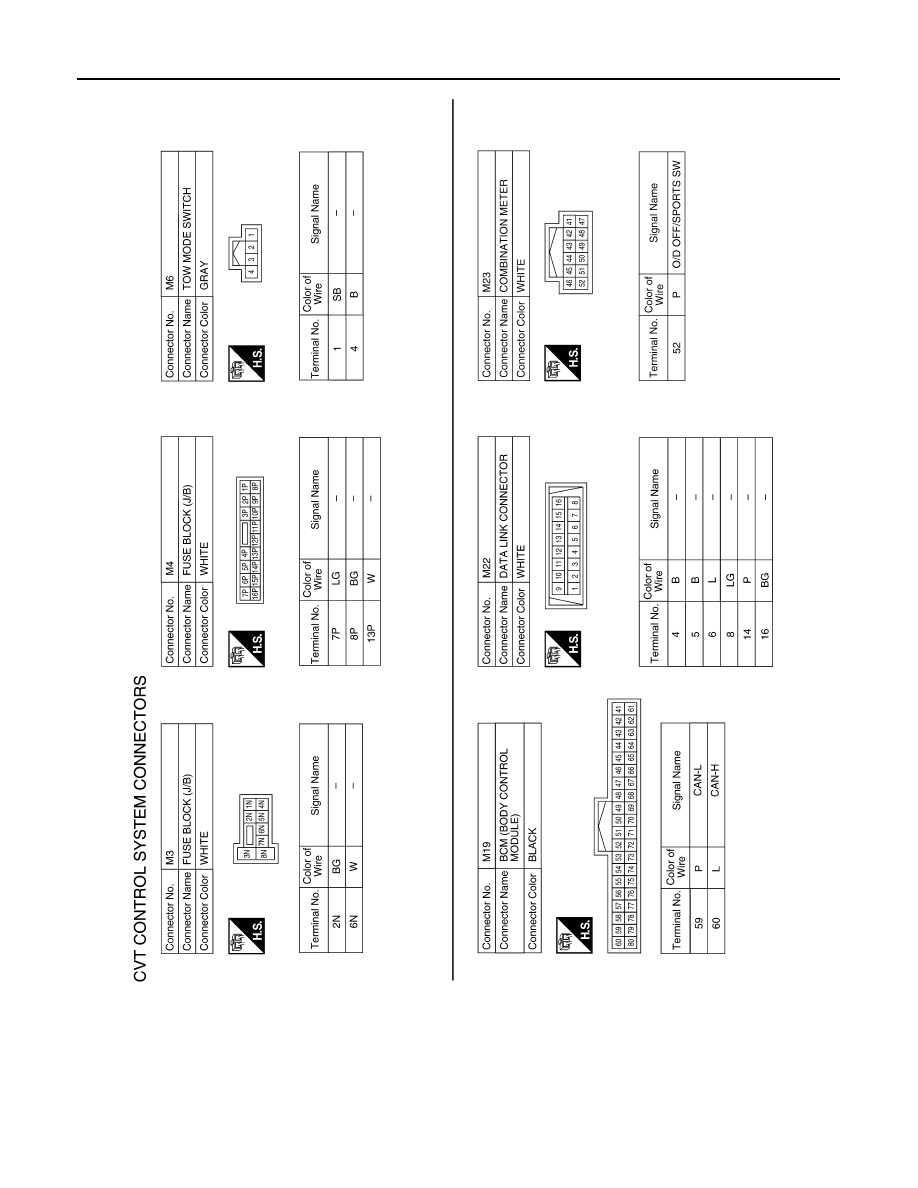

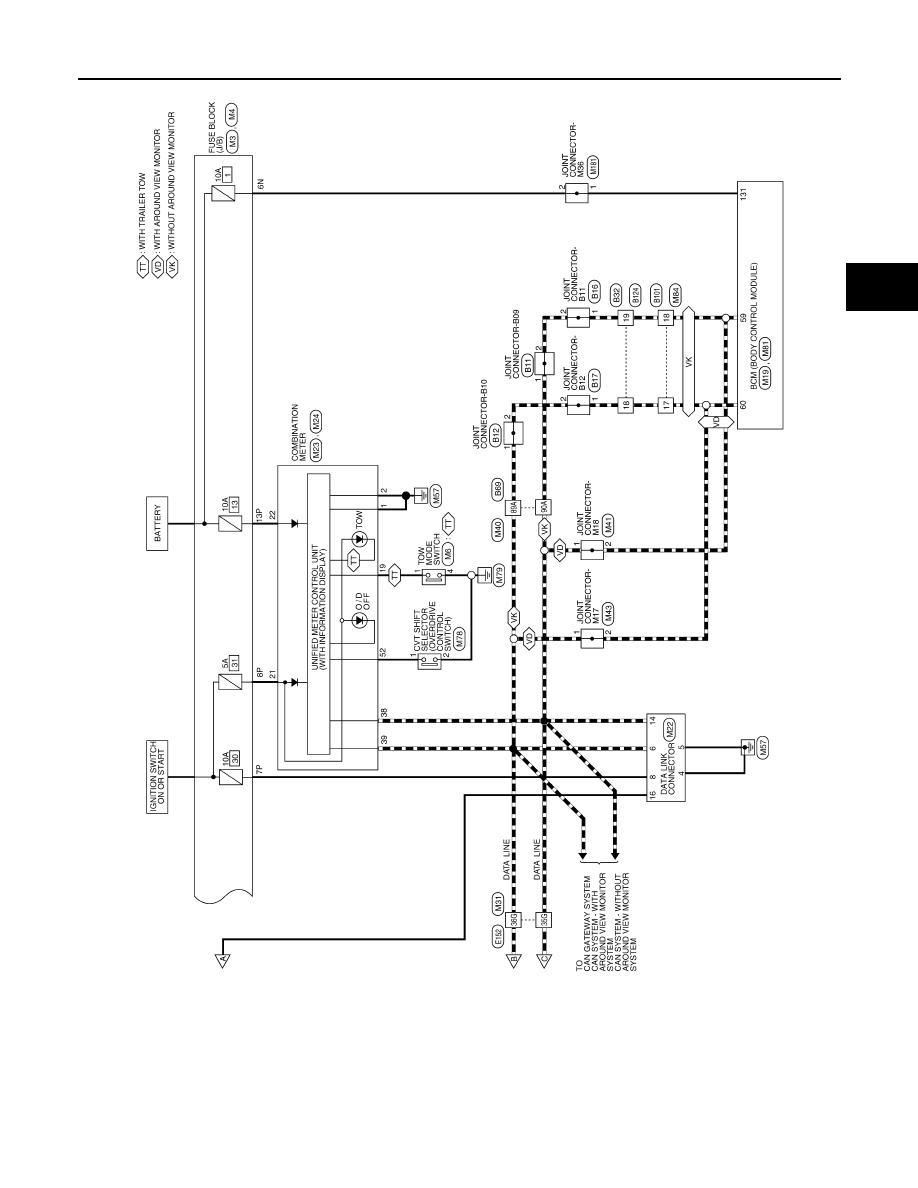

CVT CONTROL SYSTEM

TM-63

< WIRING DIAGRAM >

[CVT: RE0F10E]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ABDWA0690GB

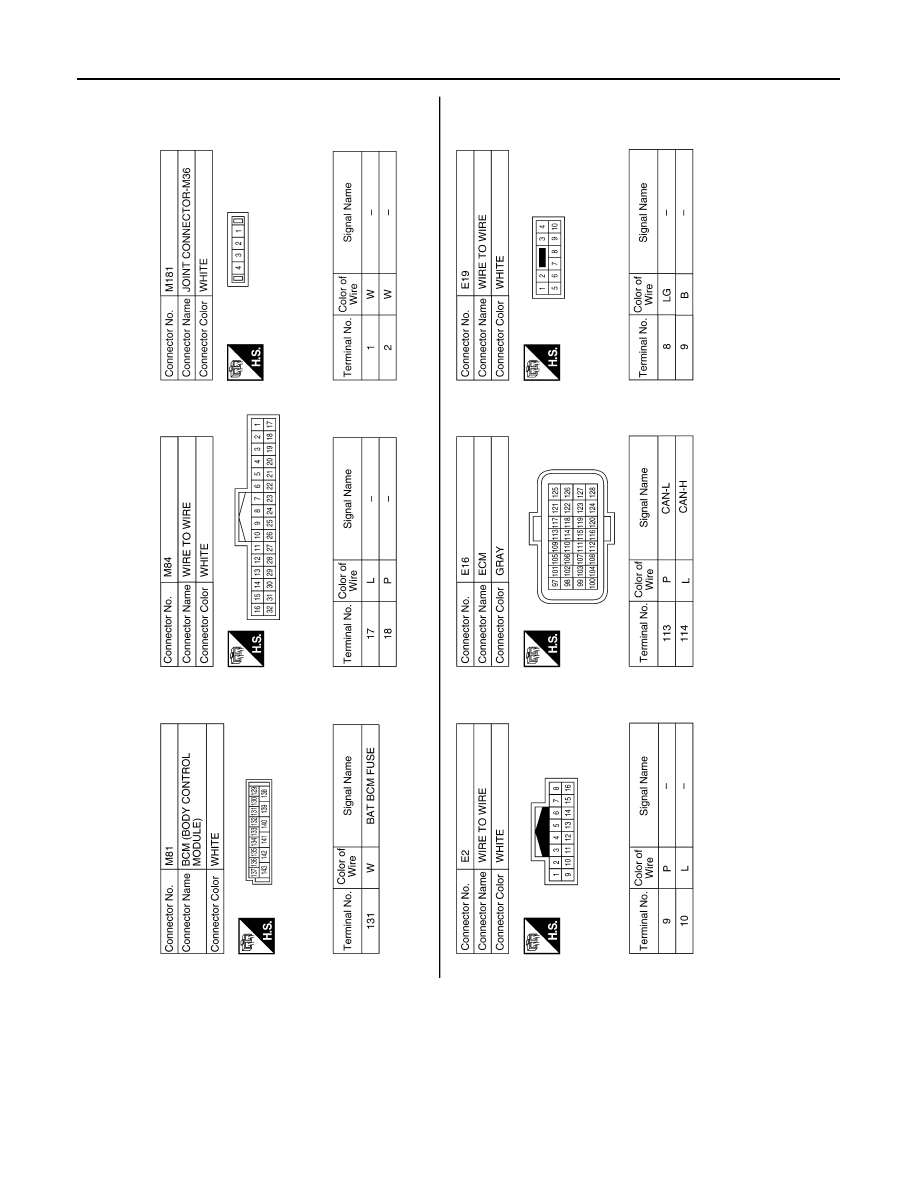

TM-64

< WIRING DIAGRAM >

[CVT: RE0F10E]

CVT CONTROL SYSTEM

ABDIA1090GB

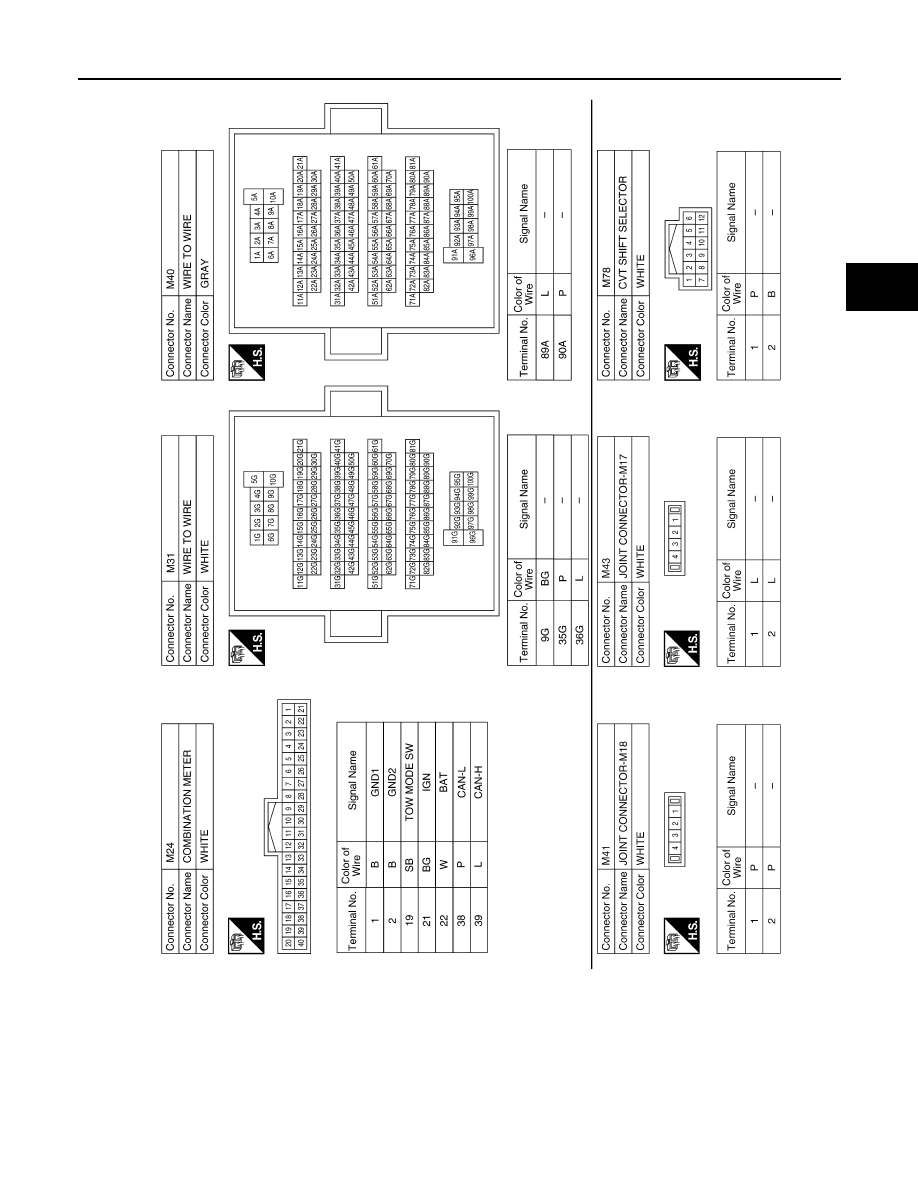

CVT CONTROL SYSTEM

TM-65

< WIRING DIAGRAM >

[CVT: RE0F10E]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ABDIA1091GB

TM-66

< WIRING DIAGRAM >

[CVT: RE0F10E]

CVT CONTROL SYSTEM

ABDIA1092GB
