Nissan Pathfinder. Manual - part 1150

TCM

TM-59

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F10E]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Priority

DTC (Diagnostic Trouble Code)

Reference

1

P0863 CONTROL UNIT (CAN)

TM-145, "DTC Logic"

U0073 COMM BUS A OFF

TM-89, "DTC Logic"

U0100 LOST COMM (ECM A)

TM-90, "DTC Logic"

U0102 LOST COMM (TRANSFER)

TM-91, "DTC Logic"

U0140 LOST COMM (BCM)

TM-92, "DTC Logic"

U0141 LOST COMM (BCM A)

TM-93, "DTC Logic"

U0155 LOST COMM (IPC)

TM-94, "DTC Logic"

U0300 CAN COMM DATA

TM-95, "DTC Logic"

U1000 CAN COMM CIRC

TM-96, "DTC Logic"

U1117 LOST COMM (ABS)

TM-97, "DTC Logic"

2

P0740 TORQUE CONVERTER

TM-122, "DTC Logic"

P0743 TORQUE CONVERTER

TM-124, "DTC Logic"

P0778 PC SOLENOID B

TM-132, "DTC Logic"

P0779 PC SOLENOID B

TM-134, "DTC Logic"

P0962 PC SOLENOID A

TM-148, "DTC Logic"

P0963 PC SOLENOID A

TM-150, "DTC Logic"

P0966 PC SOLENOID B

TM-154, "DTC Logic"

P0967 PC SOLENOID B

TM-156, "DTC Logic"

P2814 SELECT SOLENOID

TM-163, "DTC Logic"

P2815 SELECT SOLENOID

TM-165, "DTC Logic"

3

P062F EEPROM

TM-98, "DTC Logic"

P0705 T/M RANGE SENSOR A

TM-99, "DTC Logic"

P0706 T/M RANGE SENSOR A

TM-105, "DTC Logic"

P0711 FLUID TEMP SENSOR A

TM-108, "DTC Logic (For North Ameri-

ca)"

 (For North America),

TM-109, "DTC

Logic (Except for North America)"

 (Ex-

cept for North America)

P0712 FLUID TEMP SENSOR A

TM-112, "DTC Logic"

P0713 FLUID TEMP SENSOR A

TM-114, "DTC Logic"

P0715 INPUT SPEED SENSOR A

TM-116, "DTC Logic"

P0717 INPUT SPEED SENSOR A

TM-119, "DTC Logic"

P0841 FLUID PRESS SEN/SW A

TM-136, "DTC Logic"

P0847 FLUID PRESS SEN/SW B

TM-137, "DTC Logic"

P0848 FLUID PRESS SEN/SW B

TM-139, "DTC Logic"

P084C FLUID PRESS SEN/SW H

TM-141, "DTC Logic"

P084D FLUID PRESS SEN/SW H

TM-143, "DTC Logic"

P0890 TCM

TM-146, "DTC Logic"

P2765 INPUT SPEED SENSOR B

TM-158, "DTC Logic"

4

P0744 TORQUE CONVERTER

TM-126, "DTC Logic"

P0746 PC SOLENOID A

TM-128, "DTC Logic"

P0776 PC SOLENOID B

TM-130, "DTC Logic"

P0965 PC SOLENOID B

TM-152, "DTC Logic"

P2813 SELECT SOLENOID

TM-161, "DTC Logic"

TM-60

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F10E]

TCM

DTC Index

INFOID:0000000009177525

NOTE:

• If multiple malfunction codes are detected at the same time, check each code according to the “DTC check

priority list”.

TM-58, "DTC Inspection Priority Chart"

.

• The ignition counter is displayed in “FFD”. Refer to

TM-43, "CONSULT Function"

.

DTC

*1, *2

Items

(CONSULT screen terms)

Trip

MIL

Reference

GST

CONSULT

(TRANSMISSION)

P062F

P062F

EEPROM

1

ON

TM-98

P0705

P0705

T/M RANGE SENSOR A

2

ON

TM-99

P0706

P0706

T/M RANGE SENSOR A

2

ON

TM-105

P0711

P0711

FLUID TEMP SENSOR A

2

ON

TM-108

 (For

North Ameri-

ca),

TM-109



(Except for

North Ameri-

ca)

P0712

P0712

FLUID TEMP SENSOR A

2

ON

TM-112

P0713

P0713

FLUID TEMP SENSOR A

2

ON

TM-114

P0715

P0715

INPUT SPEED SENSOR A

2

ON

TM-116

P0717

P0717

INPUT SPEED SENSOR A

2

ON

TM-119

P0740

P0740

TORQUE CONVERTER

2

ON

TM-122

P0743

P0743

TORQUE CONVERTER

2

ON

TM-124

P0744

P0744

TORQUE CONVERTER

2

ON

TM-126

P0746

P0746

PC SOLENOID A

2

ON

TM-128

P0776

P0776

PC SOLENOID B

2

ON

TM-130

P0778

P0778

PC SOLENOID B

2

ON

TM-132

P0779

P0779

PC SOLENOID B

2

ON

TM-134

P0841

P0841

FLUID PRESS SEN/SW A

2

ON

TM-136

P0847

P0847

FLUID PRESS SEN/SW B

2

ON

TM-137

P0848

P0848

FLUID PRESS SEN/SW B

2

ON

TM-139

P084C

P084C

FLUID PRESS SEN/SW H

2

ON

TM-141

P084D

P084D

FLUID PRESS SEN/SW H

2

ON

TM-143

P0863

P0863

CONTROL UNIT (CAN)

1

ON

TM-145

P0890

P0890

TCM

1

ON

TM-146

P0962

P0962

PC SOLENOID A

2

ON

TM-148

P0963

P0963

PC SOLENOID A

2

ON

TM-150

P0965

P0965

PC SOLENOID B

2

ON

TM-152

P0966

P0966

PC SOLENOID B

2

ON

TM-154

P0967

P0967

PC SOLENOID B

2

ON

TM-156

P2765

P2765

INPUT SPEED SENSOR B

2

ON

TM-158

P2813

P2813

SELECT SOLENOID

2

ON

TM-161

P2814

P2814

SELECT SOLENOID

2

ON

TM-163

P2815

P2815

SELECT SOLENOID

2

ON

TM-165

U0073

U0073

COMM BUS A OFF

1

ON

TM-89

U0100

U0100

LOST COMM (ECM A)

1

ON

TM-90

—

U0102

LOST COMM (TRANSFER)

1

—

TM-91

TCM

TM-61

< ECU DIAGNOSIS INFORMATION >

[CVT: RE0F10E]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

*1: These numbers are specified by SAE J2012/ISO 15031-6.

*2: The DTC number of the 1st trip is the same as the DTC number.

—

U0140

LOST COMM (BCM)

1

—

TM-92

—

U0141

LOST COMM (BCM A)

1

—

TM-93

—

U0155

LOST COMM (IPC)

1

—

TM-94

—

U0300

CAN COMM DATA

1

—

TM-95

—

U1000

CAN COMM CIRC

1

—

TM-96

—

U1117

LOST COMM (ABS)

1

—

TM-97

DTC

*1, *2

Items

(CONSULT screen terms)

Trip

MIL

Reference

GST

CONSULT

(TRANSMISSION)

TM-62

< WIRING DIAGRAM >

[CVT: RE0F10E]

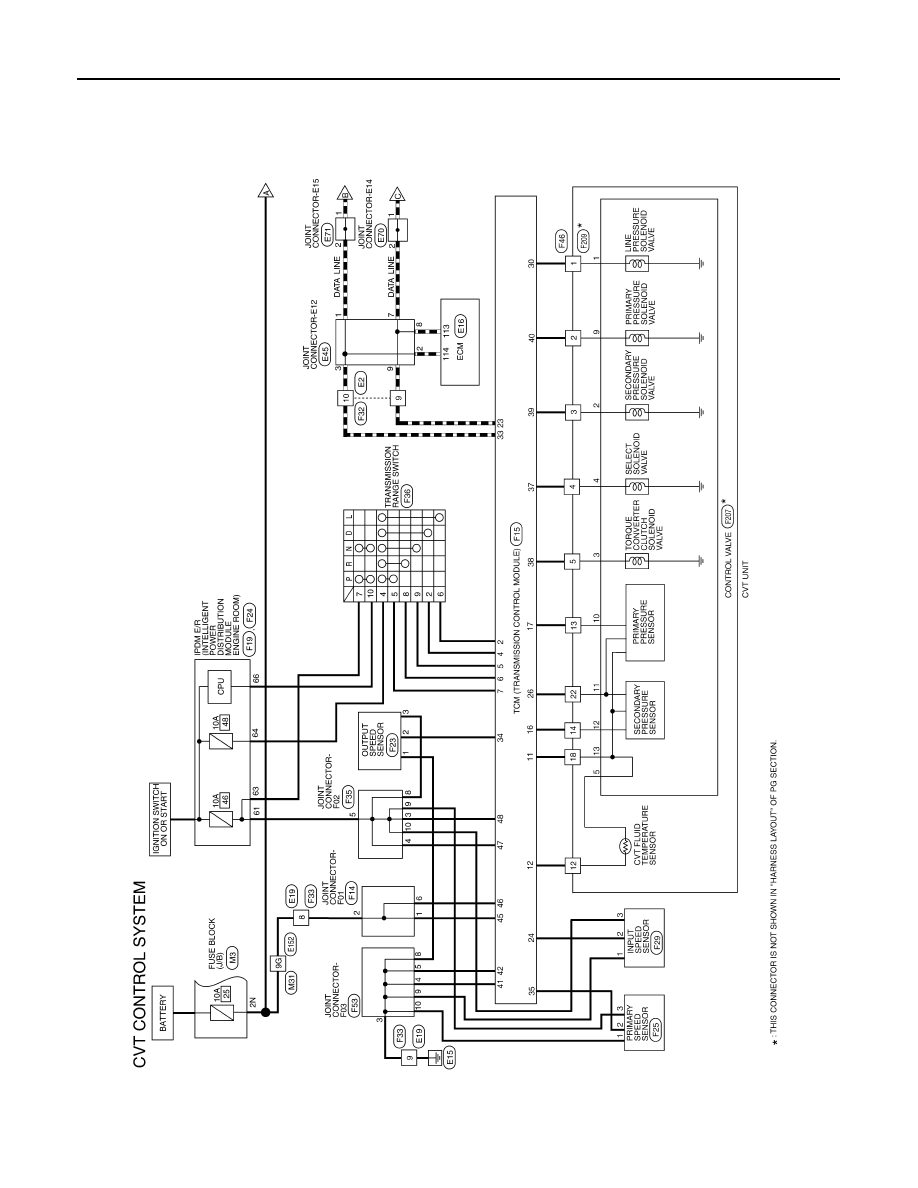

CVT CONTROL SYSTEM

WIRING DIAGRAM

CVT CONTROL SYSTEM

Wiring diagram

INFOID:0000000009177526

ABDWA0689GB
