COMPONENT PARTS

TM-19

< SYSTEM DESCRIPTION >

[CVT: RE0F10E]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

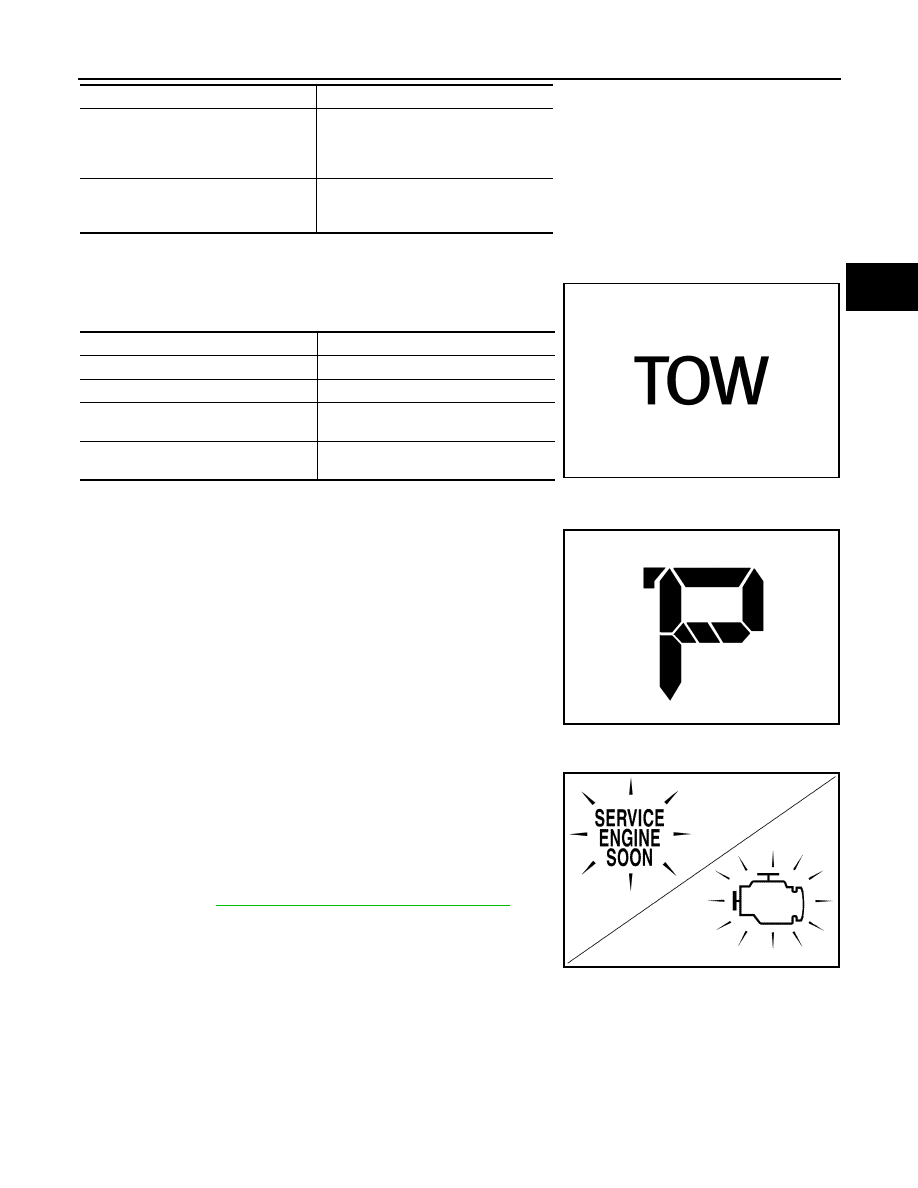

CVT CONTROL SYSTEM : TOW Mode Indicator Lamp

INFOID:0000000009177494

• TOW mode indicator lamp is positioned on the combination meter.

• TOW mode indicator lamp is ON when set to the tow mode.

CVT CONTROL SYSTEM : Shift Position Indicator

INFOID:0000000009177495

TCM transmits shift position signal to combination meter via CAN

communication. The actual shift position is displayed on combination

meter according to the signal.

CVT CONTROL SYSTEM : Malfunction Indicator Lamp (MIL)

INFOID:0000000009177496

The malfunction indicator lamp (MIL) is located on the combination

meter.

The MIL will illuminate when the ignition switch is turned ON without

the engine running. This is a bulb check.

When the engine is started, the MIL should turn off. If the MIL

remains illuminated, the on board diagnostic system has detected an

engine system malfunction.

For details, refer to

EC-26, "Malfunction Indicator Lamp (MIL)"

.

SHIFT LOCK SYSTEM

Overdrive control switch is pressed
when the selector lever is in the “D” po-
sition and the OD OFF indicator lamp is
ON.

OFF

Selector lever is shifted to other position
when the selector lever is at “D” position
and the OD OFF indicator lamp is ON.

OFF

Condition (status)

OD OFF indicator lamp

Condition (status)

Tow mode indicator lamp

Ignition switch OFF.

OFF

Ignition switch ON.

OFF

Tow mode switch is pressed when the
TOW mode indicator lamp is OFF

ON

Tow mode switch is pressed when the
TOW mode indicator lamp is ON.

OFF

JPNIA1928ZZ

JSDIA3906ZZ

JSBIA1315ZZ

TM-20

< SYSTEM DESCRIPTION >

[CVT: RE0F10E]

COMPONENT PARTS

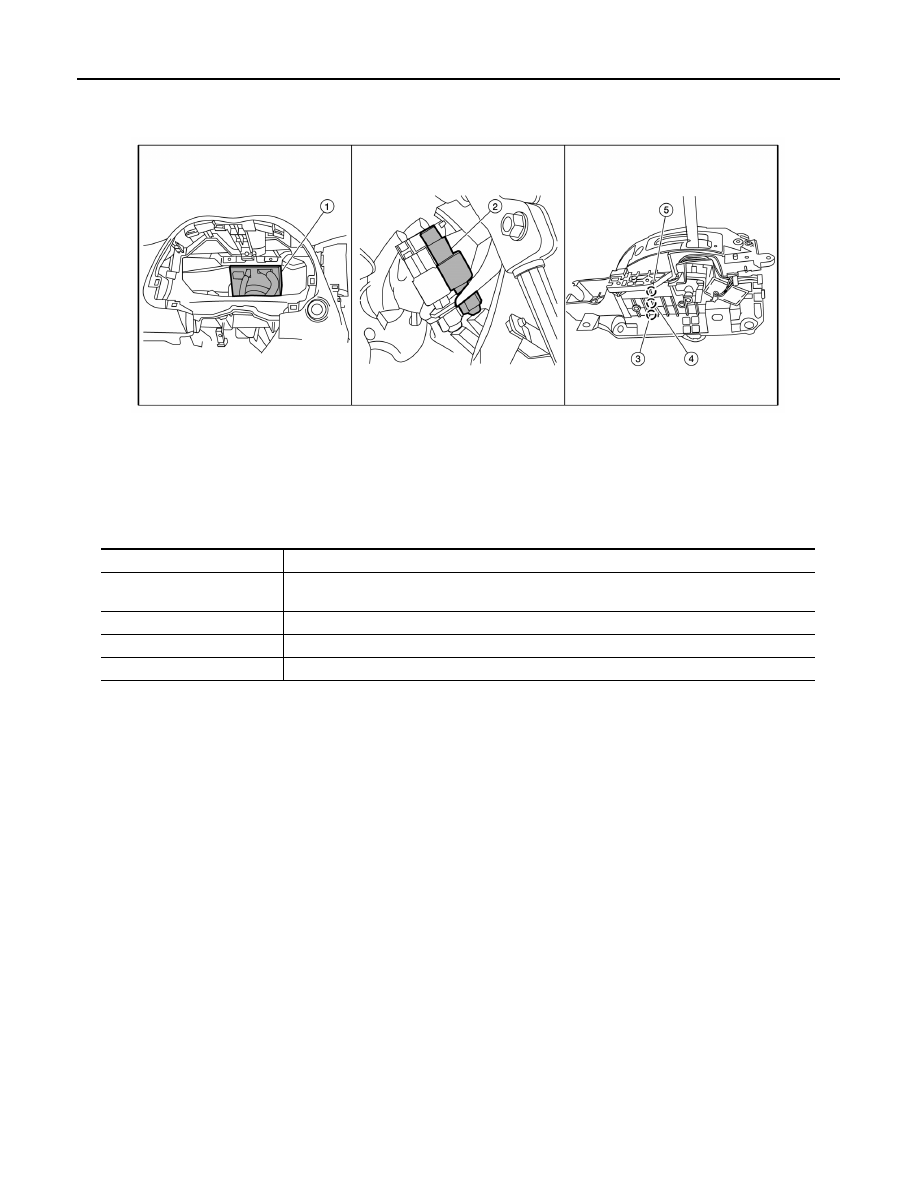

SHIFT LOCK SYSTEM : Component Parts Location

INFOID:0000000009177499

COMPONENT DESCRIPTION

1.

BCM (view with combination meter
removed)

2.

Stop lamp switch

3.

Shift lock release button (view with
center console removed)

4.

Shift lock solenoid (view with center
console removed)

5.

Park position switch (view with cen-
ter console removed)

ALDIA0388ZZ

Component

Function

Stop lamp switch

• The stop lamp switch turns ON when the brake pedal is depressed.
• When the stop lamp switch turns ON, the shift lock solenoid is energized.

Shift lock release button

Forcibly releases the shift lock when pressed.

Shift lock solenoid

It operates according to the signal from the stop lamp switch and moves the lock lever.

Park position switch

It detects that the selector lever is in “P” position.

STRUCTURE AND OPERATION

TM-21

< SYSTEM DESCRIPTION >

[CVT: RE0F10E]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

STRUCTURE AND OPERATION

TRANSAXLE

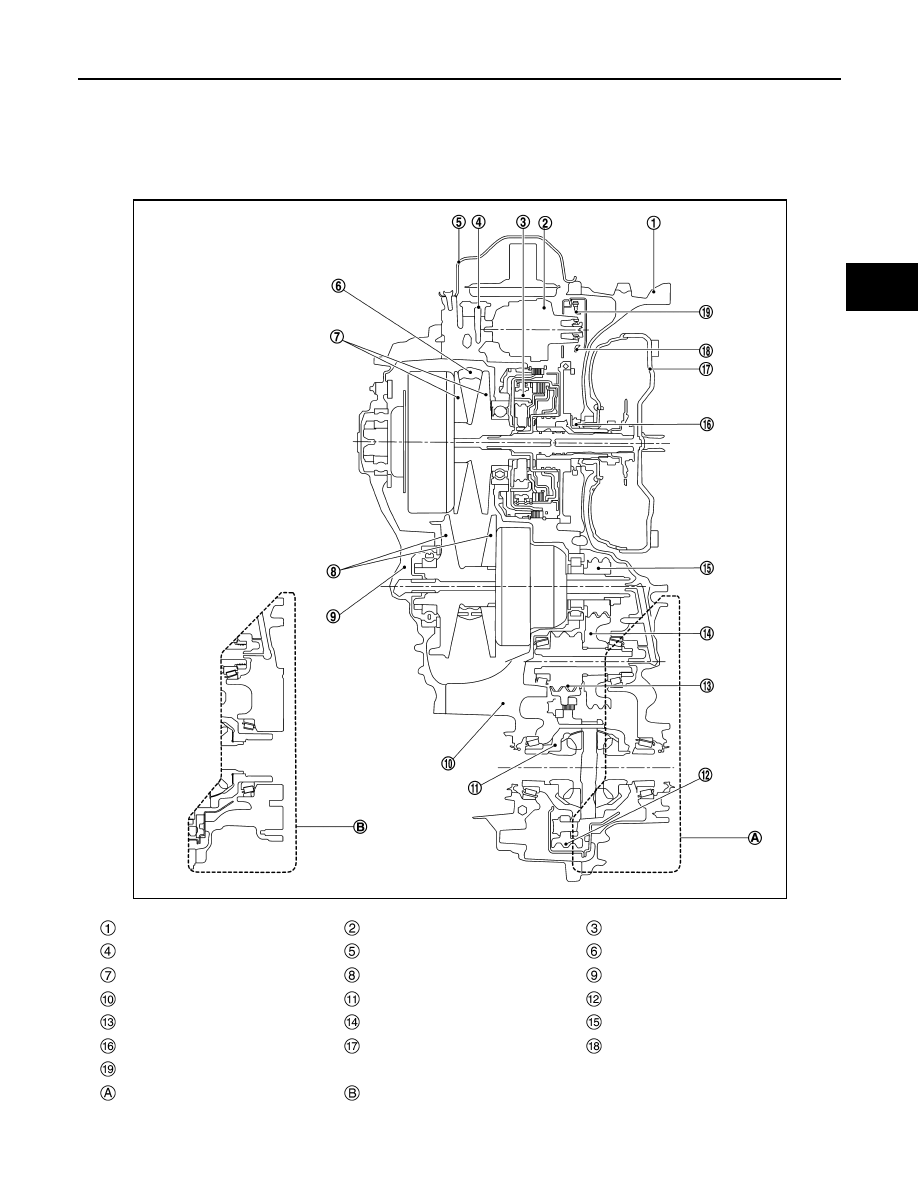

TRANSAXLE : Cross-Sectional View

INFOID:0000000009177500

Converter housing

Oil pump

Planetary gear

Control valve

Oil pan

Chain belt

Planetary pulley

Secondary pulley

Side cover

Transaxle case

Differential case

Final gear

Reduction gear

Idler gear

Output gear

Drive sprocket

Torque converter

Driven sprocket

Oil pump chain

2WD models

4WD models

JSDIA4008ZZ

TM-22

< SYSTEM DESCRIPTION >

[CVT: RE0F10E]

STRUCTURE AND OPERATION

TRANSAXLE : Transaxle Mechanism

INFOID:0000000009177501

TORQUE CONVERTER (WITH LOCK-UP FUNCTION)

In the same way as a conventional A/T, the torque converter is a system that increases the engine torque and

transmits the torque to the transaxle. A symmetrical 3-element, 1-stage, 2-phase type is used here.

OIL PUMP

Utilizes a vane-type oil pump that is driven by the engine through the oil pump drive chain in order to increase

efficiency of pump discharge volume in low-speed zone and optimize pump discharge volume in high-speed

zone. Discharged oil from oil pump is transmitted to control valve. It is used as the oil of primary and second-

ary pulley operation, the oil of clutch operation, and the lubricant for each part.

PLANETARY GEAR

• A planetary gear type of forward/reverse selector mechanism is installed between the torque converter and

primary pulley.

• The power from the torque converter is input via the input shaft, operating a wet multi-plate clutch by means

of hydraulic pressure to switch between forward and reverse driving.

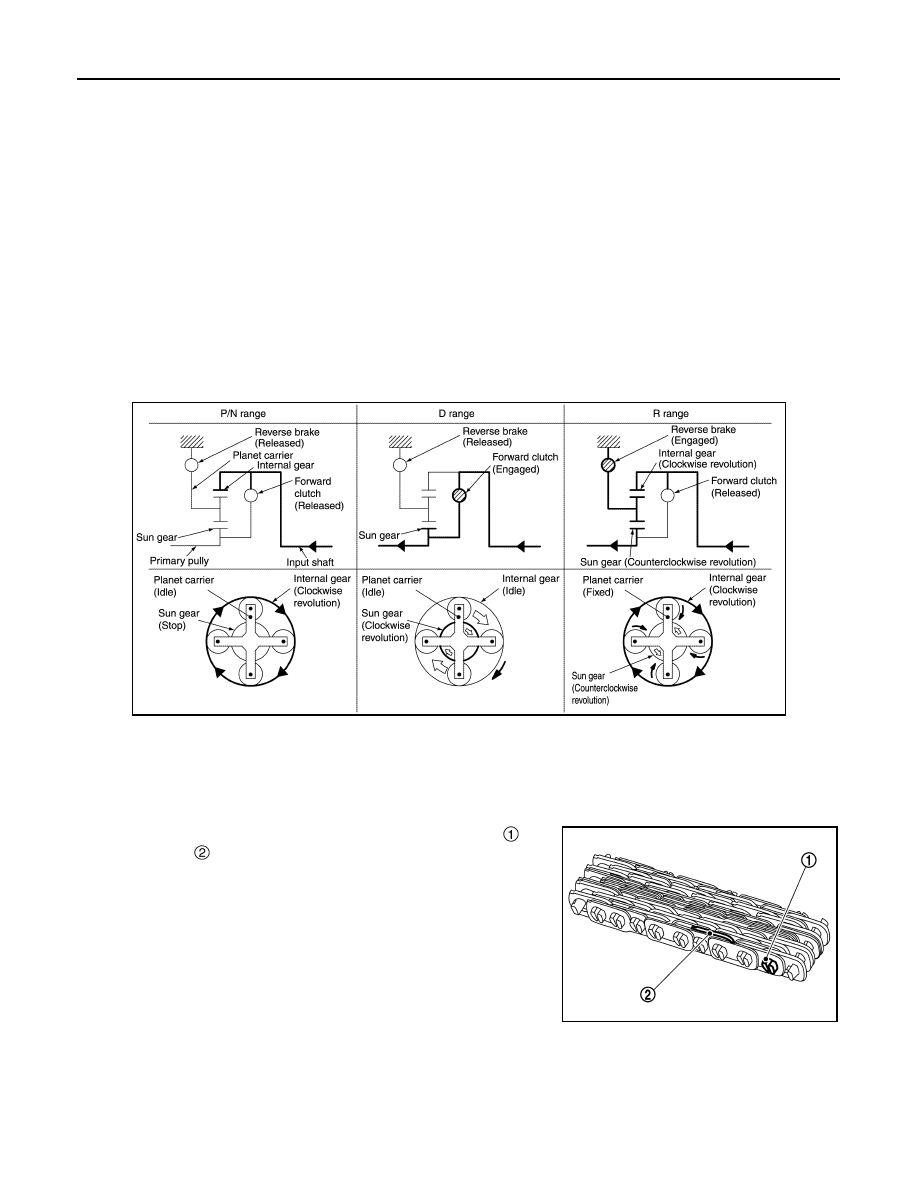

Operation of Planetary gear

BELT & PULLEY

It is composed of a pair of pulleys (the groove width is changed freely in the axial direction) and the chain belt

.The groove width changes according to wrapping radius of chain belt and pulley from low status to overdrive

status continuously with non-step. It is controlled with the oil pressures of primary pulley and secondary pulley.

Chain belt

The chain belt consists of approximately 150 locker pins   and
1,000 link plates  . Chains are rotated by locker pins sandwiched by

pulleys. This produces tension difference in chains among pulleys.

Accordingly, the power is transferred by the tension.

Pulley

The primary pulley (input shaft side) and the secondary pulley (output shaft side) have the shaft with slope

(fixed cone surface), movable sheave (movable cone surface that can move in the axial direction) and oil pres-

sure chamber at the back of the movable sheave.
