STEERING GEAR AND LINKAGE

ST-23

< BASIC INSPECTION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

STEERING GEAR AND LINKAGE

Inspection

INFOID:0000000009177073

BOOT

Check boot for cracks. Replace if any damage is found.

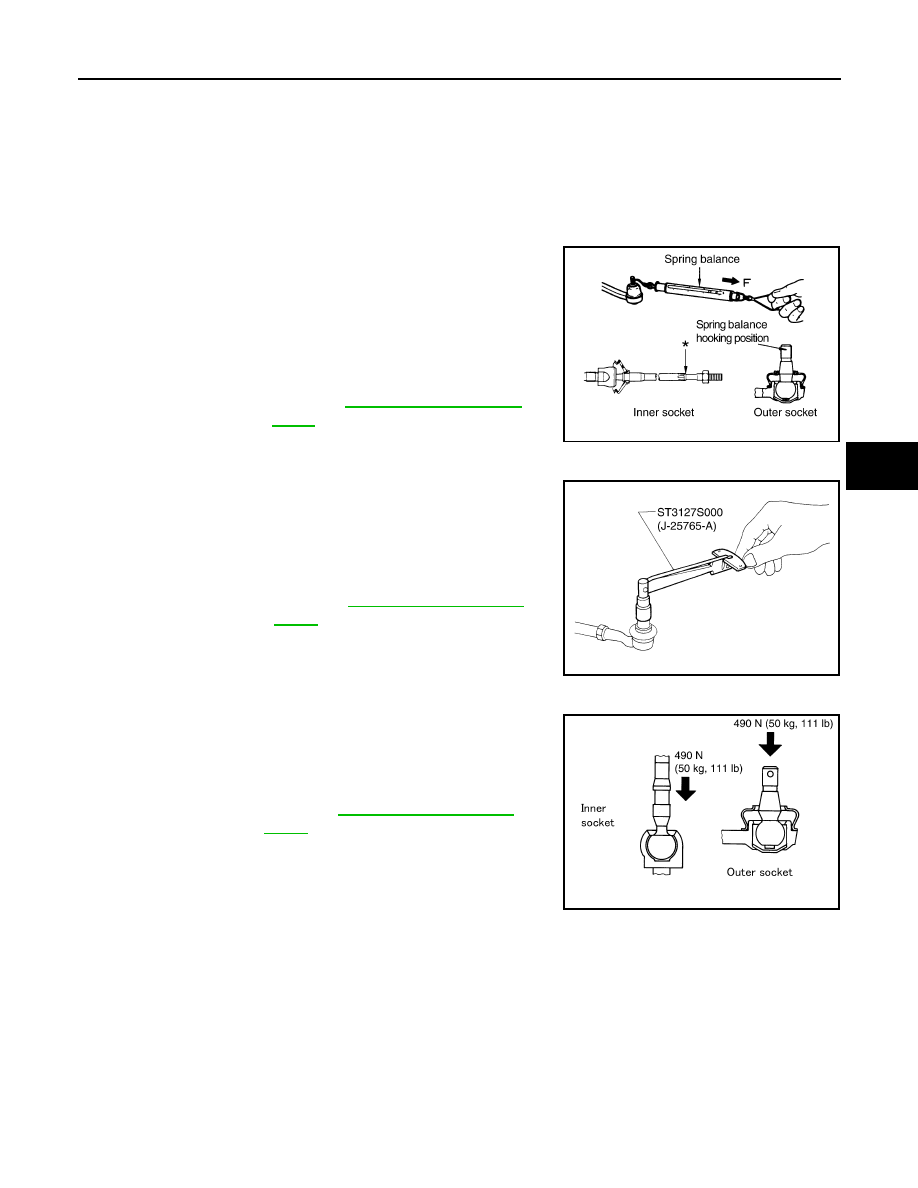

OUTER SOCKET AND INNER SOCKET

• Ball joint swinging torque

- Hook a spring balance to the ball stud and inner socket measuring

point (*) and pull the spring balance. Make sure that the spring bal-

ance reads the specified value when ball stud and inner socket

start to move. Replace outer socket and inner socket if they are

outside the specification.

• Ball joint rotating torque

- Make sure that the reading is within the following specified range

using Tool. Replace outer socket if the reading is outside the spec-

ification.

• Ball joint axial end play

- Apply an axial load of 490 N (50 kg, 111 lb) to ball stud. Measuring

the amount of stud movement using a dial gauge, make sure that

the value is within specification. Replace outer socket and inner

socket if the measured value is outside specification.

Tool number

:    —   (J-44372)

Swinging torque : Refer to

ST-61, "Power Steering

Gear"

.

SGIA0896E

Tool number

: ST3127S000 (J-25765-A)

Rotating torque

: Refer to

ST-61, "Power Steering

Gear"

.

SGIA0941E

Axial end play

: Refer to

ST-61, "Power Steering

Gear"

.

SGIA0057E

ST-24

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

AUTOMATIC DRIVE POSITIONER CONTROL UNIT
AUTOMATIC DRIVE POSITIONER CONTROL UNIT : Diagnosis Procedure

INFOID:0000000009177074

NOTE:

Do not disconnect the battery negative terminal and the driver seat control unit connector until DTC is con-

firmed with CONSULT.

Regarding Wiring Diagram information, refer to

ST-10, "Wiring Diagram"

.

1.

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect automatic drive positioner control unit.

3. Check voltage between automatic drive positioner control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Check the following.

• Repair or replace harness.

• Circuit breaker.

2.

 CHECK GROUND CIRCUIT

Check continuity between the automatic drive positioner control unit harness connector and ground.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair or replace harness.

(+)

(–)

Voltage (V)

(Approx.)

Automatic drive positioner control unit

Connector

Terminal

M34

25

Ground

Battery voltage

Automatic drive positioner control unit

Ground

Continuity

Connector

Terminal

M34

30

Yes

TILT SWITCH

ST-25

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

TILT SWITCH

Description

INFOID:0000000009177075

ADP steering switch (tilt switch) is equipped to the steering column. The operation signal is input to the auto-

matic drive positioner control unit when the ADP steering switch is operated.

Component Function Check

INFOID:0000000009177076

1.

 CHECK FUNCTION

1. Select “TILT SW-UP”, “TILT SW-DOWN” in “DATA MONITOR” mode with CONSULT.

2. Check tilt switch signal under the following conditions.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Perform diagnosis procedure. Refer to

ST-25, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009177077

Regarding Wiring Diagram information, refer to

ST-10, "Wiring Diagram"

.

1.

 CHECK TILT SWITCH SIGNAL

1. Disconnect ADP steering switch (tilt switch).

2. Check voltage between ADP steering switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

 CHECK TILT SWITCH CIRCUIT

1. Disconnect automatic drive positioner control unit.

2. Check continuity between automatic drive positioner control unit harness connector and ADP steering

switch harness connector.

3. Check continuity between automatic drive positioner control unit harness connector and ground.

Monitor item

Condition

Status

TILT SW-UP

Tilt switch (up)

Operate

ON

Release

OFF

TILT SW-DOWN

Tilt switch (down)

Operate

ON

Release

OFF

(+)

(–)

Voltage (V)

(Approx.)

ADP steering switch (tilt switch)

Connector

Terminals

M16

5

Ground

Battery voltage

2

Automatic drive positioner control

unit

ADP steering switch (tilt switch)

Continuity

Connector

Terminal

Connector

Terminal

M33

1

M16

5

Yes

13

2

ST-26

< DTC/CIRCUIT DIAGNOSIS >

TILT SWITCH

Is the inspection result normal?

YES

>> Replace automatic drive positioner unit. Refer to

ADP-162, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

 CHECK TILT SWITCH

Refer to

ST-26, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace ADP steering switch (tilt switch). Refer to

ADP-165, "Removal and Installation"

.

4.

 CHECK INTERMITTENT INCIDENT

Refer to

GI-49, "Intermittent Incident"

.

>> Inspection End.

Component Inspection

INFOID:0000000009177078

1.

 CHECK TILT SWITCH

1. Turn ignition switch OFF.

2. Disconnect ADP steering switch (tilt switch).

3. Check continuity between ADP steering switch terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace ADP steering switch (tilt switch). Refer to

ADP-165, "Removal and Installation"

.

Automatic drive positioner control unit

Ground

Continuity

Connector

Terminal

M33

1

No

13

ADP steering

switch (tilt switch)

Condition

Continuity

Terminal

3

5

Tilt switch (up)

Operate

Yes

Release

No

2

Tilt switch (down)

Operate

Yes

Release

No
