COMPONENT PARTS

SRC-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

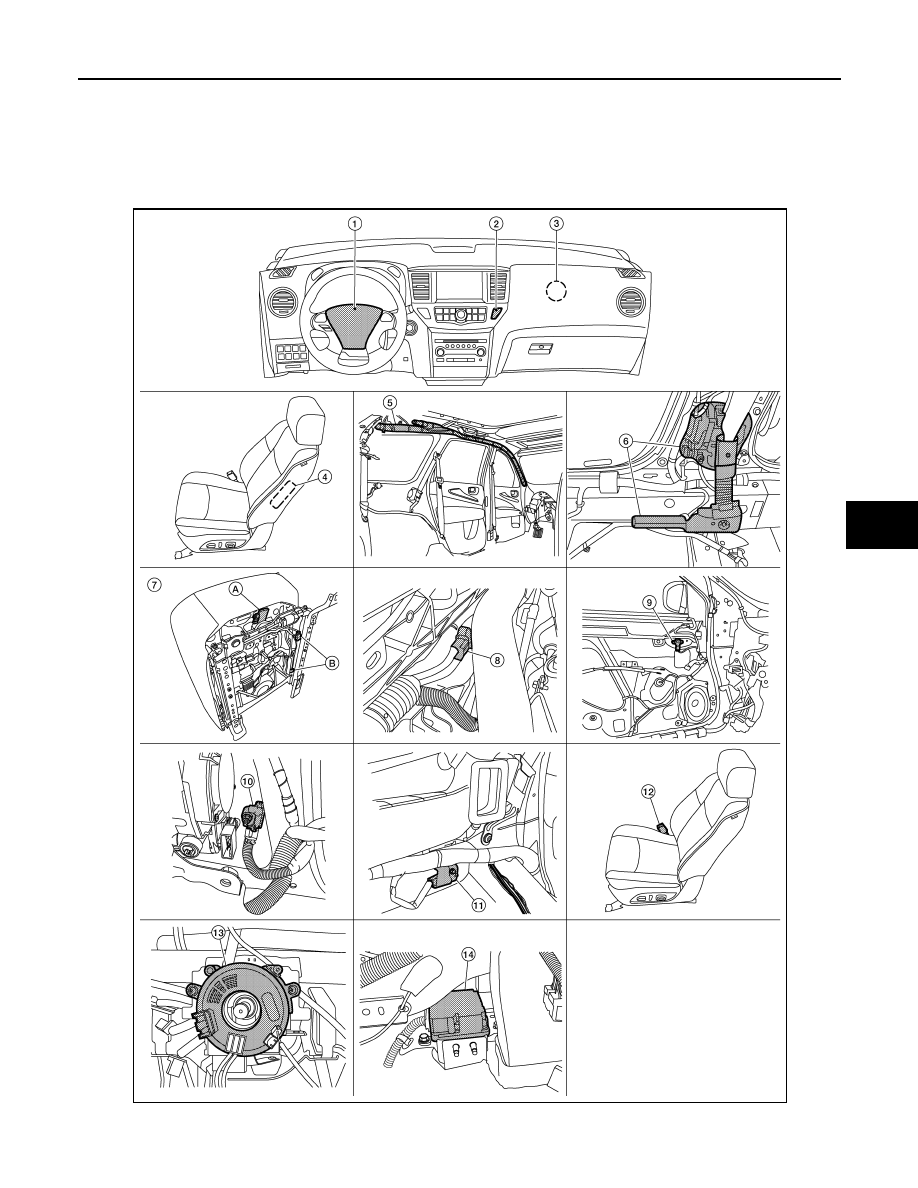

Component Parts Location

INFOID:0000000009176953

AWHIA0559ZZ

SRC-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

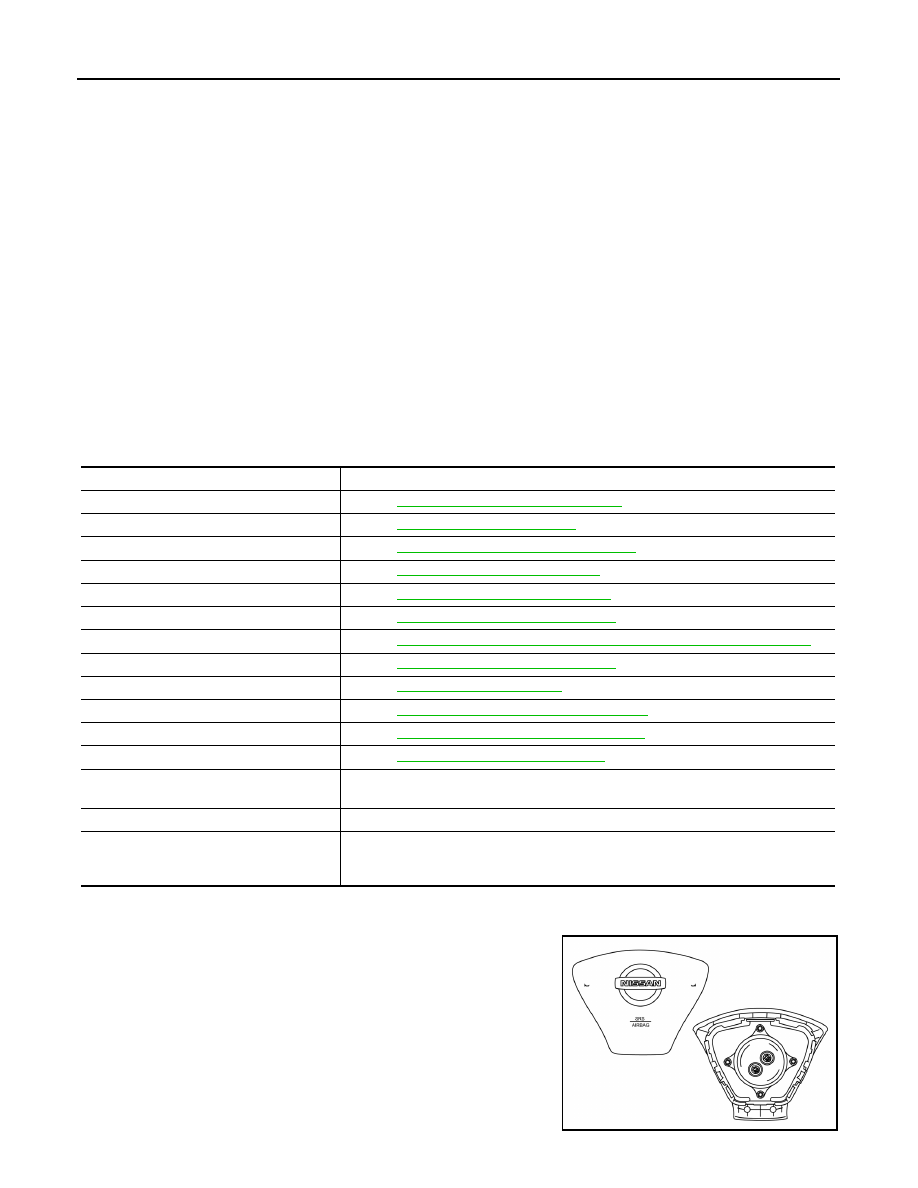

Component Description

INFOID:0000000009176954

Driver Air Bag Module

INFOID:0000000009176955

The driver air bag module is dual stage and located in the steering

wheel assembly. It operates with the SRS system in a frontal colli-

sion exceeding a specified level.

1.

Driver air bag module

2.

Front passenger air bag off indicator
(if equipped)

3.

Front passenger air bag module

4.

Front LH side air bag module
(RH similar)

5.

LH side curtain air bag module
(view with headliner removed)
(RH similar)

6.

Front RH seatbelt pre-tensioner and
lap pre-tensioner RH (view with lower
center pillar cover removed)
(RH similar)

7.

Occupant classification system control
unit (A)
Occupant classification system sen-
sors (B) (if equipped)
(view with front passenger seat re-
moved)

8.

Crash zone sensor (if equipped) (view
with air intake removed)

9.

Front door satellite sensor LH (if
equipped) (view with front door finisher
LH removed) (RH similar)

10. Front side air bag satellite sensor LH

(view with lower center pillar cover re-
moved) (RH similar)

11. Rear side air bag satellite sensor LH

(view with luggage side lower finisher
LH removed) (RH similar)

12. Seat belt buckle switch (driver seat)

(passenger seat similar, except
Mexico)

13. Spiral cable

(view with steering wheel removed)

14. Air bag diagnosis sensor unit

(view with center console assembly
removed)

Component

Function

Air bag diagnosis sensor unit

Refer to

SRC-8, "Air Bag Diagnosis Sensor Unit"

.

Driver air bag module

Refer to

SRC-6, "Driver Air Bag Module"

.

Front passenger air bag module

Refer to

SRC-7, "Front Passenger Air Bag Module"

.

Front side air bag module

Refer to

SRC-7, "Front Side Air Bag Module"

.

Side curtain air bag module

Refer to

SRC-7, "Side Curtain Air Bag Module"

.

Front seat belt pre-tensioner

Refer to

SRC-7, "Front Seat Belt Pre-tensioner"

.

Occupant classification system (if equipped)  Refer to

SRC-11, "OCCUPANT CLASSIFICATION SYSTEM : System Description"

.

Lap pre-tensioner

Refer to

SRC-7, "Front Seat Belt Pre-tensioner"

.

Crash zone sensor

Refer to

SRC-8, "Crash Zone Sensor"

.

Front side air bag (satellite) sensor

Refer to

SRC-8, "Front Side Air Bag Satellite Sensor"

.

Rear side air bag (satellite) sensor

Refer to

SRC-8, "Rear Side Air Bag Satellite Sensor"

.

Front door (satellite) sensor (if equipped)

Refer to

SRC-9, "Front Door Satellite Sensor"

.

Seat belt buckle switch

The seat belt buckle switches (driver seat/passenger seat) provide the seat belt buckle
signals to the air bag diagnosis sensor unit and the combination meter.

Spiral cable

The spiral cable provides a rotating physical connection to the driver air bag module.

Combination meter

The combination meter displays the air bag warning lamp and the seat belt warning
lamp. The air bag warning lamp is used for diagnosis in User Mode and may be used
to display diagnostic trouble codes without the use of the CONSULT.

AWHIA0448ZZ

COMPONENT PARTS

SRC-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

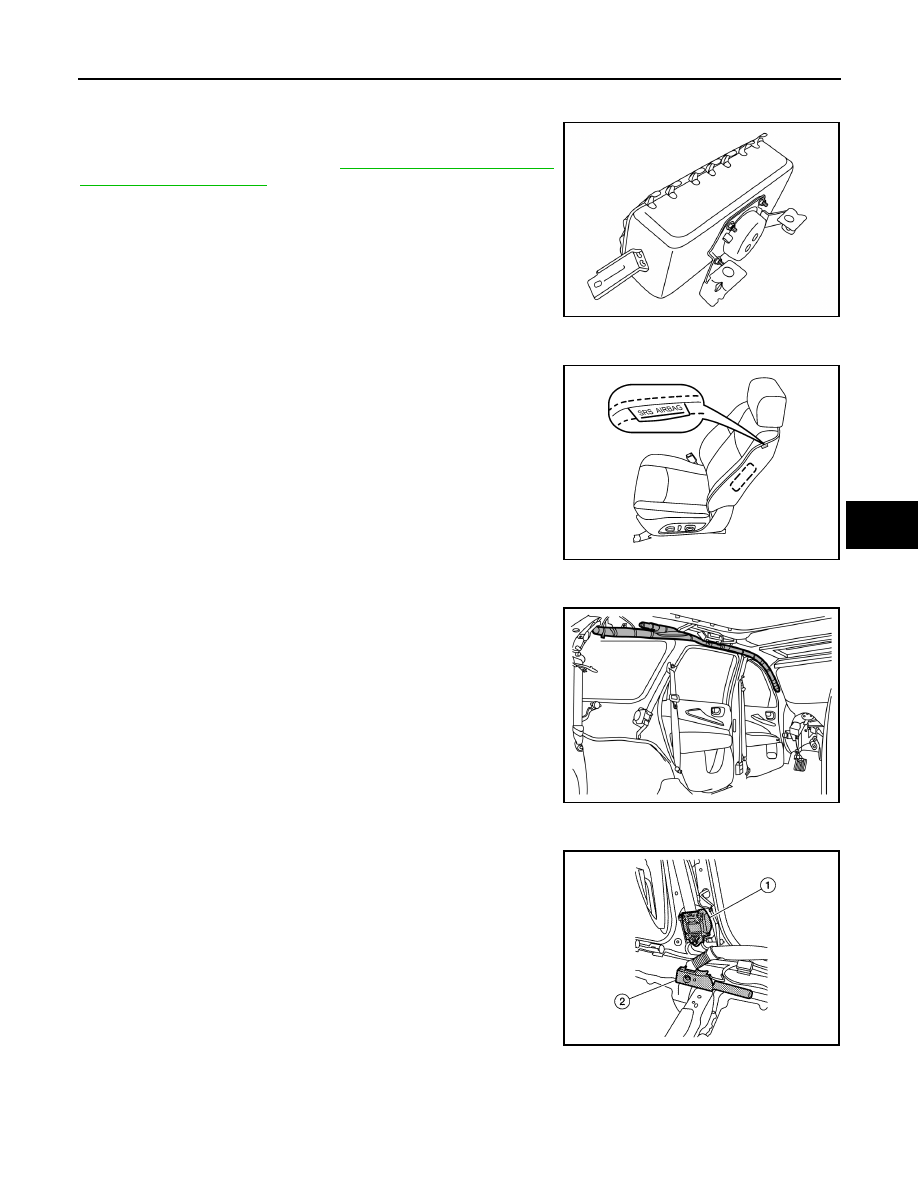

Front Passenger Air Bag Module

INFOID:0000000009176956

The front passenger air bag module is located behind the instrument

panel assembly. It operates with the SRS system in a frontal collision

exceeding a specified level. Refer to

SRC-10, "SRS AIR BAG SYS-

TEM : System Description"

 for more information.

Front Side Air Bag Module

INFOID:0000000009176957

Front side air bag modules are built into the front seatback assem-

blies. Vehicles with side air bags are equipped with labels as shown.

Side Curtain Air Bag Module

INFOID:0000000009176958

Side curtain air bag modules are located above the vehicle headlin-

ing. Vehicles with side curtain air bags are equipped with labels on

the pillar upper finishers.

Front Seat Belt Pre-tensioner

INFOID:0000000009176959

The seat belt pre-tensioner system with load limiter is installed for

both the driver's seat and the front passenger's seat. It operates

simultaneously with the SRS air bag system in the event of a frontal

collision with an impact exceeding a specified level.

When the frontal collision with an impact exceeding a specified level

occurs, seat belt slack resulting from clothing or other factors is

immediately taken up by the pre-tensioner (1) as well as the lap pre-

tensioner (2). Vehicle passengers are securely restrained.

When passengers in a vehicle are thrown forward in a collision and

the restraining force of the seat belt exceeds a specified level, the

load limiter permits the specified extension of the seat belt by the

twisting of the ELR shaft, and a relaxation of the chest-area seat belt

web tension while maintaining force.

AWHIA0381ZZ

AWHIA0382ZZ

AWHIA0383ZZ

AWHIA0413ZZ

SRC-8

< SYSTEM DESCRIPTION >

COMPONENT PARTS

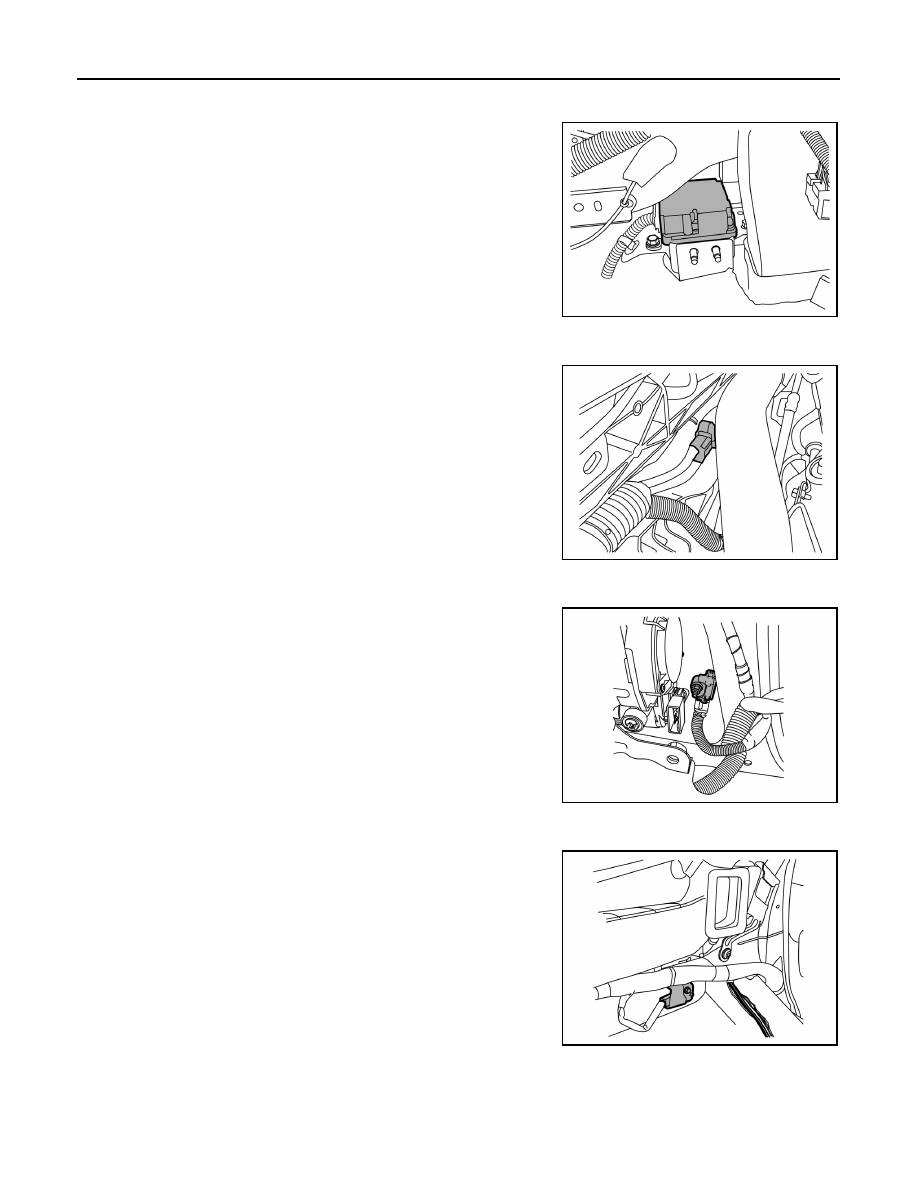

Air Bag Diagnosis Sensor Unit

INFOID:0000000009176960

The air bag diagnosis sensor unit is located under the center con-

sole assembly. The air bag diagnosis sensor unit receives signals

from multiple SRS sensors and controls the deployment of the air

bags. The deployment of the air bags depends on the type and

severity of the collision. The air bag diagnosis sensor unit has self-

diagnosis capability through the use of the CONSULT as well as

flash codes displayed by the air bag warning lamp.

Crash Zone Sensor

INFOID:0000000009176961

The crash zone sensor is located behind the radiator and under-

neath the front air duct. The crash zone sensor sends signals to the

air bag diagnosis sensor unit during a frontal collision. This sensor

may be identified by a yellow connector.

Front Side Air Bag Satellite Sensor

INFOID:0000000009176962

The front side air bag satellite sensors are located on the front center

pillar LH and RH next to the seat belt pre-tensioners. The front side

air bag satellite sensors send signals to the air bag diagnosis sensor

unit during a side collision. These sensors may be identified by yel-

low connectors.

Rear Side Air Bag Satellite Sensor

INFOID:0000000009176963

The rear side air bag satellite sensors are located behind the lug-

gage side lower finisher LH and RH. The rear side air bag satellite

sensors send signals to the air bag diagnosis sensor unit during a

side collision. These sensors may be identified by yellow connec-

tors.

AWHIA0385ZZ

AWHIA0386ZZ

AWHIA0387ZZ
