SPIRAL CABLE

SR-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

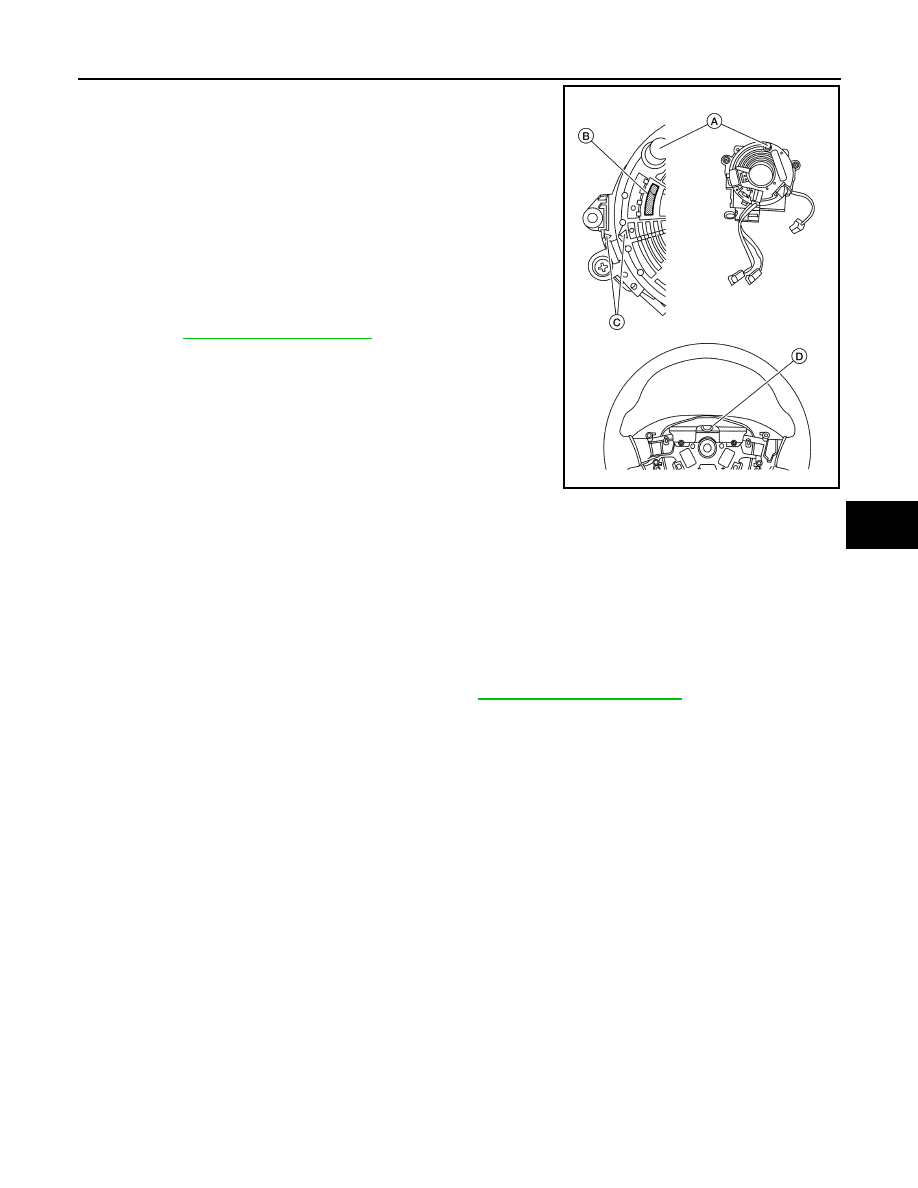

• Set the spiral cable neutral position by carefully turning the spiral

cable clockwise to the end position. Turn the spiral cable counter-

clockwise 2.5 turns stopping when the locating pin (A) is at the top

most position, the triangles (C) are pointing at each other as shown

and the clear window (B) appears white.

NOTE:

If a new part is installed, the neutral position is already set with a

stopper in place and should not be adjusted after the stopper clip is

removed. Make sure the stopper clip is removed after the spiral

cable/steering angle sensor assembly is installed but before the

steering wheel is installed.

• During steering wheel installation, make sure the locating pin hole

(D) is aligned with the locating pin (A) of the spiral cable.

• Perform the neutral position adjustment for the steering angle sen-

sor. Refer to

BRC-55, "Work Procedure"

.

CAUTION:

• The spiral cable may snap during steering operation if the spiral cable is installed in an improper

position.

• Do not overturn the spiral cable or go beyond the maximum number of turns allowed. This will cause

the cable to snap.

• The turn signal lever must be in the neutral position for spiral cable installation.

• Do not apply lubricant to the spiral cable.

• Do not allow oil, grease, detergent or water to come in contact with the spiral cable.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

• If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunc-

tioning parts, perform the SRS final check. Refer to

SRC-16, "SRS Final Check"

.

AWHIA0467ZZ

SR-18

< REMOVAL AND INSTALLATION >

FRONT PASSENGER AIR BAG MODULE

FRONT PASSENGER AIR BAG MODULE

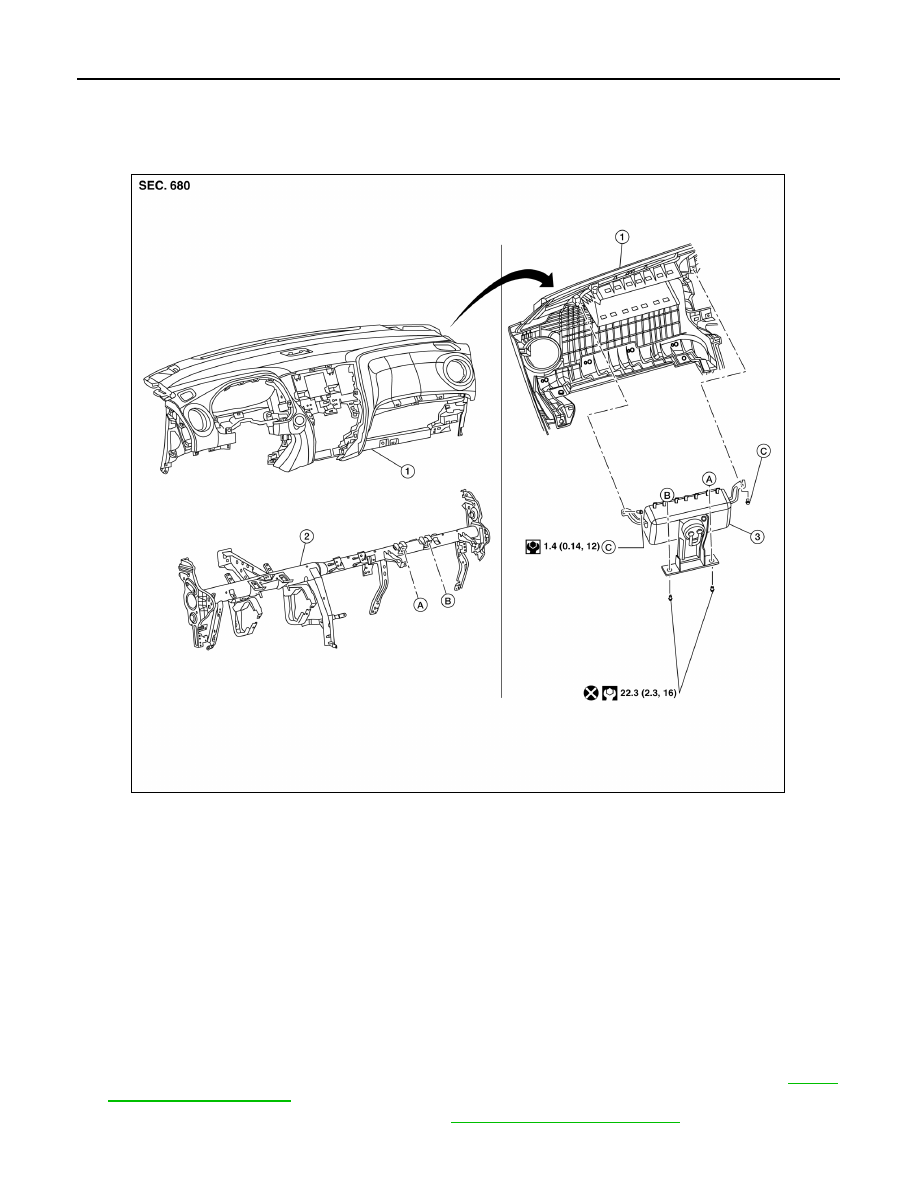

Exploded View

INFOID:0000000009176936

Removal and Installation

INFOID:0000000009176937

WARNING:

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at

least three minutes.

• Always work from the side of air bag module. Do not work in front of it.

• Do not use air tools or electric tools for servicing.

REMOVAL

1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-90,

"Removal and Installation"

.

2. Remove the instrument panel assembly. Refer to

IP-15, "Removal and Installation"

.

3. Remove the front passenger air bag module screws.

1.

Instrument panel assembly

2.

Steering member assembly

3.

Front passenger air bag mod-
ule

A.

Front passenger air bag module
bolt to steering member assembly
(LH)

B.

Front passenger air bag module
bolt to steering member assembly
(RH)

C. Front passenger air bag mod-

ule screws

AWHIA0468ZZ

FRONT PASSENGER AIR BAG MODULE

SR-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

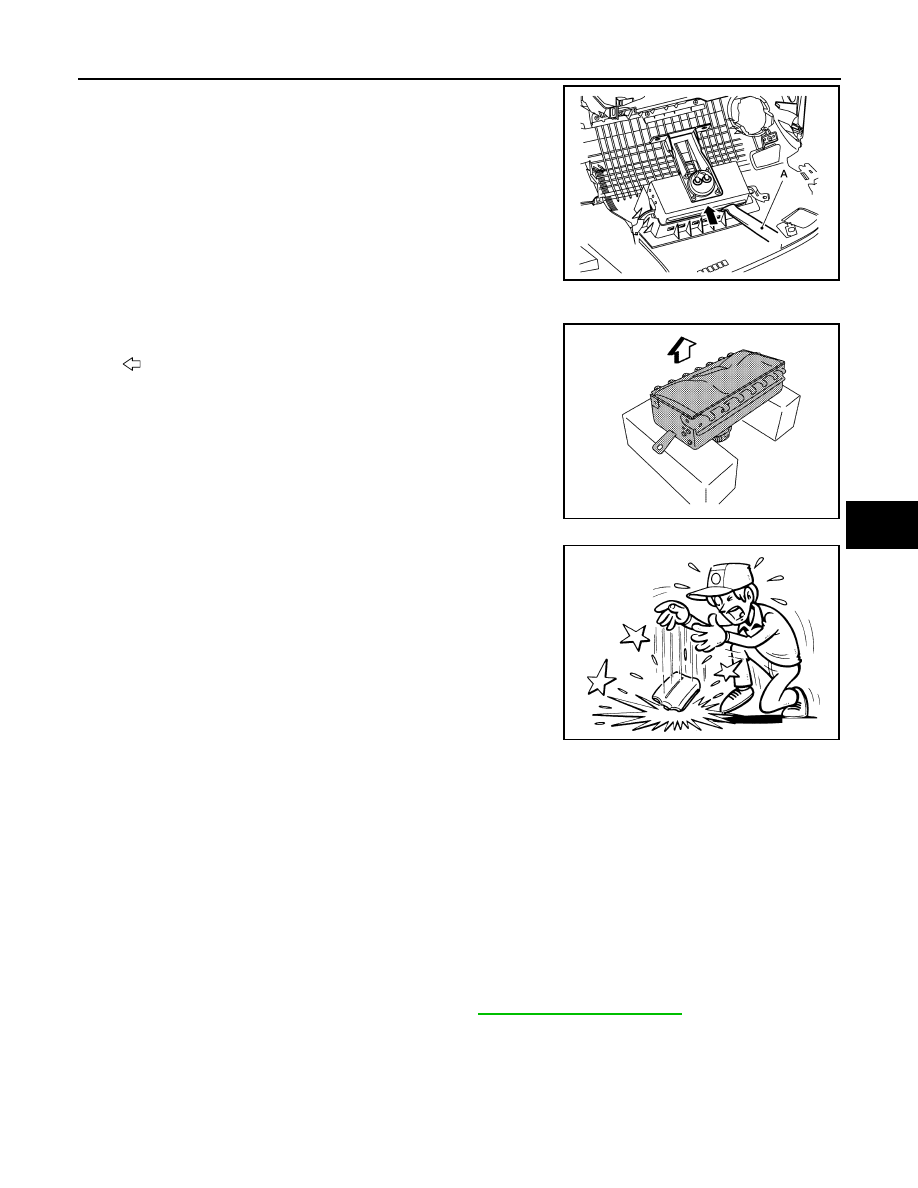

4. Disconnect the front passenger air bag module pawls using a

suitable tool (A) as shown.

5. Lift up on the front passenger air bag module to remove the front

passenger air bag module as shown.

CAUTION:

• Always place the front passenger air bag module with the

pad side facing upward as shown.

: Upward

• Replace the front passenger air bag module if it has been

dropped or sustained an impact.

• Do not strike the front passenger air bag module.

• Do not insert any foreign objects (screwdriver, etc.) into the front passenger air bag module.

• Do not disassemble the front passenger air bag module.

• Do not expose the front passenger air bag module to temperatures exceeding 90

°C (194 °F).

• Do not allow oil, grease, detergent, or water to come in contact with the front passenger air bag

module.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse the front passenger air bag module bolts.

• Do not damage the front passenger air bag module harness during installation.

• After installation is complete, check that no system malfunction is detected causing the air bag

warning lamp to illuminate.

• If a malfunction is indicated by the air bag warning lamp after repair or replacement of the malfunc-

tioning parts, perform the SRS final check. Refer to

SRC-16, "SRS Final Check"

.

AWHIA0477ZZ

AWHIA0403ZZ

JMHIA0009ZZ

SR-20

< REMOVAL AND INSTALLATION >

SIDE CURTAIN AIR BAG MODULE

SIDE CURTAIN AIR BAG MODULE

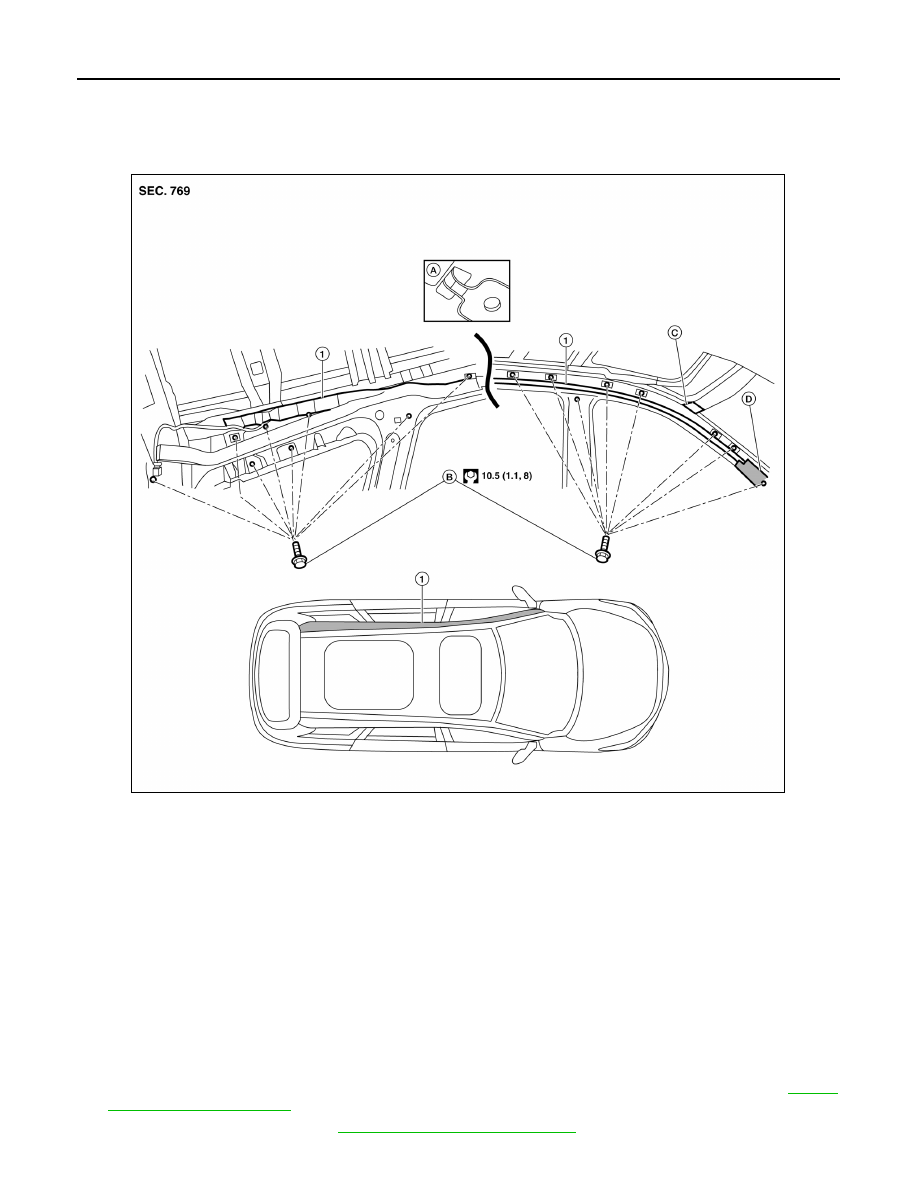

Exploded View

INFOID:0000000009176938

NOTE:

LH side shown, RH side similar.

Removal and Installation

INFOID:0000000009176939

WARNING:

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at

least three minutes.

• Always work from the side of air bag module. Do not work in front of it.

• Do not use air tools or electric tools for servicing.

REMOVAL

1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-90,

"Removal and Installation"

.

2. Remove the headlining. Refer to

INT-27, "Removal and Installation"

.

1.

Side curtain air bag module

A. Side curtain air bag module

bracket supporting hook

B. Side curtain air bag module bolts

C. Clip

D. Front tether

ALHIA0252GB
