BLUETOOTH® CONTROL UNIT

AV-87

< ECU DIAGNOSIS INFORMATION >

[MID AUDIO WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

28

 (V)

Ground

Vehicle speed signal

(8-pulse)

Input

Ignition

switch ON

When vehicle speed

is approx. 40 km/h

(25 MPH)

29

(W)

Ground

Microphone power

Output

Ignition

switch ON

–

5V

35

(SB)

–

M-CAN1 (H)

–

–

–

—

36

(LG)

–

M-CAN1 (L)

–

–

–

—

43

(B)

–

Bluetooth

®

 antenna

–

–

–

—

44 –

Shield

–

–

–

—

Terminal

(wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/out-

put

PKIA1935E

AV-88

< WIRING DIAGRAM >

[MID AUDIO WITHOUT BOSE]

MID AUDIO WITHOUT BOSE

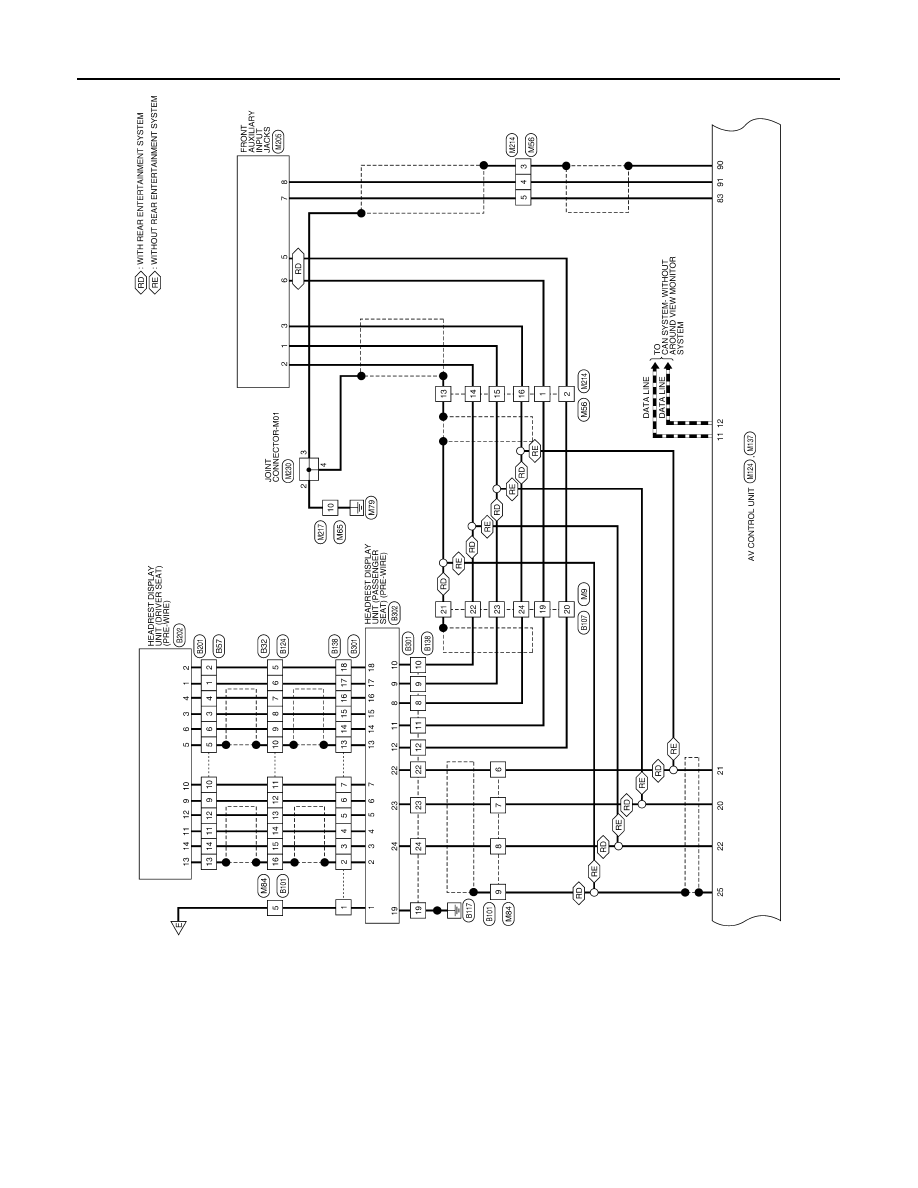

WIRING DIAGRAM

MID AUDIO WITHOUT BOSE

Wiring Diagram

INFOID:0000000009174430

ABNWA1835GB

AV

MID AUDIO WITHOUT BOSE

AV-89

< WIRING DIAGRAM >

[MID AUDIO WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

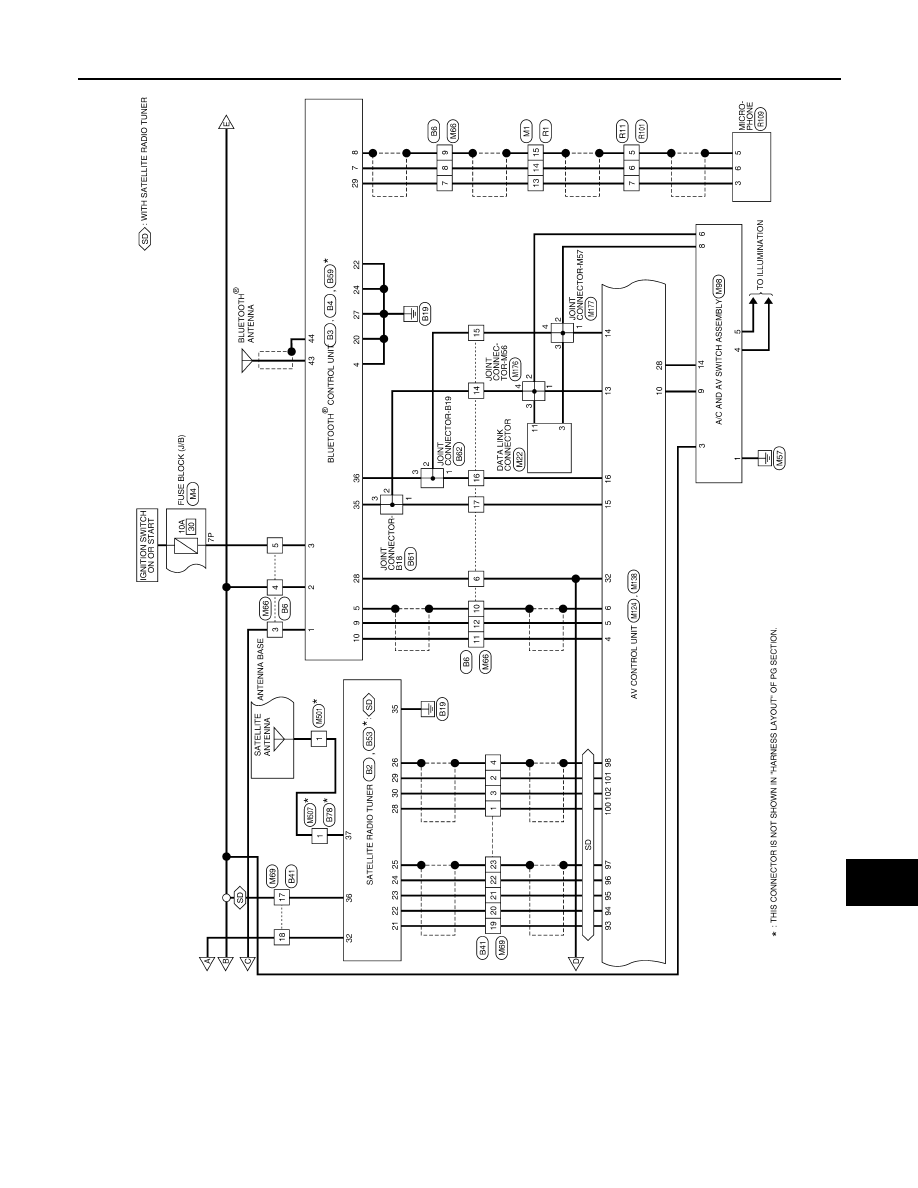

ABNWA1836GB

AV-90

< WIRING DIAGRAM >

[MID AUDIO WITHOUT BOSE]

MID AUDIO WITHOUT BOSE

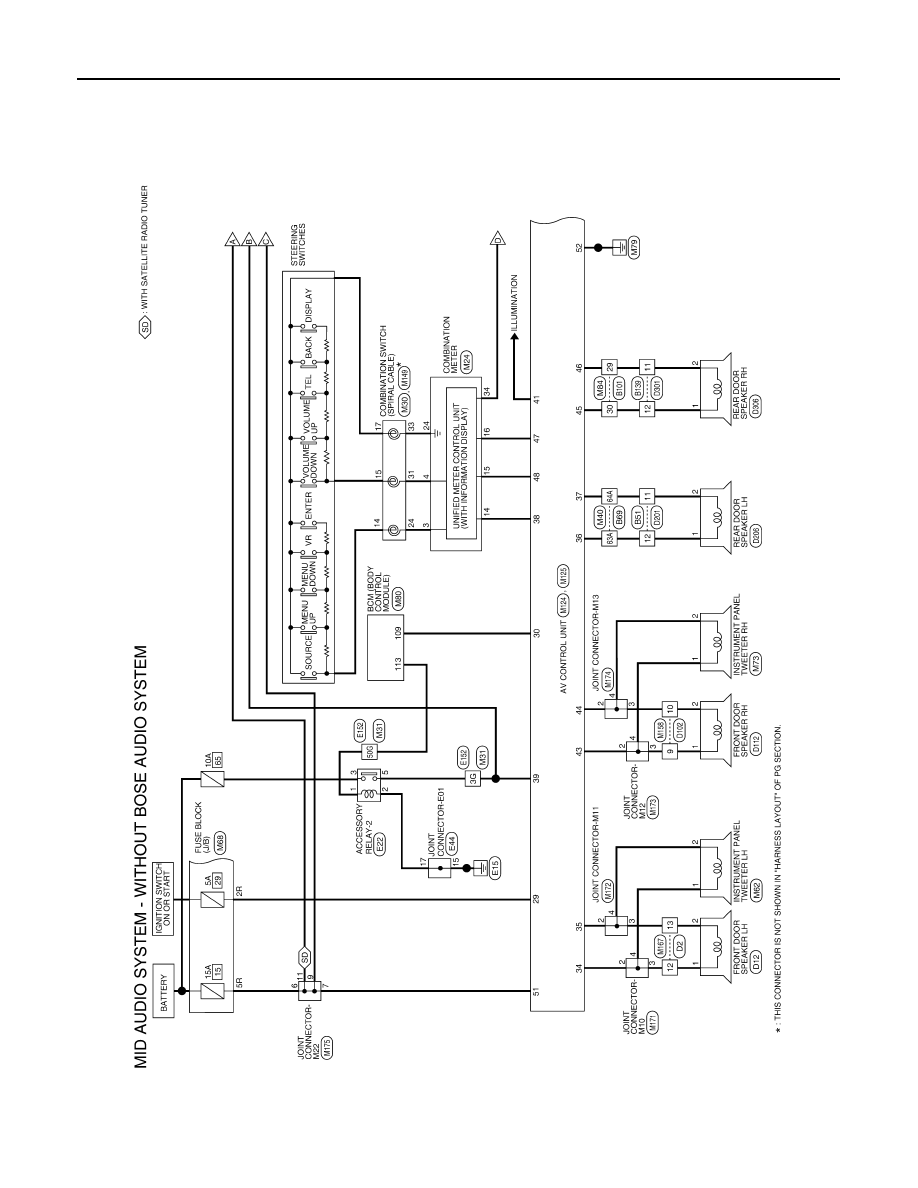

ABNWA1837GB
