Nissan Pathfinder. Manual - part 56

AV

INSTRUMENT PANEL SPEAKER/TWEETER

AV-51

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

INSTRUMENT PANEL SPEAKER/TWEETER

Removal and Installation

INFOID:0000000009174404

REMOVAL

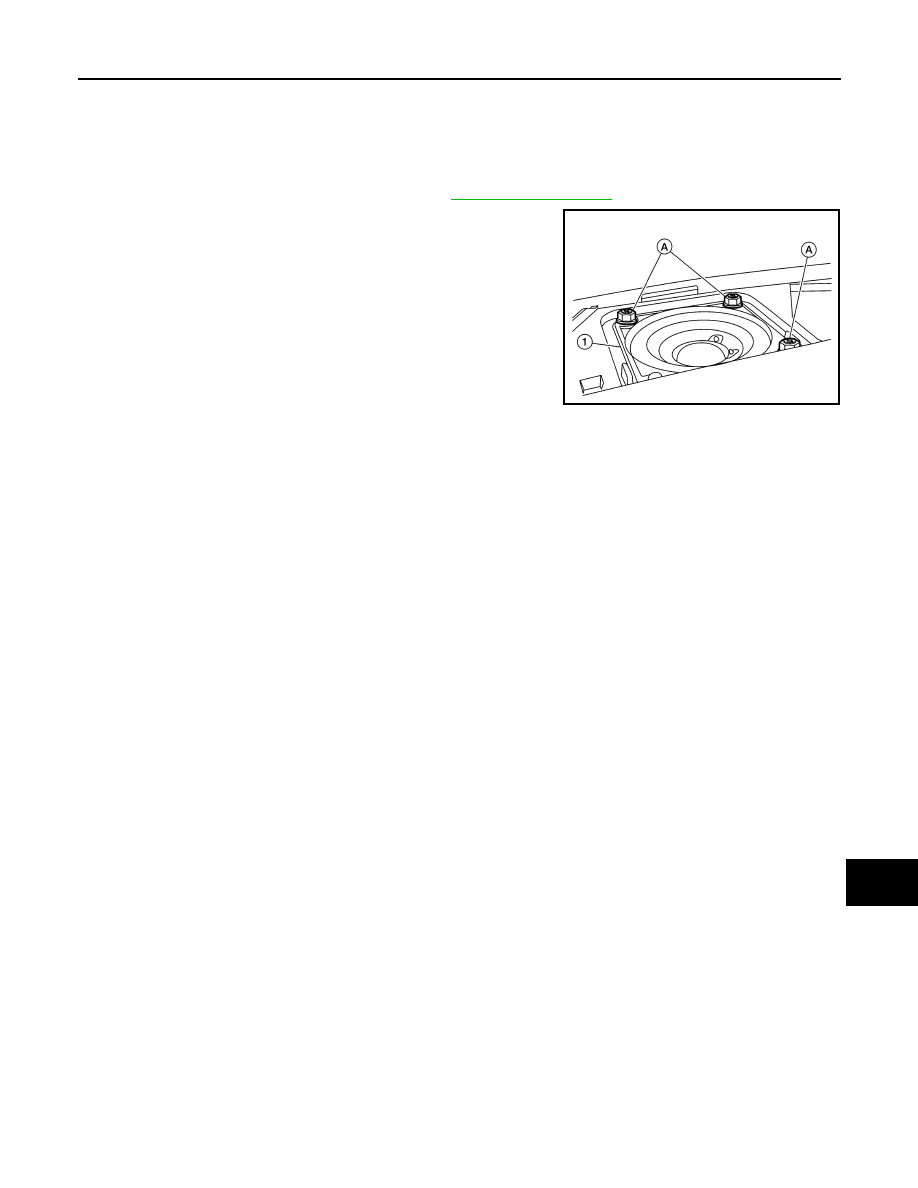

1. Remove instrument panel tweeter grille. Refer to

IP-14, "Exploded View"

.

2. Remove the bolts (A), then pull out the instrument panel tweeter

(1).

3. Disconnect the harness connector from the instrument panel

tweeter (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1423ZZ

AV-52

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

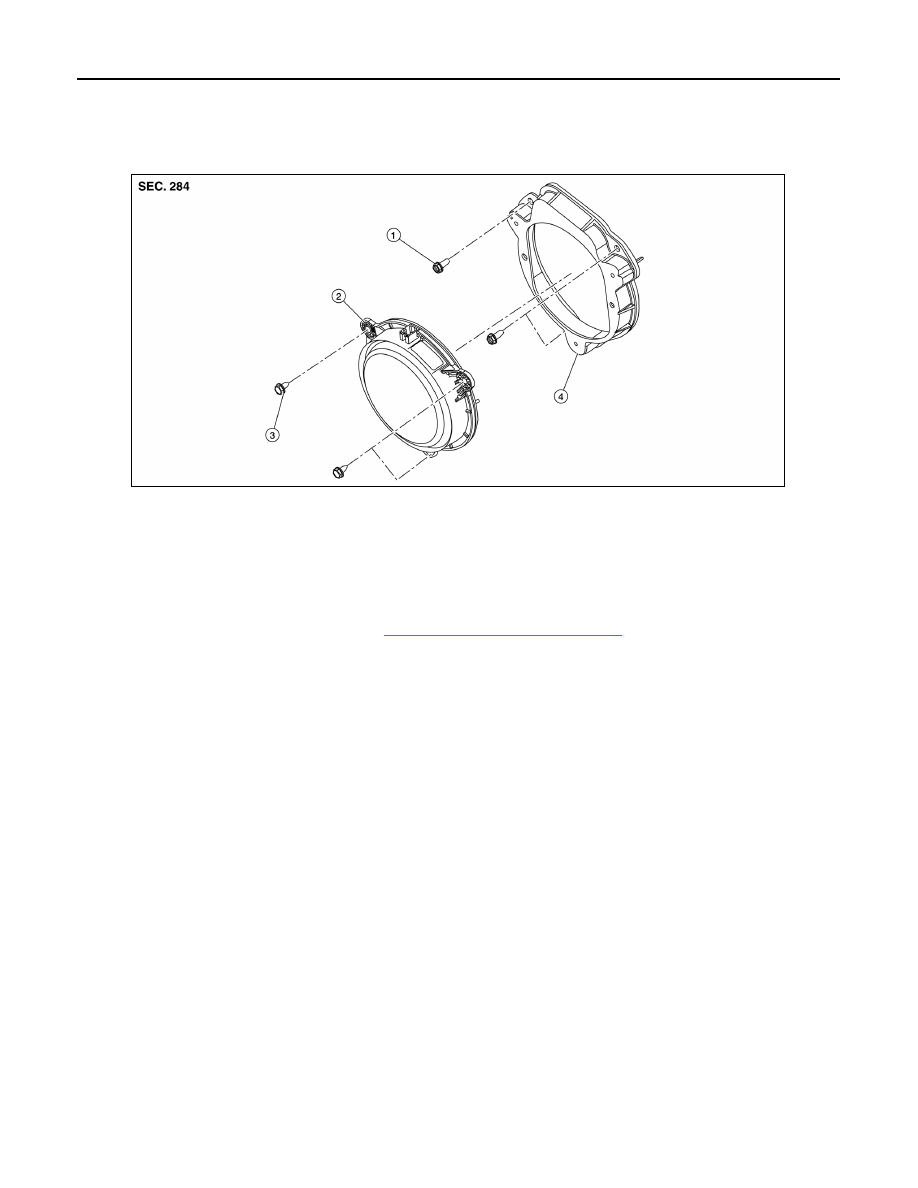

Exploded View

INFOID:0000000009174405

Removal and Installation

INFOID:0000000009174406

REMOVAL

1. Remove the rear door finisher. Refer to

INT-17, "Removal and Installation"

.

2. Remove the rear door speaker bolts.
3. Disconnect the harness connector from the rear door speaker and remove.
4. Remove the speaker bracket bolts and the speaker bracket from the rear door (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

1. Speaker bracket bolt

2. Rear door speaker

3. Speaker bolt

4. Speaker bracket

ALNIA1330ZZ

AV

AUDIO ANTENNA

AV-53

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUDIO ANTENNA

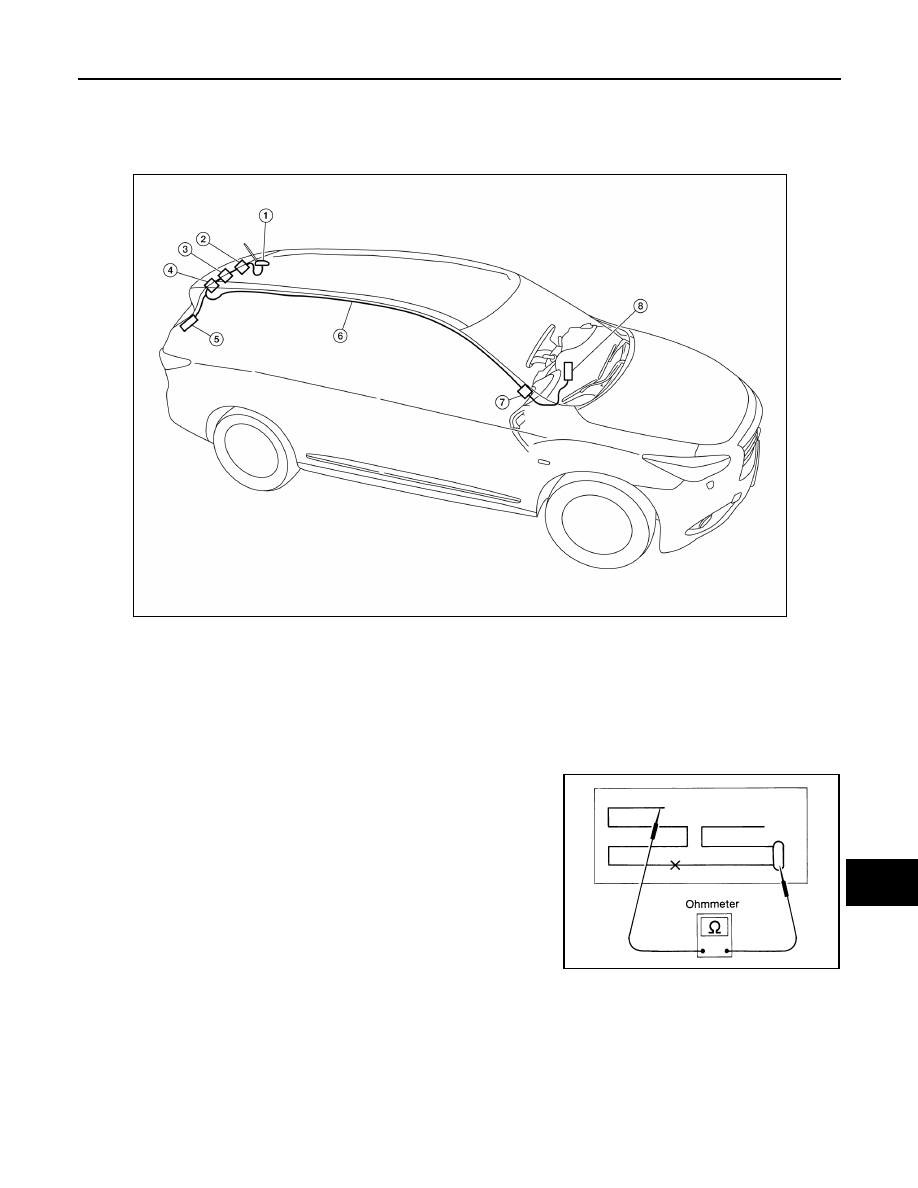

Location of Antennas

INFOID:0000000009174407

Window Antenna Repair

INFOID:0000000009174408

ELEMENT CHECK

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

1.

Antenna base (antenna and antenna amp)

2.

M502

3.

M501

4.

M503, M504

5.

M505

6.

Antenna Feeder

7.

M95, M500

8.

Audio unit M113

AWNIA2589ZZ

SEL250I

AV-54

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

AUDIO ANTENNA

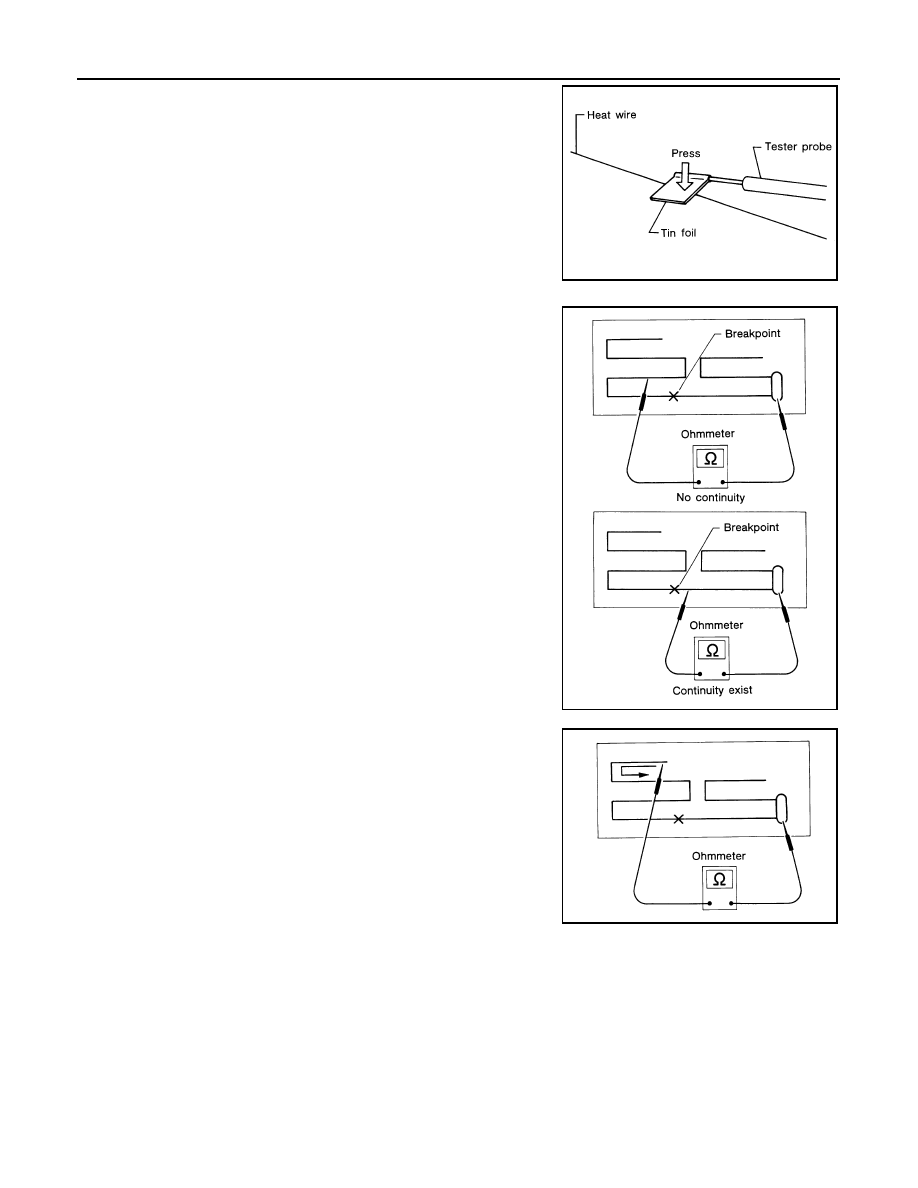

• When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your finger.

2. If an element is broken, no continuity will exist.

3. To locate a break, move probe along element. Tester indication

will change abruptly when probe passes the broken point.

SEL122R

SEL252I

SEL253I
