INSTALLATION

Installation is in the reverse order of removal.

AV-48

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

STEERING SWITCH

STEERING SWITCH

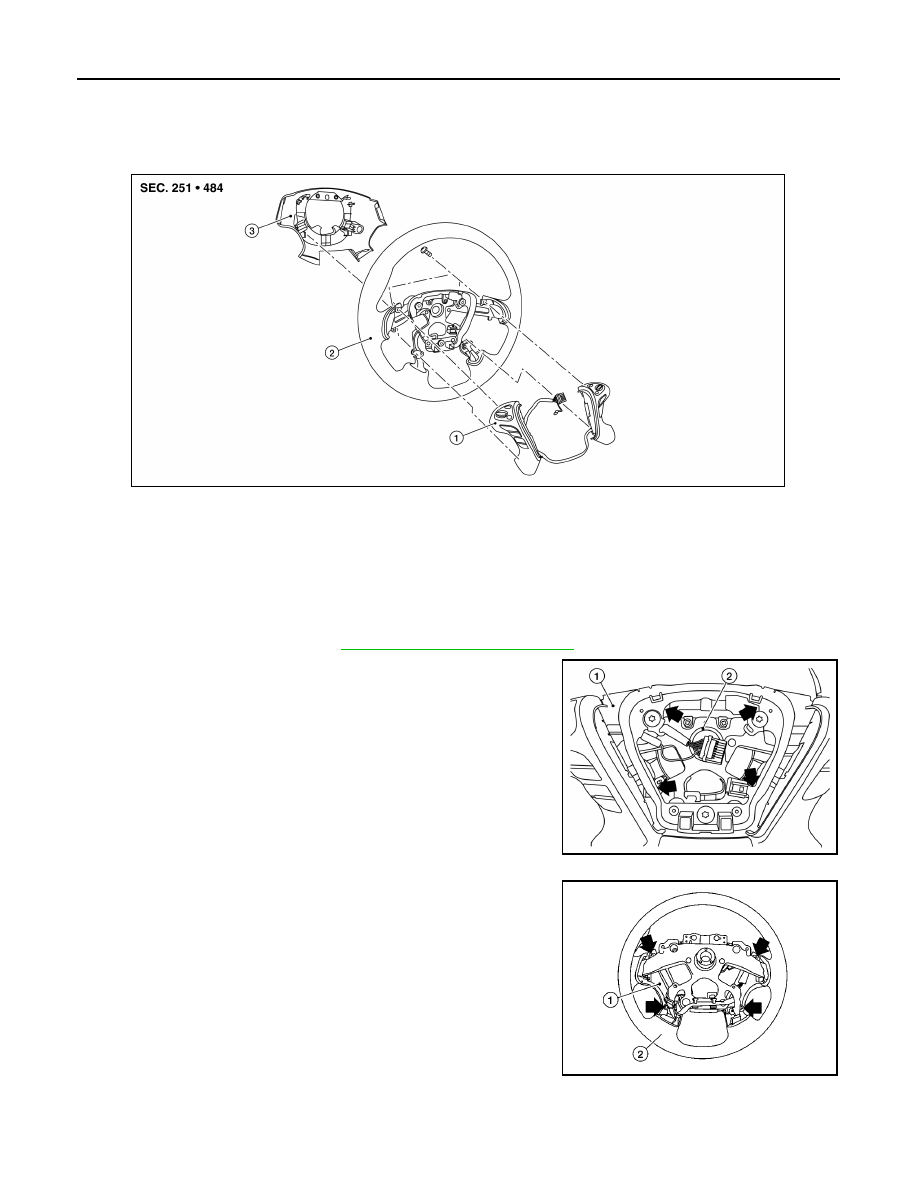

Exploded View

INFOID:0000000009174398

Removal and Installation

INFOID:0000000009174399

REMOVAL

NOTE:

The steering switches are serviced as an assembly.
1. Remove steering wheel. Refer to

ST-44, "Removal and Installation"

.

2. Release pawls and remove steering wheel rear finisher (1) from

steering wheel (2).

3. Remove steering switches screws.
4. Remove steering switches (1) from steering wheel (2).

INSTALLATION

Installation is in the reverse order of removal.

1.

Steering switches

2.

Steering wheel

3.

Steering wheel rear finisher

ALOIA0025ZZ

ALOIA0026ZZ

ALOIA0027ZZ

AV

DISPLAY UNIT

AV-49

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DISPLAY UNIT

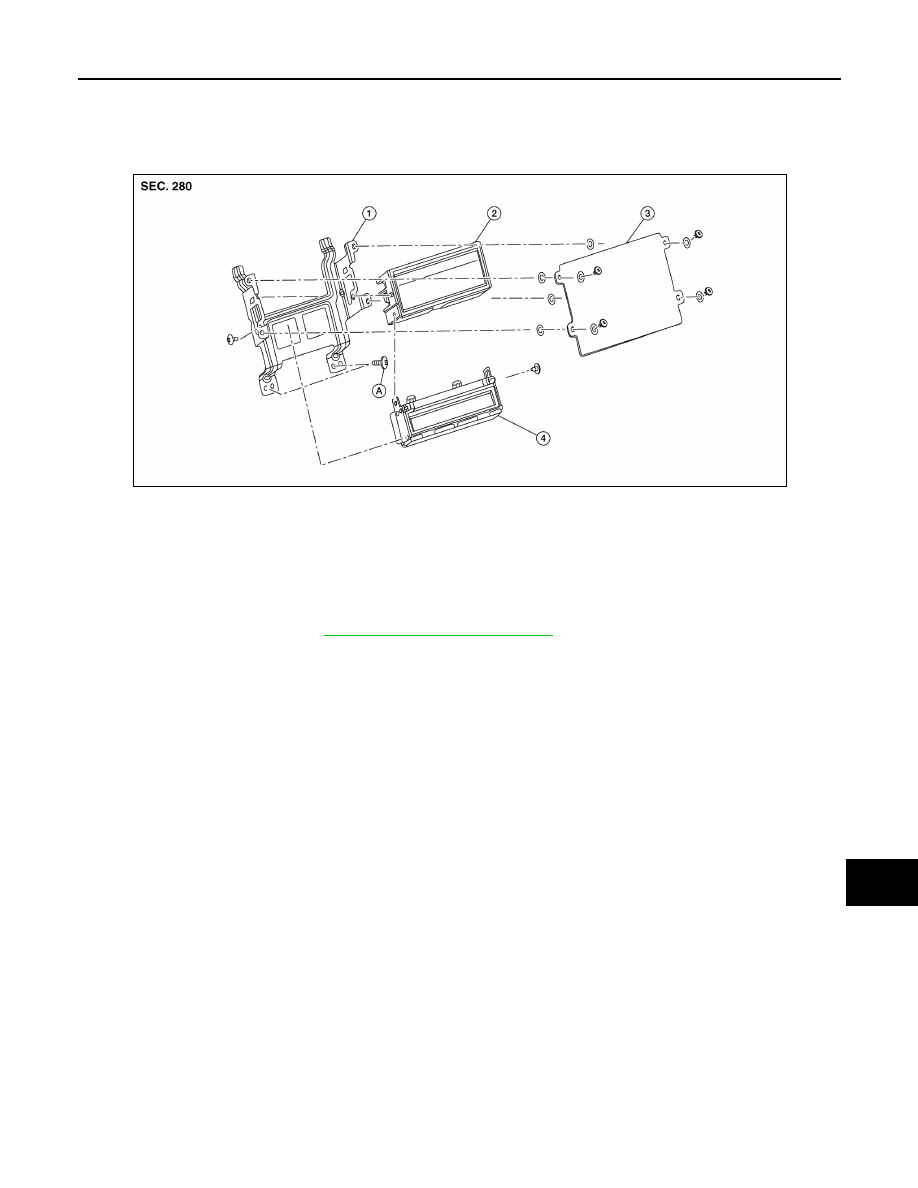

Exploded View

INFOID:0000000009174400

Removal and Installation

INFOID:0000000009174401

REMOVAL

1. Remove cluster lid D. Refer to

IP-24, "Removal and Installation"

.

2. Remove the display unit screws, then pull out the display unit and bracket assembly.
3. Disconnect the harness connector from the display unit and remove.
4. Remove the display unit bracket screws, then remove the display unit and A/C display unit from the dis-

play unit bracket.

INSTALLATION

Installation is in the reverse order of removal.

1.

Display unit bracket

2.

Display unit

3.

Front cover

4.

A/C display unit

A.  Screw

ALNIA1432ZZ

AV-50

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

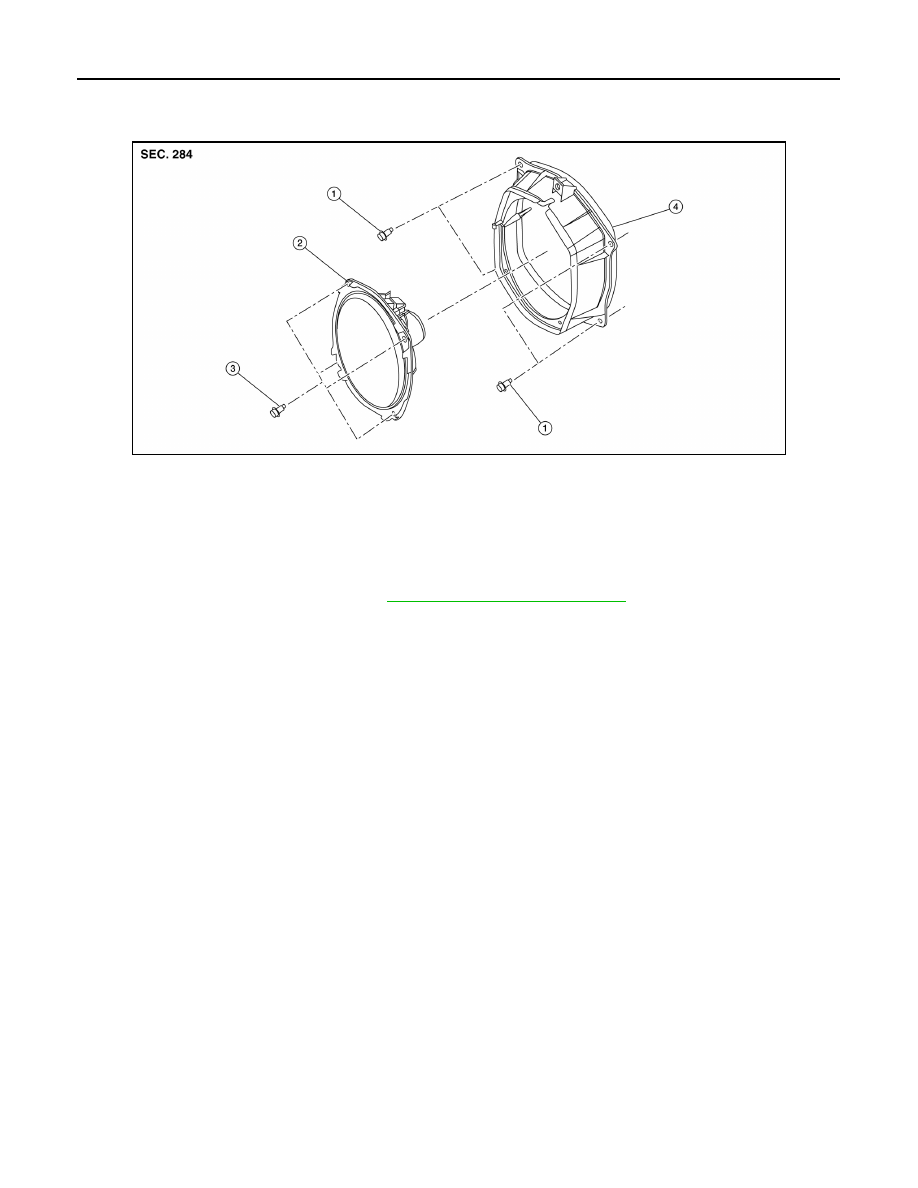

Exploded View

INFOID:0000000009174402

Removal and Installation

INFOID:0000000009174403

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove the front door speaker bolts.
3. Pull out the front door speaker from the speaker bracket.
4. Disconnect the harness connector from front door speaker and remove.
5. Remove the speaker bracket bolts and the speaker bracket from front door (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1329ZZ

1. Speaker bracket bolt

2. Front door speaker

3. Speaker bolt

4. Speaker bracket
