Nissan Pathfinder. Manual - part 19

ADP-68

< WIRING DIAGRAM >

AUTOMATIC DRIVE POSITIONER SYSTEM

ABJIA0818GB

DIAGNOSIS AND REPAIR WORK FLOW

ADP-69

< BASIC INSPECTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009176543

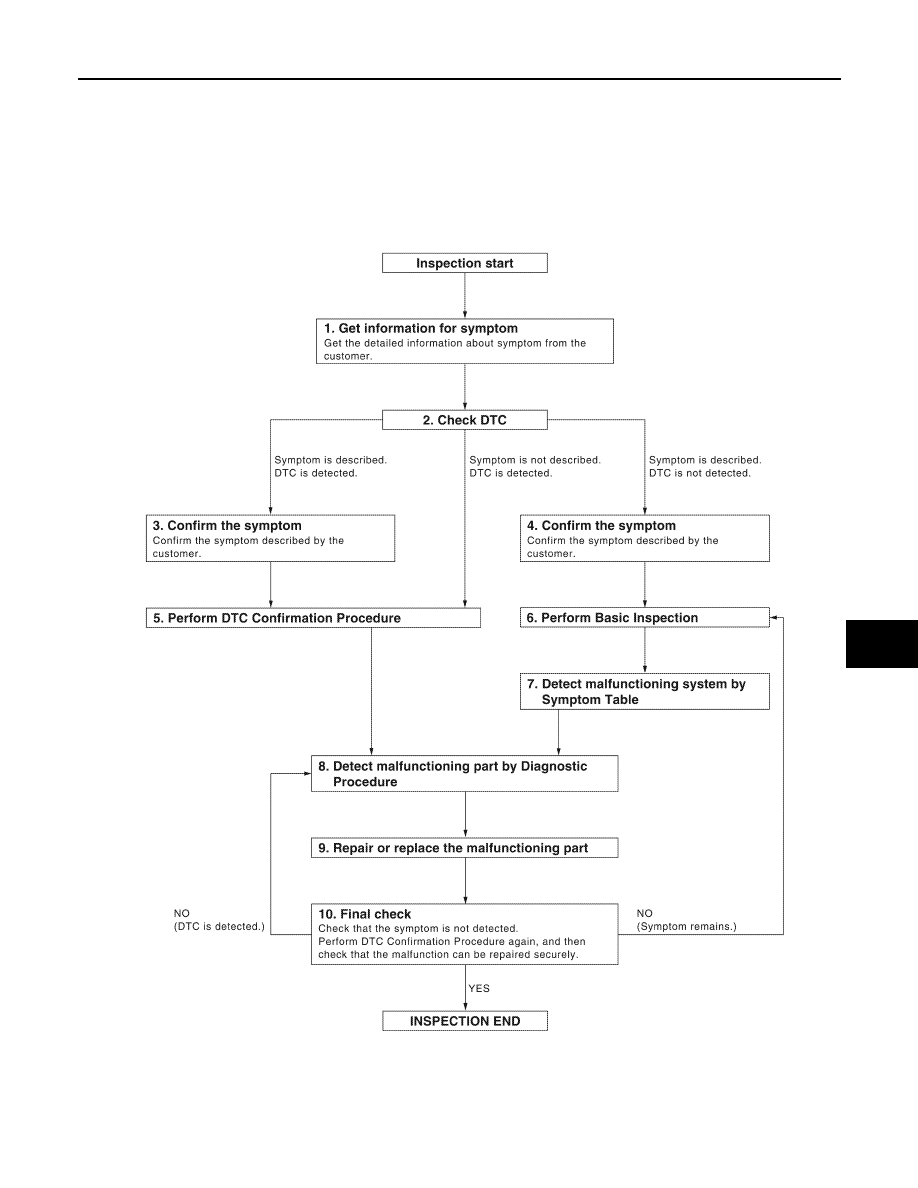

WORK FLOW

DETAILED FLOW

ALKIA0538GB

ADP-70

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

1.

 GET INFORMATION FOR SYMPTOM

Get the detailed information from the customer about the symptom (the condition and the environment when

the incident/malfunction occurred).

>> GO TO 2.

2.

 CHECK DTC WITH AUTOMATIC DRIVE POSITIONER SYSTEM

Check “Self Diagnostic Result” with CONSULT.

Refer to

ADP-35, "DTC Index"

.

Is any symptom described and any DTC is displayed?

Symptom is described, DTC is displayed.>>GO TO 3.

Symptom is not described, DTC is displayed.>>GO TO 7.

Symptom is described, DTC is not displayed.>>GO TO 4.

3.

 CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

>> GO TO 7.

4.

 CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

>> GO TO 5.

5.

 CHECK NORMAL OPERATING CONDITION

Check normal operating condition. Refer to

ADP-160, "Description"

.

Is the incident normal operation?

YES

>> Inspection End.

NO

>> GO TO 6.

6.

 PERFORM BASIC INSPECTION

Isolate the malfunctioning point with a basic inspection.

>> GO TO 8.

7.

 PERFORM DTC CONFIRMATION PROCEDURE

Perform the confirmation procedure for the detected DTC.
Is the DTC displayed?

YES

>> GO TO 9.

NO

>> Check intermittent incident. Refer to

GI-49, "Intermittent Incident"

.

8.

 PERFORM COMPONENT FUNCTION CHECK

Perform the component function check for the isolated malfunctioning point.

>> GO TO 9.

9.

 DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Isolate the malfunctioning point by performing the diagnosis procedure relevant to the symptom during the

component diagnosis.

>> GO TO 10.

10.

 REPAIR OR REPLACE

Repair or replace the malfunctioning part.

DIAGNOSIS AND REPAIR WORK FLOW

ADP-71

< BASIC INSPECTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

>> GO TO 11.

11.

 FINAL CHECK

Perform the DTC confirmation procedure (if DTC is detected) or component function check (if no DTC is

detected) again, and then check that the malfunction can be repaired securely.
Are all malfunctions corrected?

YES

>> Inspection End.

Symptom is detected.>> GO TO 4.

DTC is detected.>> GO TO 7.
