AUTOMATIC DRIVE POSITIONER SYSTEM : System Description

INFOID:0000000009176523

OUTLINE

The system automatically moves the driver seat, steering column (if equipped) and door mirror position by the

driver seat control unit and the automatic drive positioner control unit. The driver seat control unit corresponds

with the automatic drive positioner control unit by UART communication.

ALJIA1262GB

SYSTEM

ADP-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

NOTE:

The lumbar support system is controlled independently with no link to the automatic drive positioner system.

MANUAL FUNCTION

Function Description

Manual function

The driving position (seat, steering column and door mirror position) can be adjusted
by using the power seat switch, ADP steering switch or door mirror remote control
switch.

Memory function

The seat, steering column and door mirror move to the stored driving position by
pressing seat memory switch (1 or 2).

Entry/Exit assist function

Exit

On exit, the seat moves backward and the steering column moves upward.

Entry

On entry, the seat and steering column returns from exiting position to the previous
driving position.

Intelligent Key interlock function

Perform memory operation, exiting operation and entry operation by Intelligent Key
unlock operation or driver side door request switch unlock operation.

ADP-14

< SYSTEM DESCRIPTION >

SYSTEM

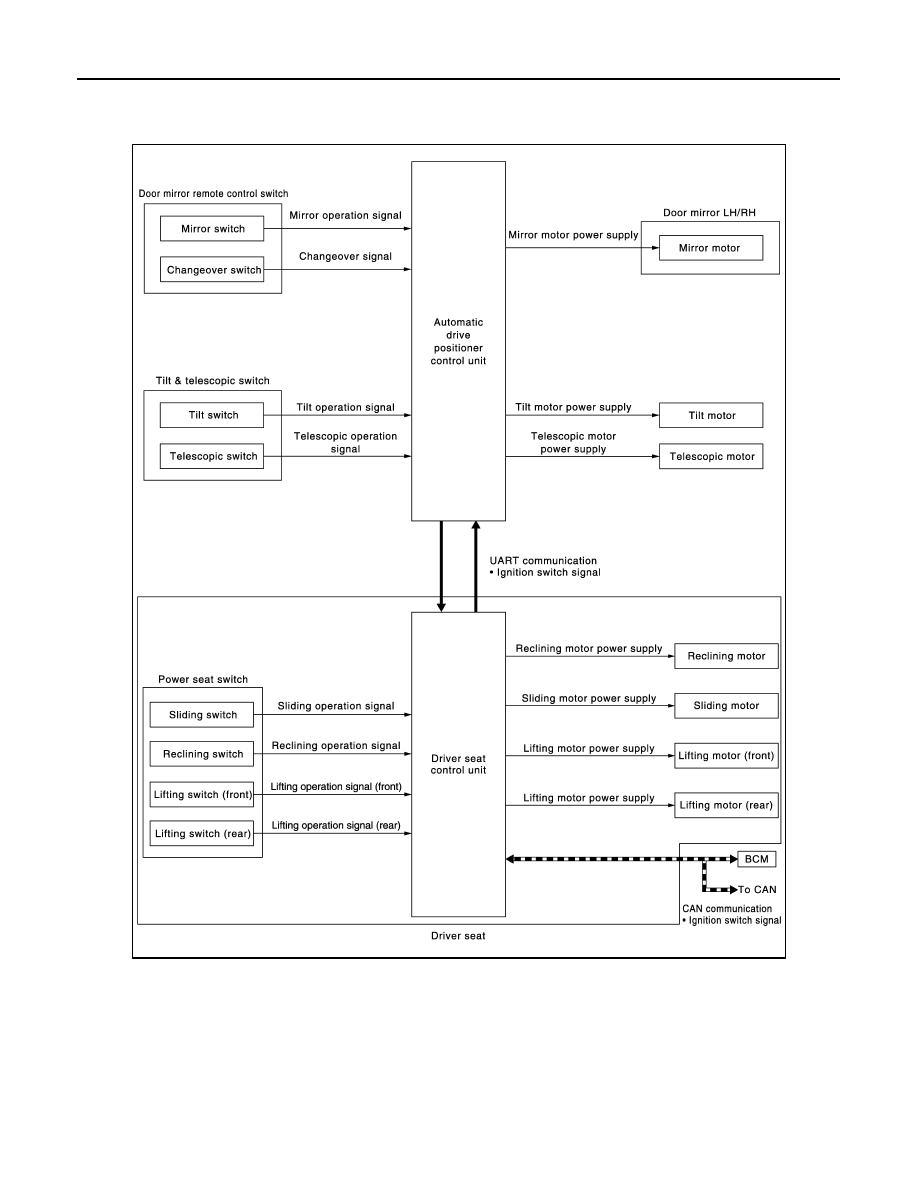

MANUAL FUNCTION : System Diagram

INFOID:0000000009176524

WITH AROUND VIEW MONITOR

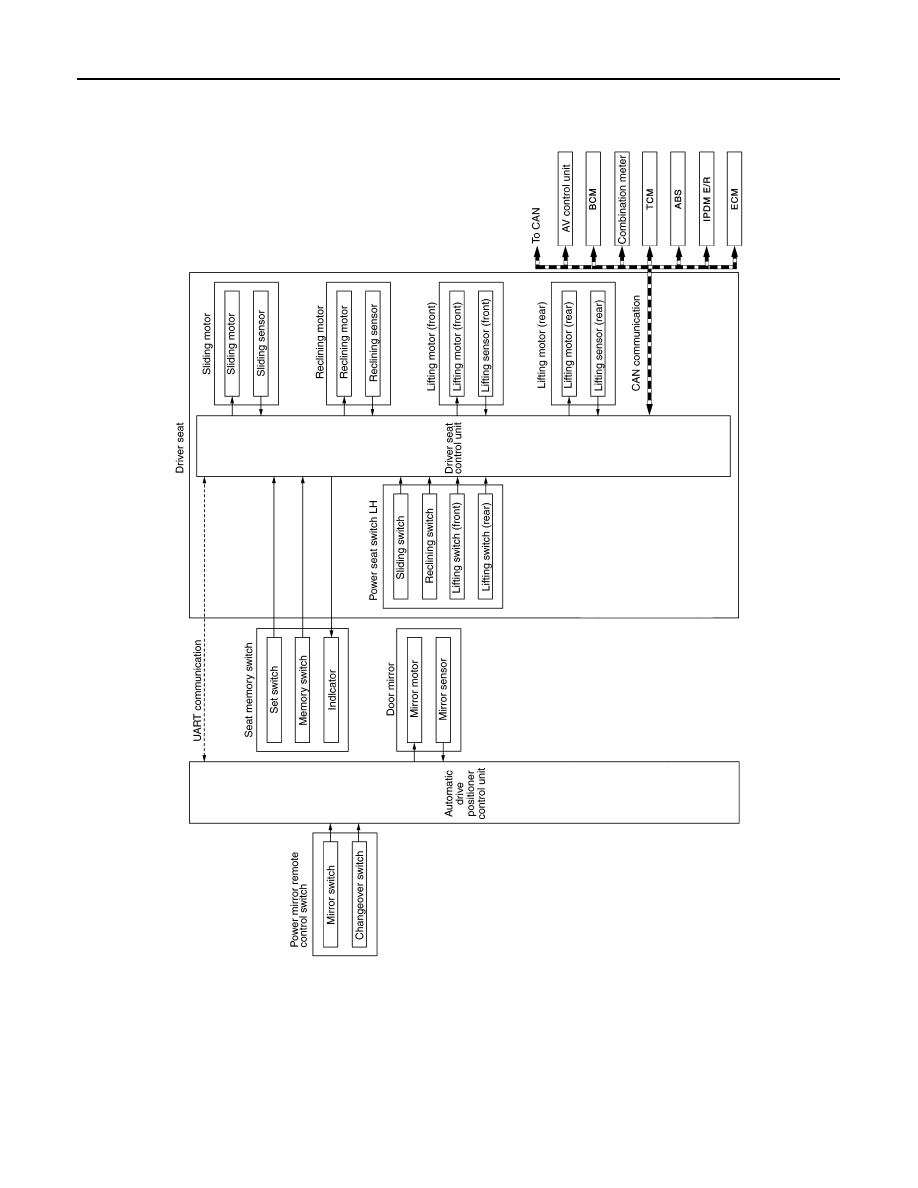

JMJIA3774GB

SYSTEM

ADP-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

WITHOUT AROUND VIEW MONITOR

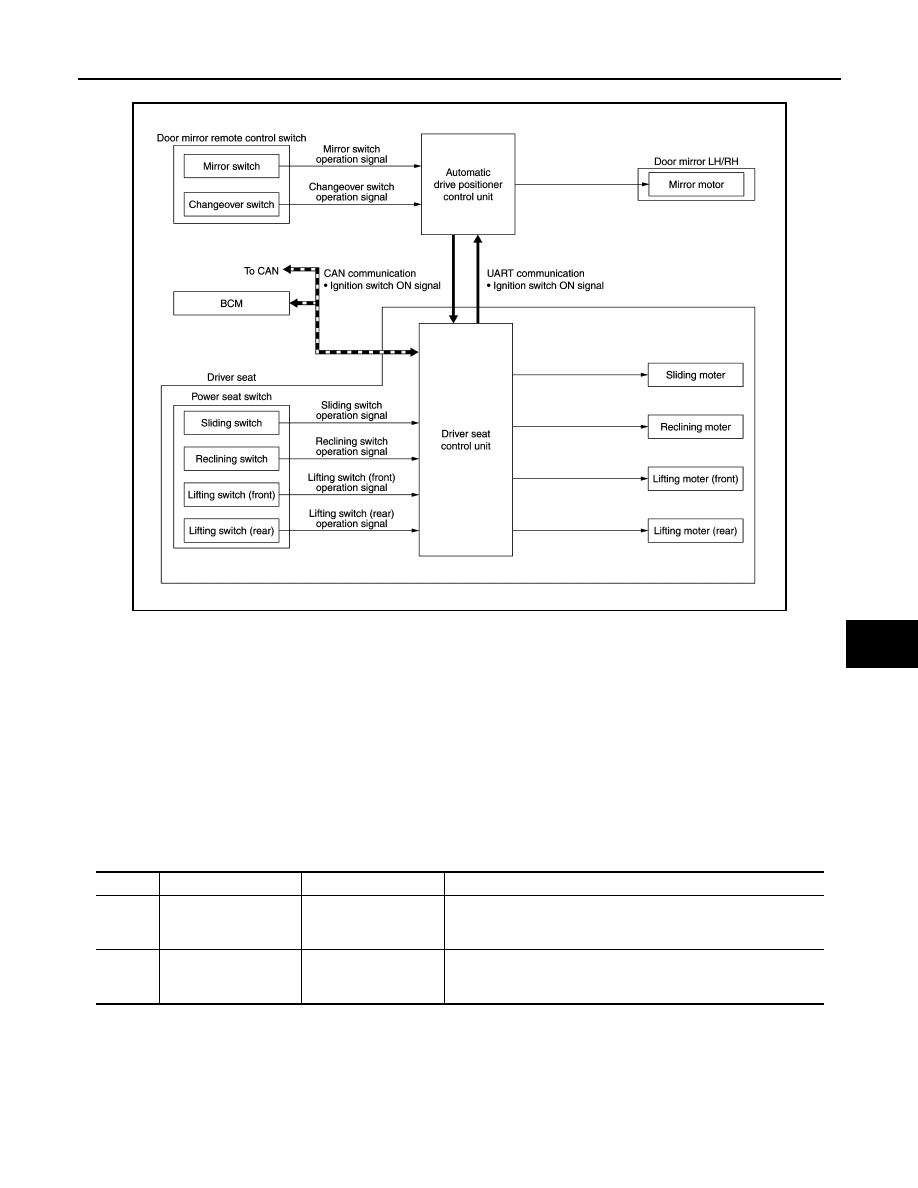

MANUAL FUNCTION : System Description

INFOID:0000000009176525

OUTLINE

The driving position (seat, steering column and door mirror position) can be adjusted manually with power seat

switch, ADP steering switch (if equipped) and door mirror remote control switch.

OPERATION PROCEDURE

1. Turn ignition switch ON.

2. Operate power seat switch, ADP steering switch or door mirror remote control switch.

3. The driver seat, steering column or door mirror operates according to the operation of each switch.

DETAIL FLOW

Seat

Tilt and Telescopic (if equipped)

JMJIA5855GB

Order

Input

Output

Control unit condition

1

Power seat switch
(sliding, lifting, reclin-
ing)

—

The power seat switch signal is inputted to the driver seat control
unit when the power seat switch is operated.

2

—

Motors
(sliding LH, lifting LH,
reclining LH)

The driver seat control unit outputs signals to each motor accord-
ing to the power seat switch input signal.
