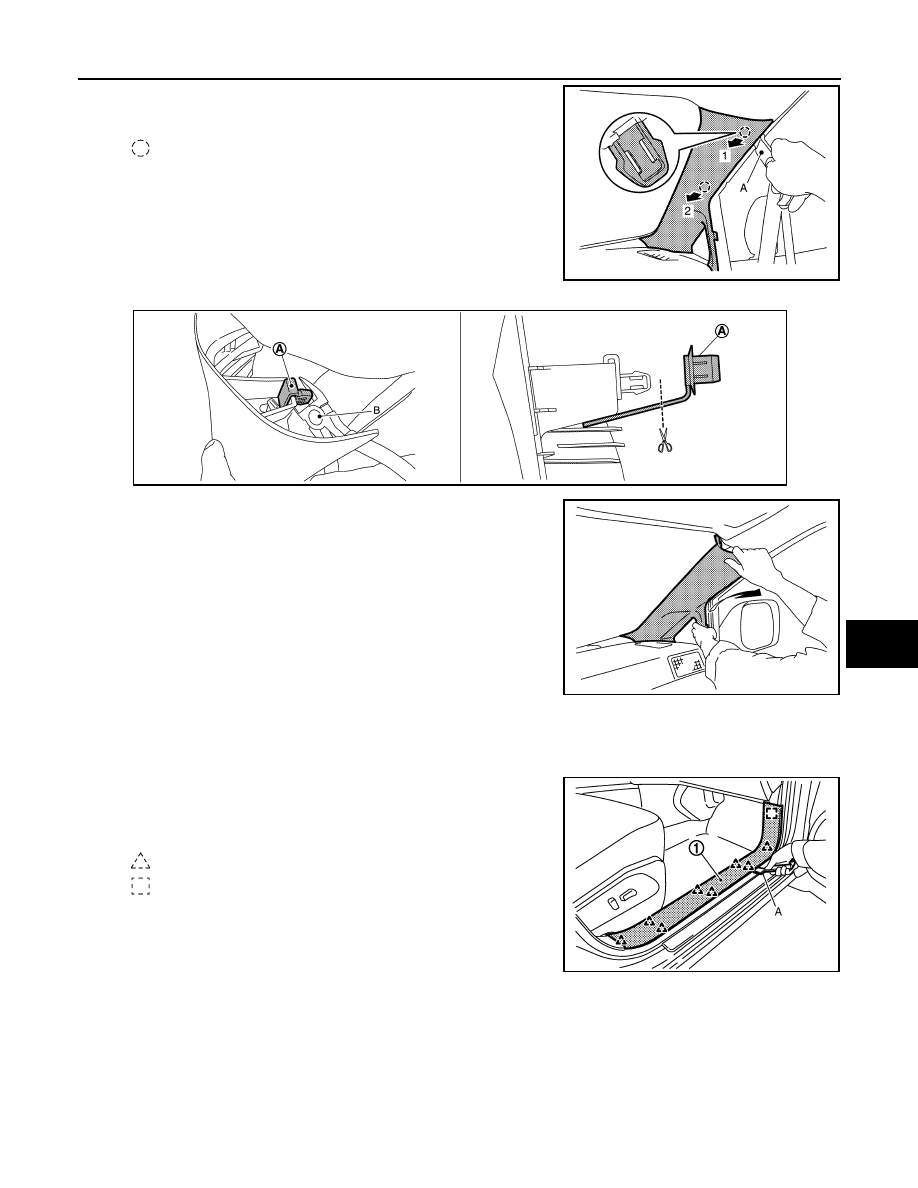

BODY SIDE TRIM

INT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

a.

Disengage front pillar garnish fixing anchor clips with remover
tool (A).

b.

Cut anchor clip (A) portion using nippers (B).

c.

Remove front pillar garnish while lifting it upward.

d.

Remove clips remaining on body side using a remover tool.

FRONT KICKING PLATE INNER

1.

Disengage the pawls and metal clip from the body panel with
remover tool (A).

2.

Remove front kicking plate inner (1).

FRONT KICKING PLATE OUTER

: Anchor clip

JMJIA4843ZZ

JMJIA4844ZZ

JMJIA6202ZZ

: Pawl

: Metal clip

JMJIA1365ZZ

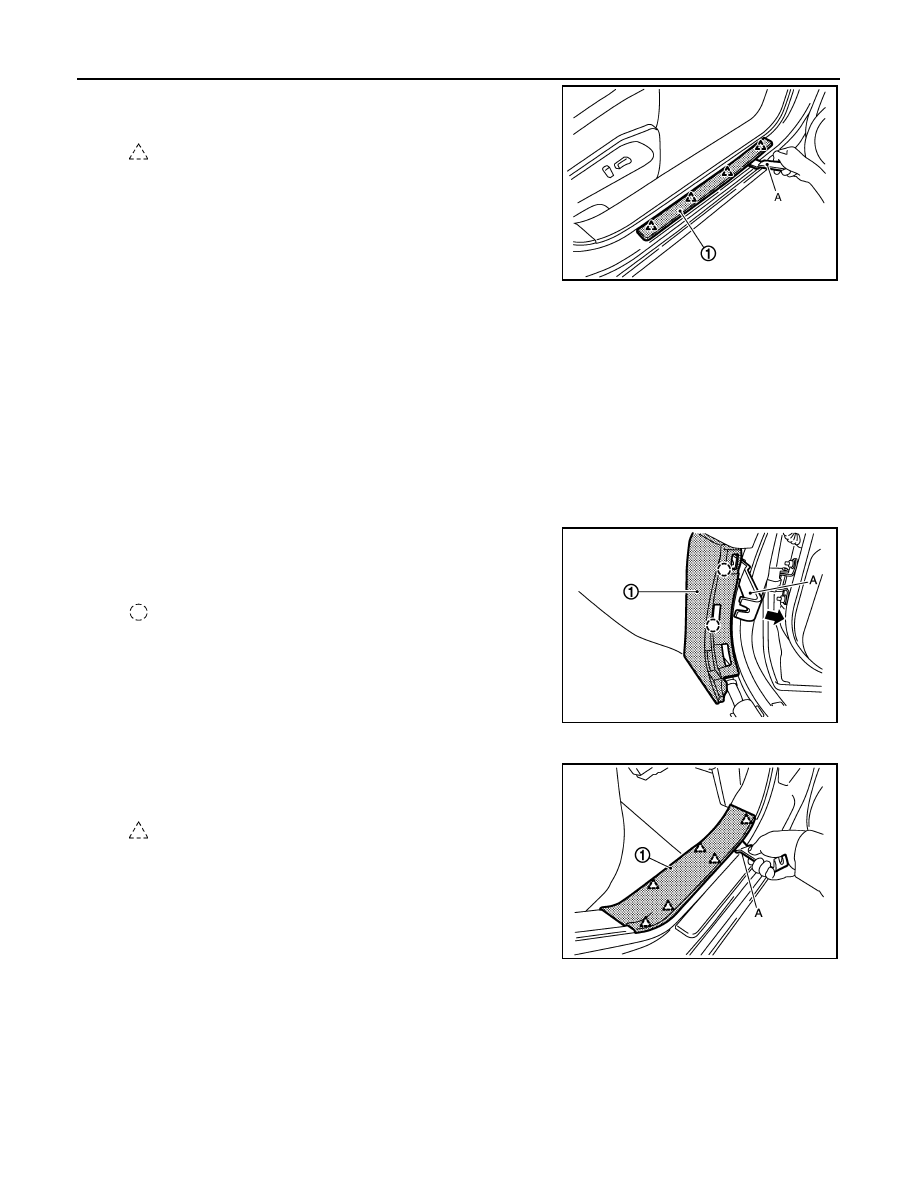

INT-22

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

1.

Disengage the pawls from the body panel with remover tool (A).

2.

Remove front kicking plate outer (1).

FRONT BODY SIDE WELT

1.

Remove front kicking plate inner.

2.

Remove center pillar upper garnish.

3.

Remove front body side welt.

REAR BODY SIDE WELT

1.

Remove rear kicking plate inner.

2.

Remove center pillar upper garnish.

3.

Remove rear body side welt.

DASH SIDE FINISHER

1.

Remove front kicking plate inner.

2.

Disengage dash side finisher (1) mounting clip with remover tool
(A).

3.

Remove dash side finisher (1).

REAR KICKING PLATE INNER

1.

Disengage the pawls from the body with remover tool (A).

2.

Remove rear kicking plate inner (1).

REAR KICKING PLATE OUTER

: Pawl

JMJIA1366ZZ

: Clip

JMJIA2448ZZ

: Pawl

JMJIA1368ZZ

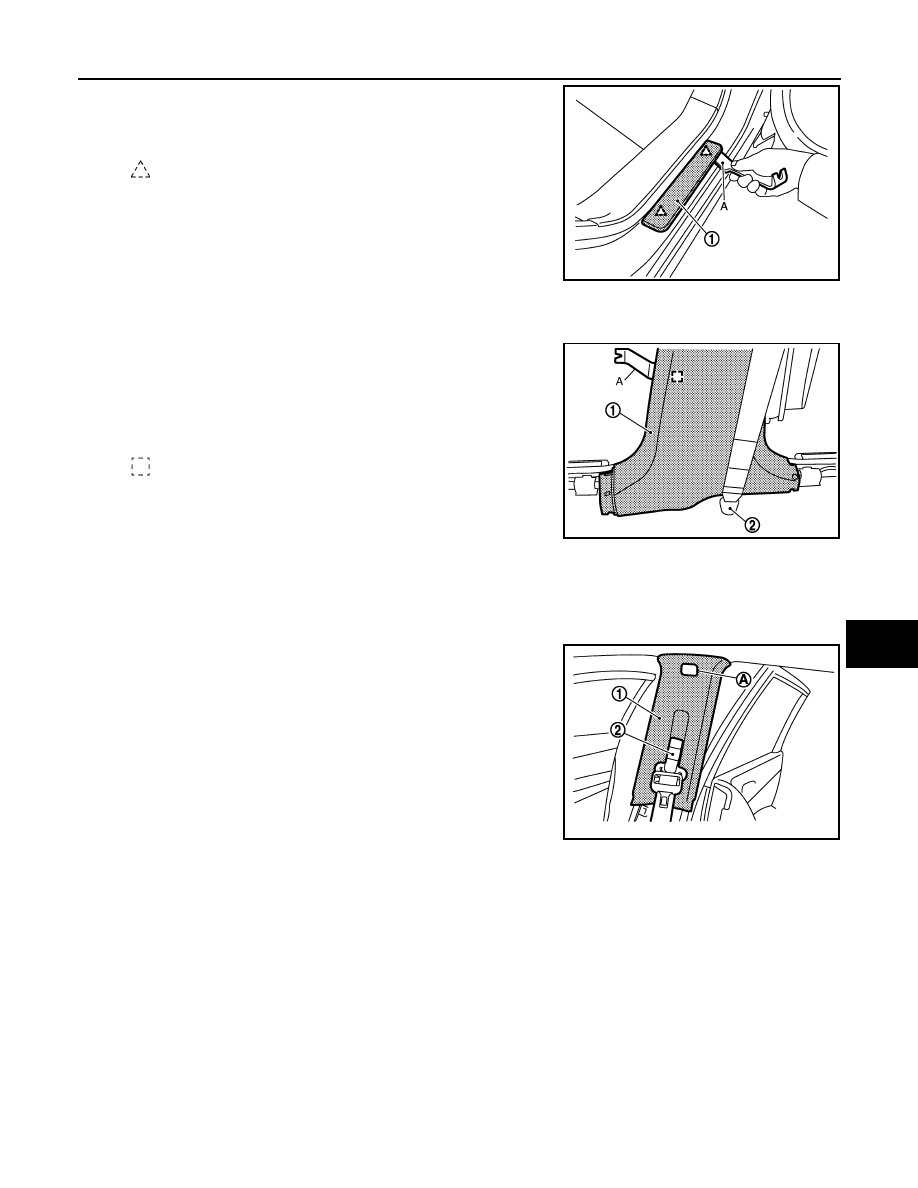

BODY SIDE TRIM

INT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

1.

Disengage the pawls from the body side panel with remover tool
(A).

2.

Remove rear kicking plate outer (1).

CENTER PILLAR LOWER GARNISH

1.

Remove front kicking plate inner and rear kicking plate inner.

2.

Insert remover tool (A) between center pillar lower garnish (1)
and body side panel to disengage the metal clips.

3.

Remove anchor bolt cover (2), then remove the anchor bolt
behind the cover.

4.

Remove center pillar lower garnish (1).

CENTER PILLAR UPPER GARNISH

1.

Remove partially front and rear body side welt.

2.

Remove front kicking plate inner and rear kicking plate inner.

3.

Remove center pillar lower garnish.

4.

Remove front seat belt shoulder anchor (2).

5.

Remove the bolt located behind the center pillar upper cap (A).

6.

Pull back center pillar upper garnish (1) to disengage clips and
remove center pillar upper garnish from the body side panel.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

• When installing, check in advance that clips are accurately aligned with the holes on body panel

side, and then install by pressing in.

• Never reuse front pillar garnish fixing anchor clip. Always replace it with a new one when it is

removed.

: Pawl

JMJIA1369ZZ

: Metal clip

JMJIA1370ZZ

JMJIA1371ZZ

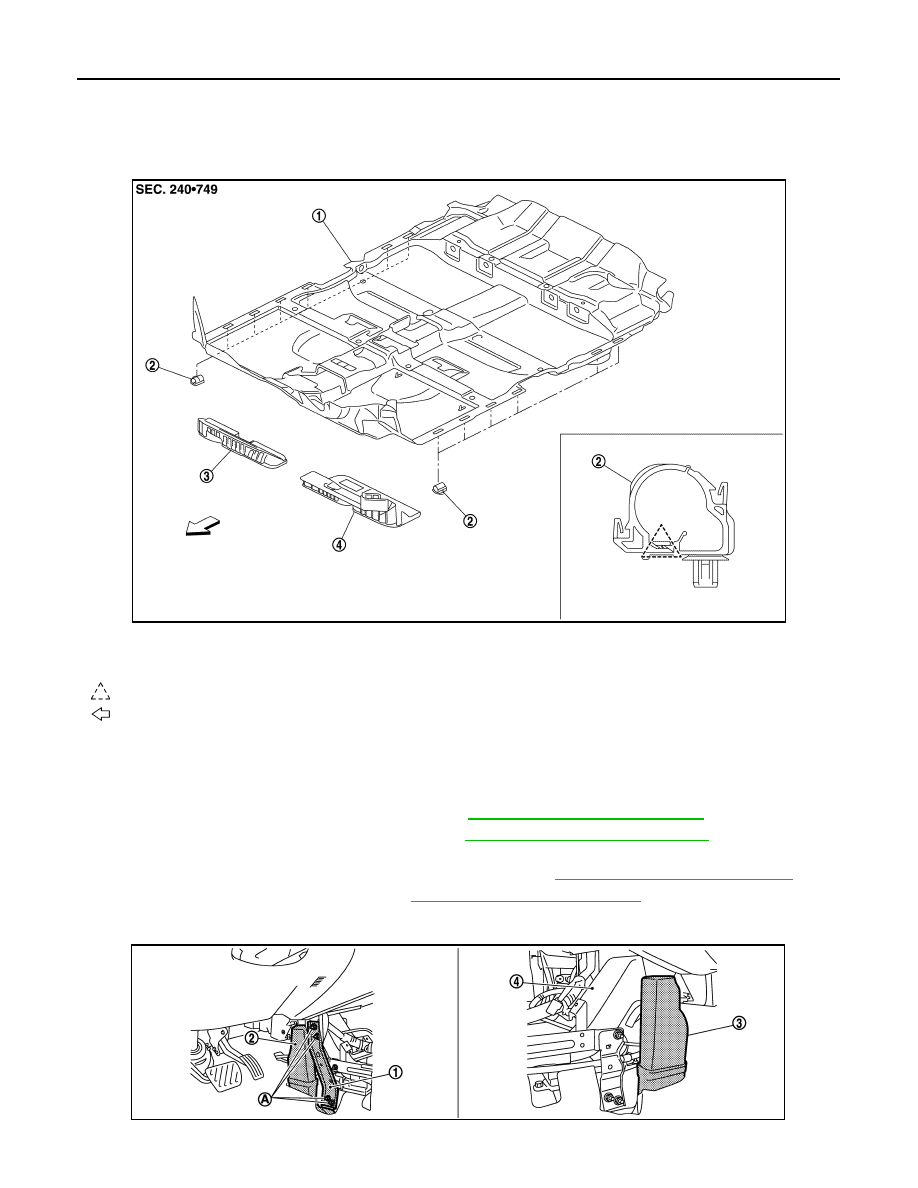

INT-24

< REMOVAL AND INSTALLATION >

FLOOR TRIM

FLOOR TRIM

Exploded View

INFOID:0000000009720370

LHD models

Removal and Installation

INFOID:0000000009720371

REMOVAL

1.

Remove front seat assembly (LH and RH). Refer to

SE-98, "Removal and Installation"

.

2.

Remove rear seat assembly (LH and RH). Refer to

SE-109, "Removal and Installation"

.

3.

Remove dash side finisher (LH and RH), front kicking plate inner (LH and RH), center pillar lower garnish
(LH and RH), and rear kicking plate inner (LH and RH). Refer to

INT-20, "Removal and Installation"

.

4.

Remove center console assembly. Refer to

IP-23, "Removal and Installation"

.

5.

Remove instrument stay fixing nuts (A), and then remove instrument stay (1).
Remove rear foot duct (2), rear foot duct (3) and rear ventilator duct (4).

JMJIA6882ZZ

1.

Floor carpet assembly

2.

Harness protector

3.

Front floor spacer RH

4.

Front floor spacer LH

: Pawl

: Vehicle front

JMJIA1373ZZ
