REMOVAL AND INSTALLATION

DOOR FINISHER

FRONT DOOR FINISHER

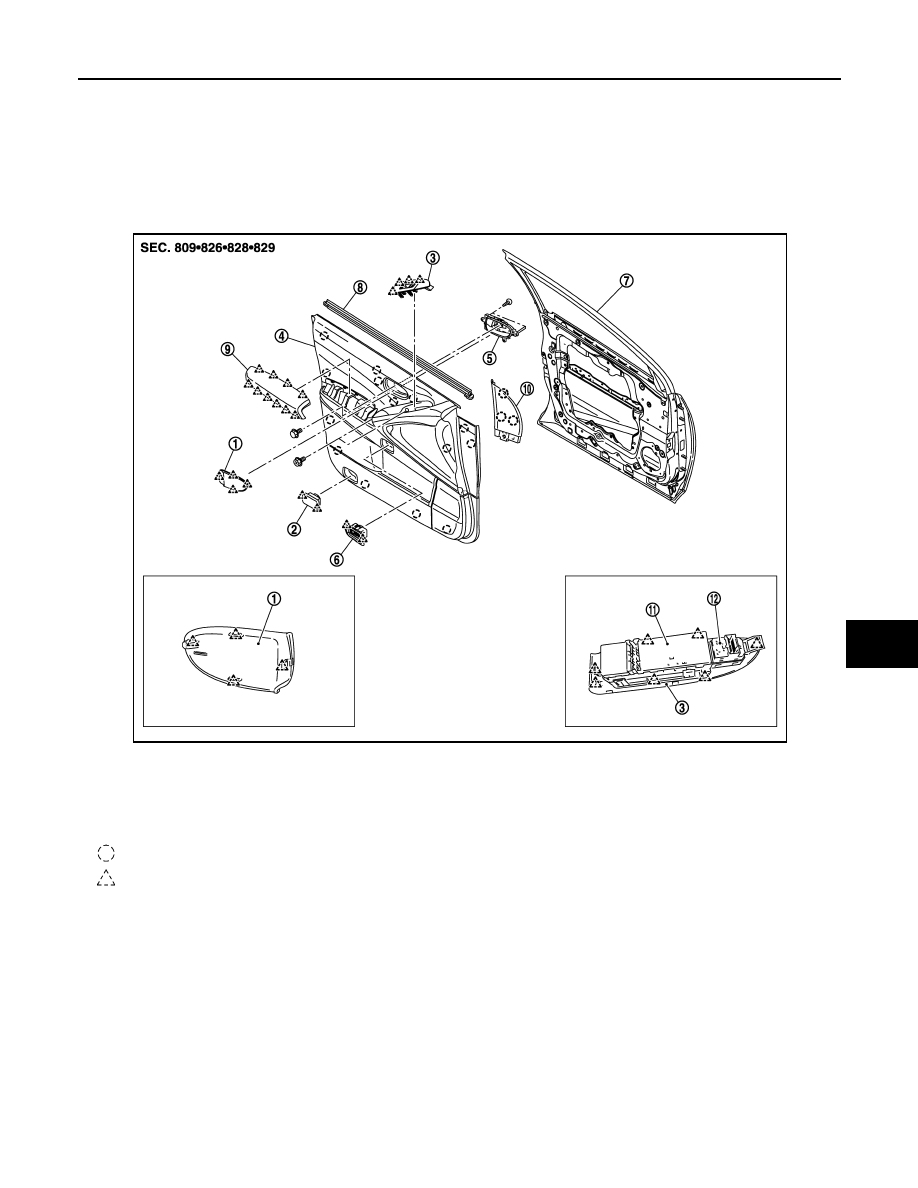

FRONT DOOR FINISHER : Exploded View

INFOID:0000000009720364

FRONT DOOR FINISHER : Removal and Installation

INFOID:0000000009720365

CAUTION:

Wrap the tip of flat-bladed screwdriver with a cloth before remove.

REMOVAL

1.

Fully open front door window.

1.

Inside handle escutcheon

2.

Step lamp

3.

Power window switch finisher

4.

Front door finisher

5.

Front door inside handle

6.

Seat memory switch finisher

7.

Front door panel

8.

Front door inside seal

9.

Armrest finisher

10. Door mirror corner cover

11. Power window switch

12. Door mirror remote control switch

: Clip

: Pawl

JMJIA1348ZZ

INT-14

< REMOVAL AND INSTALLATION >

DOOR FINISHER

2.

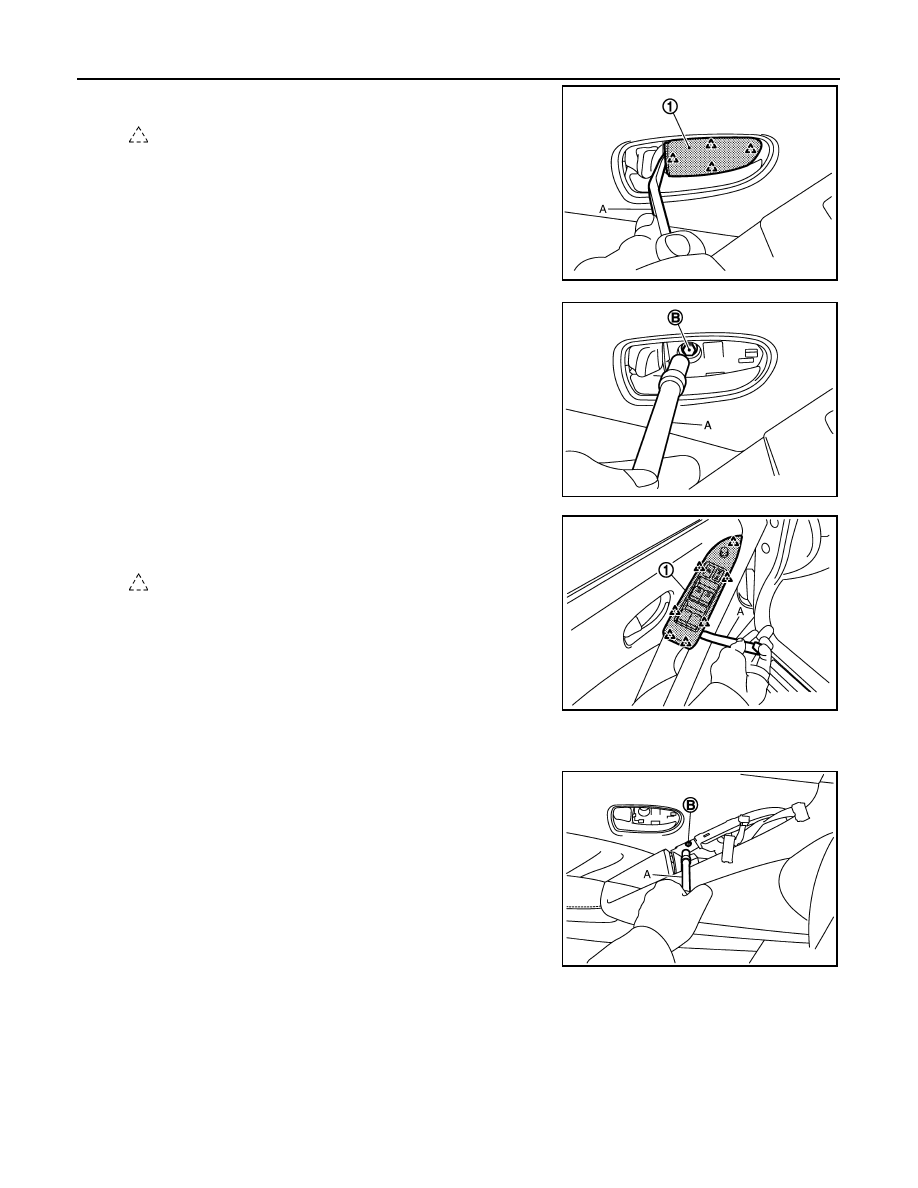

Remove inside handle escutcheon (1) with remover tool (A).

3.

Remove bolt (B) located behind the inside handle escutcheon
with tool (A).

4.

Disengage the power window switch finisher (1) fixing pawls
with a remover tool (A).

5.

Disconnect power window and door mirror remote control switch harness connectors, and then remove
power window switch finisher.

6.

Remove bolt (B) located behind power window switch finisher
with tool (A).

: Pawl

JMJIA1350ZZ

JMJIA1351ZZ

: Pawl

JMJIA1352ZZ

JMJIA1353ZZ

DOOR FINISHER

INT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

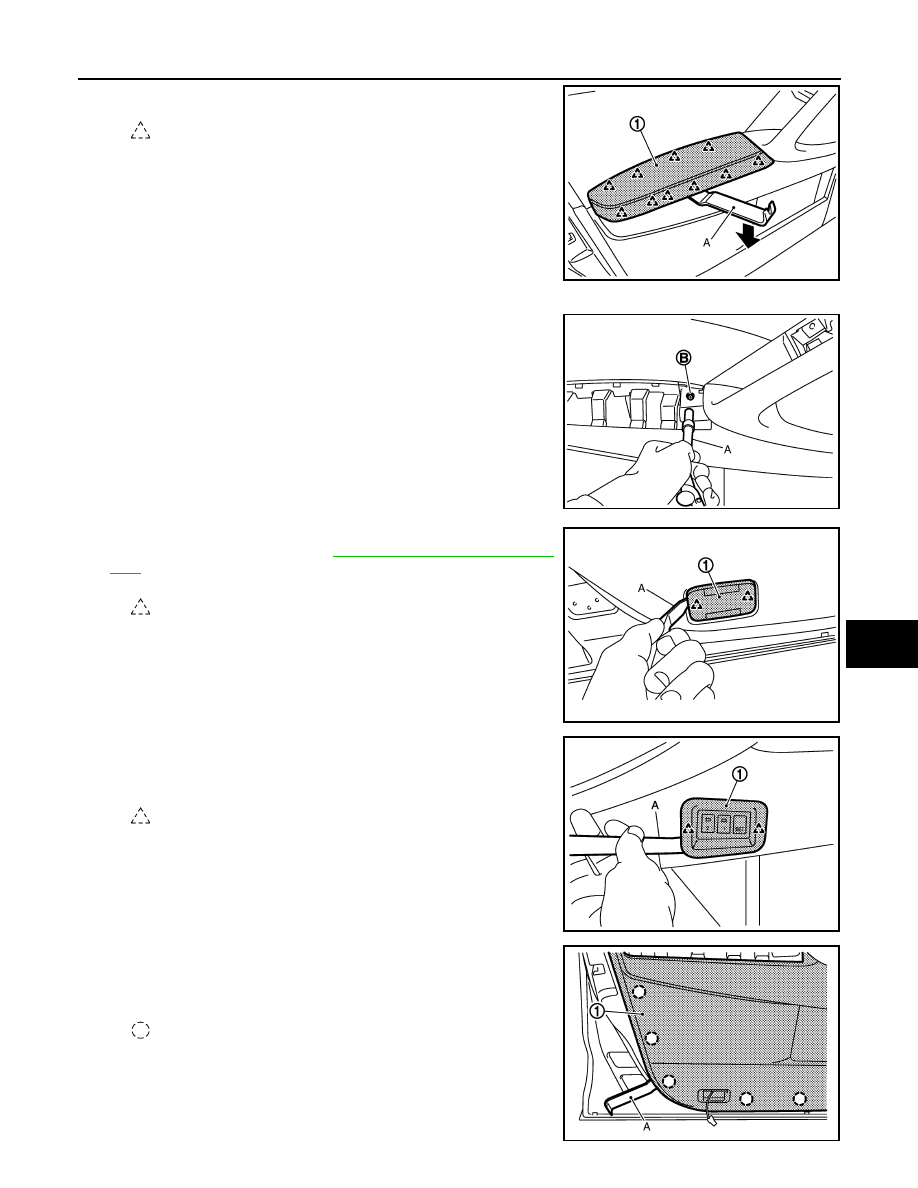

7.

Remove armrest finisher (1) with remover tool (A).

8.

Remove the bolt (B) located behind the armrest finisher with tool
(A).

9.

Remove step lamp (1) with remover tool (A) and then disconnect
the harness connector. Refer to

INL-131, "Removal and Installa-

tion"

.

10. Remove seat memory switch finisher (1) with remover tool (A)

and then disconnect the harness connectors. (With seat mem-
ory switch)

11. Insert remover tool (A) between door finisher and door panel to

disengage door finisher mounting clips, starting from the bottom
and working to the top.

: Pawl

JMJIA1355ZZ

JMJIA1356ZZ

: Pawl

JMJIA1357ZZ

: Pawl

JMJIA2561ZZ

: Clip

JMJIA1362ZZ

INT-16

< REMOVAL AND INSTALLATION >

DOOR FINISHER

12. Pull up front door finisher and pull out.

13. Disconnect mood lamp (front door grip) harness connector.

14. Disconnect lock knob cable (1) and inside handle cable (2) from

front door inside handle (3).

15. Remove front door finisher.

16. Remove the inside handle after removing front door finisher. Refer to

DLK-343, "INSIDE HANDLE :

Removal and Installation"

.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

When installing door finisher, check that clips are securely fitted in panel holes on body, and then
press them in.

REAR DOOR FINISHER

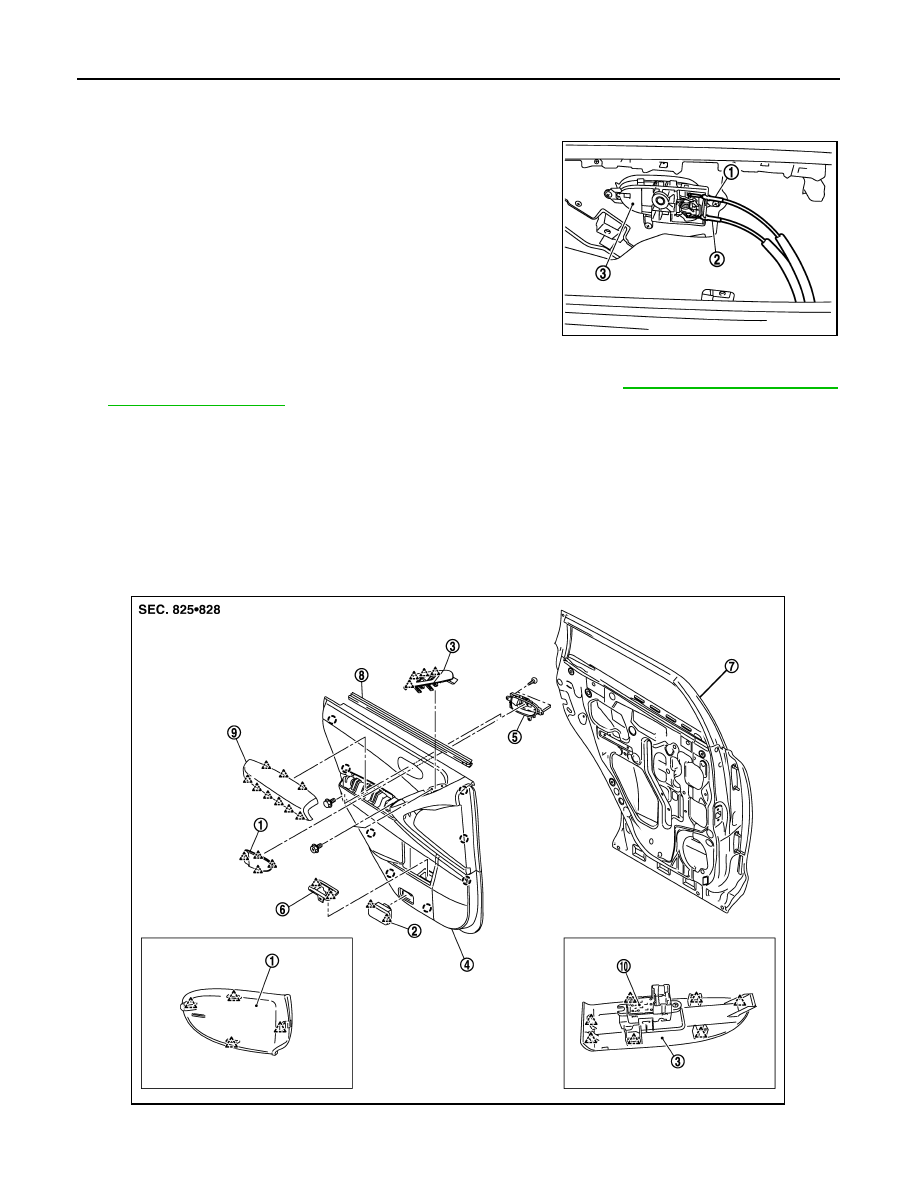

REAR DOOR FINISHER : Exploded View

INFOID:0000000009720366

JMJIA1359ZZ

JMJIA1349ZZ
