DOOR ASSEMBLY : Adjustment

INFOID:0000000009719226

Check the clearance and surface height between front door and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

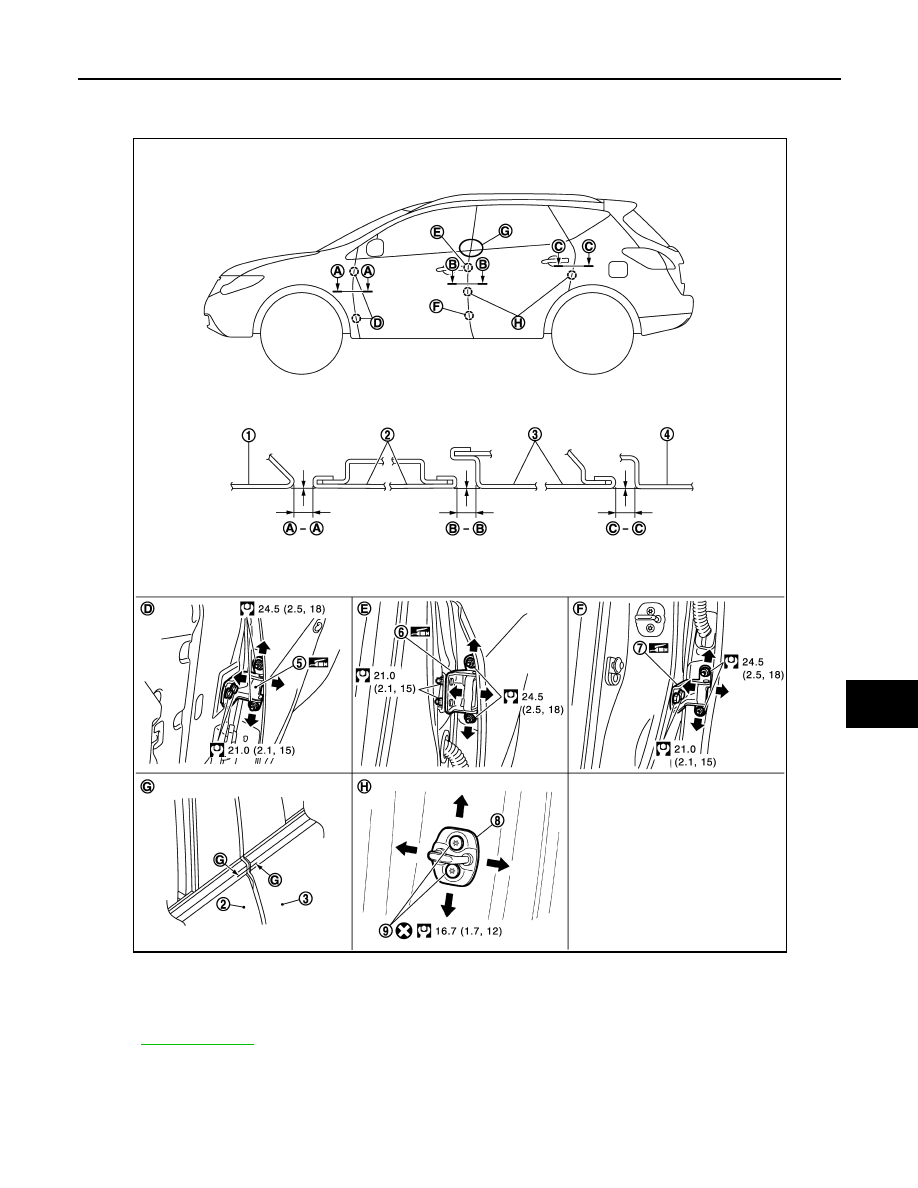

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Front door hinge

6.

Rear door hinge (upper)

7.

Rear door hinge (lower)

8.

Door striker

9.

TORX bolt

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3687GB

DLK-320

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

FRONT DOOR

Unit : mm (in)

1.

Remove front fender. Refer to

DLK-316, "Removal and Installation"

.

2.

Loosen door hinge mounting nuts on door side.

3.

Adjust the surface height of front door according to the fitting standard dimension.

4.

Temporarily tighten door hinge mounting nuts on door side.

5.

Loosen door hinge mounting bolts on body side.

6.

Raise front door at rear end to adjust clearance of the front door according to the fitting standard dimen-
sion.

7.

After adjustment tighten bolts and nuts to the specified torque.

8.

Install front fender. Refer to refer to

DLK-316, "Removal and Installation"

.

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

DOOR STRIKER

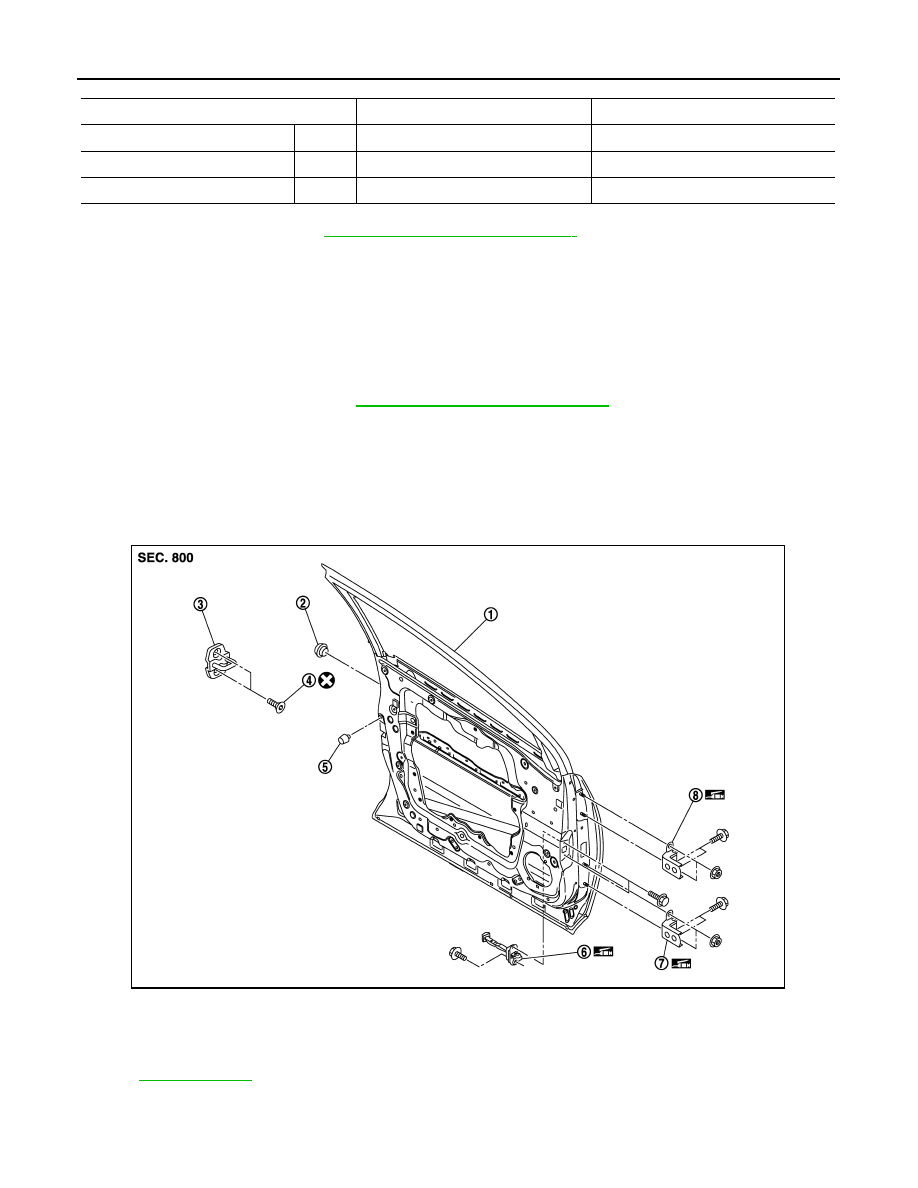

DOOR STRIKER : Exploded View

INFOID:0000000009719227

Portion

Clearance

Surface height

Front fender – Front door

A – A

3.4 – 5.4 (0.134 – 0.213)

- 1.0 – 1.0 (- 0.039 – 0.039)

Front door – Rear door

B – B

3.4 – 5.4 (0.134 – 0.213)

- 1.0 – 1.0 (- 0.039 – 0.039)

Front door – Rear door

G – G

2.9 – 5.9 (0.114 – 0.237)

- 1.5 – 1.5 (- 0.059 – 0.059)

1.

Front door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Bumper rubber

6.

Door check link

7.

Door hinge (lower)

8.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3688ZZ

FRONT DOOR

DLK-321

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR STRIKER : Removal and Installation

INFOID:0000000009719228

REMOVAL

Remove TORX bolts, and then remove door striker.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check front door open/close, lock/unlock operation after installation.
• After installation, be sure to perform the fitting adjustment. Refer to

DLK-319, "DOOR ASSEMBLY :

Adjustment"

.

DOOR HINGE

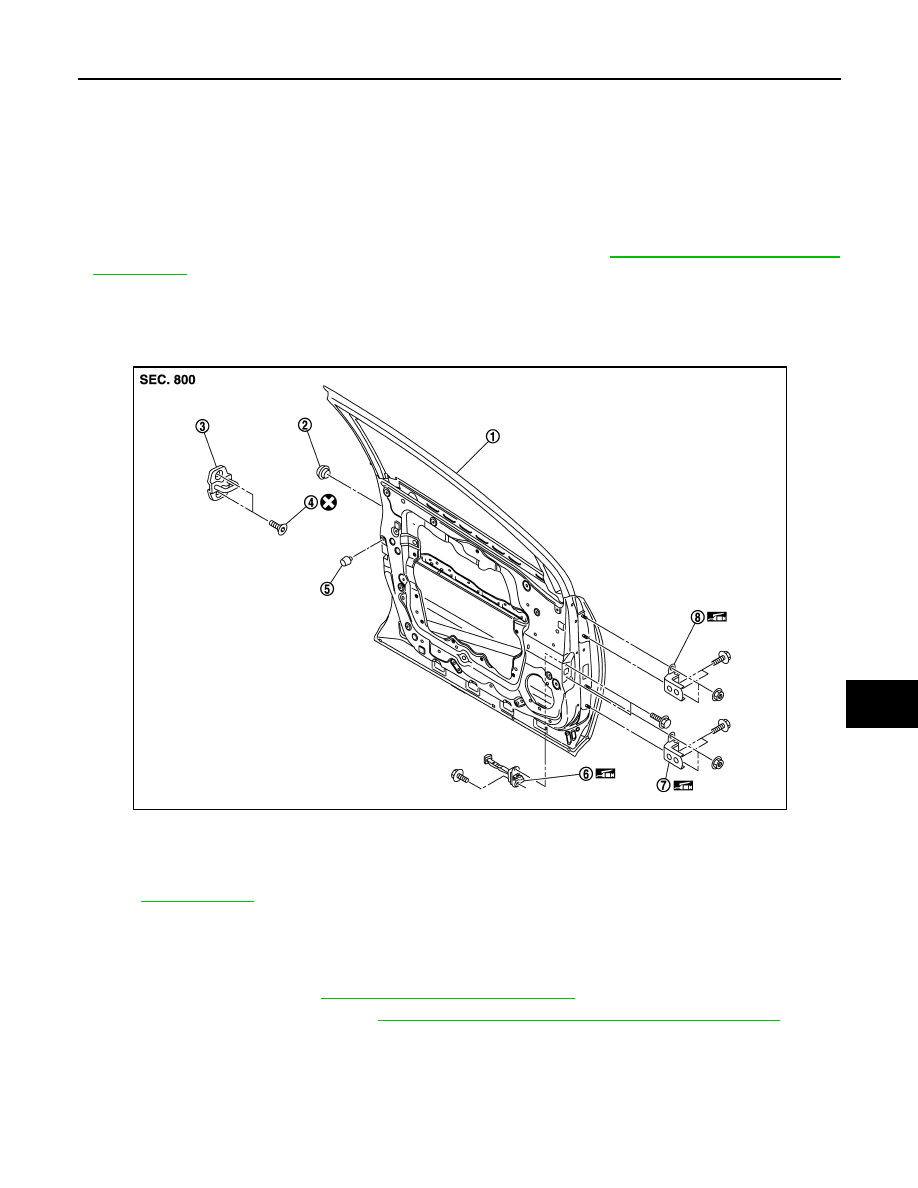

DOOR HINGE : Exploded View

INFOID:0000000009719229

DOOR HINGE : Removal and Installation

INFOID:0000000009719230

REMOVAL

1.

Remove front fender. Refer to

DLK-316, "Removal and Installation"

.

2.

Remove front door assembly. Refer to

DLK-318, "DOOR ASSEMBLY : Removal and Installation"

.

3.

Remove front door hinge mounting bolts, and then remove front door hinge.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check front door open/close, lock/unlock operation after installation.
• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.

1.

Front door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Bumper rubber

6.

Door check link

7.

Door hinge (lower)

8.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3688ZZ

DLK-322

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

FRONT DOOR

• After installation, perform the fitting adjustment. Refer to

DLK-319, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.

DOOR CHECK LINK

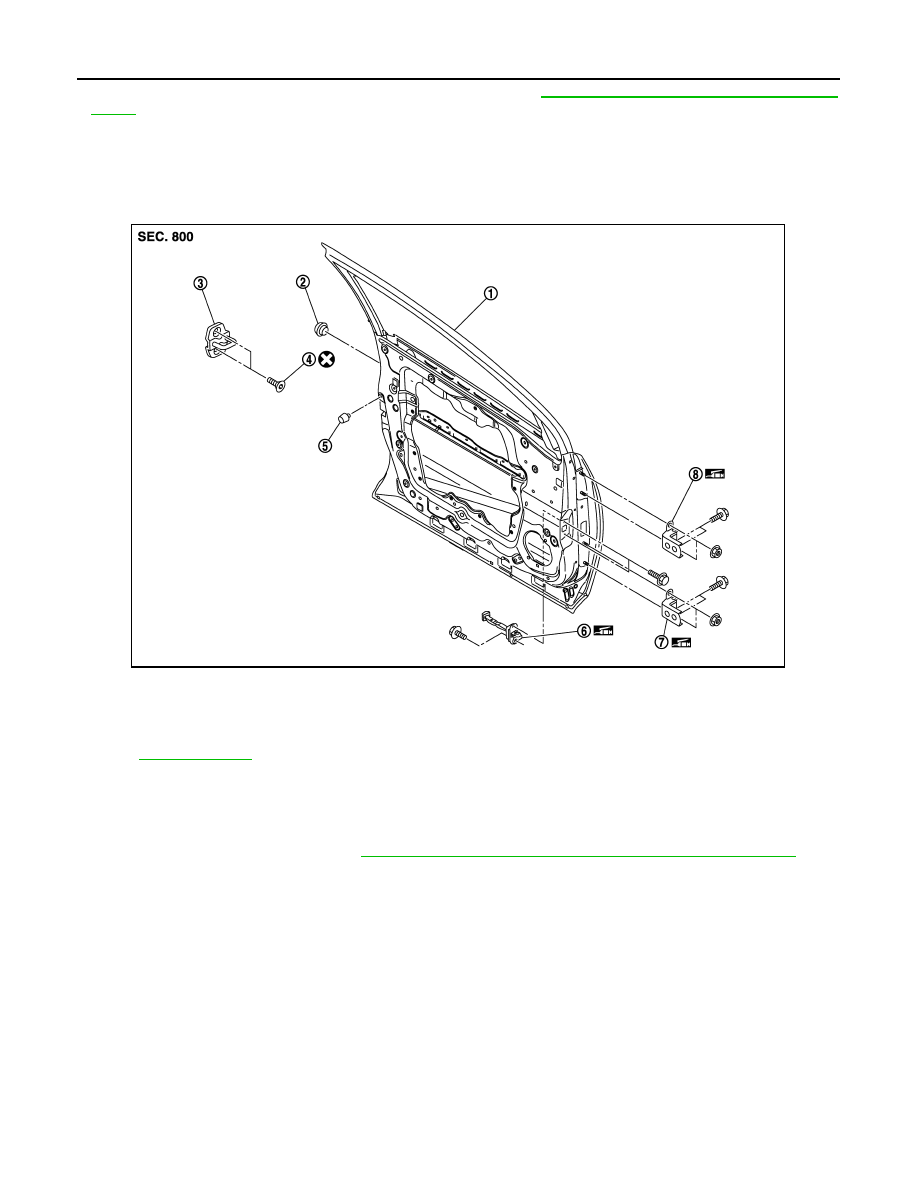

DOOR CHECK LINK : Exploded View

INFOID:0000000009719231

DOOR CHECK LINK : Removal and Installation

INFOID:0000000009719232

REMOVAL

1.

Remove front door finisher. Refer to

INT-13, "FRONT DOOR FINISHER : Removal and Installation"

.

2.

Fully close the front door window.

3.

Remove front door speaker.

4.

Remove mounting bolts of door check link on the vehicle.

5.

Remove mounting bolts of door check link on door panel.

6.

Take door check link out from the hole of door panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check front door open/close operation after installation.

1.

Front door panel

2.

Grommet

3.

Door striker

4.

TORX bolt

5.

Bumper rubber

6.

Door check link

7.

Door hinge (lower)

8.

Door hinge (upper)

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3688ZZ
