CORROSION PROTECTION

BRM-17

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

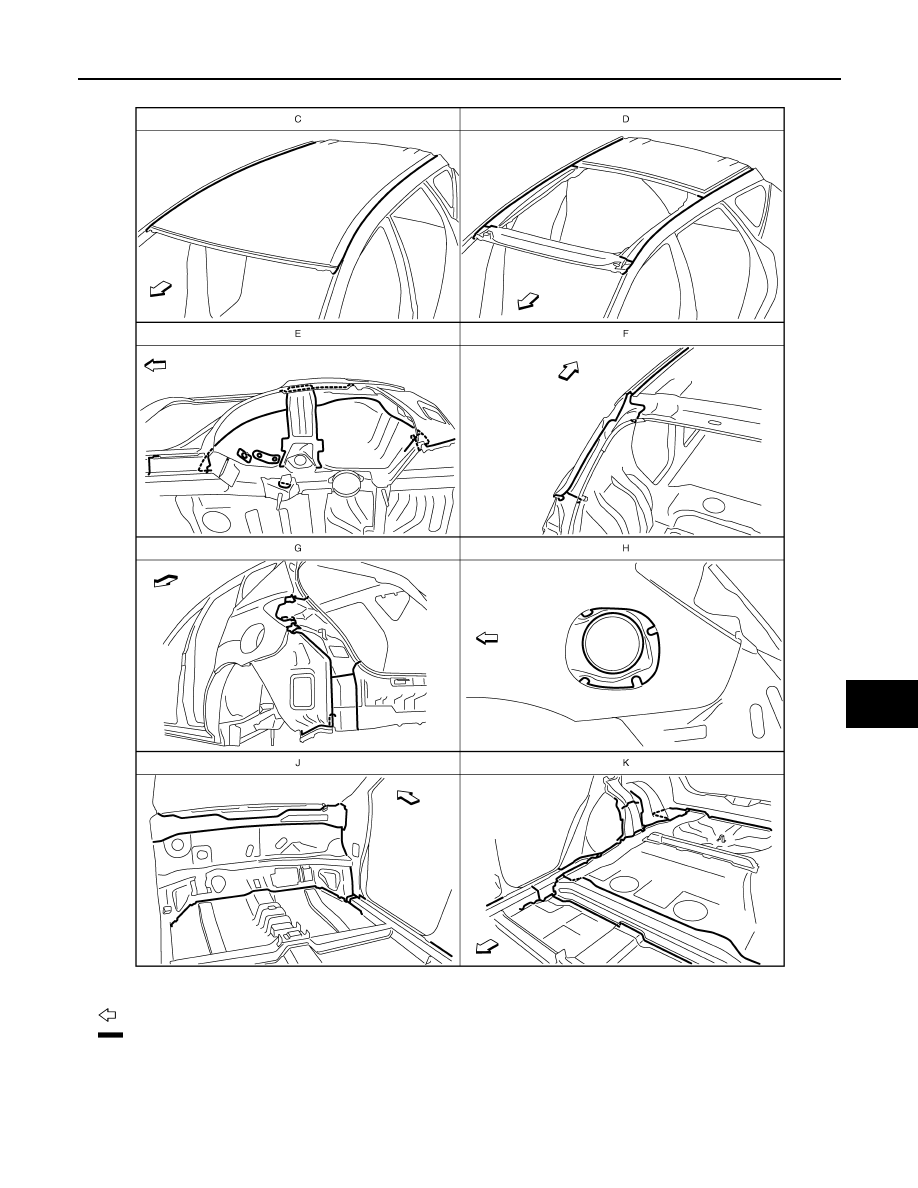

: Vehicle front

: Sealed portions

JSKIA0556ZZ

BRM-18

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

CORROSION PROTECTION

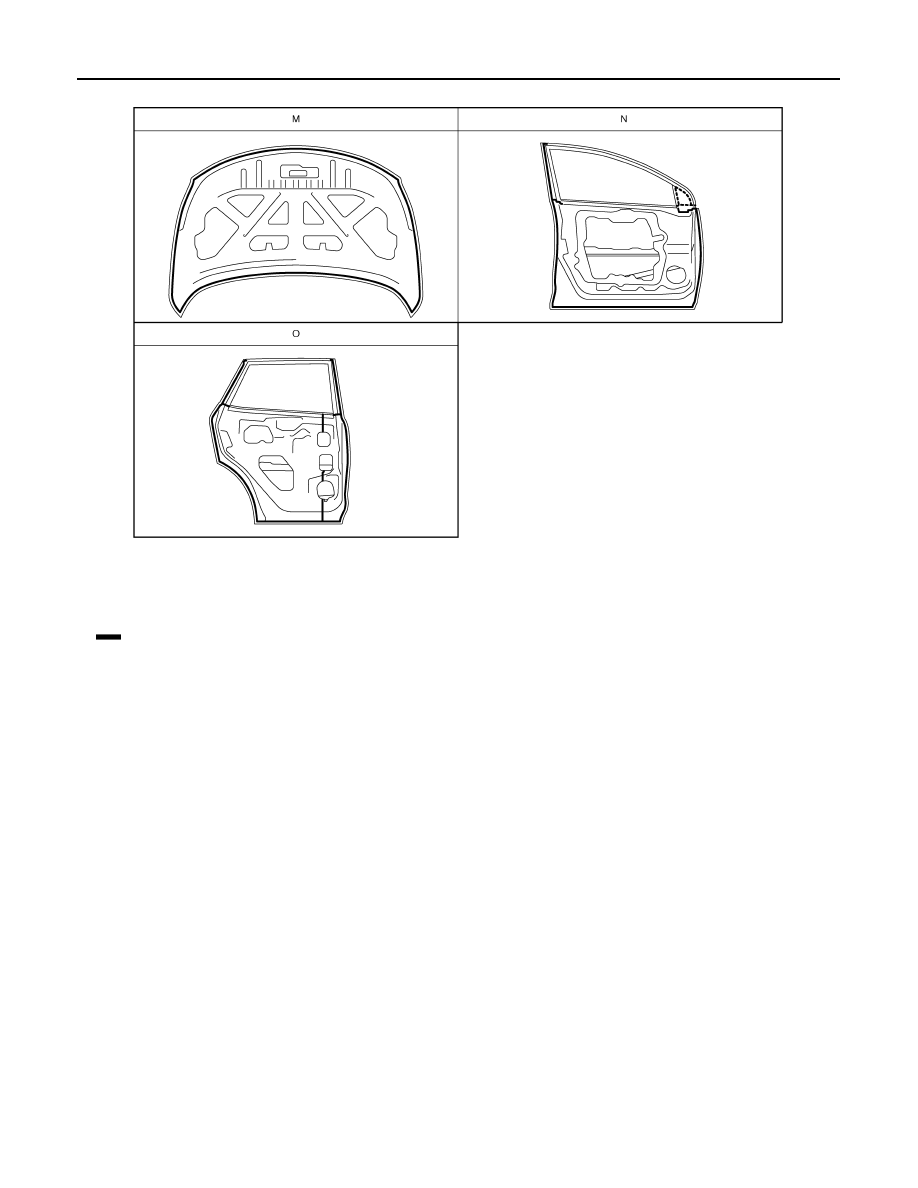

: Sealed portions

JSKIA0557ZZ

BODY CONSTRUCTION

BRM-19

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

BODY CONSTRUCTION

Body Construction

INFOID:0000000009718043

1.

Outer side body

2.

Upper front pillar reinforcement

3.

Upper inner front pillar

4.

Upper front pillar hinge brace

5.

Hoodledge reinforcement

6.

Side dash

7.

Upper dash

8.

Lower dash

9.

Side cowl top brace

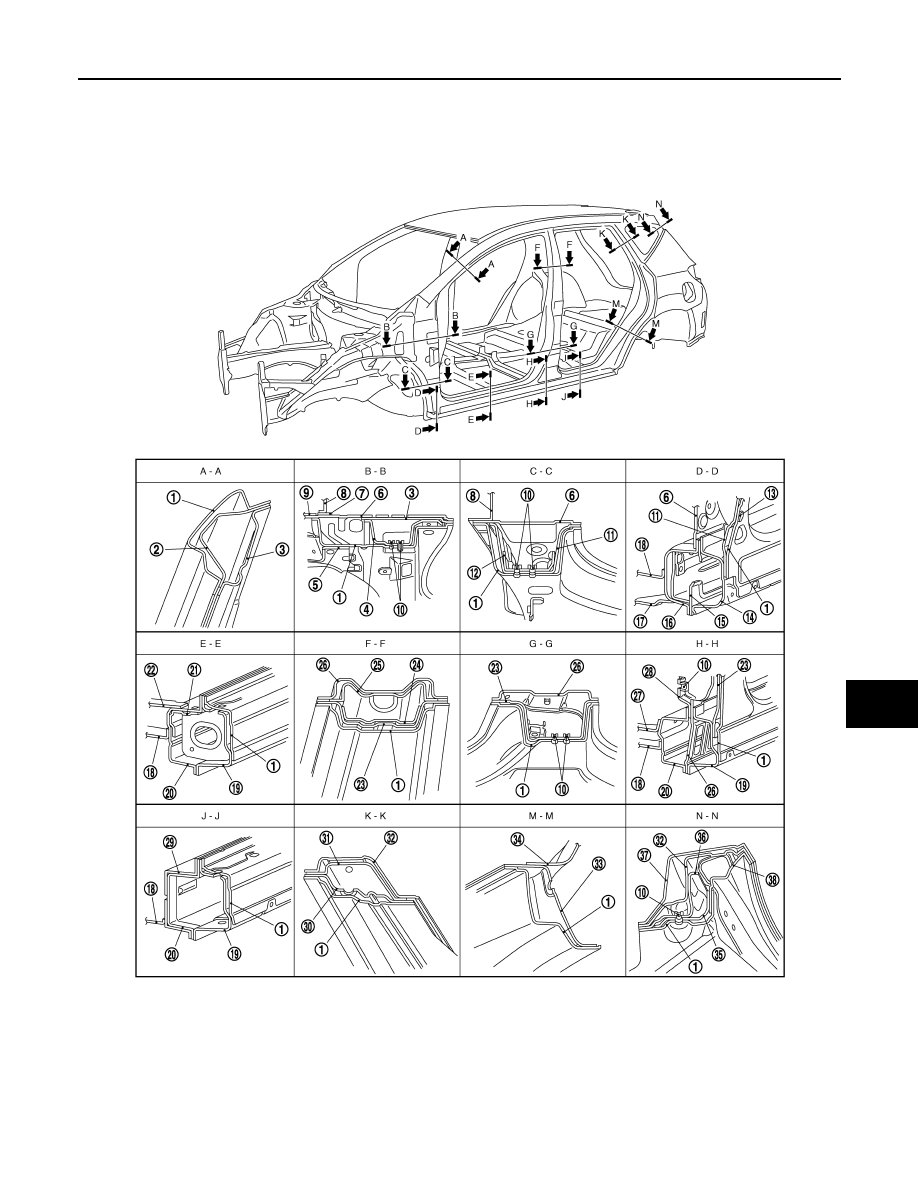

JSKIA0575ZZ

BRM-20

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

BODY CONSTRUCTION

10. Weld nut

11.

Lower front pillar hinge brace

12. Lower front pillar patch

13. Front fender bracket

14. Outer front sill reinforcement

15. Lower front pillar reinforcement

16. Inner front sill reinforcement

17. Front side member outrigger

18. Front floor

19. Outer sill reinforcement

20. Inner sill

21. Inner rear sill reinforcement

22. 2nd crossmember

23. Center pillar reinforcement

24. Center pillar seat belt reinforcement

25. Inner center pillar reinforcement

26. Inner center pillar

27. 3rd crossmember

28. Seat belt anchor

29. Inner sill extension

30. Inner rear pillar reinforcement

31. Inner rear pillar seat belt anchor

32. Inner rear pillar

33. Outer rear wheelhouse

34. Inner rear wheelhouse

35. Outer back pillar

36. Back pillar reinforcement

37. Rear roof rail brace

38. Back pillar main
