Undercoating

INFOID:0000000009718040

The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip-
ping. Therefore, when such a panel is replaced or repaired, apply undercoating to that part. Use an undercoat-
ing which is rust resistant, soundproof, vibration-proof, shock-resistant, adhesive, and durable.

Precautions in Undercoating

1.

Never apply undercoating to any place unless specified (such as the areas above the muffler and three
way catalyst that are subjected to heat).

2.

Never undercoat the exhaust pipe or other parts that become hot.

3.

Never undercoat rotating parts.

4.

Apply bitumen wax after applying undercoating.

5.

After putting seal on the vehicle, put undercoating on it.

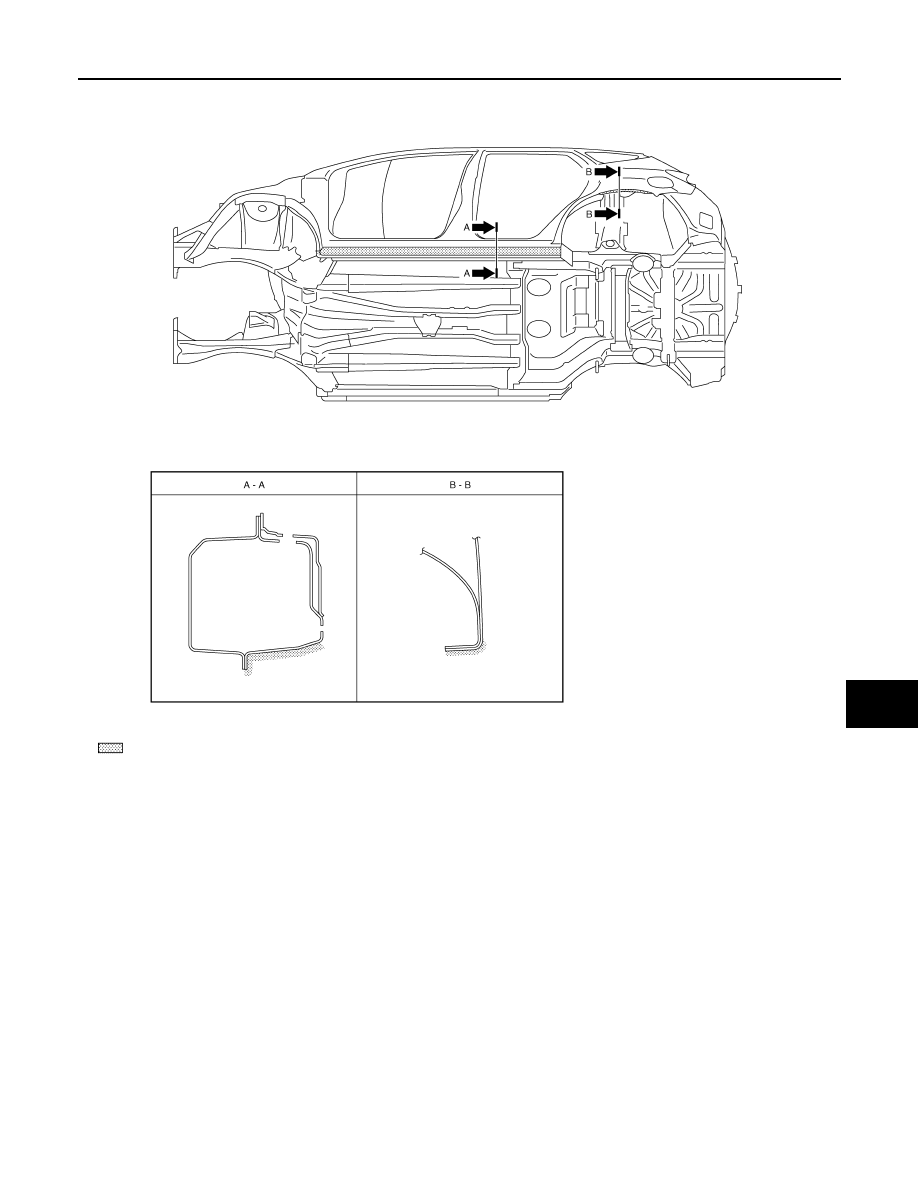

B.

Nozzle insert hole

: Anti-corrosive wax coated portions

JSKIA0552GB

BRM-14

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

CORROSION PROTECTION

Stone Guard Coat

INFOID:0000000009718041

To prevent damage caused by stones, the lower outer body panel (fender, door, etc.) have an additional layer
of Stone Guard Coating over the ED primer coating. When replacing or repairing these panels, apply Stone
Guard coating to the same portions as before. Use a coating which is rust preventive, durable, shock-resistant
and has a long shelf life.

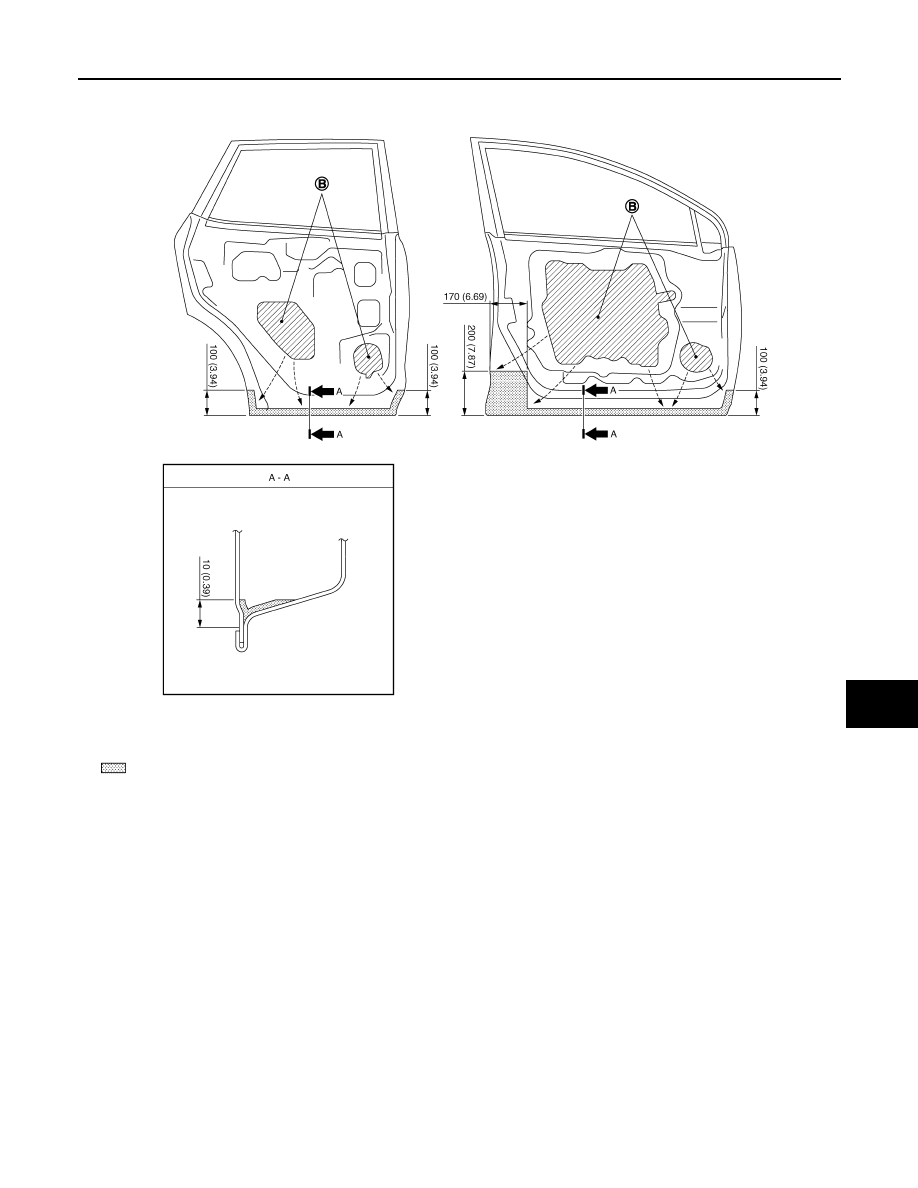

: Undercoated areas

: Sealed portions

JSKIA1606ZZ

CORROSION PROTECTION

BRM-15

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Body Sealing

INFOID:0000000009718042

The following figure shows the areas that are sealed at the factory. Sealant that is applied to these areas
should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of sealant
and not to allow other unaffected parts to come into contact with the sealant.

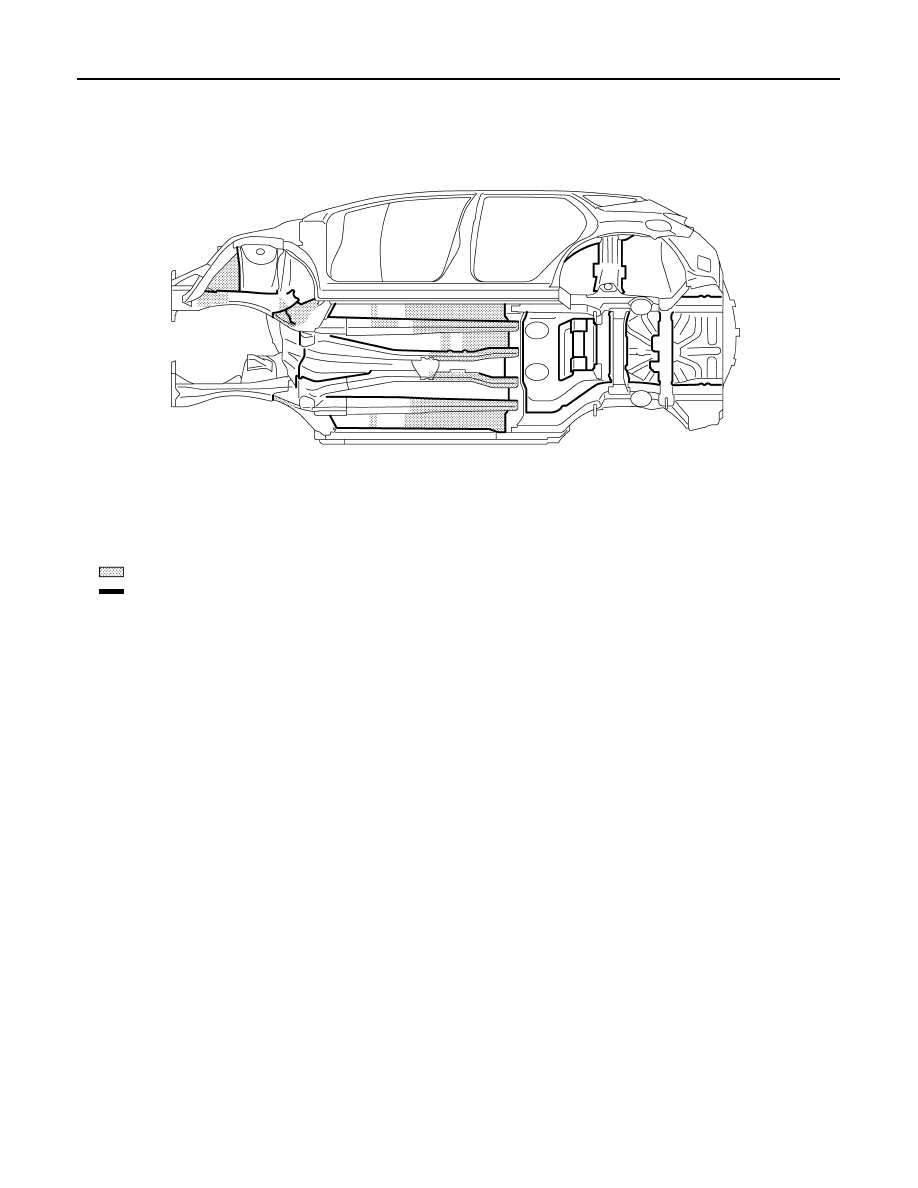

: Stone guard coated portions

JSKIA0554ZZ

BRM-16

< REMOVAL AND INSTALLATION >

[FOR USA AND CANADA]

CORROSION PROTECTION

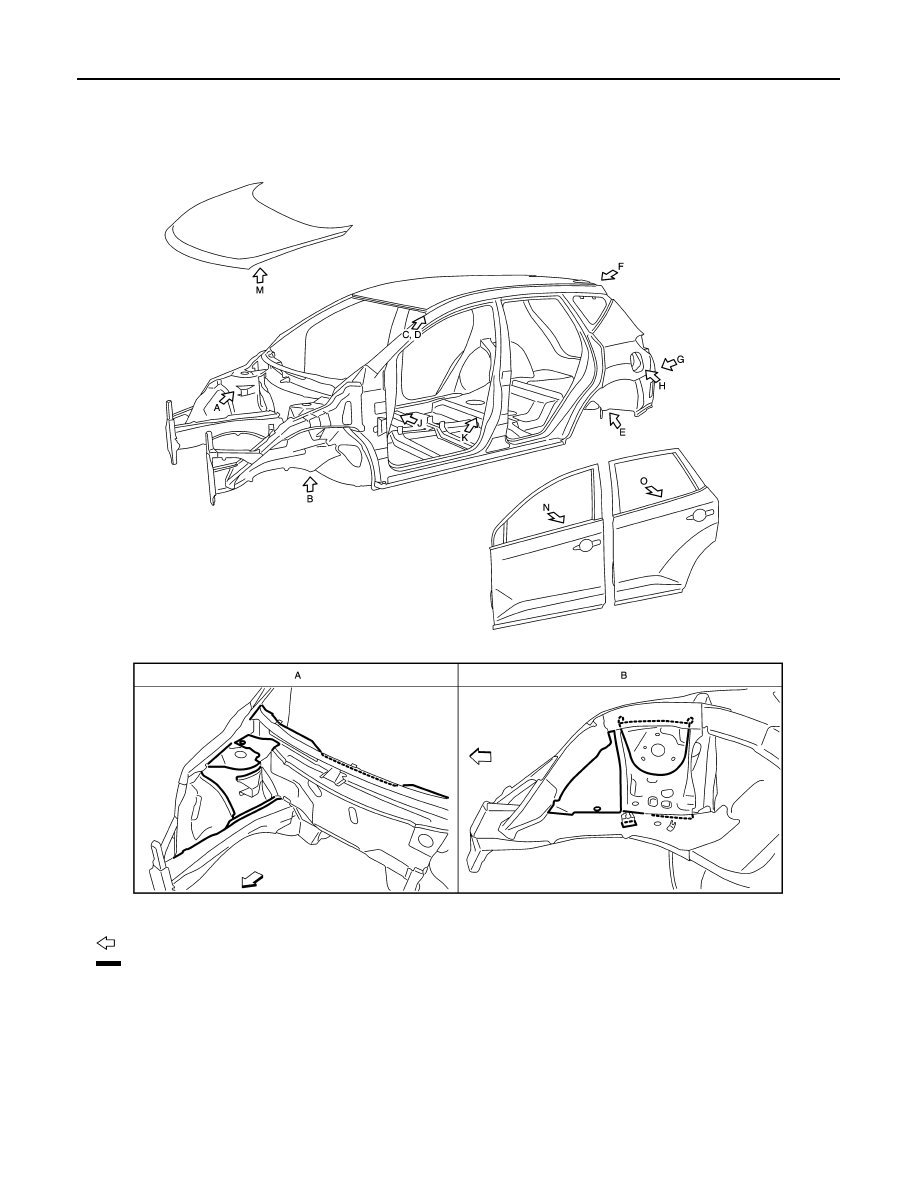

: Vehicle front

: Sealed portions

JSKIA2612ZZ
