AV-466

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

REAR VIEW CAMERA

Removal and Installation (Models without BSW and LDW)

INFOID:0000000009722005

REMOVAL

1.

Remove back door finisher inner. Refer to

INT-38, "Exploded View"

.

2.

Remove finisher.

3.

Remove rear view camera screws, disconnect rear view camera connector and remove rear view camera
from back door assembly.

INSTALLATION

Install in the reverse order of removal.

Adjustment (Models without BSW and LDW)

INFOID:0000000009722006

1.

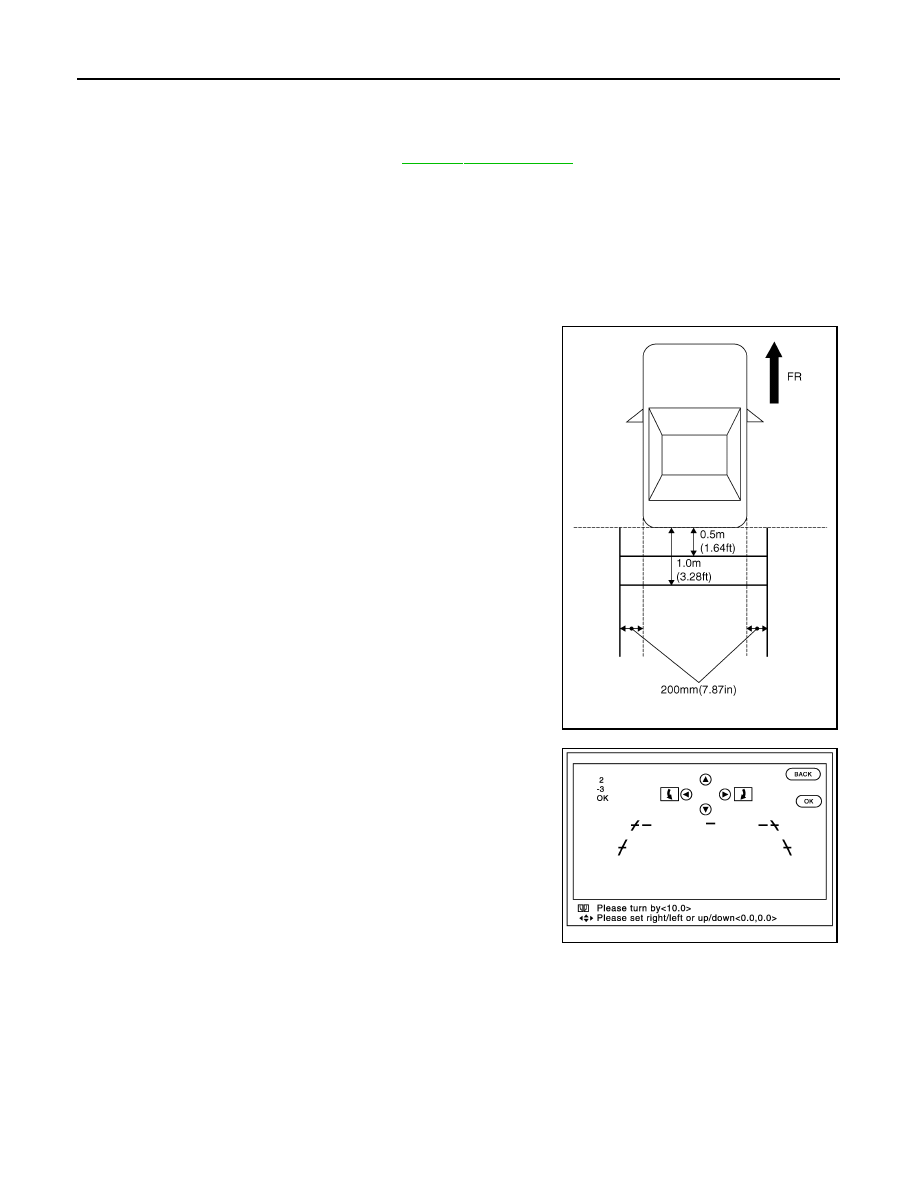

Draw lines on rearward area of the vehicle passing through the
following points: 200 mm (7.87 in) from both sides of the vehicle,
and 0.5 m (1.64 ft), 1.0 m (3.28 ft) from the rear end of the
bumper.

2.

Set into “Correct Draw Line of Rear view Camera” mode of
“Confirmation/Adjustment” mode.

3.

Rotate the center dial, and then select the guiding line pattern so
that its angle is aligned with the correction line of the rear of the
vehicle.

4.

Make fine adjustment to the correction line of the rear of the
vehicle with up/down/left/right switches so that its position is
aligned with the guiding line. Press “OK” switch and record the
adjusted guiding line position to the AV control unit.

CAUTION:

Never operate other function such as pressing BACK while writing index data.

SKIB3691E

Selected pattern

: (

10

°

) – (+10

°

)

Up/Down adjustment range

: (

10

°

) – (+10

°

)

Left/Right adjustment range

: (

10

°

) – (+10

°

)

JSNIA2185ZZ

AV

STEERING ANGLE SENSOR

AV-467

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING ANGLE SENSOR

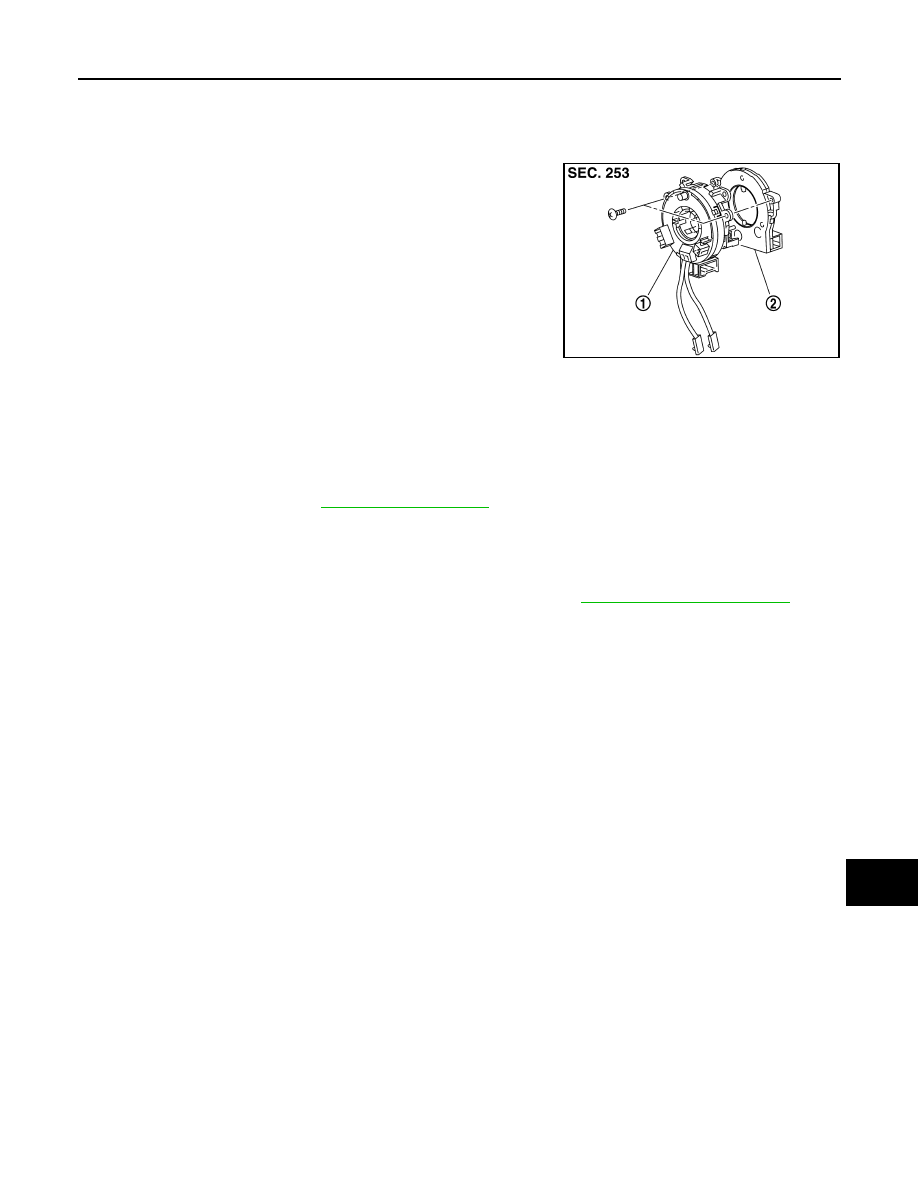

Exploded View

INFOID:0000000009722007

DISASSEMBLY

Removal and Installation

INFOID:0000000009722008

REMOVAL

1.

Remove spiral cable. Refer to

SR-15, "Exploded View"

.

2.

Remove steering angle sensor from spiral cable.

INSTALLATION

1.

Install in the reverse order of removal.

2.

Perform steering angle sensor neutral position adjustment. Refer to

AV-327, "CONSULT Function"

.

JSNIA0135ZZ

1.

Spiral cable

2.

Steering angle sensor

AV-468

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

ROOF ANTENNA

ROOF ANTENNA

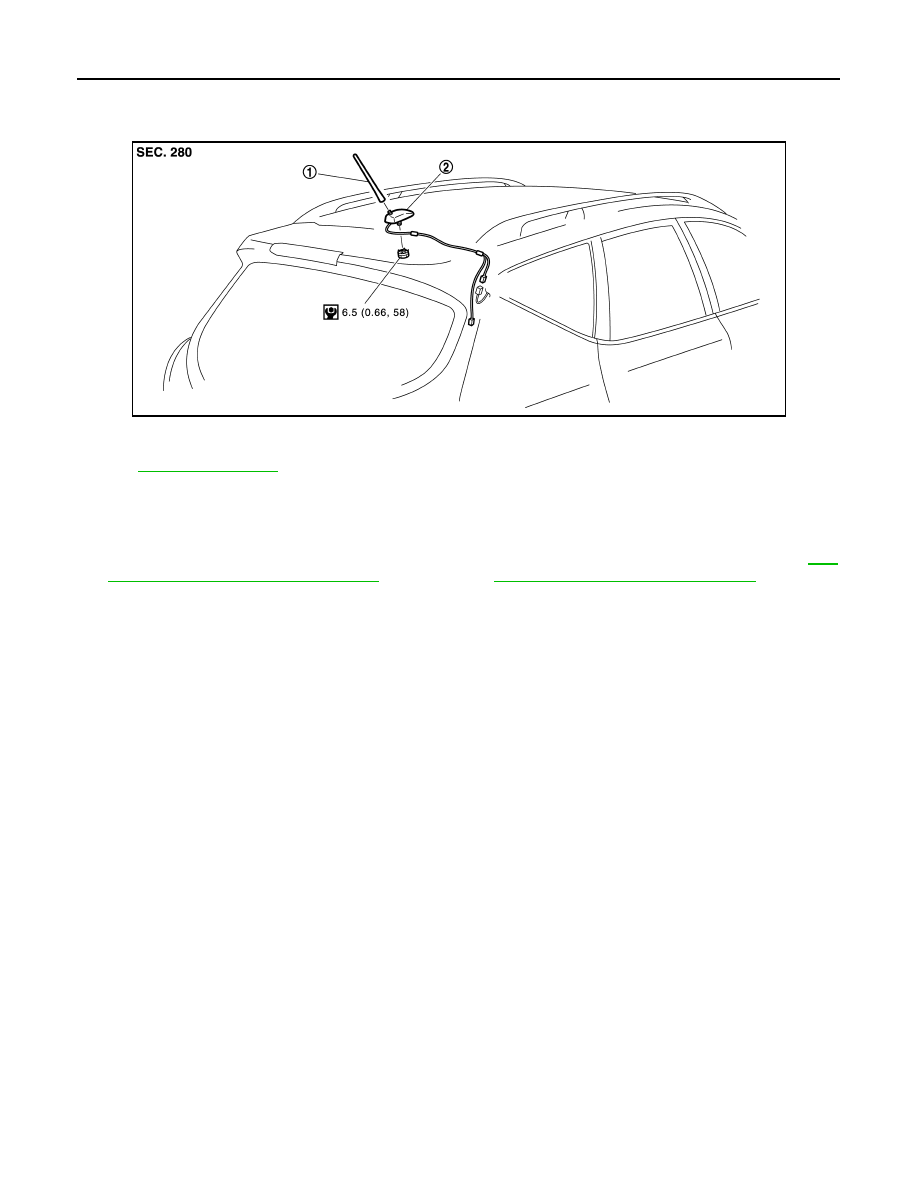

Exploded View

INFOID:0000000009722009

Refer to

GI-4, "Components"

 for symbols in the figure.

Removal and Installation

INFOID:0000000009722010

REMOVAL

1.

Remove headlining assembly (rear) to secure work space between vehicle and headlining. Refer to

INT-

26, "NORMAL ROOF : Exploded View"

 [normal roof] or

INT-30, "SUNROOF : Exploded View"

 [sunroof].

2.

Disconnect antenna feeder connectors.

3.

Remove antenna base mounting nut, and then remove antenna base from roof panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

If the antenna base mounting nut is tightened looser than the specified torque, then this will lower the
sensitivity of the antenna. On the other hand, if the nut is tightened tighter than the specified torque,
then this will deform the roof panel.

JPNIA0786ZZ

1.

Rod antenna

2.

Antenna base

AV

ANTENNA FEEDER

AV-469

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ANTENNA FEEDER

Feeder Layout

INFOID:0000000009722011

JSNIA3505GB
