DUCT AND GRILLE

2.

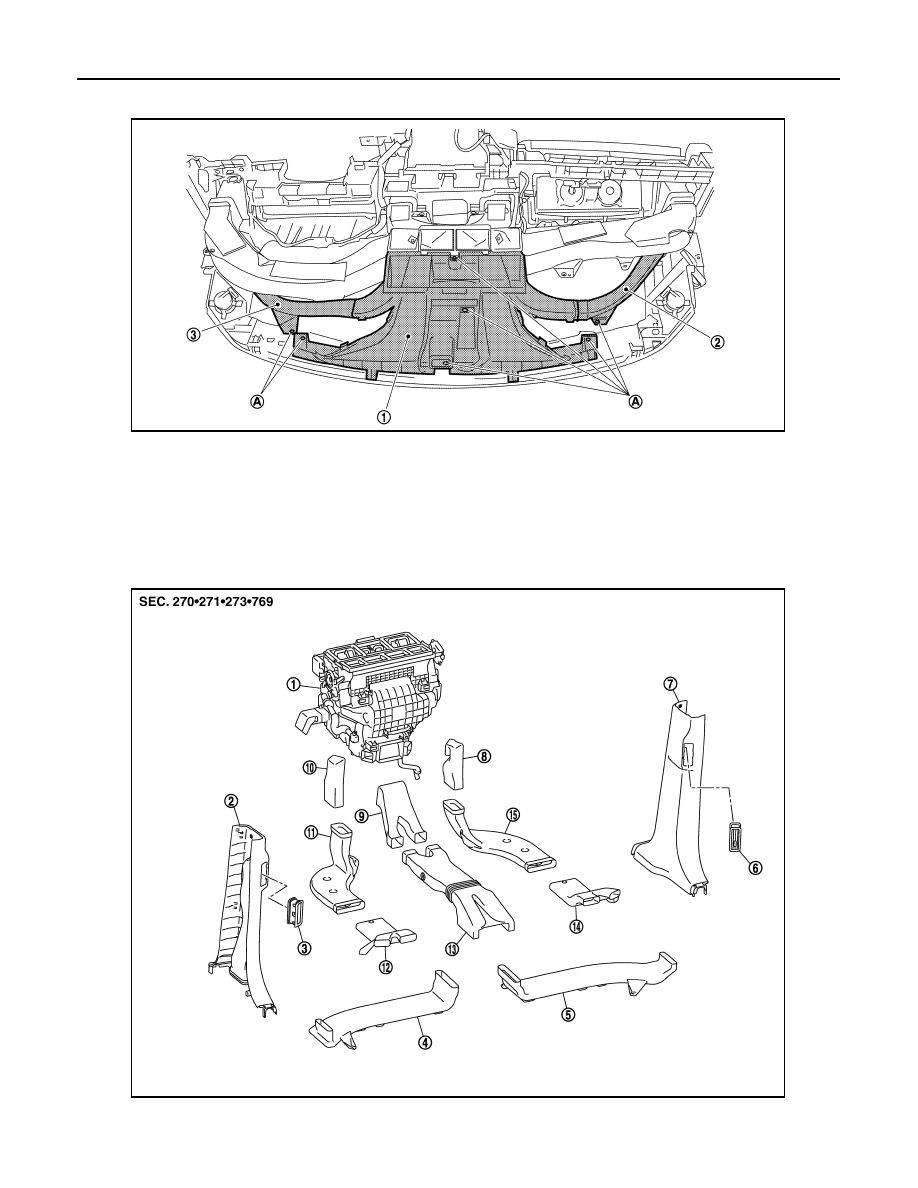

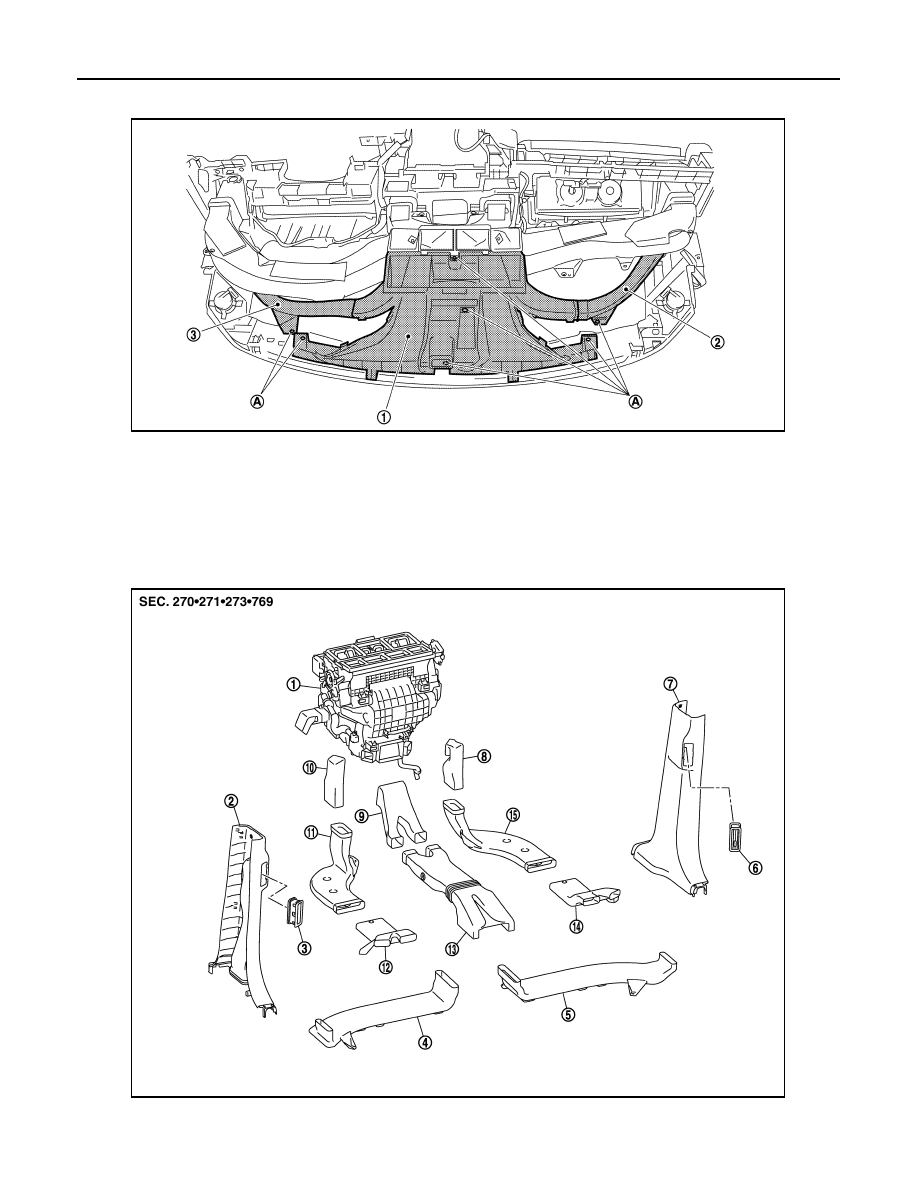

Remove fixing screws (A) and then remove defroster nozzle (1) together with the side defroster nozzle RH
(2) and side defroster nozzle LH (3).

3.

Remove side defroster nozzle LH and RH from defroster nozzle.

INSTALLATION

Install in the reverse order of removal.

REAR VENTILATOR GRILLE

REAR VENTILATOR GRILLE : Exploded View

INFOID:0000000009721120

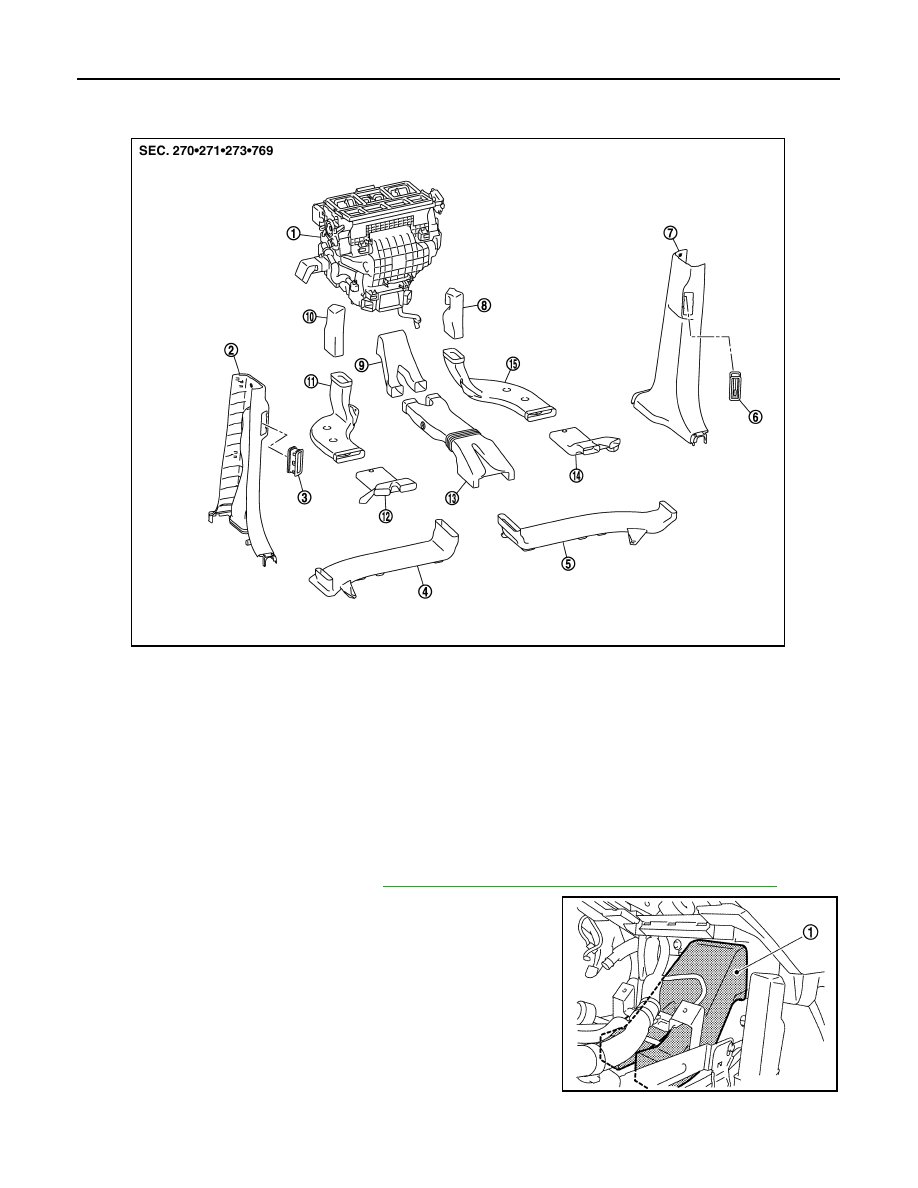

JPIIA0587ZZ

JPIIA0457ZZ

DUCT AND GRILLE

VTL-57

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

REAR VENTILATOR GRILLE : Removal and Installation

INFOID:0000000009721121

REMOVAL

1.

Remove center pillar lower garnish. Refer to

INT-20, "Exploded View"

2.

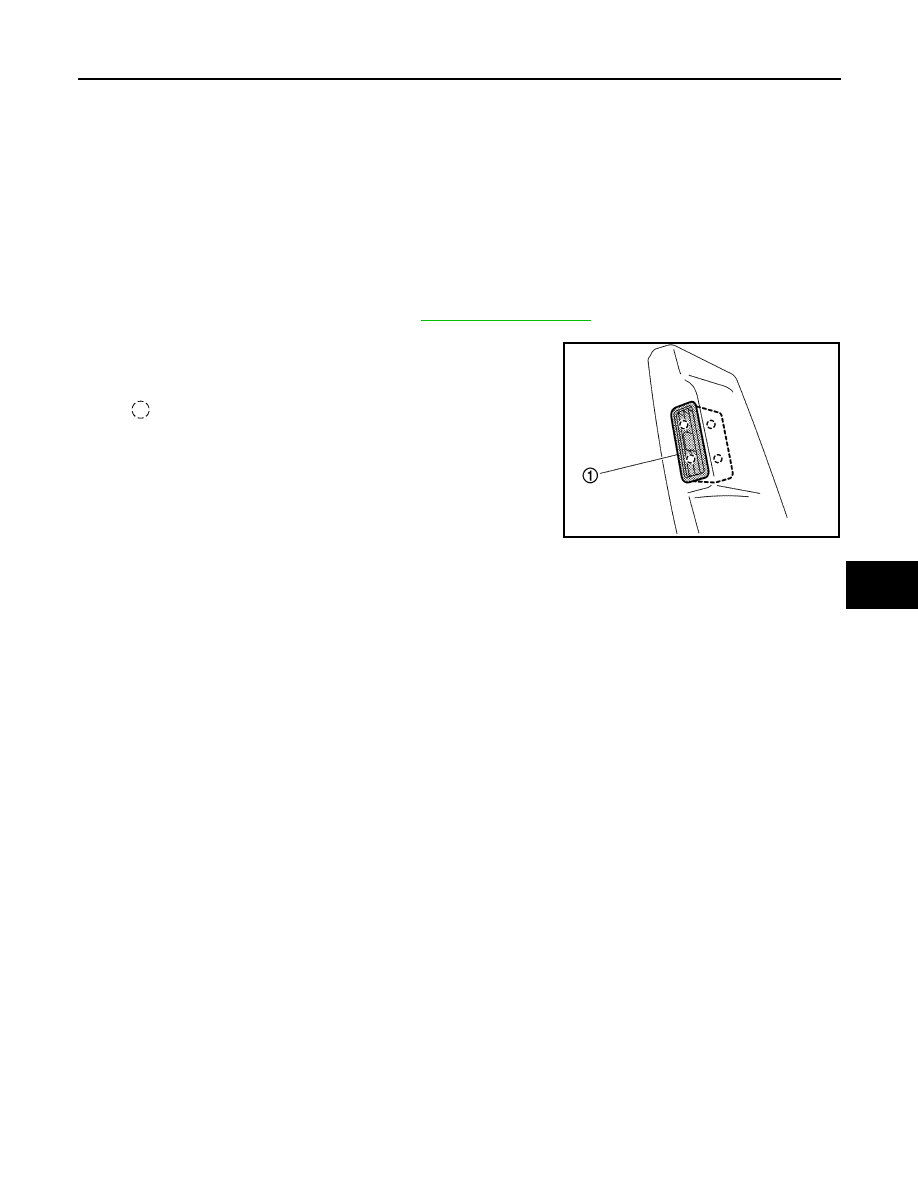

Disengage joints of the tabs and then remove rear ventilator
grille (1).

INSTALLATION

Install in the reverse order of removal.

REAR VENTILATOR DUCT 1

1.

Heater & cooling unit assembly

2.

Rear ventilator duct 4
(Center pillar lower garnish LH)

3.

Rear ventilator grille LH

4.

Rear ventilator duct 3 LH

5.

Rear ventilator duct 3 RH

6.

Rear ventilator grille RH

7.

Rear ventilator duct 4
(Center pillar lower garnish RH)

8.

Rear foot duct 1 RH

9.

Rear ventilator duct 1

10.

Rear foot duct 1 LH

11.

Rear foot duct 2 LH

12.

Rear foot duct 3 LH

13.

Rear ventilator duct 2

14.

Rear foot duct 3 RH

15.

Rear foot duct 2 RH

: Clip

JPIIA0588ZZ

VTL-58

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

DUCT AND GRILLE

REAR VENTILATOR DUCT 1 : Exploded View

INFOID:0000000009721122

REAR VENTILATOR DUCT 1 : Removal and Installation

INFOID:0000000009721123

REMOVAL

1.

Remove rear ventilator duct 2. Refer to

VTL-59, "REAR VENTILATOR DUCT 2 : Exploded View"

2.

Remove rear ventilator duct 1 (1).

INSTALLATION

Install in the reverse order of removal.

1.

Heater & cooling unit assembly

2.

Rear ventilator duct 4
(Center pillar lower garnish LH)

3.

Rear ventilator grille LH

4.

Rear ventilator duct 3 LH

5.

Rear ventilator duct 3 RH

6.

Rear ventilator grille RH

7.

Rear ventilator duct 4
(Center pillar lower garnish RH)

8.

Rear foot duct 1 RH

9.

Rear ventilator duct 1

10.

Rear foot duct 1 LH

11.

Rear foot duct 2 LH

12.

Rear foot duct 3 LH

13.

Rear ventilator duct 2

14.

Rear foot duct 3 RH

15.

Rear foot duct 2 RH

JPIIA0457ZZ

JPIIA0589ZZ

DUCT AND GRILLE

VTL-59

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

REAR VENTILATOR DUCT 2

REAR VENTILATOR DUCT 2 : Exploded View

INFOID:0000000009721124

REAR VENTILATOR DUCT 2 : Removal and Installation

INFOID:0000000009721125

REMOVAL

1.

Remove front seat assembly (LH and RH). Refer to

SE-92, "Exploded View"

2.

Remove lower console finisher (LH and RH). Refer to

IP-22, "Exploded View"

3.

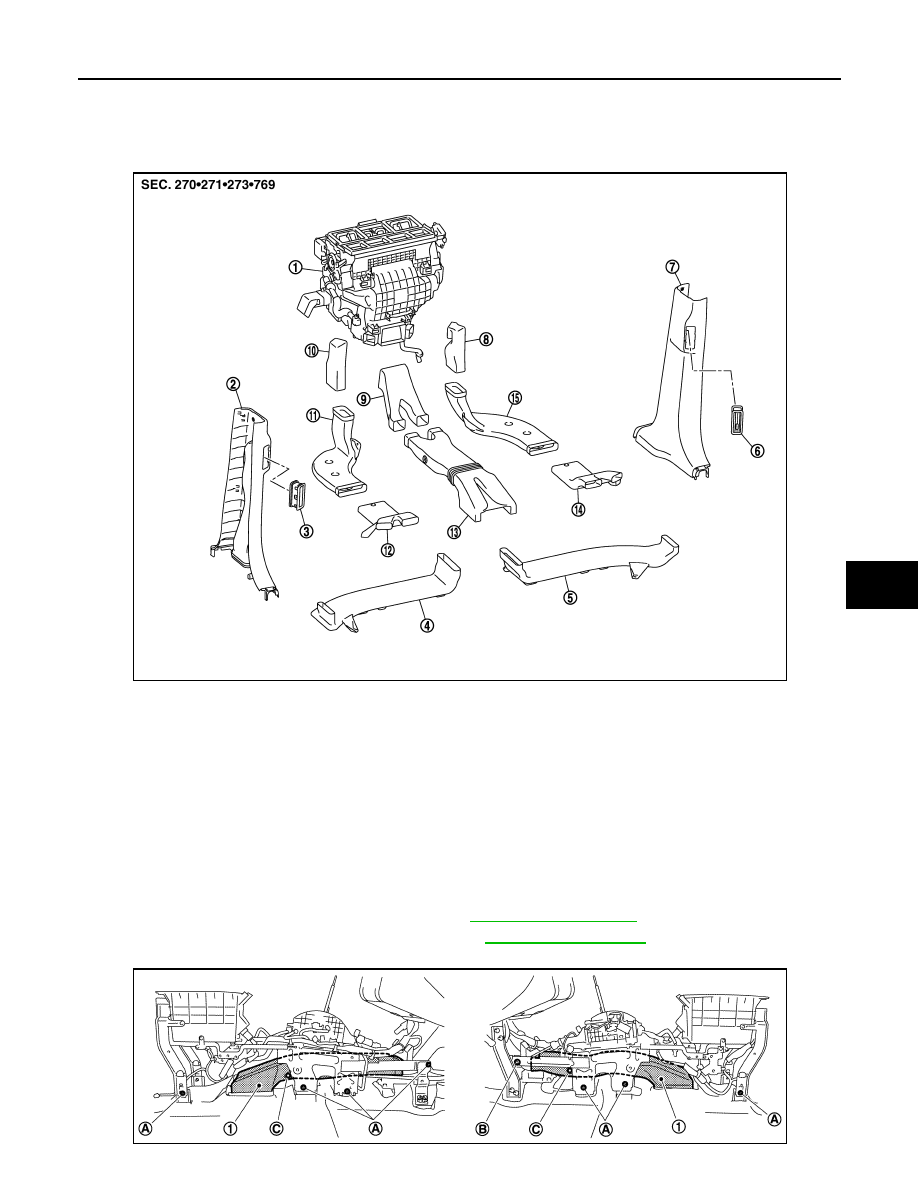

Remove screws (A), nut (B) and clips (C), and then remove rear ventilator duct 2 (1).

1.

Heater & cooling unit assembly

2.

Rear ventilator duct 4
(Center pillar lower garnish LH)

3.

Rear ventilator grille LH

4.

Rear ventilator duct 3 LH

5.

Rear ventilator duct 3 RH

6.

Rear ventilator grille RH

7.

Rear ventilator duct 4
(Center pillar lower garnish RH)

8.

Rear foot duct 1 RH

9.

Rear ventilator duct 1

10.

Rear foot duct 1 LH

11.

Rear foot duct 2 LH

12.

Rear foot duct 3 LH

13.

Rear ventilator duct 2

14.

Rear foot duct 3 RH

15.

Rear foot duct 2 RH

JPIIA0457ZZ

JPIIA0590ZZ
