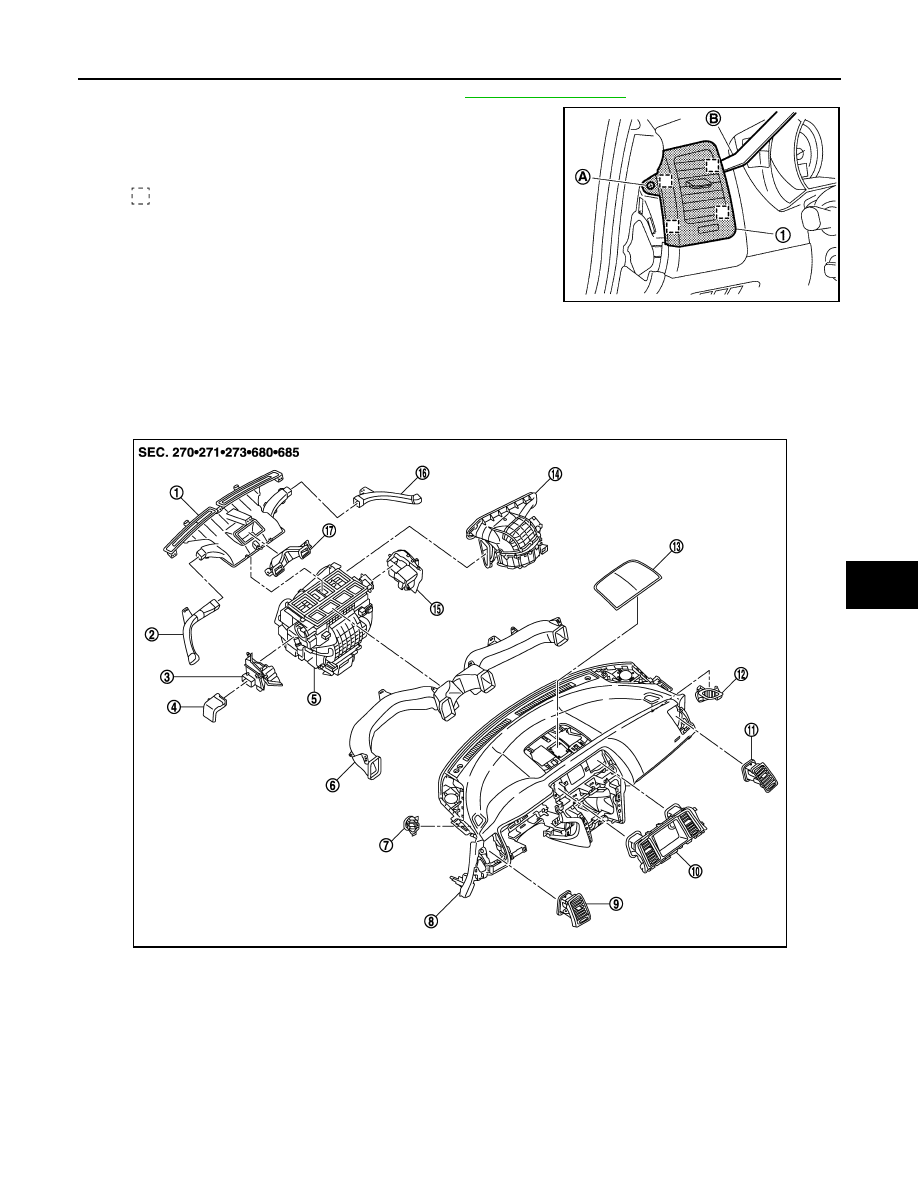

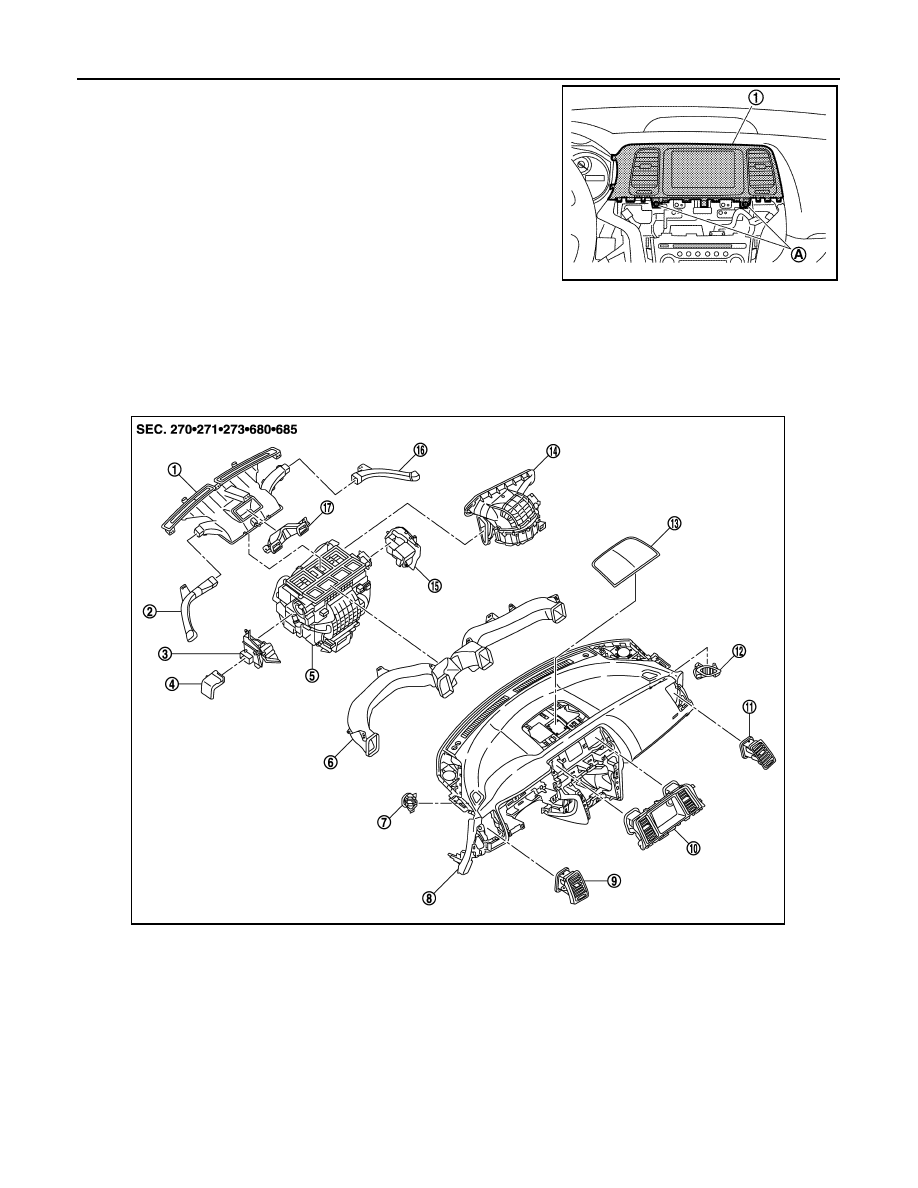

< REMOVAL AND INSTALLATION >
[WITHOUT 7 INCH DISPLAY]
HEATER CORE
*
: Models for Mexico.
Removal and Installation
INFOID:0000000009721107
REMOVAL
1.
Remove heater & cooling unit assembly. Refer to
.
2.

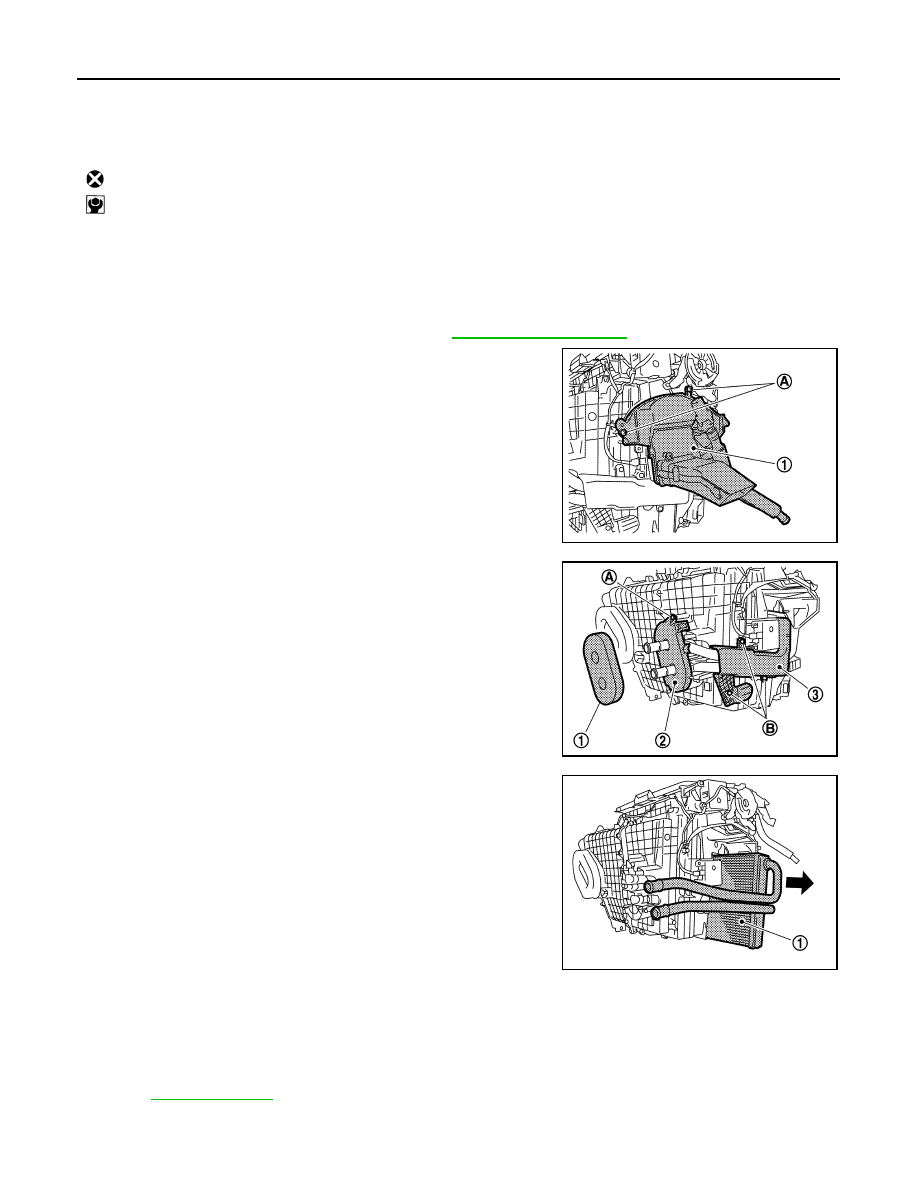

Remove fixing screws (A) and then remove foot duct LH (1).
3.
Remove heater pipe grommet (1).
4.
Remove fixing screw (A) and then remove heater pipe support
(2).
5.
Remove fixing screws (B) and then remove heater pipe cover
(3).
6.
Slide the heater core (1) in the direction shown by the arrow, and
then remove it.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
• Replace the O-ring with a new one. Apply a coat of compressor oil to the O-ring prior to installation.
• Check for refrigerant leakage when charging refrigerant.
NOTE:
• Refer to
when filling the radiator with engine coolant.
• Charge the refrigerant again.

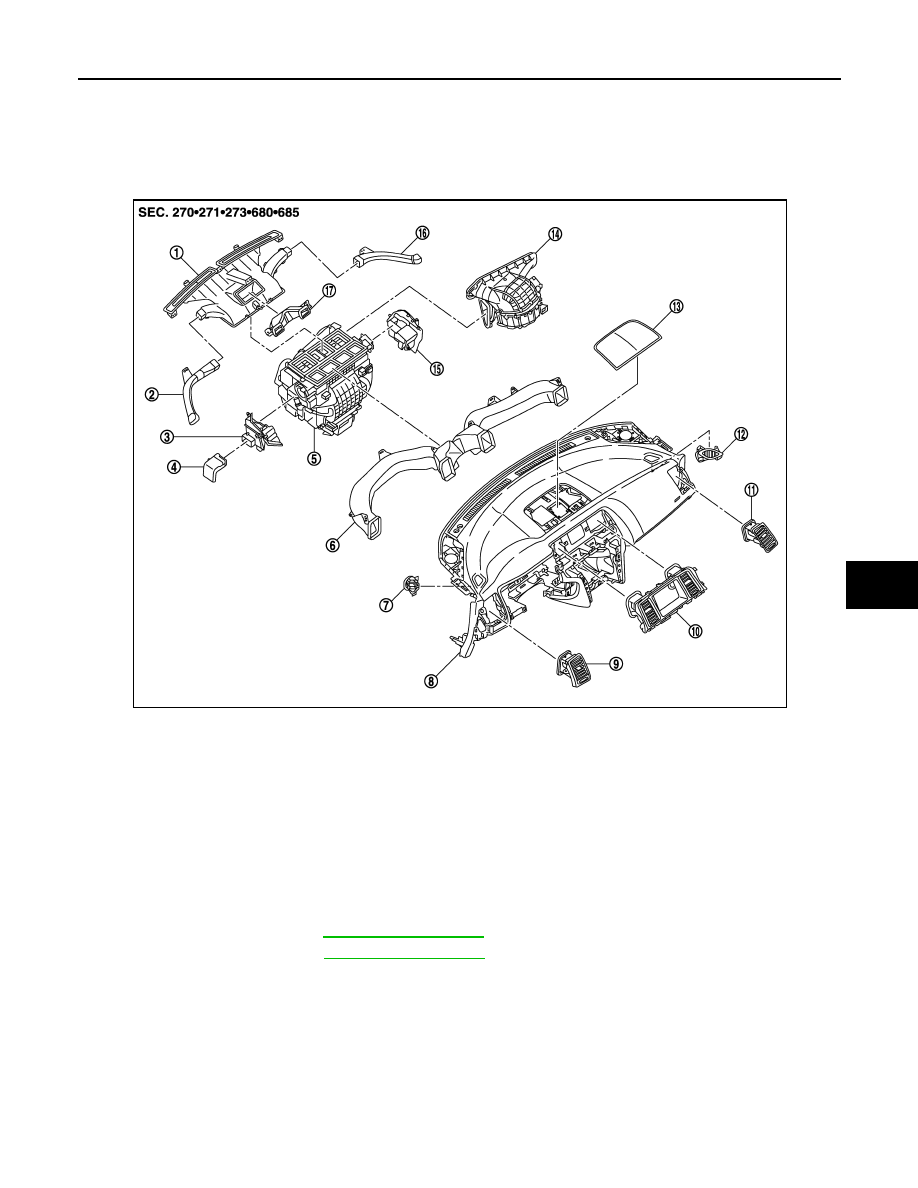

46. Foot door lever
47.
Defroster door lever
48.
Max. cool door lever
49. Air mix door motor (Driver side)
50.
Distributor upper case
51.
Distributor lower case
52. Ventilator door
53.
Foot door
54.
Max. cool door
55. Defroster door
56.
Upper ventilator door
: Always replace after every disassembly.
: N·m (kg-m, in-lb)
JPIIA0579ZZ
JPIIA0580ZZ
JPIIA0581ZZ
