RF-108

< REMOVAL AND INSTALLATION >

SUNROOF UNIT ASSEMBLY

SUNROOF UNIT ASSEMBLY

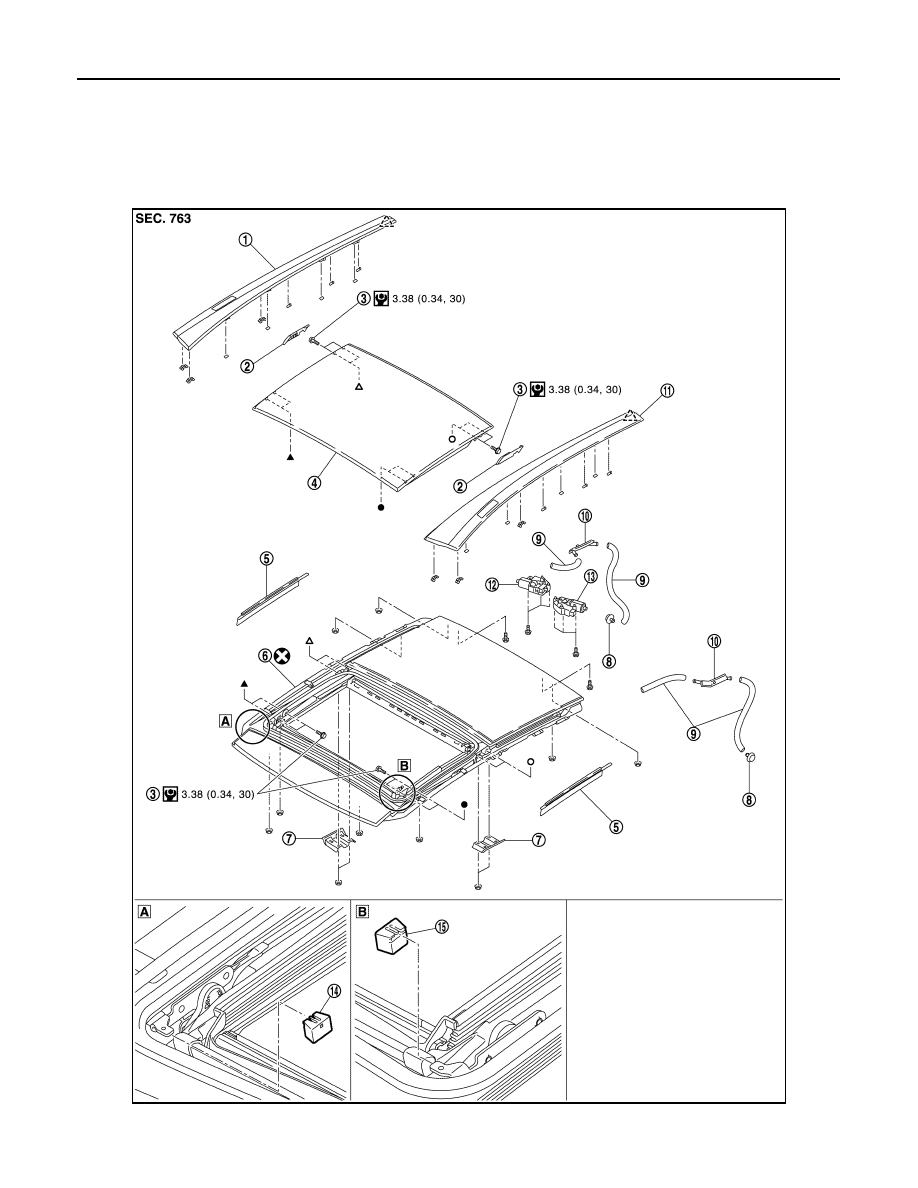

Exploded View

INFOID:0000000009719696

REMOVAL

FOR STANDARD SPECIFICATION

JMKIA6375GB

SUNROOF UNIT ASSEMBLY

RF-109

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

1.

Roof side finisher RH

2.

Rear link cover

3.

TORX bolt

4.

Glass lid

5.

Inner blind

6.

Sunroof unit assembly

7.

Sunroof bracket

8.

Drain plug

9.

Drain hose

10. Drain connector

11.

Roof side finisher LH

12. Sunroof motor assembly

13. Sunshade motor assembly

14. Deflector knock RH

15. Deflector knock LH

: Pawl

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

,

,

,

  : Indicates that the part is connected at points with same symbol in actual vehicle.

RF-110

< REMOVAL AND INSTALLATION >

SUNROOF UNIT ASSEMBLY

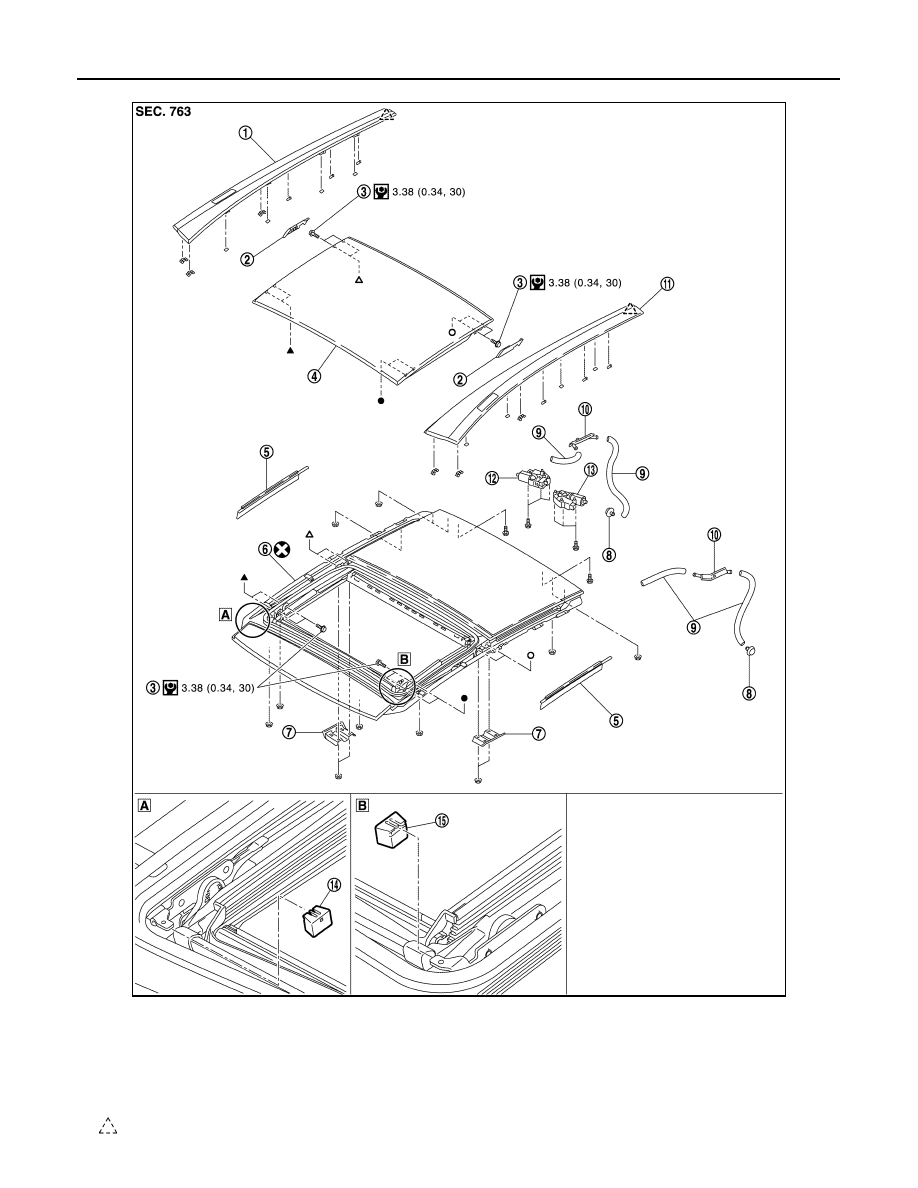

FOR HIGH DURABILITY SPECIFICATION

JMKIA6509GB

1.

Roof side finisher RH

2.

Rear link cover

3.

TORX bolt

4.

Glass lid

5.

Inner blind

6.

Sunroof unit assembly

7.

Sunroof bracket

8.

Drain plug

9.

Drain hose

10. Drain connector

11.

Roof side finisher LH

12. Sunroof motor assembly

13. Sunshade motor assembly

14. Deflector knock RH

15. Deflector knock LH

: Pawl

SUNROOF UNIT ASSEMBLY

RF-111

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

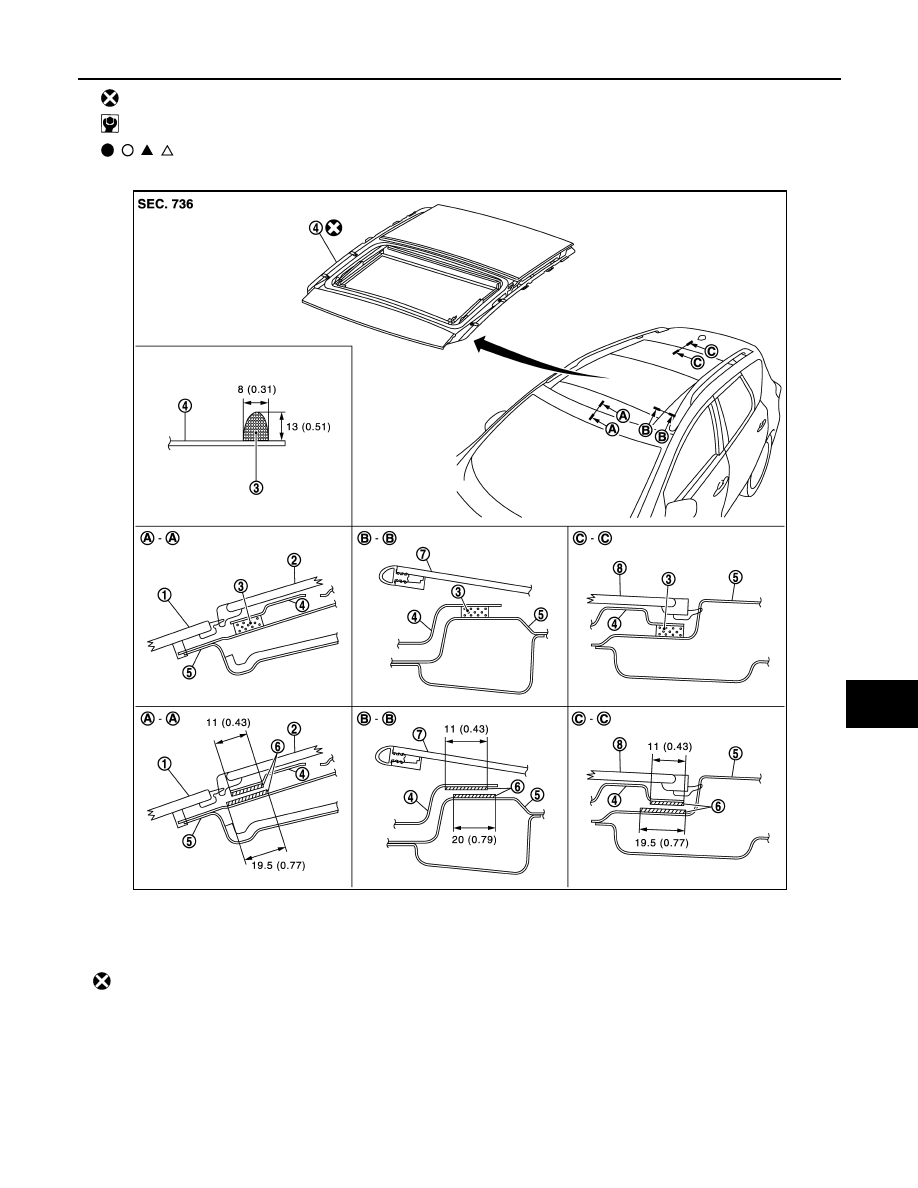

DISASSEMBLY

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

,

,

,

  : Indicates that the part is connected at points with same symbol in actual vehicle.

1.

Windshield glass

2.

Front sunroof glass

3.

Adhesive

4.

Sunroof frame

5.

Roof panel

6.

Primer

7.

Roof side finisher

8.

Rear sunroof glass

: Always replace after every disassembly.

Unit

: mm (in)

JMKIA1898GB
