AUTOMATIC BACK DOOR WARNING BUZZER

Removal and Installation

INFOID:0000000010717728

REMOVAL

1.

Remove rear bumper fascia. Refer to

EXT-18, "Removal and Installation"

.

2.

Disconnect automatic back door warning buzzer harness connector.

3.

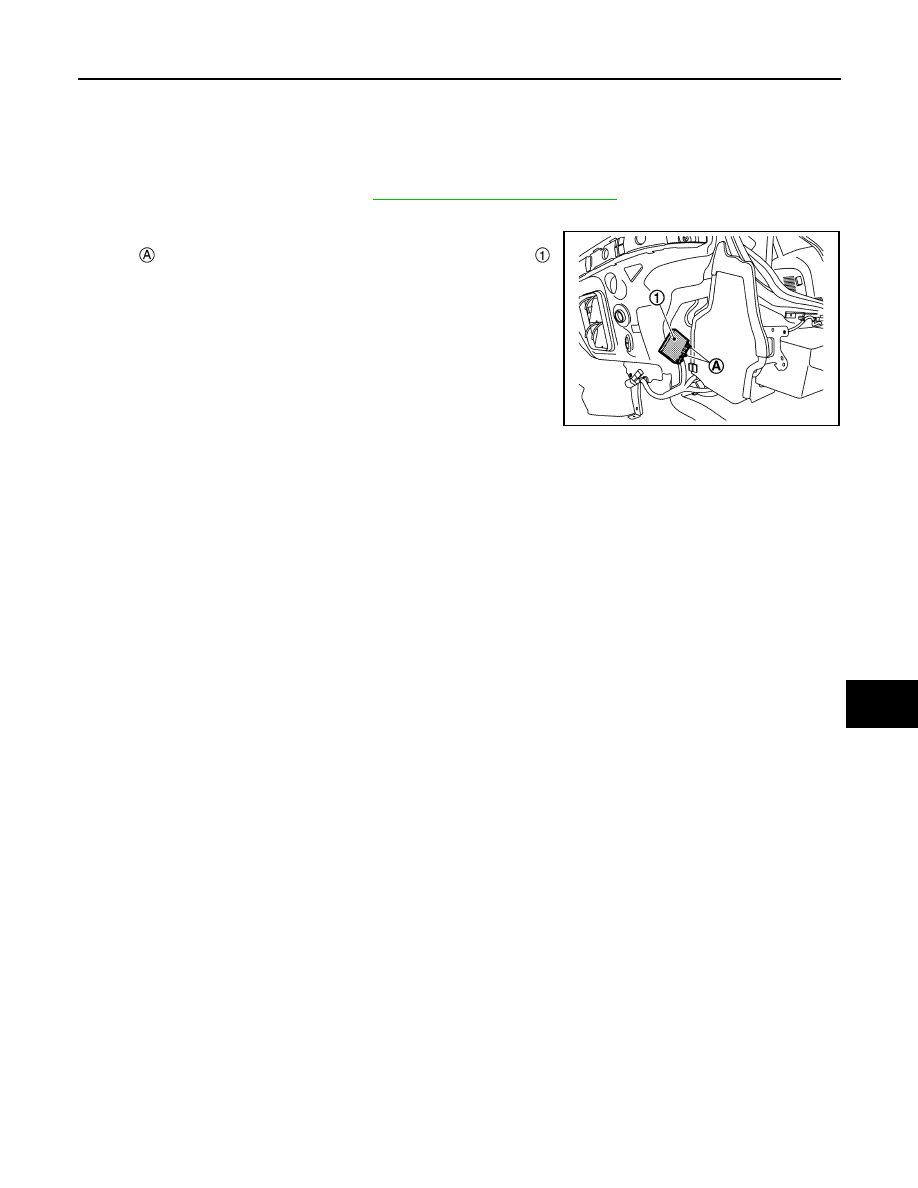

Remove the automatic back door warning buzzer mounting
nuts

, and then remove automatic back door warning buzzer

.

INSTALLATION

Install in the reverse order of removal.

JMKIB2784ZZ

DLK-638

< REMOVAL AND INSTALLATION >

[TYPE 2]

HANDS FREE SENSOR

HANDS FREE SENSOR

Removal and Installation

INFOID:0000000010717729

REMOVAL

1.

Remove back door inner finisher. Refer to

INT-47, "Removal and Installation"

.

2.

Disconnect hands free sensor harness connector.

3.

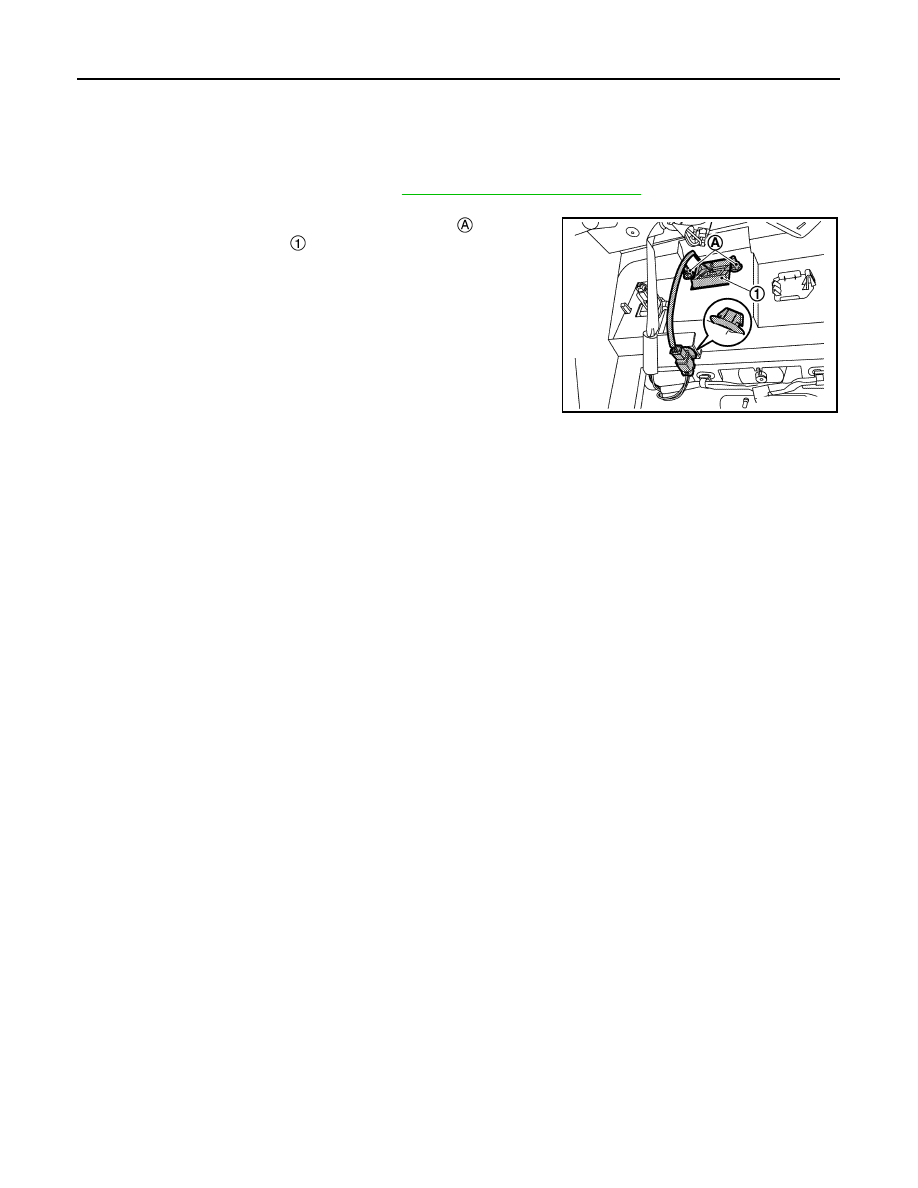

Remove the hands free sensor mounting nuts

, and then

remove hands free sensor

.

INSTALLATION

Install in the reverse order of removal.

JMKIB2843ZZ

APPLICATION NOTICE

DLK-639

< HOW TO USE THIS MANUAL >

[TYPE 3]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HOW TO USE THIS MANUAL

APPLICATION NOTICE

Information

INFOID:0000000010713101

Check the vehicle type to use the service information in this section.

Service information

Destination

Handle

Intelligent Key system

Super lock function

Type 1

RHD

With

With

Type 2

LHD

With

Without

Type 3

RHD

Without

With

Type 4

LHD

Without

Without

DLK-640

< PRECAUTION >

[TYPE 3]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010708328

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000010708329

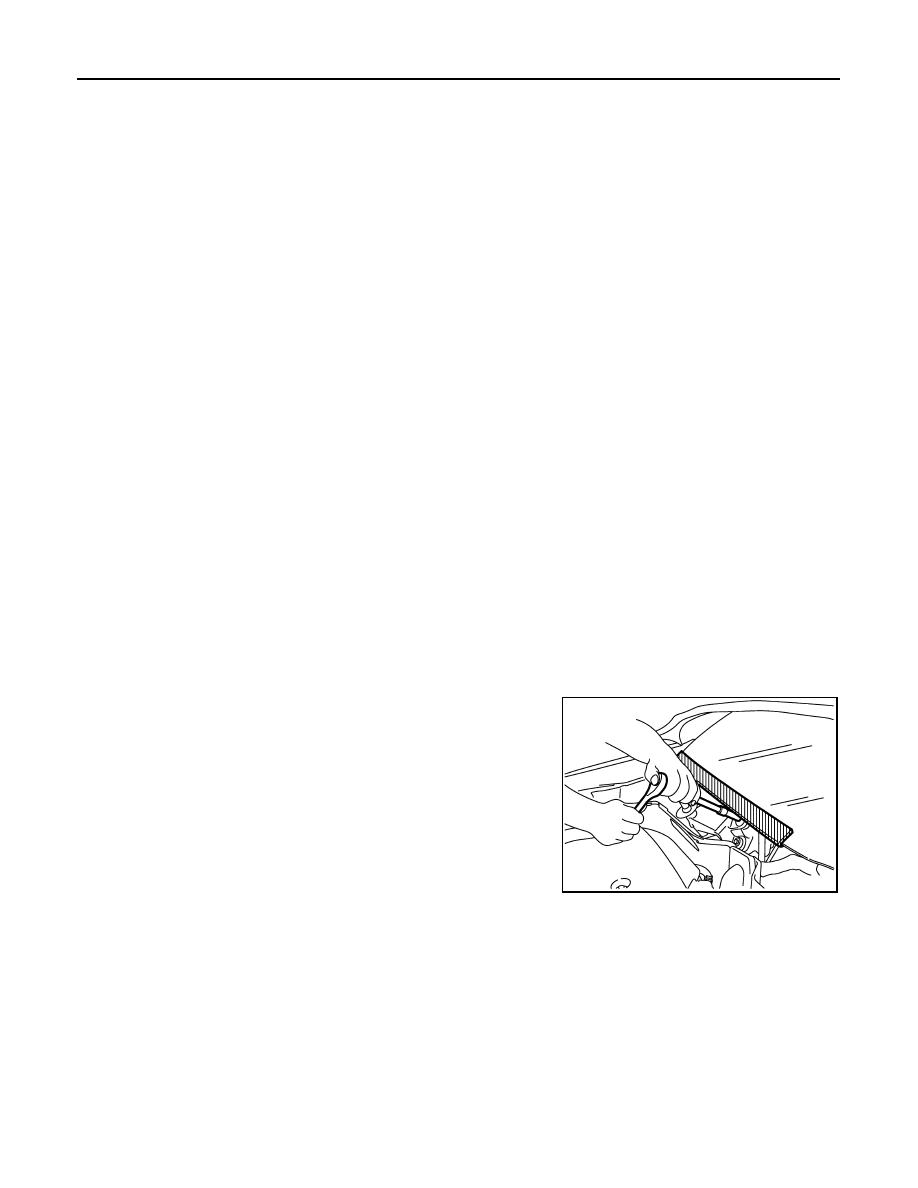

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

Precautions for Removing Battery Terminal

INFOID:0000000010708330

When disconnecting the battery terminal, pay attention to the following.
• Always use a 12V battery as power source.
• Never disconnect battery terminal while engine is running.

PIIB3706J
