Nissan X-Trail 32. Manual - part 573

AUTOMATIC BACK DOOR CONTROL UNIT

DLK-633

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

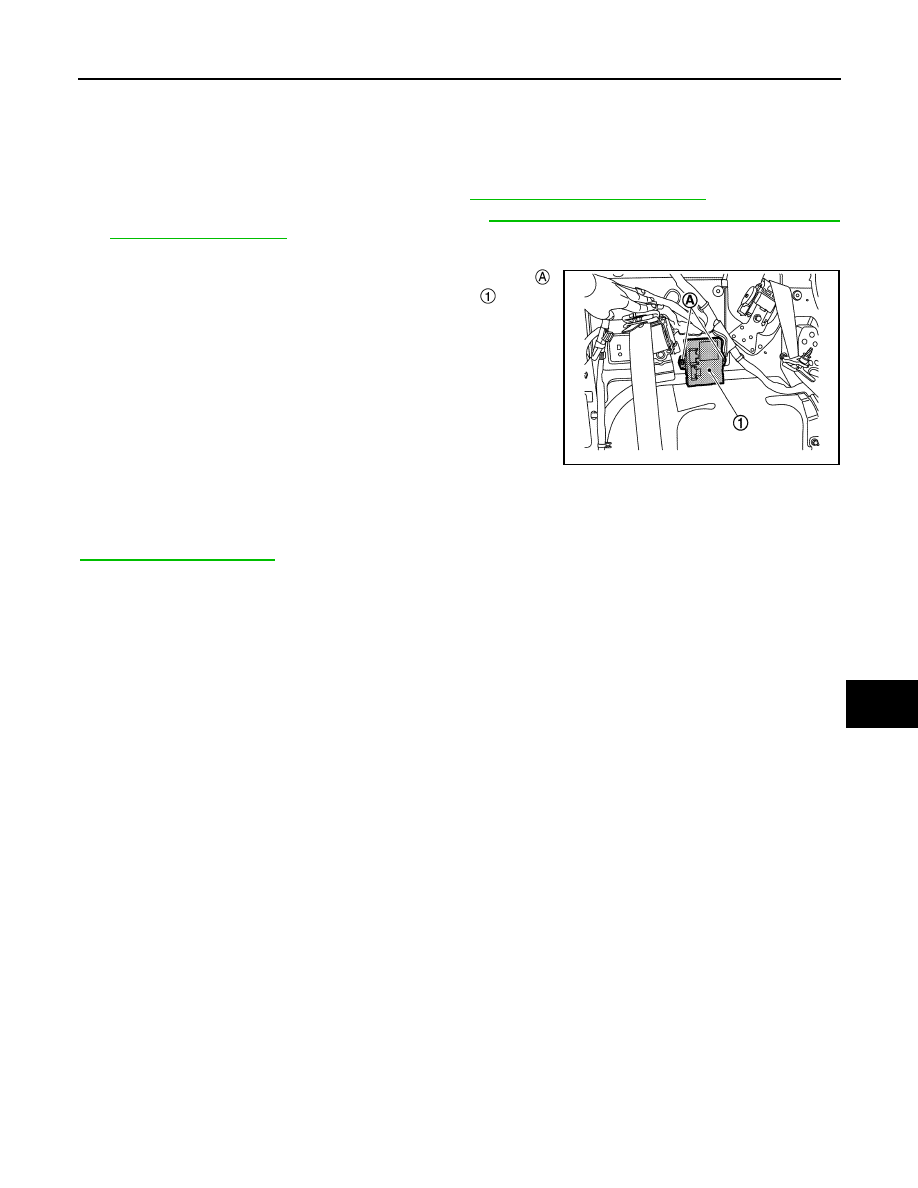

AUTOMATIC BACK DOOR CONTROL UNIT

Removal and Installation

INFOID:0000000010717724

REMOVAL

1.

For 3 seat row models: Remove third seat. Refer to

SE-70, "Removal and Installation"

.

2.

Remove luggage side lower finisher LH. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

3.

Disconnect automatic back door control unit harness connector.

4.

Remove the automatic back door control unit mounting bolt

,

and then remove the automatic back door control unit

.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installing automatic back door control unit, perform additional service when replace control unit. Refer to

DLK-426, "Work Procedure"

.

JMKIB2759ZZ

DLK-634

< REMOVAL AND INSTALLATION >

[TYPE 2]

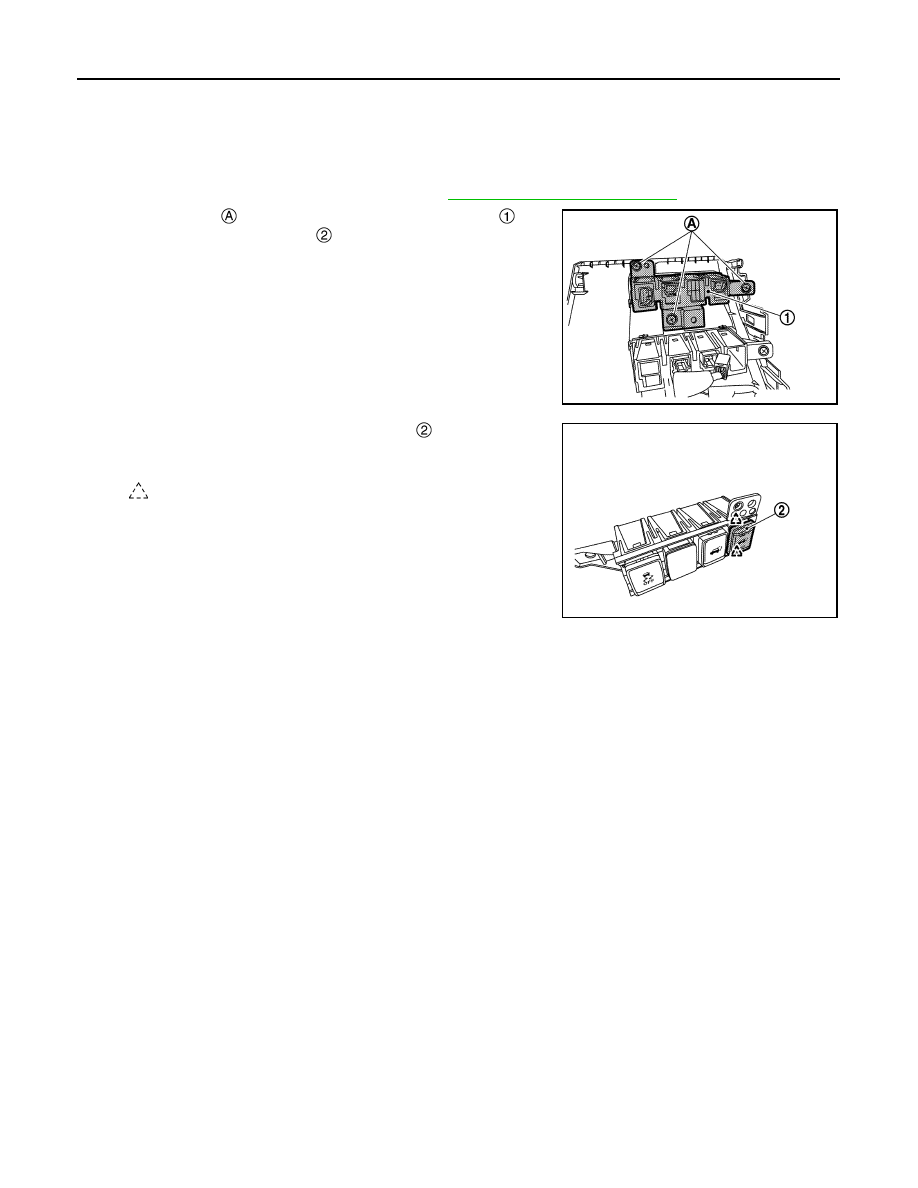

AUTOMATIC BACK DOOR MAIN SWITCH

AUTOMATIC BACK DOOR MAIN SWITCH

Removal and Installation

INFOID:0000000010717725

REMOVAL

1.

Remove the instrument lower panel LH. Refer to

IP-14, "Removal and Installation"

.

2.

Remove screws

 and then remove the switch bracket

 from

the instrument lower panel LH

.

3.

Remove automatic back door main switch

 from the switch

bracket.

INSTALLATION

Install in the reverse order of removal.

JMKIB3603ZZ

: Pawl

JMKIB3604ZZ

AUTOMATIC BACK DOOR SWITCH

DLK-635

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

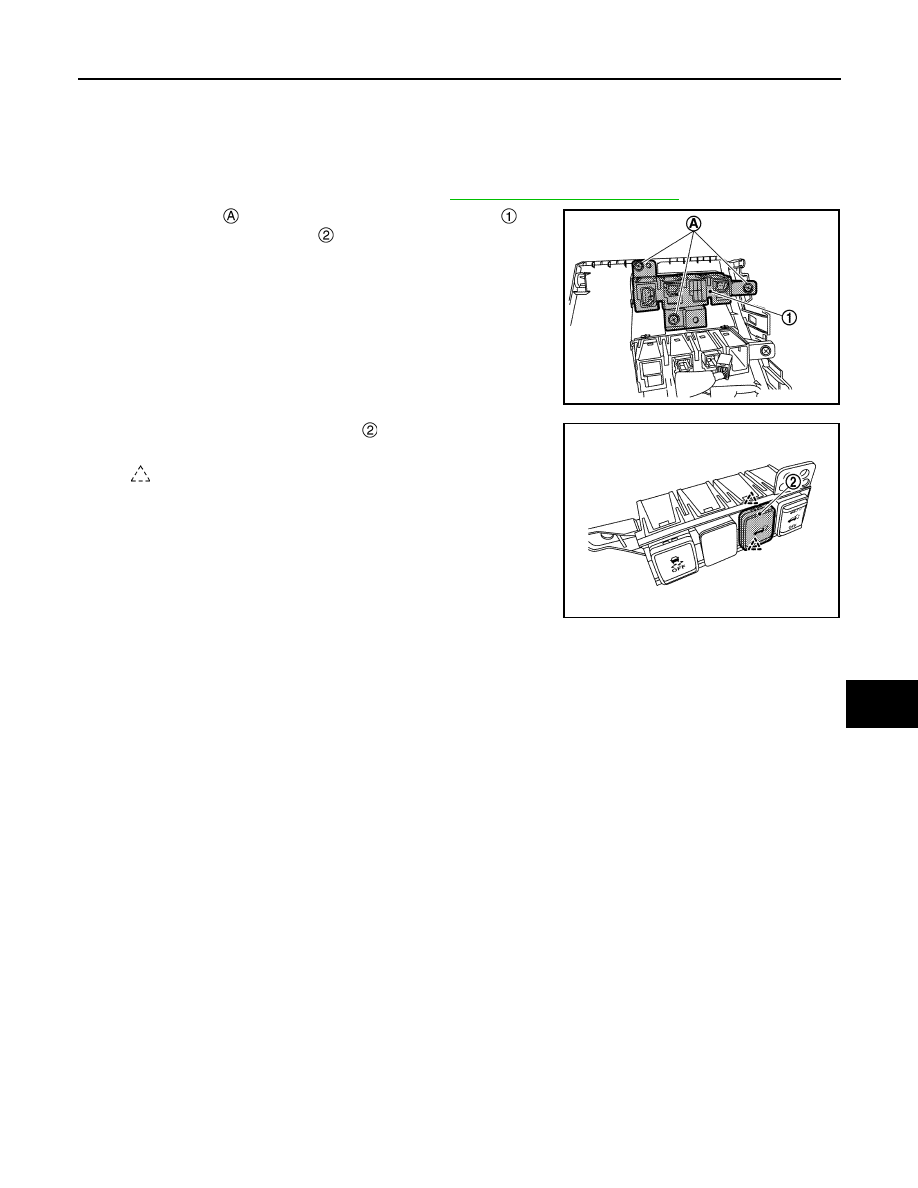

AUTOMATIC BACK DOOR SWITCH

Removal and Installation

INFOID:0000000010717726

REMOVAL

1.

Remove the instrument lower panel LH. Refer to

IP-14, "Removal and Installation"

.

2.

Remove screws

 and then remove the switch bracket

 from

the instrument lower panel LH

.

3.

Remove automatic back door switch

 from the switch bracket.

INSTALLATION

Install in the reverse order of removal.

JMKIB3603ZZ

: Pawl

JMKIB3605ZZ

DLK-636

< REMOVAL AND INSTALLATION >

[TYPE 2]

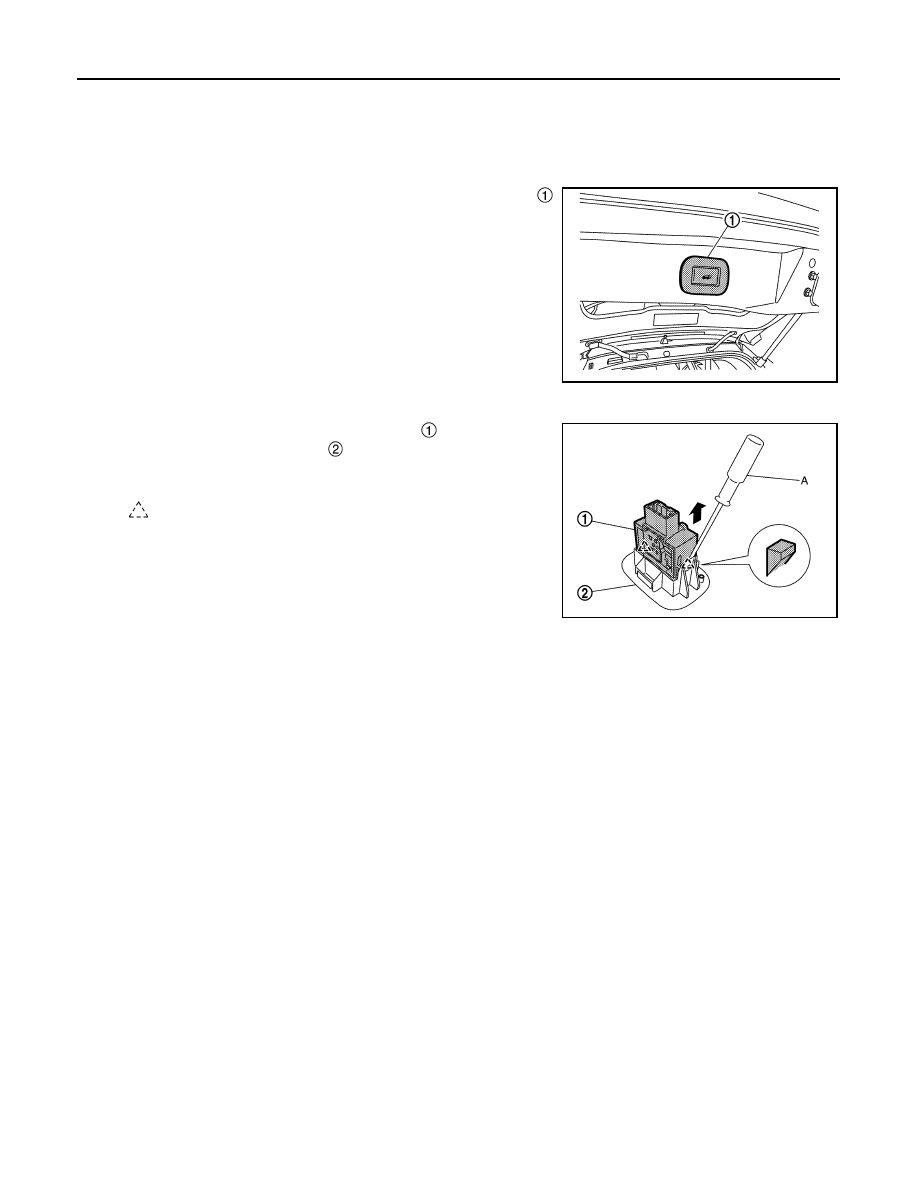

AUTOMATIC BACK DOOR CLOSE SWITCH

AUTOMATIC BACK DOOR CLOSE SWITCH

Removal and Installation

INFOID:0000000010717727

REMOVAL

1.

Remove automatic back door close switch and switch finisher
using a remover tool.

CAUTION:

Apply protective tape on the part to protect it from damage.

2.

Disconnect automatic back door close switch harness connector.

3.

Remove automatic back door close switch

 from automatic

back door close switch finisher

 using flat-bladed screwdriver

(A).

INSTALLATION

Install in the reverse order of removal.

JMKIB2761ZZ

: Pawl

JMKIA6045ZZ
