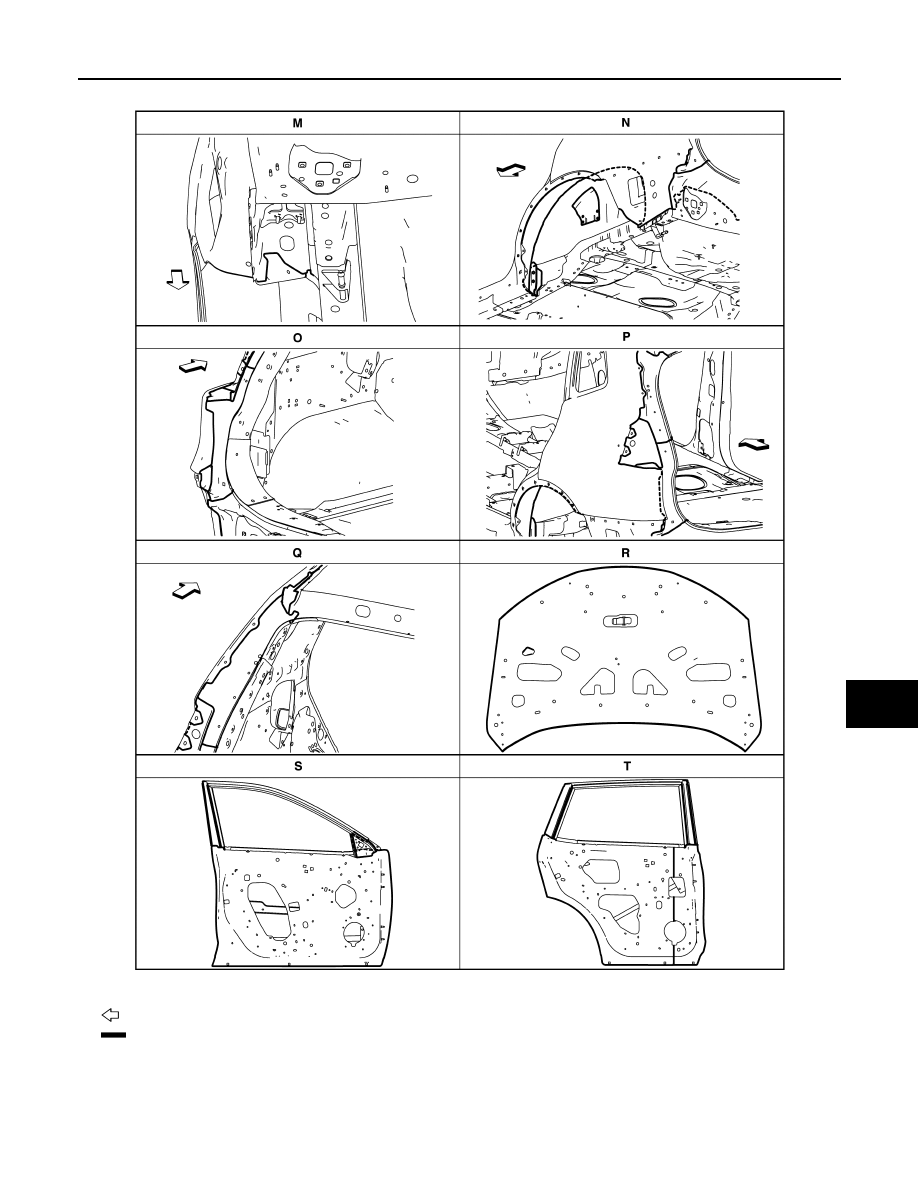

CORROSION PROTECTION

BRM-25

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

: Vehicle front

: Sealed portions

JSKIA4706ZZ

BRM-26

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

BODY CONSTRUCTION

BODY CONSTRUCTION

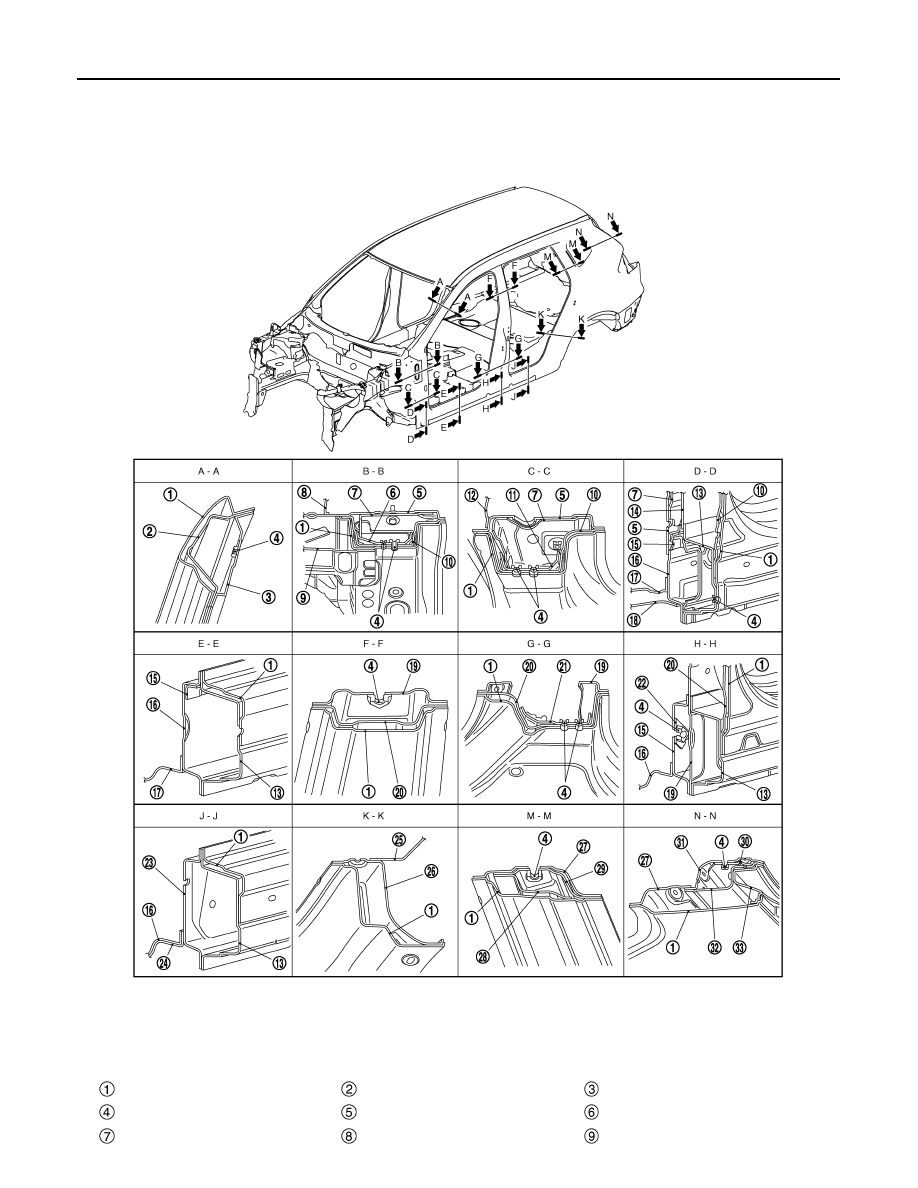

Body Construction

INFOID:0000000010843427

Outer side body

Outer front pillar reinforcement

Upper inner front pillar

Weld nut

Side dash

Upper hinge plate

Inner front pillar reinforcement

Upper dash

Rear hoodledge reinforcement

JSKIA4707ZZ

BODY CONSTRUCTION

BRM-27

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Lower front pillar hinge brace

Lower hinge plate

Lower dash

Outer sill reinforcement

Lower front pillar reinforcement

Inner sill reinforcement

Inner sill

Front floor

Front side member outrigger

Inner center pillar

Center pillar hinge brace

Lower center pillar hinge brace

Anchor plate

Inner sill extension

Rear floor front extension

Inner rear wheelhouse

Outer rear wheelhouse

Inner rear pillar

Inner rear pillar reinforcement

Rear pillar seat belt anchor

Back pillar seat belt anchor

Rear roof rail brace

Upper back pillar reinforcement

Center back pillar main

BRM-28

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

REPLACEMENT OPERATIONS

Description

INFOID:0000000010843428

• This section is prepared for technicians who have attained a high level of skill and experience in repairing

collision-damaged vehicles and also use modern service tools and equipment. Persons unfamiliar with body
repair techniques should not attempt to repair collision-damaged vehicles by using this section.

• Technicians are also encouraged to read the Body Repair Manual (Fundamentals) in order to ensure that the

original functions and quality of the vehicle are maintained. The Body Repair Manual (Fundamentals) con-
tains additional information, including cautions and warnings, that are not including in this manual. Techni-
cians should refer to both manuals to ensure proper repair.

• Please note that this information is prepared for worldwide usage, and as such, certain procedures might not

apply in some regions or countries.

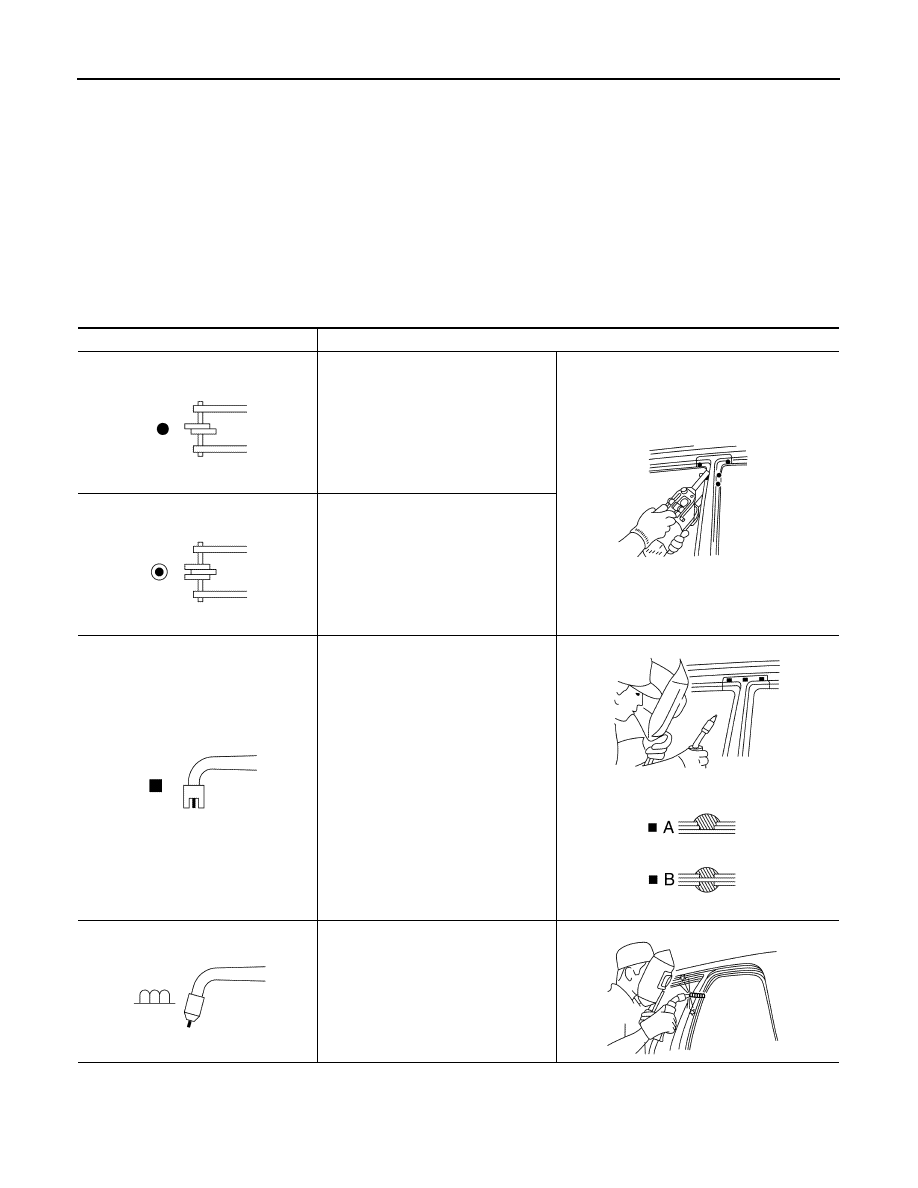

The symbols used in this section for welding operations are shown below.

Symbol marks

Description

2-spot welds

3-spot welds

MIG plug weld

For 3 panels plug weld method

MIG seam weld / Point weld

JSKIA0049ZZ

JSKIA0053ZZ

JSKIA0050ZZ

JSKIA0051ZZ

JSKIA0054ZZ

JSKIA0055ZZ

JSKIA0052ZZ

JSKIA0056ZZ
