BODY COMPONENT PARTS

BRM-17

< PREPARATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

NOTE:

• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

• Tensile strength column shows the largest strength value of a part in the component part.

Body Component Parts

INFOID:0000000010843421

Refer to parts catalogue for the replacement parts.

Rear floor front extension (Lower)

Under 440

×

Rear crossmember center assembly

590

×

Rear side member (RH & LH)

590

×

Muffler mounting bracket assembly (RH & LH)

Under 440

×

Rear side member extension (RH & LH)

780

×

Rear 3rd seat mounting bracket assembly (RH & LH)

Under 440

×

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

BRM-18

< PREPARATION >

[FOR EUROPE (LHD)]

BODY COMPONENT PARTS

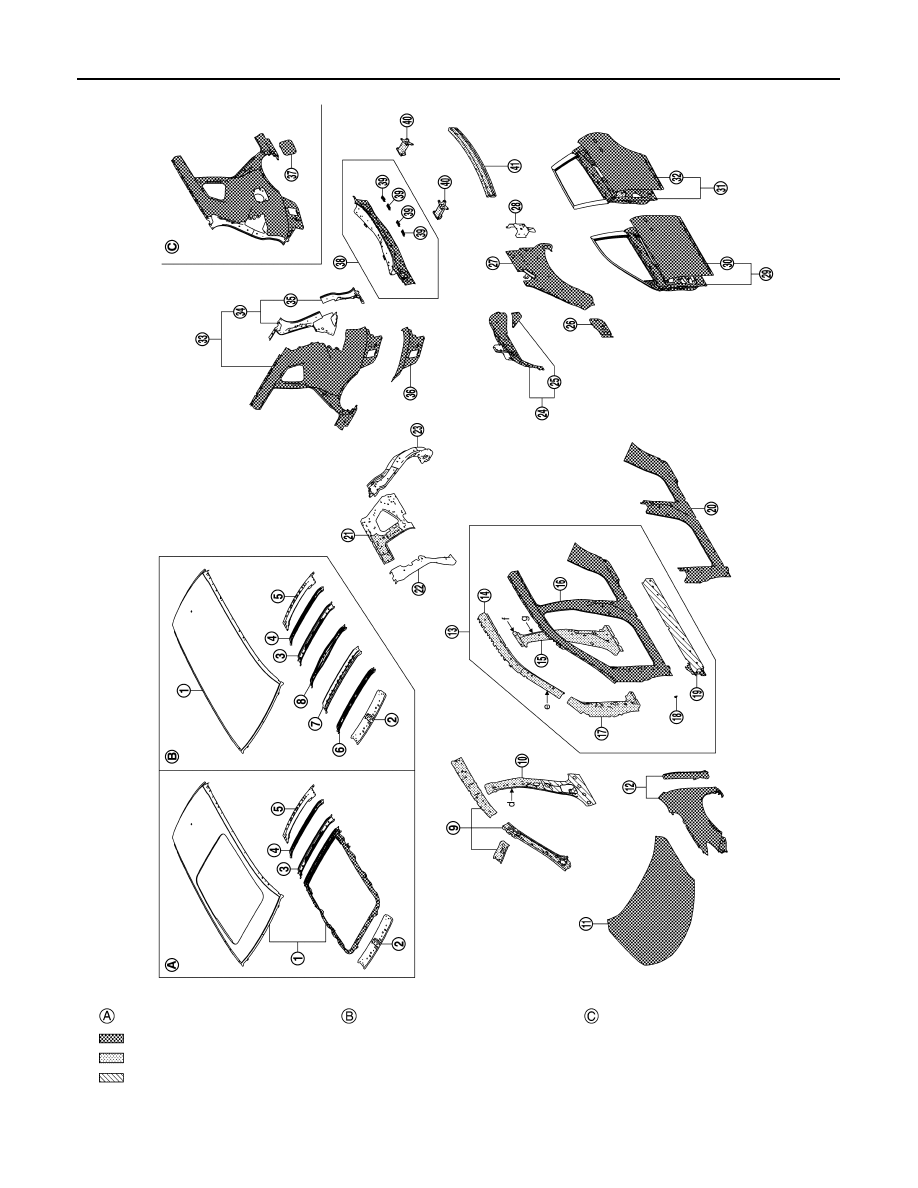

Sunroof models

Normal roof models

Right side

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

JSKIA4702ZZ

BODY COMPONENT PARTS

BRM-19

< PREPARATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

Roof

Under 440

—

Front roof rail

Under 440

—

Roof bow No.4

Under 440

—

Roof bow No.5

Under 440

—

Rear roof rail

Under 440

—

Roof bow No.1

Under 440

—

Roof bow No.2

Under 440

—

Roof bow No.3

Under 440

—

Upper inner front pillar (RH & LH)

590

—

Inner center pillar assembly (RH & LH)

d.

980MPa

caution

T=1.0 mm (0.039 in)

590

—

Hood

440

×

Front fender (RH & LH)

Under 440

×

Side body assembly (RH & LH)

Refer to No.



−



Outer front pillar reinforcement (RH & LH)

e.

980MPa

caution

T=1.0 mm (0.039 in)

590

—

Lower center pillar brace (RH & LH)

f.

980MPa

caution

T=1.0 mm (0.039 in)

590

—

g.

980MPa

caution

T=1.0 mm (0.039 in)

Outer front side body (RH & LH)

Under 440

×

Lower front pillar hinge brace (RH & LH)

590

—

Front fender bracket assembly (RH & LH)

Under 440

×

Outer sill reinforcement (RH & LH)

590

×

Outer sill assembly (RH & LH)

Under 440

×

Inner rear pillar (RH & LH)

590

—

Upper rear pillar reinforcement (RH & LH)

Under 440

—

Back pillar assembly (Inner RH & LH)

SUV models

440

—

Wagon models

590

Inner rear wheelhouse (RH & LH)

Under 440

×

Inner rear wheelhouse rear extension (RH & LH)

Under 440

×

Outer rear wheelhouse extension (RH & LH)

Under 440

×

Outer rear wheelhouse (RH & LH)

Under 440

×

Jack mounting bracket

Under 440

—

Front door assembly (RH & LH)

590

×

Outer front door panel (RH & LH)

Under 440

×

Rear door assembly (RH & LH)

440

×

Outer rear door panel (RH & LH)

Under 440

×

BRM-20

< PREPARATION >

[FOR EUROPE (LHD)]

BODY COMPONENT PARTS

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

NOTE:

• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

• Tensile strength column shows the largest strength value of a part in the component part.

Rear fender assembly (RH & LH)

Under 440

×

Outer back pillar (RH & LH)

Under 440

—

Back pillar assembly (Outer RH & LH)

Under 440

—

Rear fender extension (RH & LH)

Under 440

×

Fuel filler lid assembly

Under 440

×

Upper rear panel

Under 440

×

Upper rear bumper retainer

Under 440

×

Rear bumper stay (RH & LH)

590

—

Inner center rear bumper reinforcement

1270MPa

caution

T=1.2 mm (0.047 in)

—

—

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections
