REPAIRING MATERIAL

BRM-13

< PREPARATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

NOTE:
Fill enough to close gap with service part while avoiding flange
area.

d.

Install service part.
NOTE:
Refer to label for information on working times.

Urethane foam

Fill while avoiding flange area

: Vehicle front

JSKIA0130GB

BRM-14

< PREPARATION >

[FOR EUROPE (LHD)]

BODY COMPONENT PARTS

BODY COMPONENT PARTS

Ultra High Strength Steel Part

INFOID:0000000010843419

DESCRIPTION

Ultra high strength steel parts signify high strength steel plates with tensile strength of 980 MPa or more.
When replacing parts made of ultra high strength steel or parts including ultra high strength steel, never per-
form the prohibition described below:

PROHIBITION

WARNING:

Never cut ultra high strength steel parts or perform butt welding. Violation of this prohibition causes
extreme strength degradation, and the strength before damage cannot be secured.

PART REPLACEMENT

To replace an ultra high strength part, be sure to replace it by panel supply unit of ultra high strength steel part.
For the welding method, refer to

BRM-29, "Welding of Ultra High Strength Steel"

Underbody Component Parts

INFOID:0000000010843420

Refer to parts catalogue for the replacement parts.

BODY COMPONENT PARTS

BRM-15

< PREPARATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

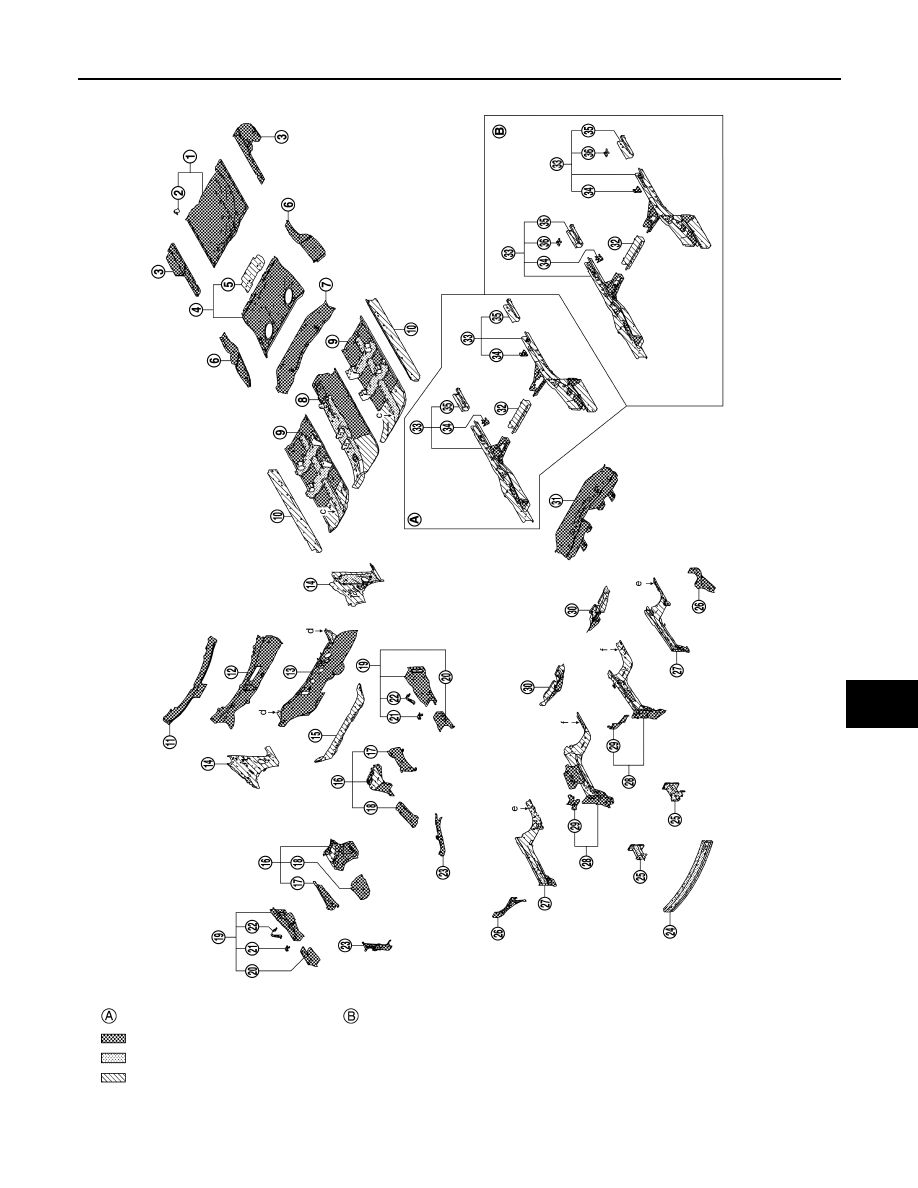

SUV models

Wagon models

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

JSKIA4701ZZ

BRM-16

< PREPARATION >

[FOR EUROPE (LHD)]

BODY COMPONENT PARTS

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

Rear floor rear

Under 440

×

Spare tire clamp bracket

Under 440

—

Rear floor side assembly (RH & LH)

Under 440

×

Rear floor front

Under 440

—

Rear floor board reinforcement

590

×

Rear floor front extension (Upper RH & LH)

Under 440

×

Rear seat crossmember assembly

590

×

Center front floor

780

×

Front floor (RH & LH)

c.

980MPa

caution

T=1.8 mm (0.071 in)

590

×

Inside (RH only)

980MPa

caution

T=2.0 mm (0.079 in)

Inner sill (RH & LH)

980MPa

caution

T=1.4 mm (0.055 in)

590

×

Cowl top

Under 440

×

Upper dash assembly

Under 440

×

Lower dash complete

d.

980MPa

caution

T=1.4 mm (0.055 in)

590

×

Side dash (RH & LH)

590

×

Lower dash crossmember

980MPa

caution

T=2.0 mm (0.079 in)

440

×

Front strut housing assembly (RH & LH)

590

×

Upper hoodledge (RH & LH)

Under 440

×

Lower hoodledge (RH & LH)

Under 440

×

Hoodledge reinforcement (RH & LH)

Under 440

×

Front hoodledge reinforcement (RH & LH)

Under 440

×

Upper front fender bracket (RH & LH)

Under 440

×

Front fender bracket (RH & LH)

Under 440

×

Upper radiator core support assembly (RH & LH)

Under 440

×

Front bumper armature assembly

1500MPa

caution

T=1.0 mm (0.039 in)

—

—

Front bumper stay (RH & LH)

590

—

Hoodledge connector assembly (RH & LH)

Under 440

×

Front side member closing plate (RH & LH)

e.

980MPa

caution

T=2.0 mm (0.079 in)

590

×

Front side member assembly (RH & LH)

f.

980MPa

caution

T=2.0 mm (0.079 in)

590

×

Side radiator core support (RH & LH)

Under 440

×

Front suspension mounting bracket (RH & LH)

590

×
