DOOR REQUEST SWITCH

DLK-737

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2.

Disconnect malfunctioning front door request switch connector.

3.

Check continuity between malfunctioning front door request switch terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace malfunctioning front door request switch.

Front door request switch

Condition

Continuity

Terminal

3

4

Door request switch

Pressed

Existed

Released

Not existed

DLK-738

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

DOOR SWITCH

DOOR SWITCH

Component Function Check

INFOID:0000000010672353

1.

CHECK FUNCTION

1.

Select “DOOR LOCK” of “BCM” using CONSULT.

2.

Select “DOOR SW-DR”, “DOOR SW-AS”, “DOOR SW-RL”, “DOOR SW-RR”, “DOOR SW-BK” in “DATA
MONITOR” mode.

3.

Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

DLK-738, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010672354

1.

CHECK DOOR SWITCH INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect malfunctioning door switch connector.

3.

Check signal between malfunctioning door switch harness connector and ground.

LHD models

RHD models

Monitor item

Condition

Status

DOOR SW-DR

Driver side door

Open

On

Closed

Off

DOOR SW-AS

Passenger side door

Open

On

Closed

Off

DOOR SW-RL

Rear door LH

Open

On

Closed

Off

DOOR SW-RR

Rear door RH

Open

On

Closed

Off

DOOR SW-BK

Back door

Open

On

Closed

Off

(+)

(–)

Voltage

Door switch

Connector

Terminal

Driver side

B55

3

Ground

9 - 16 V

Passenger side

B92

Rear LH

B56

Rear RH

B93

Back door

B2

(+)

(–)

Voltage

Door switch

Connector

Terminal

Driver side

B92

3

Ground

9 - 16 V

Passenger side

B55

Rear LH

B56

Rear RH

B93

Back door

B2

DOOR SWITCH

DLK-739

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES-1 >> Back door: GO TO 3.
YES-2 >> Other door: GO TO 4.
NO

>> GO TO 2.

2.

CHECK DOOR SWITCH CIRCUIT

1.

Disconnect BCM connector.

2.

Check continuity between door switch harness connector and BCM harness connector.

LHD models

RHD models

3.

Check continuity between door switch harness connector and ground.

LHD models

RHD models

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK BACK DOOR SWITCH CIRCUIT

Check continuity between back door lock assembly harness connector and ground.

Door switch

BCM

Continuity

Connector

Terminal

Connector

Terminal

Driver side

B55

3

B4

17

Existed

Passenger side

B92

13

Rear LH

B56

12

Rear RH

B93

10

Back door

B2

11

Door switch

BCM

Continuity

Connector

Terminal

Connector

Terminal

Driver side

B92

3

B4

17

Existed

Passenger side

B55

13

Rear LH

B56

12

Rear RH

B93

10

Back door

B2

11

Door switch

Ground

Continuity

Connector

Terminal

Driver side

B55

3

Not existed

Passenger side

B92

Rear LH

B56

Rear RH

B93

Back door

B2

Door switch

Ground

Continuity

Connector

Terminal

Driver side

B92

3

Not existed

Passenger side

B55

Rear LH

B56

Rear RH

B93

Back door

B2

DLK-740

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

DOOR SWITCH

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK DOOR SWITCH

Refer to

DLK-740, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace malfunctioning door switch.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000010672355

1.

CHECK DOOR SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect malfunctioning door switch connector.

3.

Check continuity between door switch terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace malfunction door switch.

Back door lock assembly

Ground

Continuity

Connector

Terminal

B2

4

Existed

Door switch

Condition

Continuity

Terminal

Driver side

3

Ground part of door

switch

Door switch

Pressed

Existed

Released

Not existed

Passenger side

Pressed

Existed

Released

Not existed

Rear LH

Pressed

Existed

Released

Not existed

Rear RH

Pressed

Existed

Released

Not existed

Back door

3

4

Back door lock as-

sembly

Lock

Existed

Unlock

Not existed

HAZARD FUNCTION

DLK-741

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HAZARD FUNCTION

Component Function Check

INFOID:0000000010672356

1.

CHECK FUNCTION

1.

Select “INTELLIGENT KEY” of “BCM” using CONSULT.

2.

Select “FLASHER” in “ACTIVE TEST” mode.

3.

Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES

>> Hazard warning lamp circuit is OK.

NO

>> Refer to

DLK-741, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010672357

1.

CHECK HAZARD OPERATION

Refer to

EXL-26, "TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM : System Description"

 (LED

headlamp models) or

EXL-195, "TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM : System Descrip-

tion"

 (halogen headlamp models).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Refer to

EXL-146, "Symptom Table"

 (LED headlamp models) and

EXL-303, "Symptom Table"

(halogen headlamp models).

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Monitor item

Status

FLASHER

LH

Front turn signal lamp LH

Turns ON

RH

Front turn signal lamp RH

Turns ON

OFF

Front turn signal lamp

Turns OFF

DLK-742

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

INFORMATION DISPLAY

INFORMATION DISPLAY

Diagnosis Procedure

INFOID:0000000010672358

1.

CHECK COMBINATION METER

Refer to

MWI-28, "Description"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

INTELLIGENT KEY BATTERY

DLK-743

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY BATTERY

Component Inspection

INFOID:0000000010672359

1.

CHECK INTELLIGENT KEY BATTERY

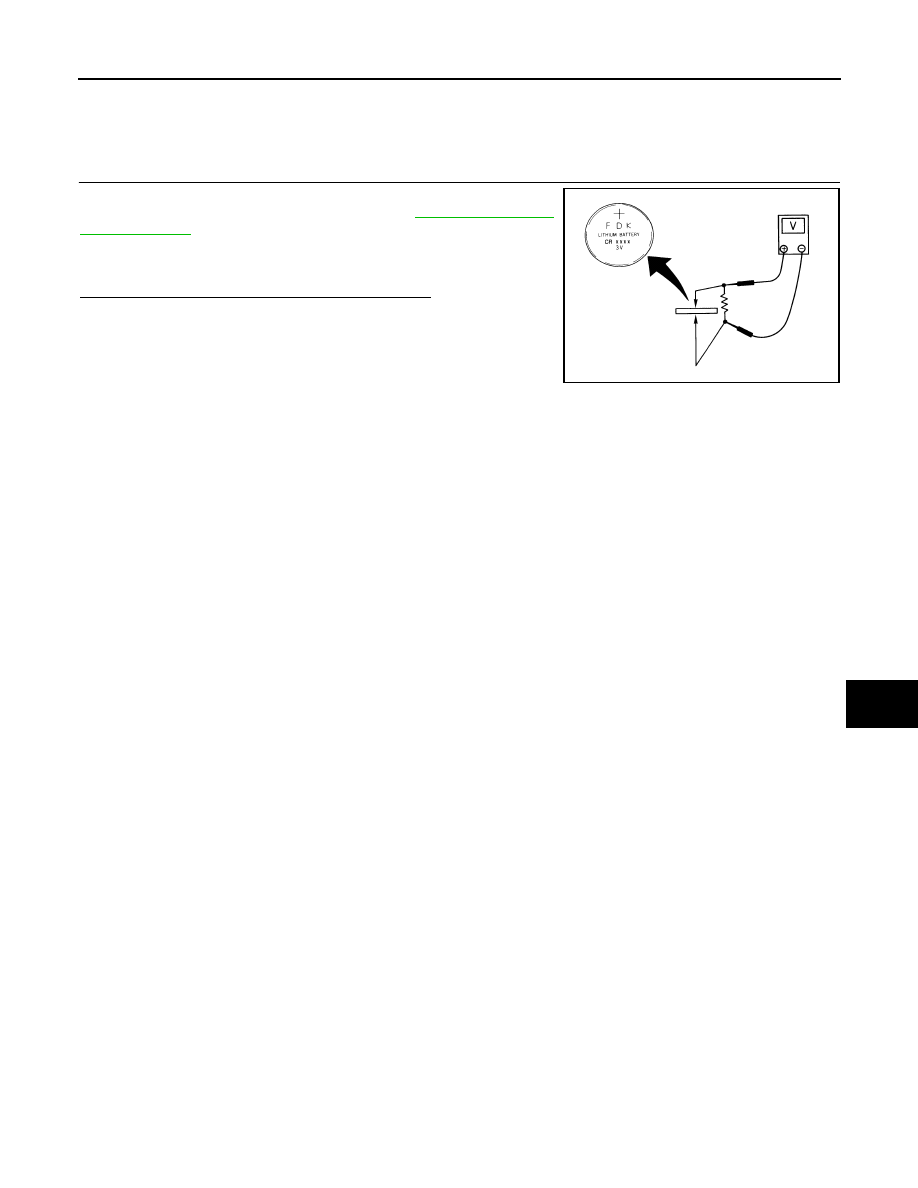

Check by connecting a resistance (approximately 300

Ω

) so that the

current value becomes about 10 mA. Refer to

DLK-199, "Removal

and Installation"

.

Is the measurement value within the specification?

YES

>> INSPECTION END

NO

>> Replace Intelligent Key battery.

Standard

: Approx. 2.5 - 3.0 V

OCC0607D

DLK-744

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

INTELLIGENT KEY WARNING BUZZER

INTELLIGENT KEY WARNING BUZZER

Component Function Check

INFOID:0000000010672360

1.

CHECK FUNCTION

1.

Select “INTELLIGENT KEY” of “BCM” using CONSULT.

2.

Select “OUTSIDE BUZZER” in “ACTIVE TEST” mode.

3.

Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES

>> Intelligent Key warning buzzer is OK.

NO

>> Refer to

DLK-744, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010672361

1.

CHECK INTELLIGENT KEY WARNING BUZZER POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect Intelligent Key warning buzzer connector.

3.

Check voltage between Intelligent Key warning buzzer harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK INTELLIGENT KEY WARNING BUZZER CIRCUIT

1.

Disconnect BCM connector.

2.

Check continuity between BCM harness connector and Intelligent Key warning buzzer harness connector.

3.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK GROUND CIRCUIT

Check continuity between Intelligent Key warning buzzer harness connector and ground.

Monitor item

Status

OUTSIDE BUZZER

ON

Outside warning buzzer

Buzzer sounds

OFF

Buzzer does not sound

(+)

(–)

Condition

Voltage

Intelligent Key warning buzzer

Connector

Terminal

E7

1

Ground

Operate Intelligent Key
buzzer

9 – 16 V

BCM

Intelligent Key warning buzzer

Continuity

Connector

Terminal

Connector

Terminal

E60

164

E7

1

Existed

BCM

Ground

Continuity

Connector

Terminal

E60

164

Not existed

INTELLIGENT KEY WARNING BUZZER

DLK-745

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace Intelligent Key warning buzzer.

NO

>> Repair or replace the malfunctioning parts.

Intelligent Key warning buzzer

Ground

Continuity

Connector

Terminal

E7

3

Existed

DLK-746

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

OUTSIDE KEY ANTENNA

OUTSIDE KEY ANTENNA

DRIVER SIDE

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000010672362

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1.

Turn ignition switch OFF.

2.

Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1.

Disconnect BCM connector and front outside handle assembly (driver side) connector.

2.

Check continuity between BCM harness connector and front outside handle assembly (driver side) har-
ness connector.

(+)

(–)

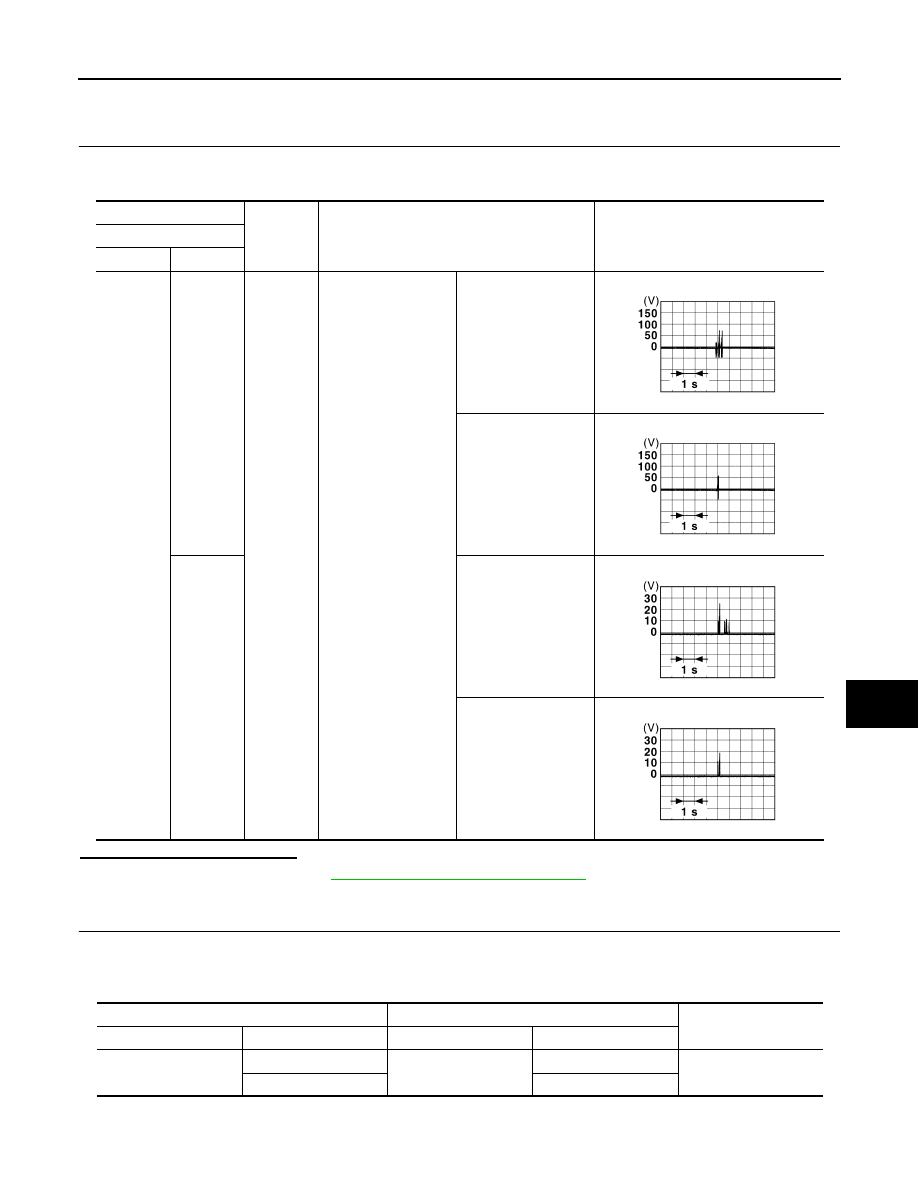

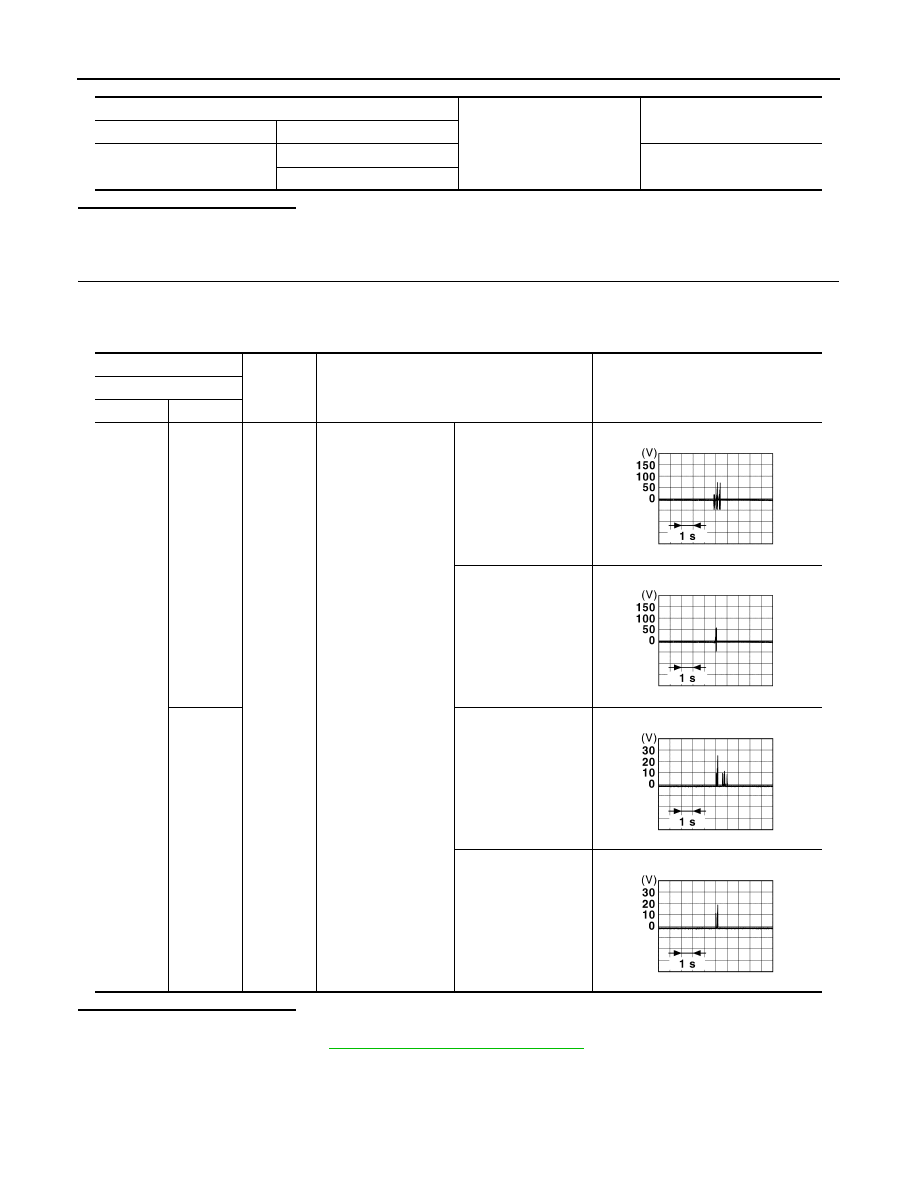

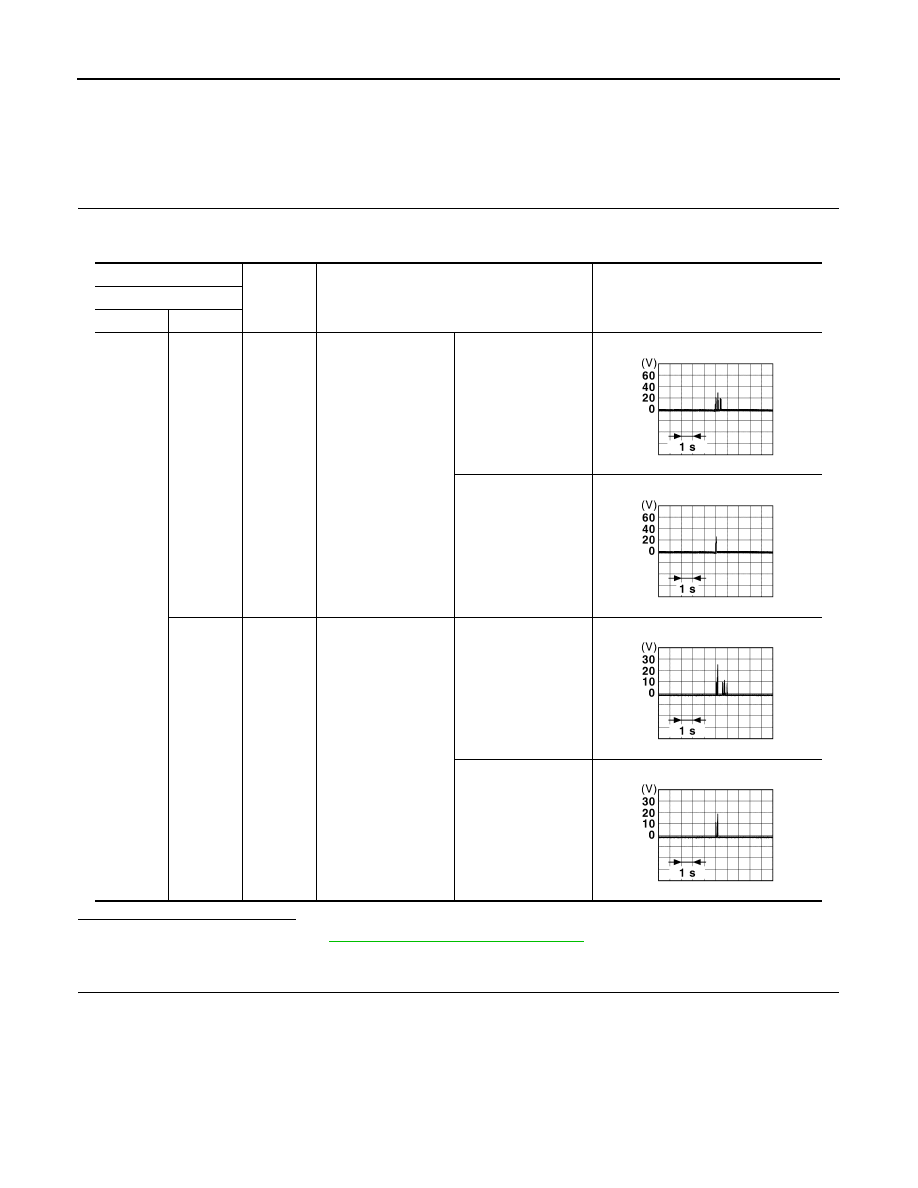

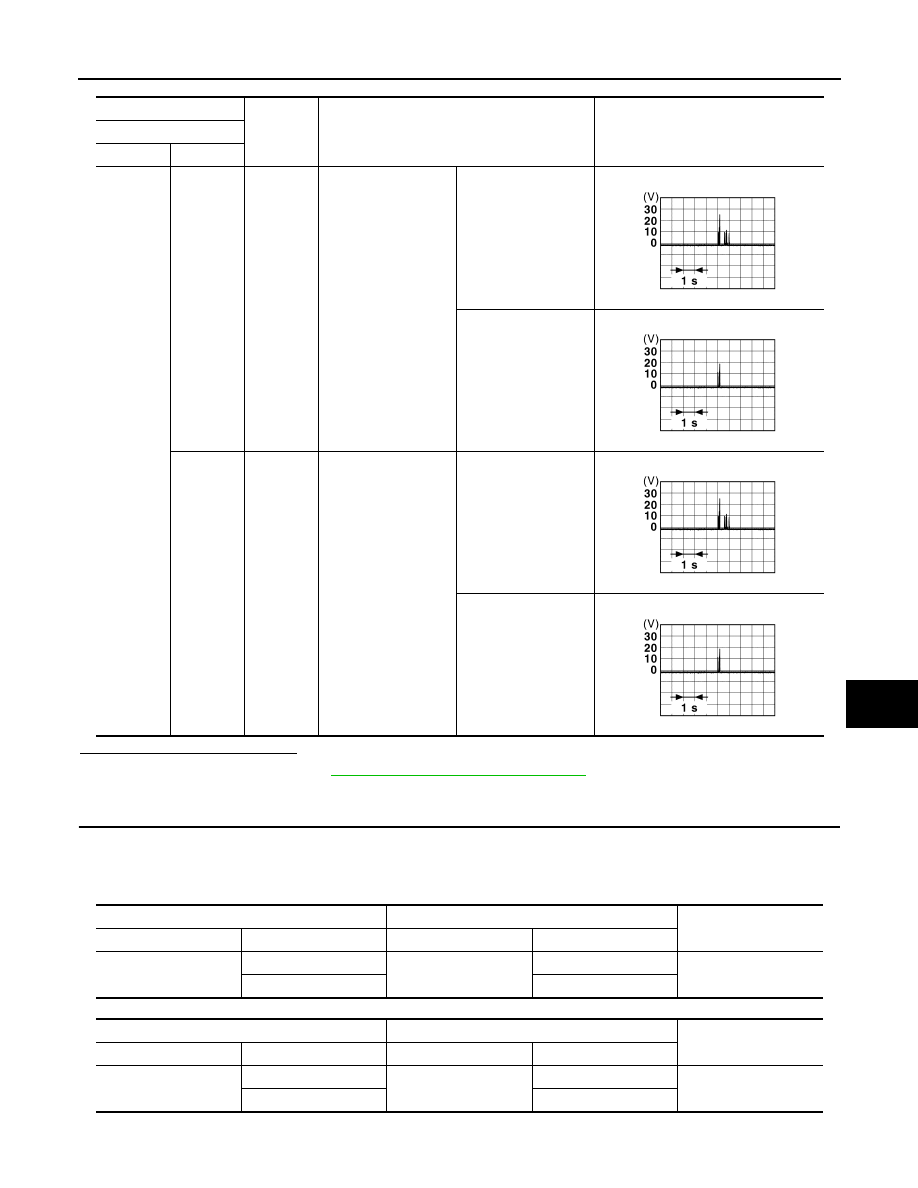

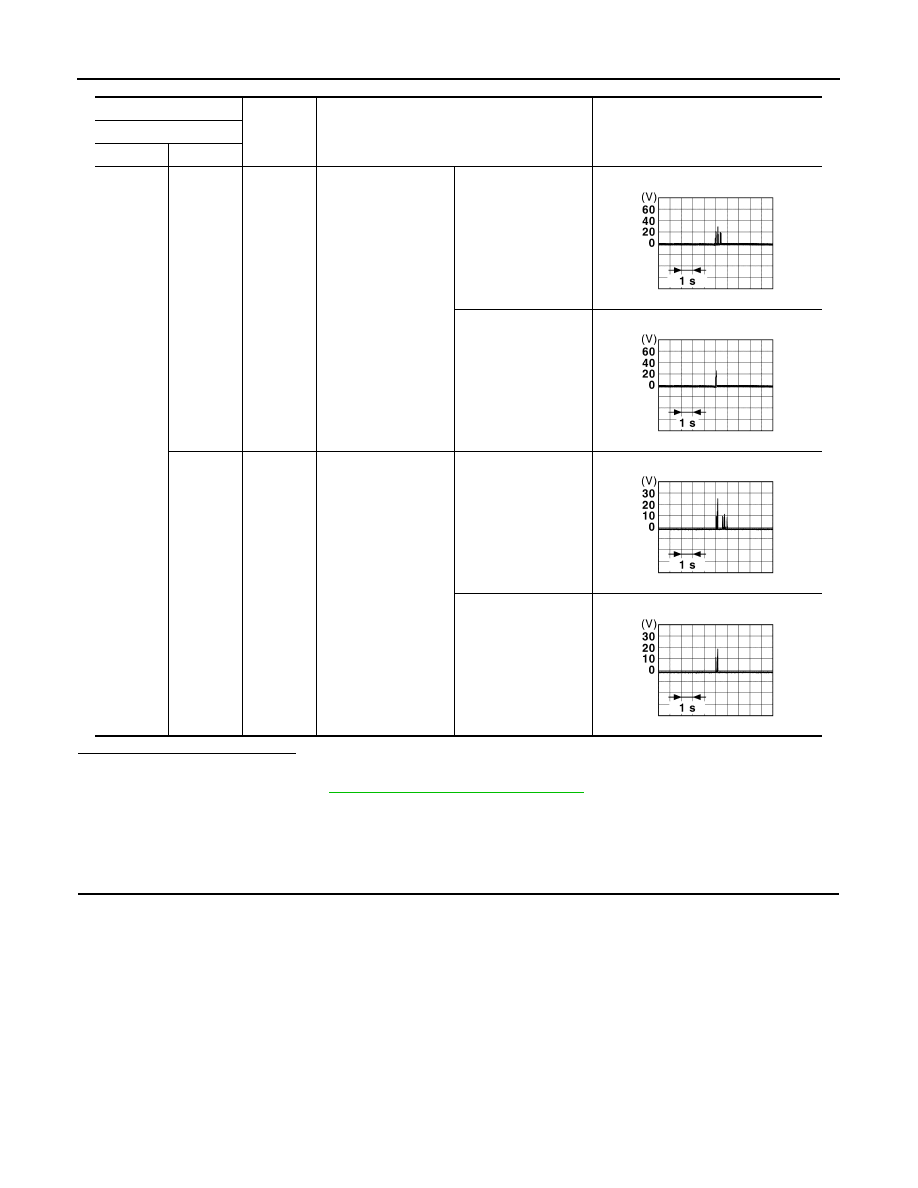

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M69

100

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

120

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

JSMIA1348GB

JSMIA1406GB

JSMIA1507GB

JSMIA1506GB

OUTSIDE KEY ANTENNA

DLK-747

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

LHD models

RHD models

3.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1.

Replace front outside handle assembly (driver side). (New antenna or other antenna)

2.

Connect BCM connector and front outside handle assembly (driver side) connector.

3.

Check signal between BCM harness connector and ground using oscilloscope.

BCM

Front outside handle assembly (driver side)

Continuity

Connector

Terminal

Connector

Terminal

M69

100

D8

1

Existed

120

2

BCM

Front outside handle assembly (driver side)

Continuity

Connector

Terminal

Connector

Terminal

M69

100

D39

1

Existed

120

2

BCM

Ground

Continuity

Connector

Terminal

M69

100

Not existed

120

DLK-748

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

OUTSIDE KEY ANTENNA

Is the inspection result normal?

YES

>> Replace outside handle grip RH.

NO

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

PASSENGER SIDE

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000010672363

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1.

Turn ignition switch OFF.

2.

Check signal between BCM harness connector and ground using oscilloscope.

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M69

100

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

120

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

JSMIA1348GB

JSMIA1406GB

JSMIA1507GB

JSMIA1506GB

OUTSIDE KEY ANTENNA

DLK-749

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1.

Disconnect BCM connector and front outside handle assembly (passenger side) connector.

2.

Check continuity between BCM harness connector and front outside handle assembly (passenger side)
harness connector.

LHD models

RHD models

3.

Check continuity between BCM harness connector and ground.

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M69

118

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

119

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

JSMIA1507GB

JSMIA1506GB

JSMIA1507GB

JSMIA1506GB

BCM

Front outside handle assembly (passenger side)

Continuity

Connector

Terminal

Connector

Terminal

M69

118

D38

2

Existed

119

1

BCM

Front outside handle assembly (passenger side)

Continuity

Connector

Terminal

Connector

Terminal

M69

118

D9

2

Existed

119

1

DLK-750

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

OUTSIDE KEY ANTENNA

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1.

Replace front outside handle assembly (passenger side). (New antenna or other antenna)

2.

Connect BCM connector and front outside handle assembly (passenger side) connector.

3.

Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace outside handle grip LH.

NO

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

REAR BUMPER

BCM

Ground

Continuity

Connector

Terminal

M69

118

Not existed

119

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M69

118

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

119

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

JSMIA1507GB

JSMIA1506GB

JSMIA1507GB

JSMIA1506GB

OUTSIDE KEY ANTENNA

DLK-751

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR BUMPER : Diagnosis Procedure

INFOID:0000000010672364

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1.

Turn ignition switch OFF.

2.

Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1.

Disconnect BCM connector and outside key antenna (rear bumper) connector.

2.

Check continuity between BCM harness connector and outside key antenna (rear bumper) harness con-
nector.

3.

Check continuity between BCM harness connector and ground.

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

B4

21

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

24

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

JMMIA1652GB

JMMIA1653GB

JSMIA1507GB

JSMIA1506GB

BCM

Outside key antenna (rear bumper)

Continuity

Connector

Terminal

Connector

Terminal

B4

21

B52

2

Existed

24

1

DLK-752

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

OUTSIDE KEY ANTENNA

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1.

Replace outside key antenna (rear bumper). (New antenna or other antenna)

2.

Connect BCM and outside key antenna (rear bumper) connector.

3.

Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace outside key antenna (rear bumper).

NO

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

BCM

Ground

Continuity

Connector

Terminal

B4

21

Not existed

24

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

B4

21

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

24

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

JMMIA1652GB

JMMIA1653GB

JSMIA1507GB

JSMIA1506GB















Content      ..     44      45      46      47     ..
