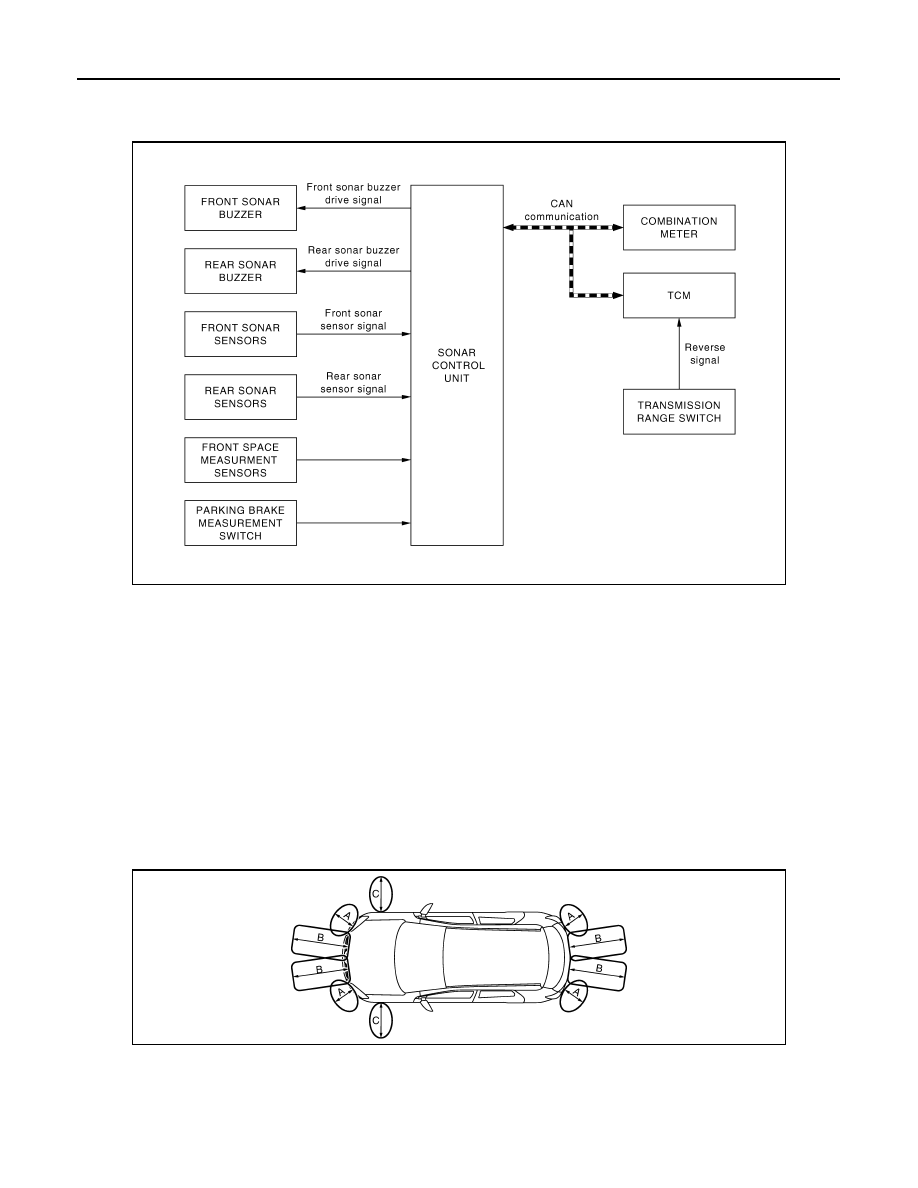

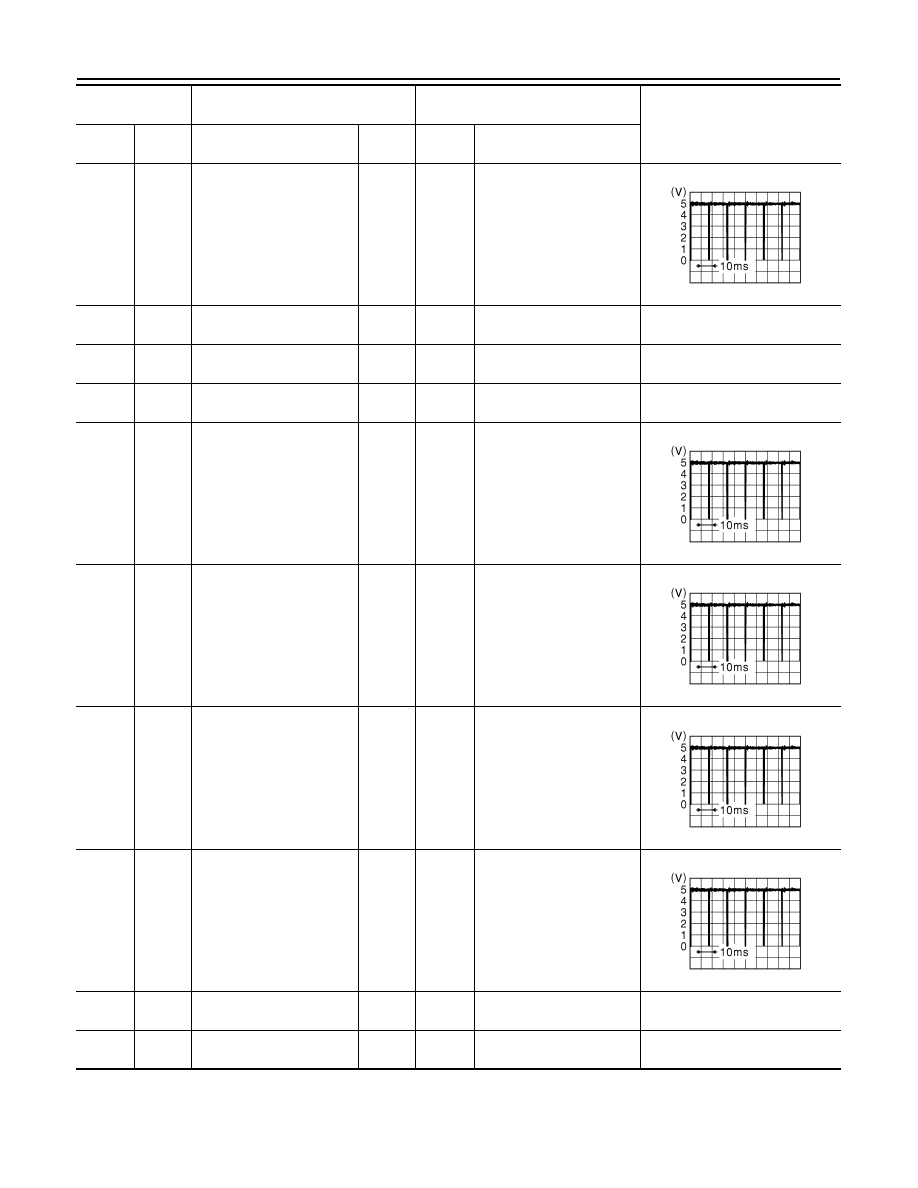

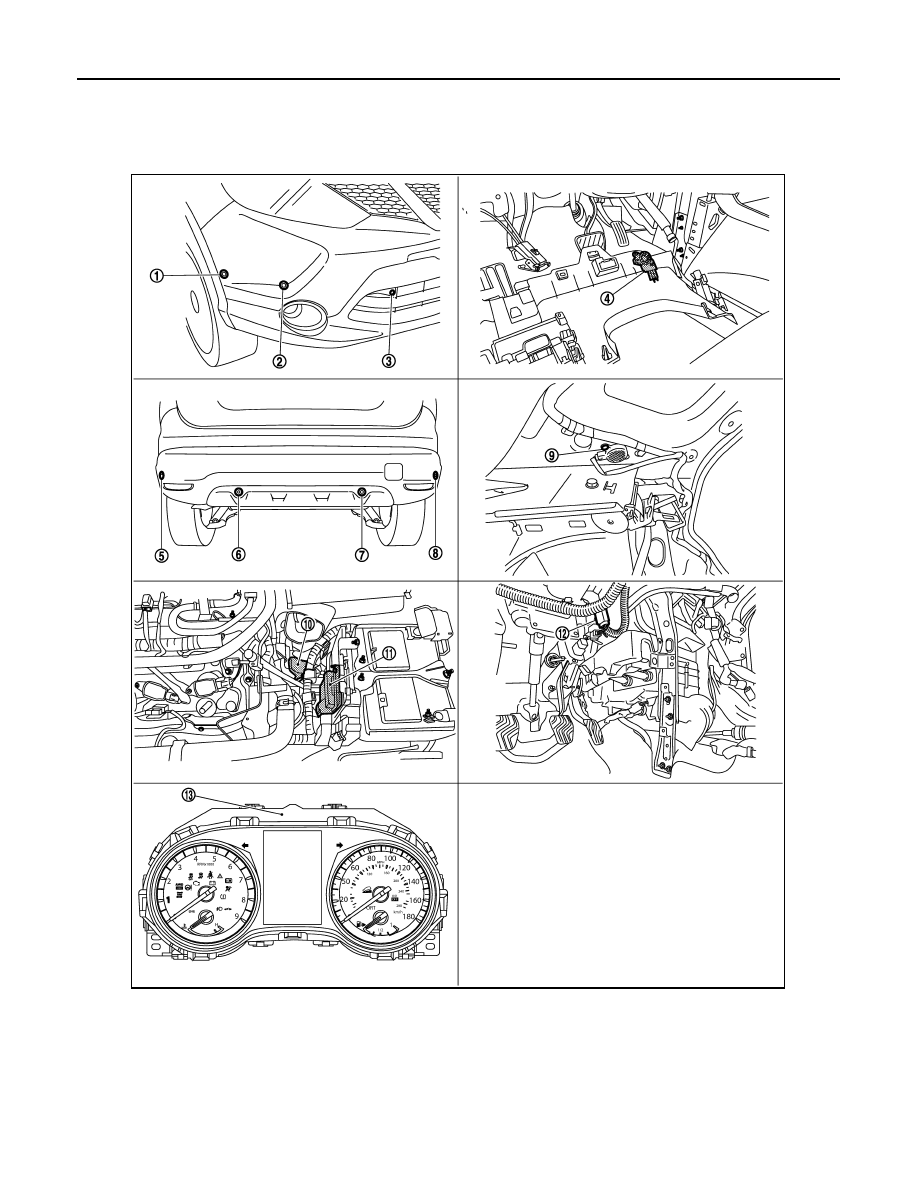

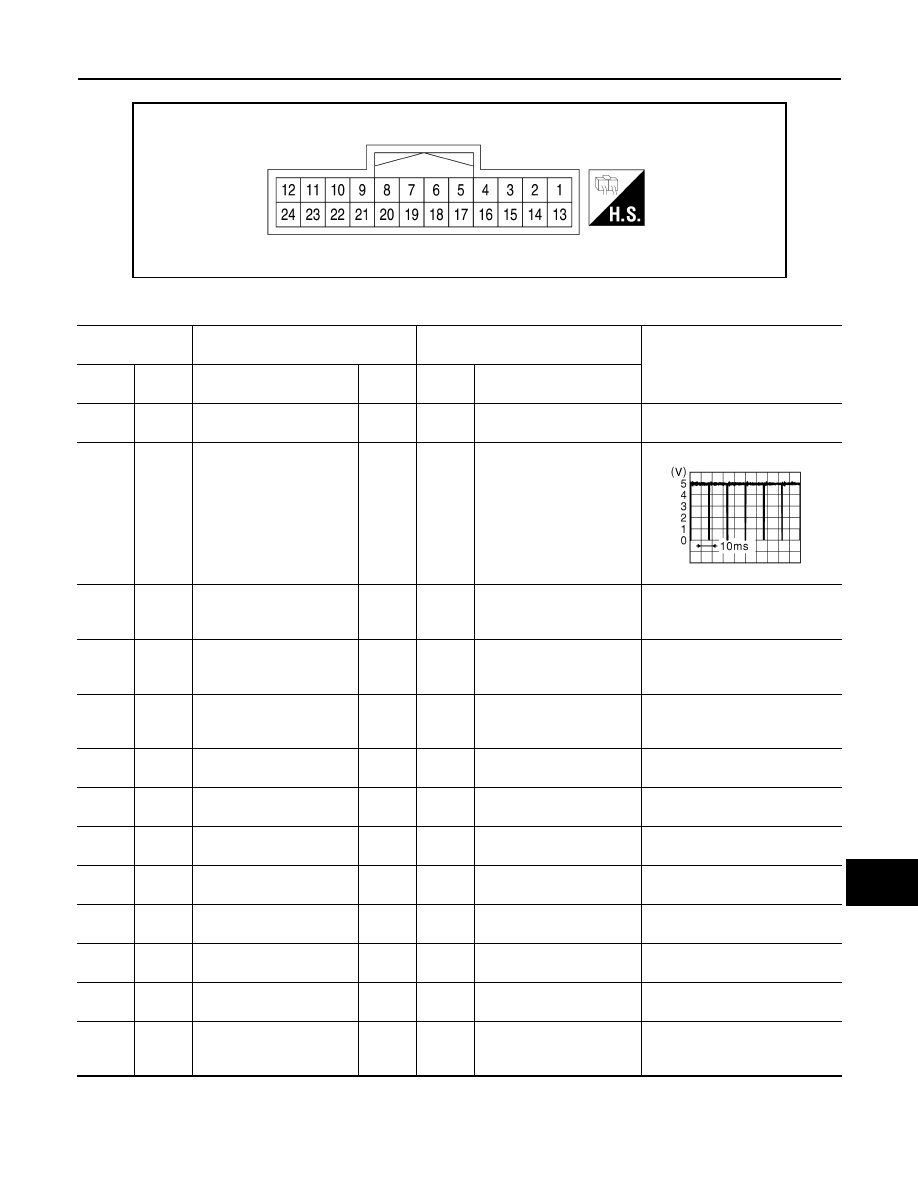

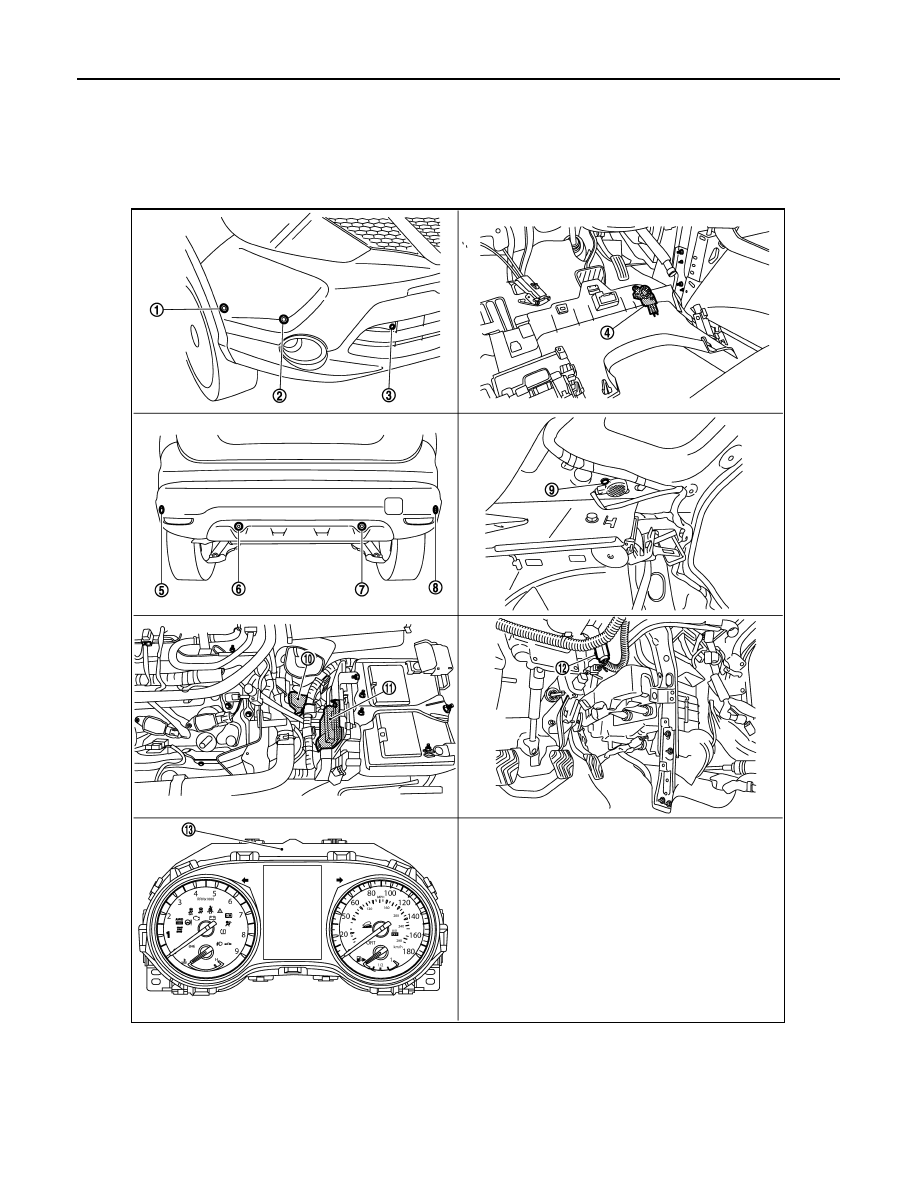

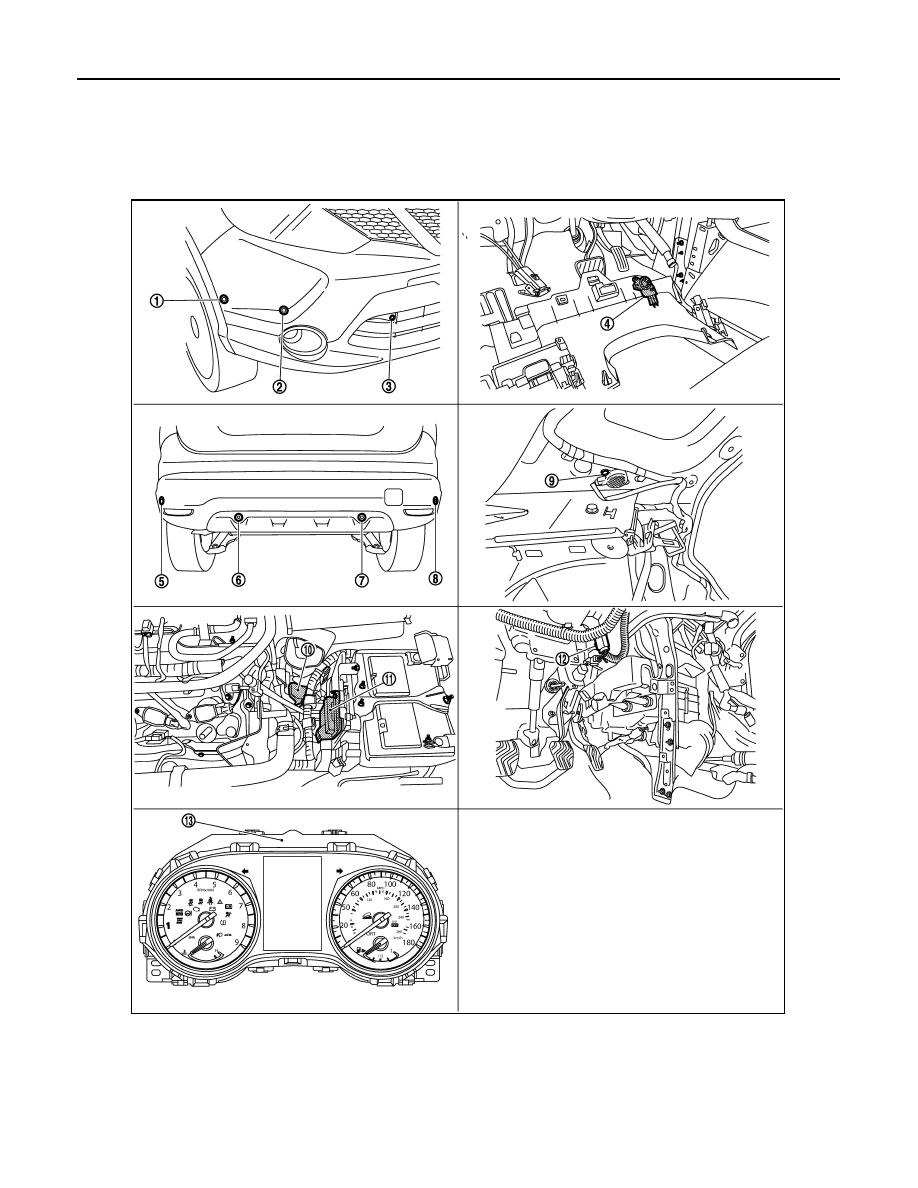

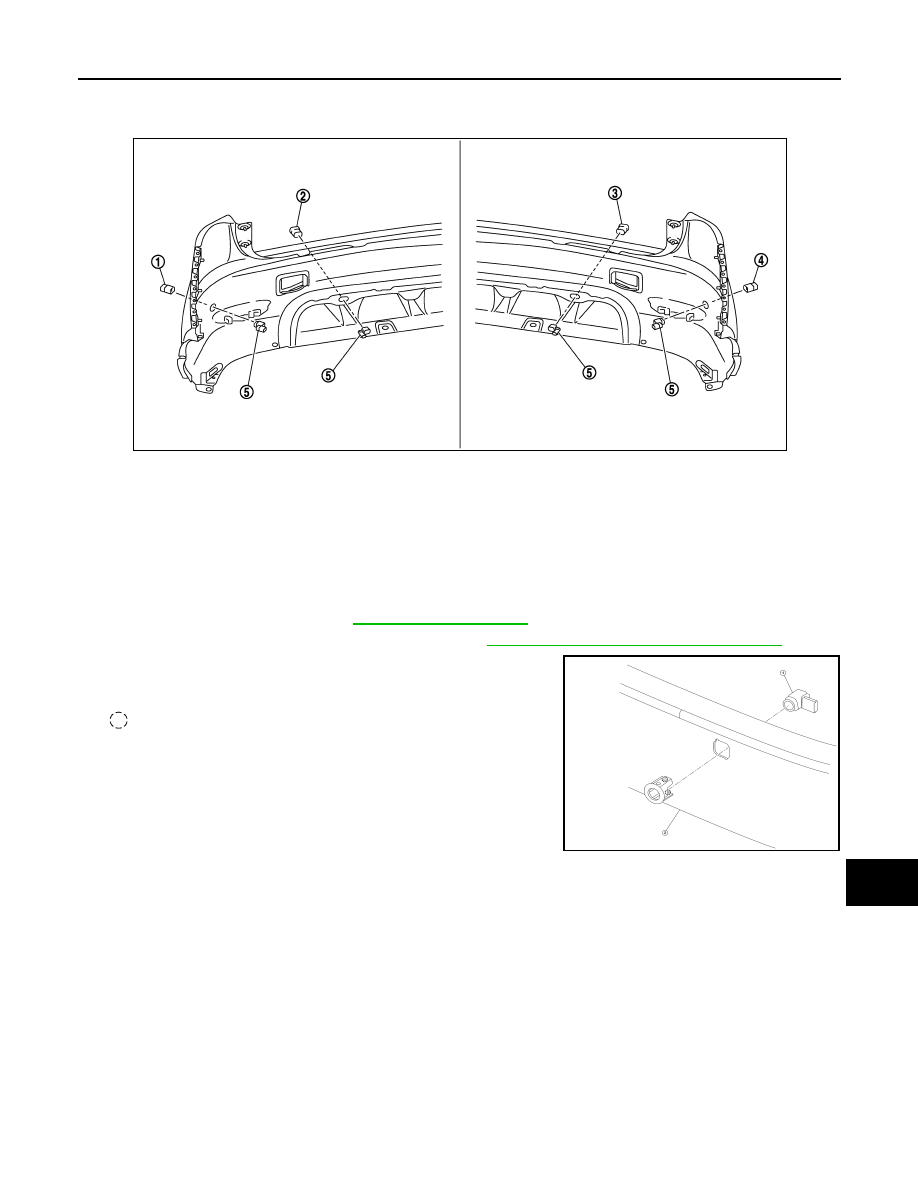

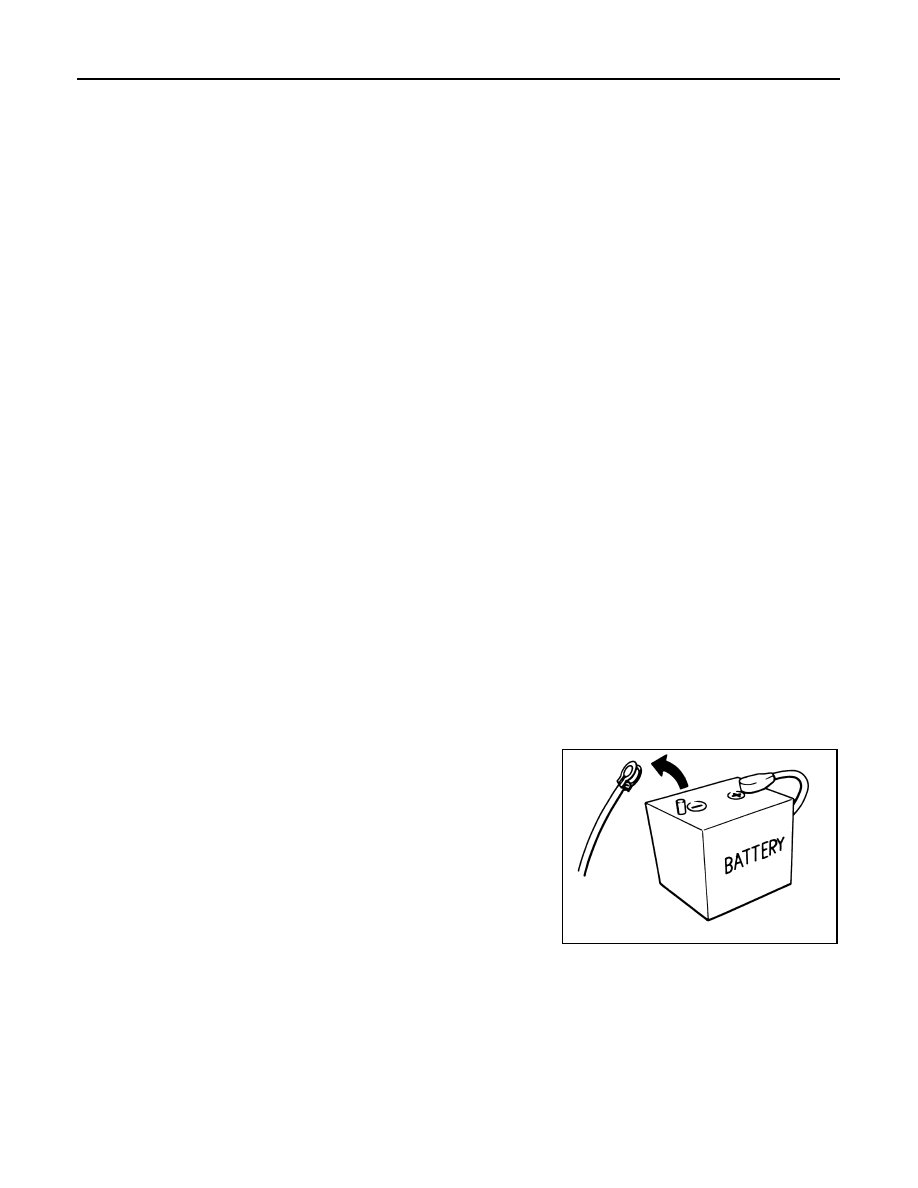

SN SONAR SENSOR SN-49 < REMOVAL AND INSTALLATION > [WITHOUT PARKING SPACE MEASUREMENT] C D E F G H I J K L M B A O P REAR SENSOR : Exploded View INFOID:0000000010478775 REAR SENSOR : Removal and Installation - Rear Sonar Sensors INFOID:0000000010478776 REMOVAL 1. Remove the rear bumper. Refer to 2. Check the location of the rear sonar sensors. Refer to SN-49, "REAR SENSOR : Exploded View" 3. Disconnect the harness connector from rear sonar sensor (1). 4. Release the pawls on the rear sonar sensor insert, then remove : Pawl INSTALLATION Installation is in the reverse order of removal. E1NIA0090ZZ 1. Rear soner outer LH (ROL) bezel 2. Rear sonar inner LH (RIL) bezel 3. Rear sonar inner RH (RIR) bezel 4. Rear sonar outer RH (ROR) bezel 5. Rear sonar sensor ALNIA1400ZZ |
