WW-74

< SYMPTOM DIAGNOSIS >

FRONT WIPER DOES NOT OPERATE

YES

>> Replace BCM. Refer to

BCS-132, "Removal and Installation"

.

NO

>> Repair or replace the applicable parts.

FRONT WIPER

WW-75

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

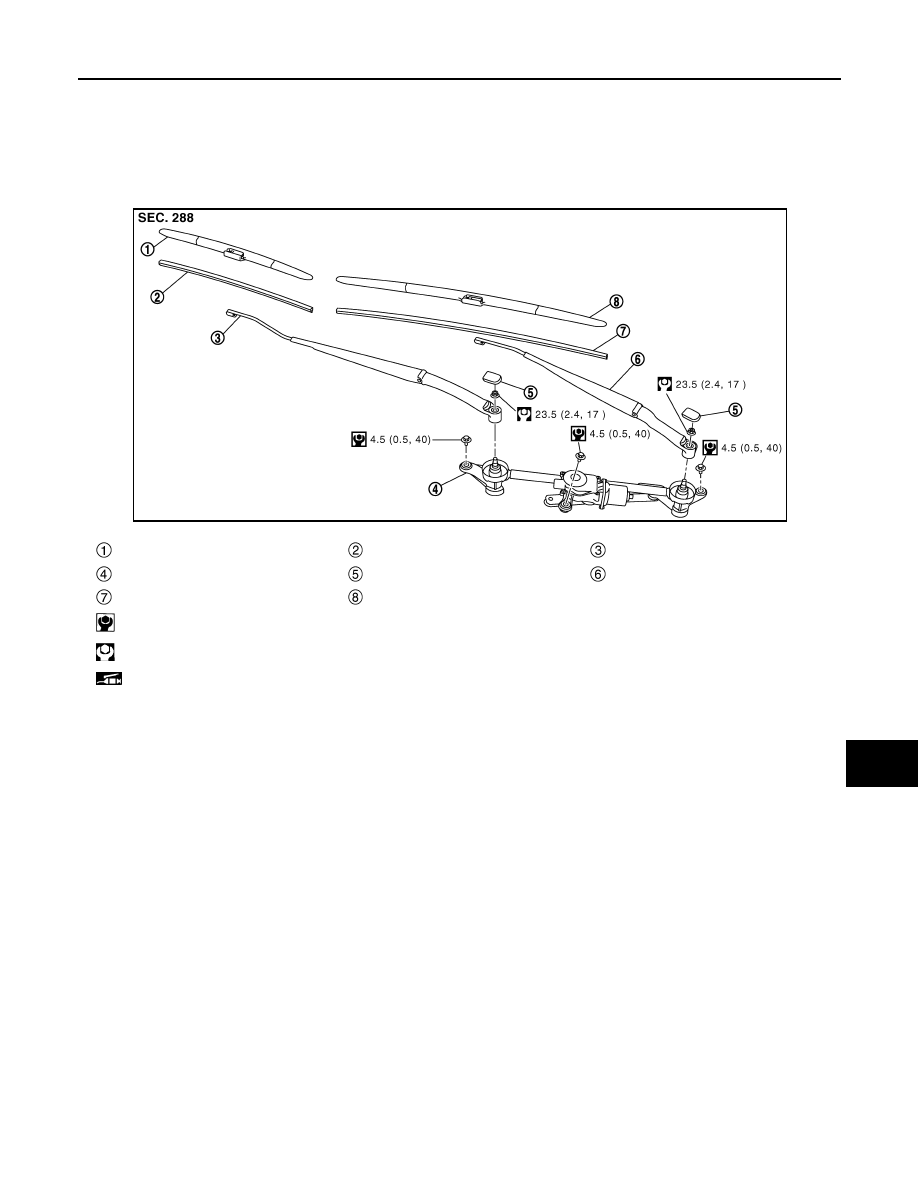

REMOVAL AND INSTALLATION

FRONT WIPER

Exploded View

INFOID:0000000010479826

WIPER ARM

WIPER ARM : Removal and Installation

INFOID:0000000010479827

CAUTION:

Clean the windshield glass and wiper refill so that the windshield glass may not be damaged by dust,
etc.

REMOVAL

1.

Full open hood assembly.

CAUTION:

Before opening hood assembly, check that wipers are in auto stop position.

2.

Remove wiper arm cap.

3.

Remove wiper arm fixing nut, and then remove wiper arm.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

Wiper blade RH

Wiper refill RH

Wiper arm RH

Wiper motor assembly

Wiper arm cap

Wiper arm LH

Wiper refill LH

WIper blade LH

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Nissan MP special grease No. 2

JMLIA5158GB

W

W

- 7

6

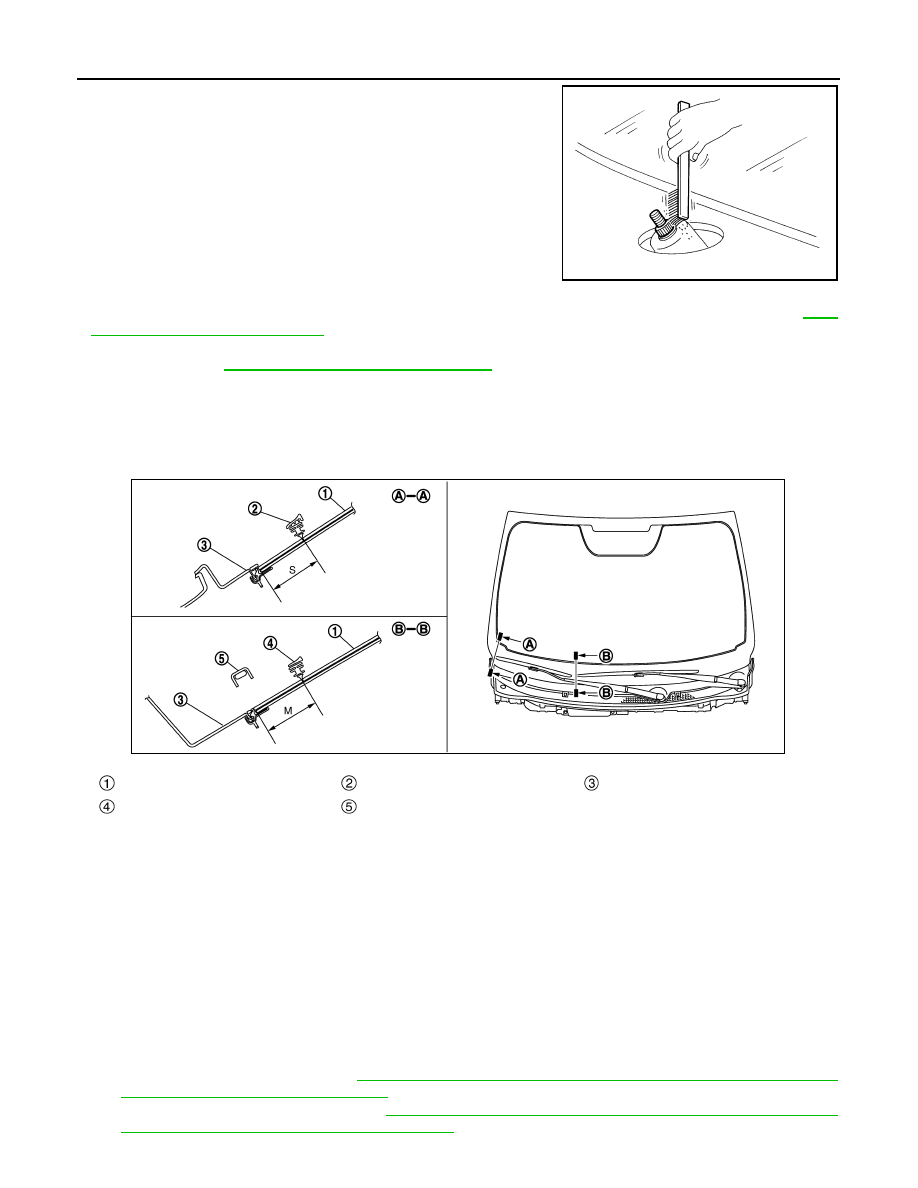

< REMOVAL AND INSTALLATION >

FRONT WIPER

• Clean wiper arm installation location as shown in the figure,

and then fully insert wiper arm to prevent nut from being loos-
ened by shakiness.

• When installing the wiper arm, install so that it is within the standard. For the standard, refer to

WW-

76, "WIPER ARM : Adjustment"

.

• After installation, operate front wiper, and then check that the wiper blades stop at the specified

position. Refer to

WW-76, "WIPER ARM : Adjustment"

.

WIPER ARM : Adjustment

INFOID:0000000010479828

WIPER BLADE POSITION ADJUSTMENT

Clearance between the end of cowl top cover / front fender cover and the top of wiper blade center.

Standard clearance

WIPER BLADE

WIPER BLADE : Removal and Installation

INFOID:0000000010479829

CAUTION:

Clean the windshield glass and wiper refill so that the windshield glass may not be damaged by dust,
etc.

REMOVAL

1.

Move the wiper arm by service position operation to lock back possibility position.
• with light & rain sensor: Refer to

WW-10, "FRONT WIPER AND WASHER SYSTEM (WITH LIGHT &

RAIN SENSOR) : System Description"

.

• without light & rain sensor: Refer to

WW-13, "FRONT WIPER AND WASHER SYSTEM (WITHOUT

LIGHT & RAIN SENSOR) : System Description"

.

ELH0717D

Windshield glass assembly

Wiper blade RH

Cowl top cover

Wiper blade LH

Wiper arm RH

JMLIA5159ZZ

S

: 38.0

±

7.5 mm (1.50

±

 0.30 in)

M : 40.7

±

7.5 mm (1.60

±

 0.30 in)

FRONT WIPER

WW-77

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

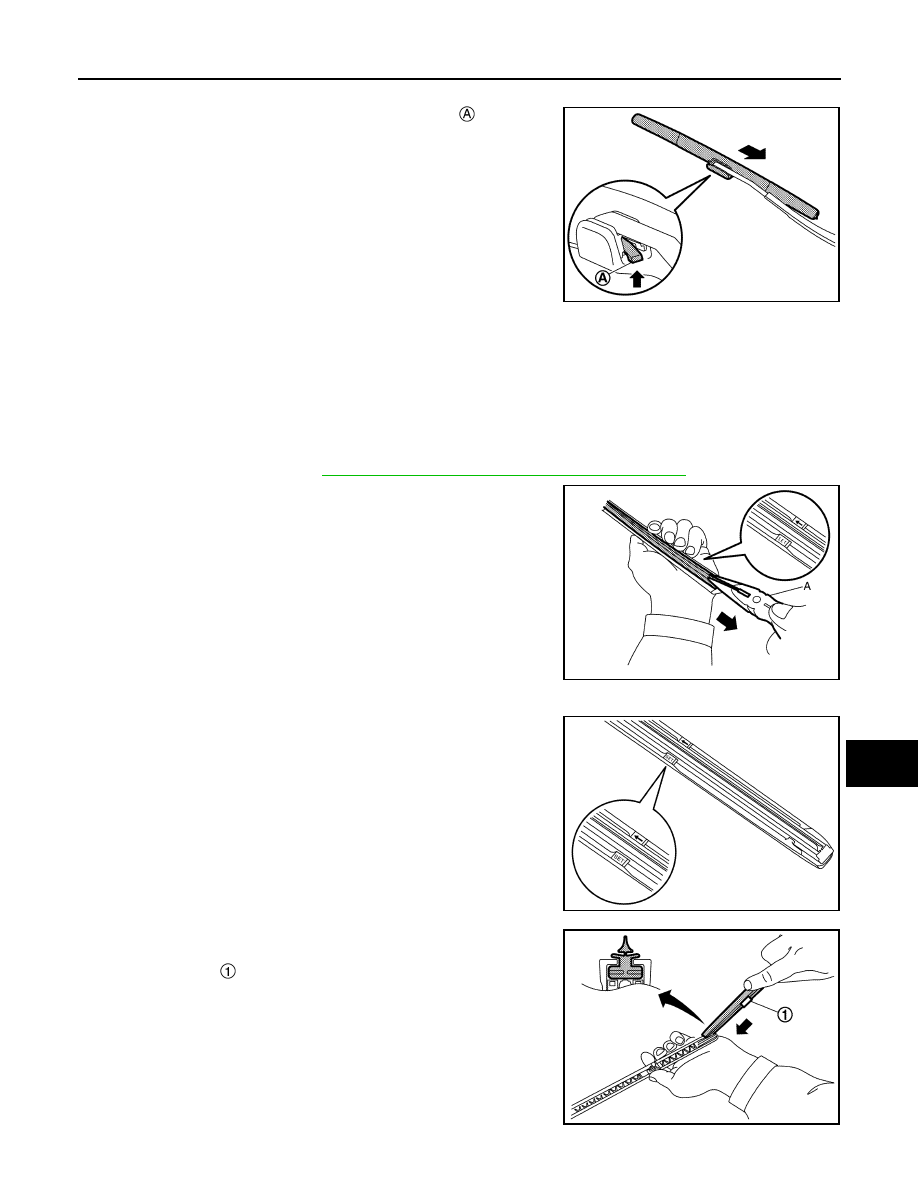

2.

Lift up wiper arm, and then lock back wiper arm.

3.

Slide the wiper blade while pushing up lever

, and then

remove wiper blade.

CAUTION:

After the wiper blade is removed, wrap the wiper arm tip
with a shop cloth and fold it down so that the wiper arm
does not fall against and damage the windshield glass.

INSTALLATION

Install in the reverse order of removal.

WIPER REFILL

WIPER REFILL : Removal and Installation

INFOID:0000000010479830

REMOVAL

1.

Remove wiper blade. Refer to

WW-76, "WIPER BLADE : Removal and Installation"

.

2.

Pull out wiper refill using a long-nose pliers (A), and then
remove wiper refill.

INSTALLATION

1.

Check the wiper refill insertion direction by arrow mark on wiper
blade.

2.

Pass through pawl of wiper blade in the groove of wiper refill.
NOTE:
Remove holder

* at last procedure.

*: Attached to service parts.

JMLIA4149ZZ

JMLIA4385ZZ

JMLIA2606ZZ

JMLIA4386ZZ
