Juke F15 (2012 year). Service Repair Manual

SEC-166

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY ALARM DOES NOT ACTIVATE

VEHICLE SECURITY ALARM DOES NOT ACTIVATE

Description

INFOID:0000000006628602

Alarm does not operate when alarm operating condition is satisfied.
NOTE:
Check that vehicle is under the condition shown in “CONDITIONS OF VEHICLE (OPERATING CONDI-
TIONS)” before starting diagnosis, and check each symptom.

CONDITION OF VEHICLE (OPERATING CONDITIONS)

“SECURITY ALARM SET”: ON
Check the setting of “SECURITY ALARM SET” in “Work Support” mode of “THEFT ALM” of “BCM” using
CONSULT-III.

Diagnosis Procedure

INFOID:0000000006628603

CHECK DOOR SWITCH

Check door switch.
Refer to

DLK-87, "Component Function Check"

(With super lock) or

DLK-258, "Component Function Check"

(Without super lock).

Is the inspection result normal?

YES

>> GO TO 2.

>> Replace the malfunctioning door switch

CHECK HOOD SWITCH

Check hood switch.
Refer to

SEC-155, "Component Function Check"

Is the inspection result normal?

YES

>> GO TO 3.

>> Repair or replace hood switch.

CHECK HAZARD WARNING LAMPS FUNCTION

Check hazard warning lamps function.
Refer to

EXL-69, "Component Function Check"

Is the inspection result normal?

YES

>> GO TO 4.

>> Repair or replace the malfunctioning parts.

CHECK HORN FUNCTION

Check horn function.
Refer to

SEC-157, "Component Function Check"

Is the inspection result normal?

YES

>> GO TO 5.

>> Repair or replace the malfunctioning parts.

CONFIRM THE OPERATION

Confirm the operation again.

Is the result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

>> GO TO 1.

NATS ANTENNA AMP.

SEC-167

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

SEC

REMOVAL AND INSTALLATION

NATS ANTENNA AMP.

Removal and Installation

INFOID:0000000006628607

REMOVAL

Remove the cluster lid A. Refer to

IP-13, "Removal and Installation"

Remove the NATS antenna amp.
1.

Disengage the NATS antenna amp. (1) fixing pawls using
minus driver etc.

Pull NATS antenna amp. to remove it from push-button igni-
tion switch (2).

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMKIA5722ZZ

SEC-168

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

PUSH-BUTTON IGNITION SWITCH

PUSH-BUTTON IGNITION SWITCH

Removal and Installation

INFOID:0000000006628609

REMOVAL

Remove the NATS antenna amp. Refer to

SEC-167, "Removal and Installation"

Remove the push-button ignition switch.
1.

Disengage the push-button ignition switch fixing pawls
using minus driver etc.

Press the push-button ignition switch to remove it from clus-
ter lid A (2).

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMKIA5723ZZ

PRECAUTIONS

SEC-169

< PRECAUTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SEC

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006627968

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000006627969

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

Precaution for Battery Service

INFOID:0000000006627970

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

PIIB3706J

SEC-170

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

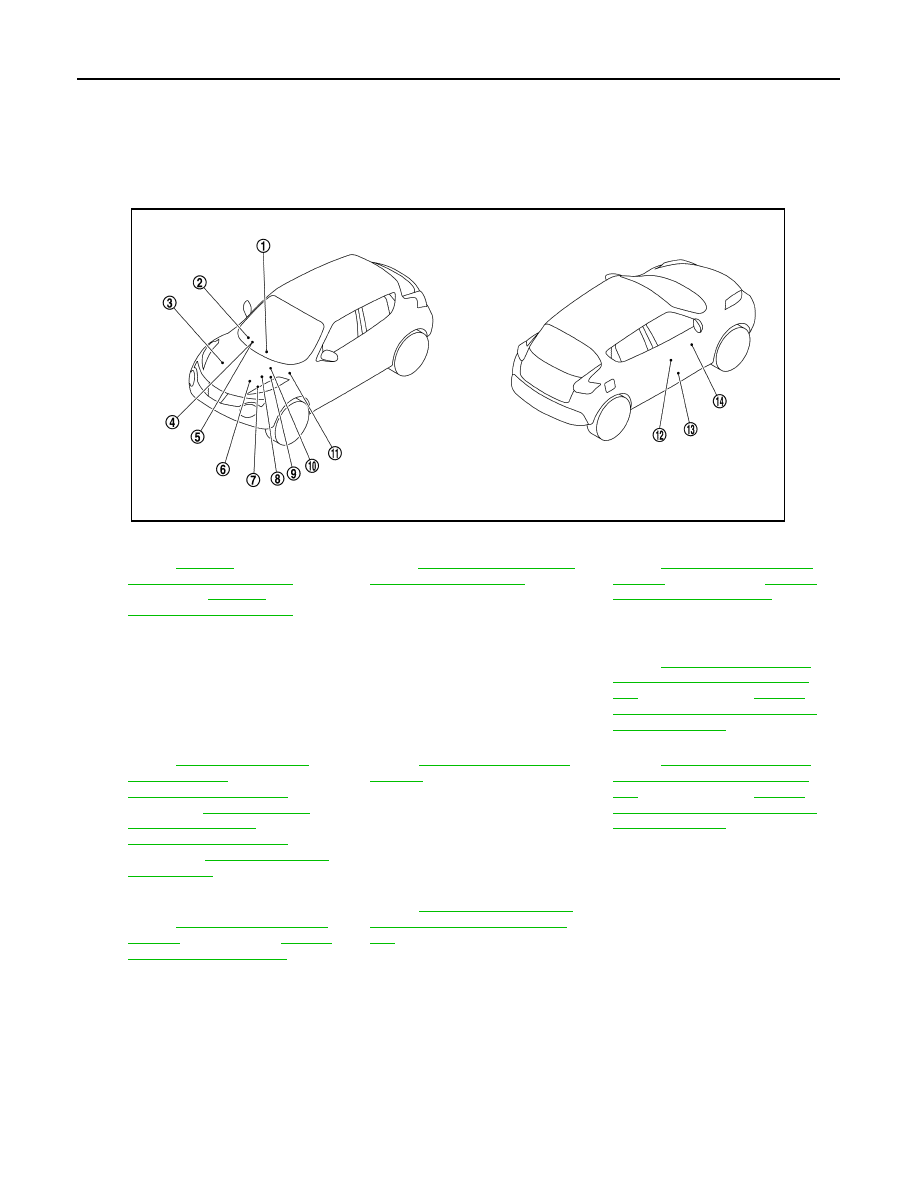

Component Parts Location

INFOID:0000000006627971

Remote keyless entry receiver
Refer to

DLK-361,

"Component Parts Location"

(With

super lock) or

DLK-492,

"Component Parts Location"

(With-

out super lock).

Combination meter
Refer to

MWI-4, "METER SYSTEM :

Component Parts Location"

Stop lamp switch
Refer to

BRC-9, "Component Parts

Location"

(Without ESP) or

BRC-97,

"Component Parts Location"

(With

ESP).

NATS antenna amp.
(Behind ignition switch)

Ignition switch

Transmission range switch
Refer to

TM-131, "CVT CONTROL

SYSTEM : Component Parts Loca-
tion"

(CVT: RE0F10A) or

TM-314,

"CVT CONTROL SYSTEM : Compo-
nent Parts Location"

(RE0F11A).

ECM
Refer to

EC-25, "ENGINE CON-

TROL SYSTEM :
Component Parts Location"

(MR16DDT),

EC-455, "ENGINE

CONTROL SYSTEM :
Component Parts Location"

(HR16DE) or

EC-813, "Component

Parts Location"

(K9K).

IPDM E/R
Refer to

PCS-5, "Component Parts

Location"

TCM
Refer to

TM-131, "CVT CONTROL

SYSTEM : Component Parts Loca-
tion"

(CVT: RE0F10A) or

TM-314,

"CVT CONTROL SYSTEM : Compo-
nent Parts Location"

(RE0F11A).

10. ABS actuator and electric unit (con-

trol unit)
Refer to

BRC-9, "Component Parts

Location"

(Without ESP) or

BRC-97,

"Component Parts Location"

(With

ESP).

11.

BCM
Refer to

BCS-6, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

12. Front door lock assembly

13. Front door switch (driver side)

14. Power window main switch

(door lock/unlock switch)

JMKIA6129ZZ

COMPONENT PARTS

SEC-171

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SEC

Component Description

INFOID:0000000006627972

BCM

INFOID:0000000006627973

BCM performs the ID verification between BCM and ECM when ignition switch is turned ON.
If the verification result is OK, ECM can start engine. If the verification result is NG, ECM cannot start engine.

IPDM E/R

INFOID:0000000006627974

Starter control relay is integrated in IPDM E/R and used for the engine starting system. Starter control relay is
controlled by IPDM E/R while communicating with BCM and ECM. IPDM E/R sends the starter control relay
status signal to ECM.

Door Switch

INFOID:0000000006627975

Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.

Hood Switch

INFOID:0000000006627976

Hood switch detects that hood is open, and then transmits the signal to IPDM E/R. IPDM E/R transmits hood
switch signal to BCM via CAN communication.

Ignition Key

INFOID:0000000006627977

The ID verification is performed between BCM and ignition key via NATS antenna amp. when ignition switch is
turned ON. If an unregistered ID of ignition key is used, the operation of the starting engine is prohibited.

NATS Antenna Amp.

INFOID:0000000006627978

Remote Keyless Entry Receiver

INFOID:0000000006627979

Remote keyless entry receiver receives each button operation signal and electronic key ID signal from Keyfob,
and then transmits the signal to BCM.

Security Indicator Lamp

INFOID:0000000006627980

Security indicator lamp is located on combination meter.
Security indicator lamp blinks when power supply position is in any position except the ON position to warn
that Nissan Anti-Theft System (NATS) is on board.

Component Reference

BCM

IPDM E/R

Door switch

Hood switch

Ignition key

NATS antenna amp.

Remote keyless entry receiver

SEC-171

Security indicator lamp

SEC-171

Starter control relay

SEC-172

Transmission range switch

SEC-172

SYSTEM

SEC-173

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SEC

SYSTEM

NISSAN ANTI-THEFT SYSTEM

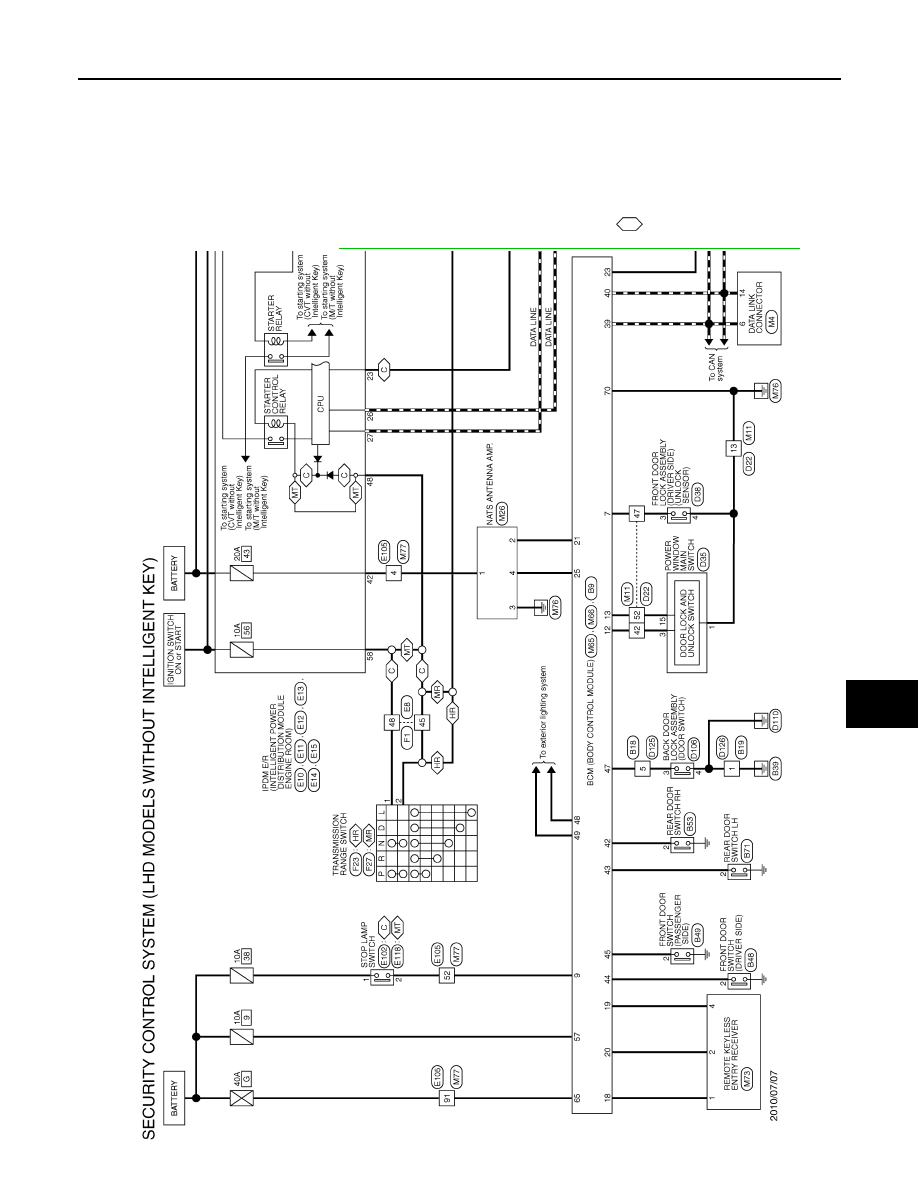

NISSAN ANTI-THEFT SYSTEM : System Diagram

INFOID:0000000006627983

NISSAN ANTI-THEFT SYSTEM : System Description

INFOID:0000000006627984

SYSTEM DESCRIPTION

Nissan Anti-Theft System (NATS) has the following immobilizer functions:
• NATS shows high anti-theft performance to prevent engine from starting by anyone other than the owner

who has the registered ignition key.

• The ignition key has NATS ID and only ignition key which has the same ID as the ID registered in BCM and

ECM can start engine. This makes high anti-theft performance to prevent the vehicle from being stolen using
a copied ignition key.

• Security indicator lamp always blinks when ignition switch is in any position other than the ON position.

Therefore, NATS warns outsiders that the vehicle is equipped with the anti-theft system.

• If the system detects a malfunction, security indicator lamp illuminates when ignition switch is turned ON.
• If the owner requires, ignition key ID can be registered for up to 5 keys.
• During trouble diagnosis, when additional ignition key is needed, or when the following components are

replaced, the ID registration is required. For the registration procedure, refer to CONSULT-III Operation
Manual NATS-IVIS/NVIS.

- BCM
- Ignition key
• Possible symptom of NATS malfunction is “Engine cannot start”. The engine also can not be started

because of other than the NATS malfunction, so start the trouble diagnosis according to

SEC-187, "Work

Flow"

• If ECM other than Genuine NISSAN parts is installed, the engine cannot be started. For ECM replacement

procedure, refer to

EC-447, "Removal and Installation"

(MR16DDT), or

EC-805, "Removal and Installation"

(HR16DE).

PRECAUTIONS FOR KEY REGISTRATION

• Refer to CONSULT-III Operation Manual NATS-IVIS/NVIS, for the actual procedure of NATS ID registration.
• The NATS ID registration is the procedure that registers the ID stored into the ignition key (transponder is

integrated) to BCM.

SECURITY INDICATOR LAMP

• Security indicator lamp is located on combination meter and warns that the vehicle is equipped with NATS.
• Security indicator lamp always blinks, when the ignition switch is in any position other than the ON position.
• Security indicator lamp turns OFF when the ignition switch is in ON position.

OPERATION WHEN IGNITION KEY IS INSERTED INTO IGNITION KEY CYLINDER

JMKIA6130GB

SEC-174

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SYSTEM

When ignition switch is turned ON, BCM activates NATS antenna amp. to start NATS ID verification with
the ignition key (transponder is integrated).

BCM receives the NATS ID signal from ignition key via NATS antenna amp. and verifies it with the regis-
tered ID.

When the NATS ID verification result is OK, BCM performs the ID verification between BCM and ECM.

When the verification result is OK, BCM sends the verification OK signal to ECM, and then ECM can start
the engine.

When the ignition switch is turned to the START position, BCM sends the starter request signal to IPDM E/
R.

VEHICLE SECURITY SYSTEM

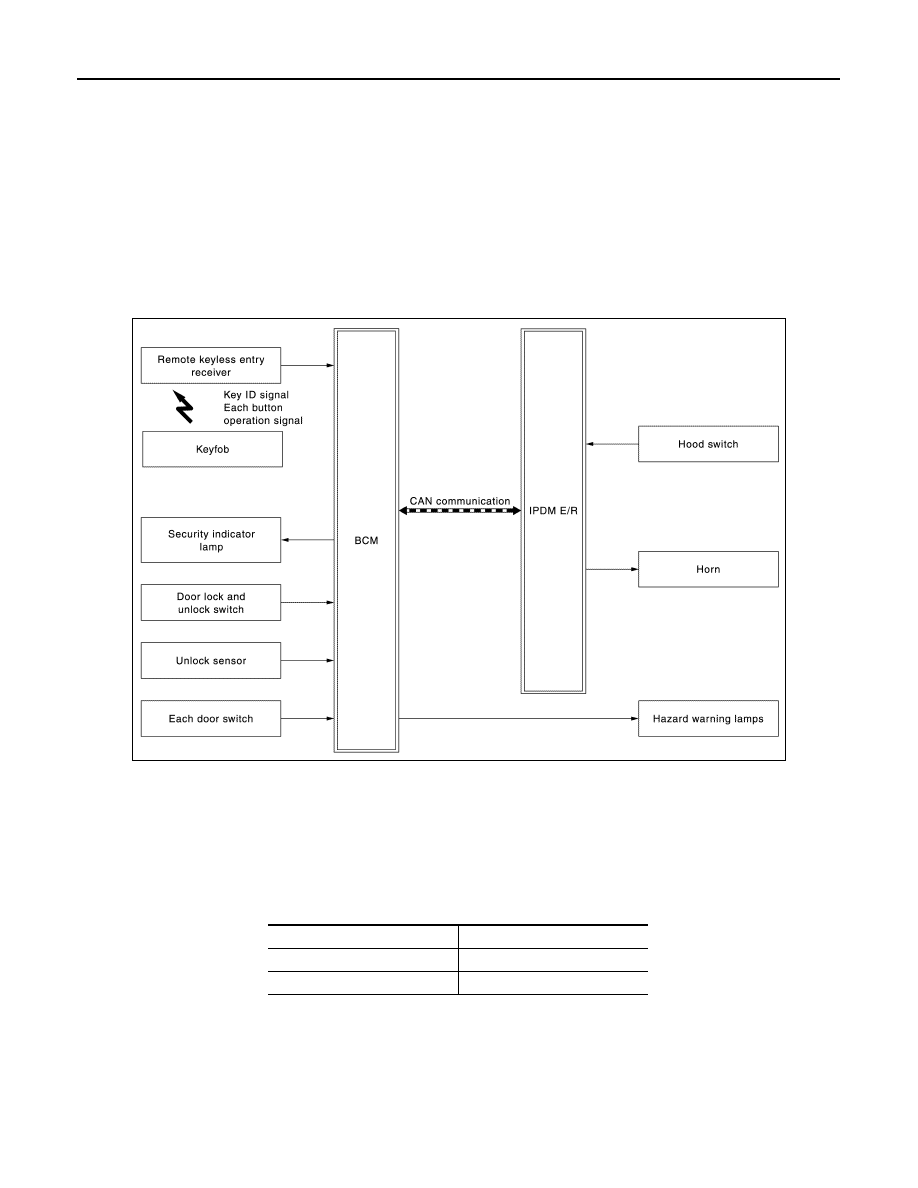

VEHICLE SECURITY SYSTEM : System Diagram

INFOID:0000000006627985

VEHICLE SECURITY SYSTEM : System Description

INFOID:0000000006627986

• The vehicle security system has two alarm functions (theft warning alarm and panic alarm), and reduces the

possibility of a theft or mischief by activating horns and hazard warning lamps intermittently.

• The panic alarm does not start when the theft warning alarm is activating, and the panic alarm stops when

the theft warning alarm is activated.
The priority of the functions are as per the following.

THEFT WARNING ALARM

• The theft warning alarm function activates horns and hazard warning lamps intermittently when BCM detects

that any door or hood is opened by unauthorized means, while the system is in the ARMED state.

• Security indicator lamp on combination meter always blinks when ignition switch is any position other than

ON. Security indicator lamp blinking warns that the vehicle is equipped with a vehicle security system.

JMKIA6131GB

Priority

Function

Theft warning alarm

Panic alarm

SYSTEM

SEC-175

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SEC

Operation Flow

JMKIA6132GB

No.

System state

Switching condition

DISARMED to
Full Pre-Armed

When all conditions of A and
one condition of B are satis-
fied.

• Ignition switch: OFF
• All doors: Closed
• Hood: Closed

All doors are locked by:
• LOCK button of Keyfob
• Driver side key cylinder operation
• Auto door lock function

DISARMED to
Partial Pre-
Armed

When all conditions of A and
one condition of B are satis-
fied.

• Ignition switch: OFF
• Door or hood: Open

All closed doors are locked by:
• LOCK button of Keyfob
• Driver side key cylinder operation
• Door lock and unlock switch
• Auto door lock function

Full Pre-Armed
to Full Armed

When all of the following
conditions are satisfied for
20 seconds.

• Ignition switch: Not changed
• Door condition: Not changed
• Hood condition: Not changed

Partial Pre-
Armed to Par-
tial Armed

Full Armed to
ALARM

When one of the following
condition is satisfied.

• Hood condition: Closed

→

Open

• Door condition: Closed

→

Open

• Ignition switch: OFF

→

ON (Without OK result of ID verification)

Partial Armed
to ALARM

Full Pre-Armed
to Partial Pre-
Armed

When the following condition
is satisfied.

Any door or hood: Open

Partial Pre-
Armed to Full
Pre-Armed

When the following condition
is satisfied.

All open doors and hood: Closed

Partial Armed
to Full Armed

When 20 seconds are past
after the following condition
is satisfied.

All open doors and hood: Closed

ALARM to Full
Armed
(REALARM
function)

When all conditions of A are
NOT satisfied and all condi-
tions of B are satisfied, after
the ALARM operation is fin-
ished.

• ID verification: OK
• UNLOCK button of Keyfob: ON

• All doors: Closed
• Hood: Closed

SEC-176

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SYSTEM

• *1: If ignition switch is turned ON without OK result of ID verification, the system status changes to the ALARM phase via the Partial

Pre-Armed and Partial Armed phases.

• *2: If ignition switch is turned ON without OK result of ID verification, the system status changes to the ALARM phase via the Partial

Armed phases.

NOTE:

• To lock/unlock all doors by operating remote controller button of keyfob, the keyfob must be within the detection area of remote key-

less entry receiver. For details, refer to

DLK-366, "REMOTE KEYLESS ENTRY FUNCTION : System Description"

(Models with super

lock), or

DLK-497, "System Description"

(Models without super lock).

DISARMED Phase

The vehicle security system is not set in the DISARMED phase. Security indicator lamp blinks every 2.4 sec-
onds. When the vehicle security system is reset, each phase switches to the DISARMED phase directly.

PRE-ARMED Phase

The PRE-ARMED phase is the transient state between the DISARMED phase and the ARMED phase. This
phase is maintained for 20 seconds, so that the owner can reset the setting due to a mis-operation. This phase
switches to the ARMED phase when vehicle conditions are not changed for 20 seconds.
There are two type of phase (Full Pre-Armed and Partial Pre-Armed).
• Full Pre-Armed phase

Vehicle security system enters into this phase when all doors are closed. Security indicator lamp blinks at 8
Hz while being in this phase. If any door is opened during this phase, the system status changes to Partial
Pre-Armed phase.
To reset this phase, refer to the switching condition of No. 14 in the table above.

• Partial Pre-Armed phase

Vehicle security system enters into this phase when one or more doors are open. Security indicator lamp
does not blink while being in this phase. If all doors are closed during this phase, the system status changes
to Full Pre-Armed phase.
To reset this phase, refer to the switching condition of No. 15 in the table above.

ARMED Phase

The vehicle security system is set, and BCM monitors all necessary inputs. If any door or hood is opened by
unauthorized means, vehicle security system switches to the ALARM phase. Security indicator lamp blinks
every 2.4 seconds.

Full Armed to
ALARM
(REALARM
function)

When one of the following
conditions is satisfied within
5 seconds after entering into
Full Armed phase from
ALARM phase.

• Any door: Open
• Hood: Open

ALARM to Par-
tial Armed
(REALARM
function)

When all conditions of A are
NOT satisfied and condition
B are satisfied, after the
ALARM operation is finished.

• ID verification: OK
• UNLOCK button of Keyfob: ON

Any door or hood: Open

Partial Armed
to ALARM
(REALARM
function)

When one of the following
conditions is satisfied within
5 seconds after entering into
Partial Armed phase from
ALARM phase.

• Any door or hood: Open

(Except doors or hood that are open when entering into the Partial Armed
phase from the Partial Pre-Armed phase.)

Full Pre-Armed
to DISARMED

When one of the following
conditions is satisfied.

• ID verification: OK*

• UNLOCK button of Keyfob: ON

Partial Pre-
Armed to DIS-
ARMED

When one of the following
conditions is satisfied.

• ID verification: OK*

• UNLOCK button of Keyfob: ON

Full Armed to
DISARMED

When one of the following
conditions is satisfied.

• ID verification: OK
• UNLOCK button of Keyfob: ON

Partial Armed
to
DISARMED

ALARM to
DISARMED

No.

System state

Switching condition

SYSTEM

SEC-177

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SEC

There are two type of phase (Full Armed and Partial Armed).
• Full Armed phase

Vehicle security system enters into this phase from Full Pre-Armed phase.
To reset this phase, refer to the switching condition of No. 16 in the table above.

• Partial Armed phase

Vehicle security system enters into this phase from Partial Pre-Armed phase. If all doors are closed during
being this phase, the system status changes to Full Armed phase.
To reset this phase, refer to the switching condition of No. 17 in the table above.

ALARM Phase

BCM transmits “Theft Warning Horn Request” signal intermittently to IPDM E/R via CAN communication, and
blinks hazard warning lamps. In this phase, horns and hazard warning lamps are activated intermittently for
approximately 27.5 seconds to warn that the vehicle is accessed by unauthorized means.
Horns are sounding at 2.5 Hz, and hazard warning lamps blinks at 1.42 Hz.
To cancel the ALARM operation, refer to the switching condition of No. 18 in the table above.
NOTE:
If a battery terminal is disconnected during the ALARM phase, theft warning alarm stops. But when the battery
terminal is reconnected, theft warning alarm is activated again.

REALARM Phase

When ALARM phase is maintained for 27.5 seconds without any cancel operation, the system status returns
to the ARMED phase. At this time, if BCM still detects unauthorized access to the vehicle, the system is
switched to the ALARM phase again. This REALARM operation is carried out a maximum of 8 times.

PANIC ALARM

Panic alarm is not applied to this models.

SEC-178

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000006683314

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

: Applicable item

• *1: This item is displayed, but is not used.

• *2: For models with automatic A/C, this mode is not used.

THEFT ALM

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM. Refer to CONSULT-III opera-
tion manual.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

Rear window defogger

REAR DEFOGGER

Warning chime

BUZZER

Interior room lamp control

INT LAMP

Remote keyless entry system

MULTI REMOTE ENT

Exterior lamp

HEAD LAMP

Wiper and washer

WIPER

Turn signal and hazard warning lamps

FLASHER

• Automatic A/C
• Manual A/C
• Manual heater

AIR CONDITONER

Combination switch

COMB SW

Body control system

BCM

NATS

IMMU

Interior room lamp battery saver

BATTERY SAVER

Back door open

TRUNK

Vehicle security system

THEFT ALM

—

RETAINED PWR*

Signal buffer system

SIGNAL BUFFER

—

PANIC ALARM*

DIAGNOSIS SYSTEM (BCM)

SEC-179

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SEC

THEFT ALM : CONSULT-III Function (BCM - THEFT)

INFOID:0000000006627988

WORK SUPPORT

ACTIVE TEST

IMMU

IMMU : CONSULT-III Function (BCM - IMMU)

INFOID:0000000006627989

WORK SUPPORT

ACTIVE TEST

Service Item

Description

SECURITY ALARM SET

This mode is able to confirm and change security alarm ON-OFF setting.

THEFT ALM TRG

The switch which triggered vehicle security alarm is recorded.
This mode is able to confirm and erase the record of vehicle security alarm.
The trigger data can be erased by touching “CLEAR” on CONSULT-III screen.

Test Item

Description

THEFT IND

This test is able to check security indicator lamp operation. Security indicator lamp will be
turned on when “ON” on CONSULT-III screen is touched.

VEHICLE SECURITY HORN

This test is able to check horn operation. Horn will be activated for 0.5 seconds after “ON” on
CONSULT-III screen is touched.

HEADLAMP (HI)

This test is able to check headlamp (HI) operation. Headlamps (HI) will be activated for 0.5
seconds after “ON” on CONSULT-III screen is touched.

FLASHER

This test is able to check hazard warning lamp operation. Hazard warning lamps will be acti-
vated after “LH” or “RH” on CONSULT-III screen is touched.

Service item

Description

CONFIRM DONGLE ID

It is possible to check that dongle unit is applied to the vehicle.

Test item

Description

THEFT IND

This test is able to check security indicator lamp operation. Security indicator lamp will be
turned on when “ON” on CONSULT-III screen is touched.
