Juke F15 (2012 year). Service Repair Manual - part 310

RSU-14

< REMOVAL AND INSTALLATION >

[2WD]

REAR SUSPENSION BEAM

16. Perform inspection after removal. Refer to

RSU-14, "Inspection"

INSTALLATION

Note the following, and install in the reverse order of removal.
• Never reuse rear suspension beam mounting nut.
• To install rear suspension arm bracket to the vehicle, temporarily

tighten the bolts before tightening to the specified torque, referring
to the tightening method and the numerical order shown below:

• Perform final tightening of rear suspension beam installation posi-

tion (rubber bushing), under unladen conditions with tires on level
ground.

• Perform inspection after installation. Refer to

RSU-14, "Inspection"

Inspection

INFOID:0000000006545101

INSPECTION AFTER REMOVAL

Check rear suspension beam and rear suspension beam bracket for deformation, cracks or damage. Replace
the part if necessary.

INSPECTION AFTER INSTALLATION

Check wheel sensor harness for proper connection. Refer to

BRC-85, "REAR WHEEL SENSOR :

Exploded View"

(Without ESP),

BRC-225, "REAR WHEEL SENSOR : Exploded View"

(With ESP).

Adjust parking brake. Refer to

PB-2, "Inspection and Adjustment"

Check wheel alignment. Refer to

RSU-6, "Inspection"

Adjust neutral position of steering angle sensor. Refer to

BRC-149, "Work Procedure"

. (With ESP)

Temporary tightening

: 1

→

Final tightening (specified torque)

: 5

→

: Vehicle front

JPEIB0247ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

RSU-15

< SERVICE DATA AND SPECIFICATIONS (SDS)

[2WD]

RSU

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Alignment

INFOID:0000000006545102

HR16DE, K9K

Measure value under unladen

conditions.

*1: Since adjustment mechanism is not included, the value of the left and right wheels (both wheels) must be
used as the standard value.
*2: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated posi-
tions.

MR16DDT

Measure value under unladen

conditions.

Wheelarch Height

INFOID:0000000006545103

Item

Standard

Wheel size

16 inch

17 inch

Camber
Degree minute (Decimal degree)

Minimum

−

′

(

−

2.01

)

Nominal

−

′

(

−

1.52

)

Maximum

−

′

(

−

1.02

)

Toe-in

Total toe-in
Distance

Minimum

Out 0.3 mm (Out 0.012 in)

Out 0.2 mm (Out 0.008 in)

Nominal

In 3.7 mm (In 0.146 in)

In 3.8 mm (In 0.150 in)

Maximum

In 7.7 mm (In 0.303 in)

In 7.8 mm (In 0.307 in)

Toe angle (left wheel and

right wheel)

Degree minute (Decimal
degree)

Minimum

Out 0

′

(Out 0.05

)

Nominal

In 0

′

(In 0.33

)

Maximum

In 0

′

(In 0.72

)

Item

Standard

Camber
Degree minute (Decimal degree)

Minimum

−

′

(

−

2.01

)

Nominal

−

′

(

−

1.52

)

Maximum

−

′

(

−

1.02

)

Toe-in

Total toe-in
Distance

Minimum

0.0 mm (0.0 in)

Nominal

In 4.0 mm (In 0.16 in)

Maximum

In 8.0 mm (In 0.31 in)

Toe angle (left wheel and right wheel)

Degree minute (Decimal degree)

Minimum

Out 0

′

(Out 0.04

)

Nominal

In 0

′

(In 0.35

)

Maximum

In 0

′

(In 0.73

)

Item

Standard

Engine type

HR16DE

MR16DDT

K9K

Wheel size

16 inch

17 inch

16 inch

17 inch

Front (Hf)

730 mm (28.74 in)

740 mm (29.13 in)

737 mm (29.02 in)

726 mm (28.58 in)

737 mm (29.02 in)

RSU-16

< SERVICE DATA AND SPECIFICATIONS (SDS)

[2WD]

SERVICE DATA AND SPECIFICATIONS (SDS)

Measure value under unladen* conditions.

*: Fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and mats are in designated positions.

Rear (Hr)

740 mm (29.13 in)

750 mm (29.53 in)

747 mm (29.41 in)

740 mm (29.13 in)

750 mm (29.53 in)

Item

Standard

Engine type

HR16DE

MR16DDT

K9K

Wheel size

16 inch

17 inch

16 inch

17 inch

SFA746B

PRECAUTIONS

RSU-17

< PRECAUTION >

[4WD]

RSU

PRECAUTION

PRECAUTIONS

Precautions for Suspension

INFOID:0000000006601390

• When installing rubber bushings, the final tightening must be carried out under unladen conditions with tires

on ground. Spilled oil might shorten the life of rubber bushings. Be sure to wipe off any spilled oil.

- Unladen conditions mean that fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and

mats are in designated positions.

• After servicing suspension parts, be sure to check wheel alignment.
• Self-lock nuts are not reusable. Always use new ones when installing. Since new self-lock nuts are pre-oiled,

tighten as they are.

RSU-18

< SYMPTOM DIAGNOSIS >

[4WD]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000006601393

Use chart below to find the cause of the symptom. If necessary, repair or replace these parts.

: Applicable

Reference page

—

in DLN

section.

in DLN

section.

RAX and RSU sections.

NVH

ctio

NVH

ctio

NVH

RAX

cti

NVH

cti

NVH

ctio

Possible cause and SUSPECTED PARTS

Imp

rop

er ins

lla

tio

k ab

rbe

r de

rma

tio

or de

g o

ora

Part

s interference

ring

tig

Inc

rre

whe

l al

iliz

er ba

fat

PROPELLER SHAF

DIFFERENTIAL

REAR AXLE AND REA

SUSPENSI

TIRE

ROA

WHEEL

IVE SHAF

BRAKE

STEERING

Symptom

REAR SUSPENSION

Noise

Shake

Vibration

Shimmy

Judder

Poor quality ride or
handling

REAR SUSPENSION ASSEMBLY

RSU-19

< PERIODIC MAINTENANCE >

[4WD]

RSU

PERIODIC MAINTENANCE

REAR SUSPENSION ASSEMBLY

Inspection

INFOID:0000000006601394

MOUNTING INSPECTION

Check the mounting conditions (looseness, backlash) of each component and component conditions (wear,
damage) are normal.

SHOCK ABSORBER

Check for oil leakage and damage. Replace it if necessary.

RSU-20

< PERIODIC MAINTENANCE >

[4WD]

WHEEL ALIGNMENT

WHEEL ALIGNMENT

Inspection

INFOID:0000000006601395

DESCRIPTION

Measure wheel alignment under unladen conditions.
NOTE:
“Unladen conditions” means that fuel, engine coolant, and lubricant are full. Spare tire, jack, hand tools and
mats are in designated positions.

PRELIMINARY CHECK

Check the following:
• Tires for improper air pressure and wear
• Road wheels for runout: refer to

WT-7, "Inspection"

• Wheel bearing axial end play: refer to

RAX-12, "Inspection"

• Shock absorber operation
• Each mounting point of axle and suspension for looseness and deformation
• Each of lower link, upper link, rear suspension member, suspension arm and shock absorber for cracks,

deformation, and other damage

• Vehicle height (posture)

CAMBER

• Measure camber of both right and left wheels with a suitable align-

ment gauge.

• If camber is outside specified range, adjust with adjusting bolt in

rear lower link. Refer to

RSU-21, "Adjustment"

TOE-IN

Measure toe-in by the following procedure.

WARNING:

• Always perform the following procedure on a flat surface.
• Check that no person is in front of vehicle before pushing it.
1.

Bounce the front of vehicle up and down to stabilize the vehicle height (posture).

Push vehicle straight ahead about 5 m (16 ft).

Put matching mark (A) on base line of the tread (rear side) of
both tires at the same height of hub center. These are measur-
ing points.

Camber

: Refer to

RSU-37, "Wheel Alignment"

SRA096A

JPEIA0014ZZ

WHEEL ALIGNMENT

RSU-21

< PERIODIC MAINTENANCE >

[4WD]

RSU

Measure distance (A) (rear side).

Push vehicle slowly ahead to rotate wheels 180 degrees (1/2
turn).
NOTE:
If the wheels rotates more than 180 degrees (1/2 turn), start this
procedure again from the beginning. Do not push the vehicle
backward.

Measure distance (B) (front side).

• If toe-in is outside specified range, adjust with adjusting bolt in upper link and lower link. Refer to

RSU-

21, "Adjustment"

Adjustment

INFOID:0000000006601396

CAMBER, TOE-IN

CAUTION:

• Adjust camber first, then adjust toe-in last. never change the order.
• If camber angle needs to be adjusted, toe-in adjustment is necessary.
• Minimize difference of left and right toe-in within tolerance.

Loosen mounting nuts of upper link and lower link on the suspension member side.

Adjust camber and toe-in by turning upper link adjusting bolt (1)
and lower link adjusting bolt (2) alternately.

NOTE:

: Vehicle front

Total toe-in = A

−

Total toe-in

: Refer to

RSU-37, "Wheel Alignment"

JPEIA0015ZZ

: Left side

: Right side

Upper link adjusting bolt

Positive direction

: Upper link slides into inner side of vehicle.

Negative direction

: Upper link slides into outer side of vehicle.

Lower link adjusting bolt

Positive direction

: Lower link slides into outer side of vehicle.

Negative direction

: Lower link slides into inner side of vehicle.

JPEIB0259ZZ

RSU-22

< PERIODIC MAINTENANCE >

[4WD]

WHEEL ALIGNMENT

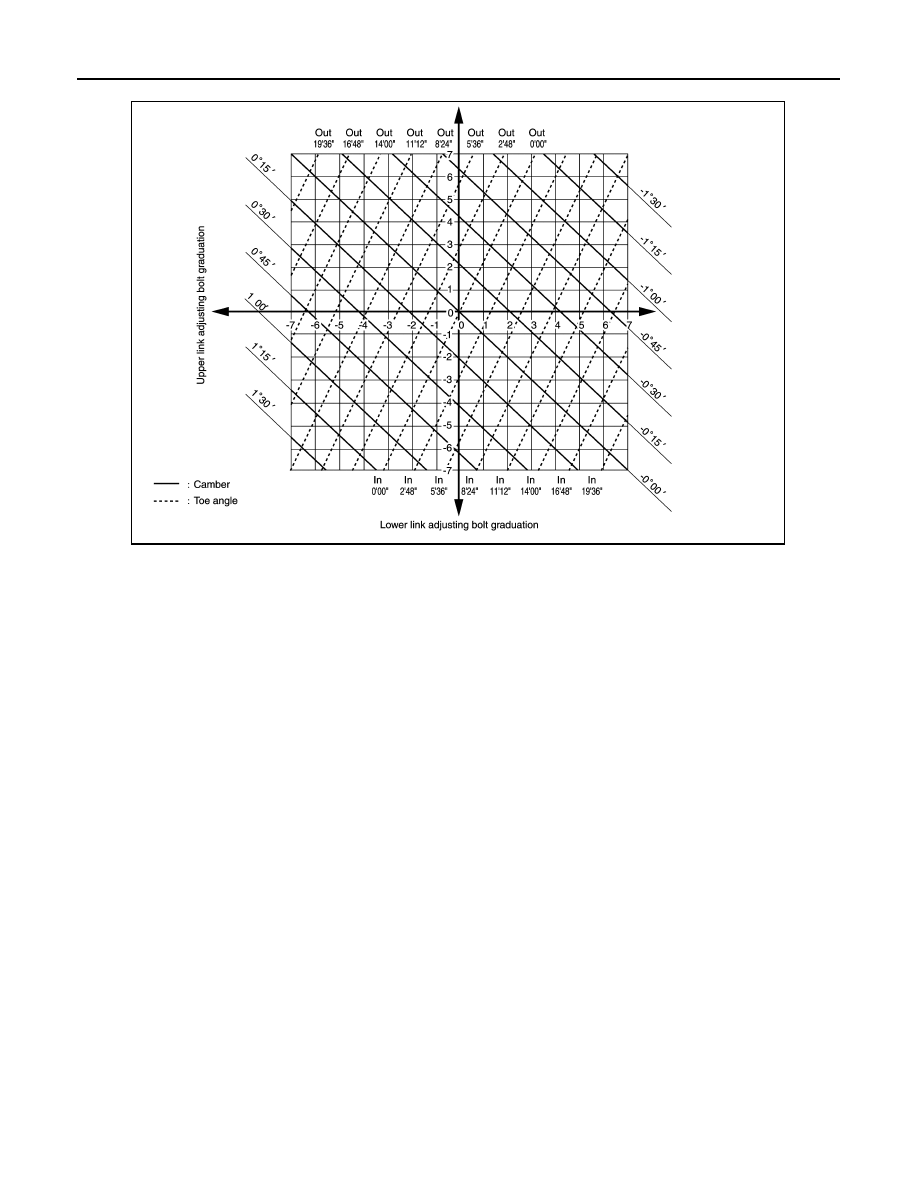

• Refer to the table below for easier adjustment.

- Obtain the amount of camber and toe-in by calculating the difference between the measurement result

and the standard value.

- Obtain the needed adjustment amount from the graph and move adjusting bolts, respectively.

After adjustment, tighten mounting nuts of upper link and lower link on the suspension member side.

CAUTION:

When tightening nut to the specified torque, the bolt must be fixed with a wrench.

JPEIB0260GB

REAR SHOCK ABSORBER

RSU-23

< REMOVAL AND INSTALLATION >

[4WD]

RSU

REMOVAL AND INSTALLATION

REAR SHOCK ABSORBER

Exploded View

INFOID:0000000006601397

Removal and Installation

INFOID:0000000006608124

REMOVAL

Remove tires. Refer to

WT-7, "Removal and Installation"

Set suitable jack under suspension arm.

CAUTION:

• Never damage the suspension arm with a jack.
• Check the stable condition when using a jack.

Remove shock absorber mounting bolt and nut (lower side).

Remove shock absorber mask. Refer to

INT-29, "Exploded View"

Remove cap.

Remove piston rod lock nut (1), and then remove washer and
bushing.
NOTE:
To loosen piston rod lock nut, fix the tip (A) of the piston rod.

Remove shock absorber assembly.

Remove bushing, distance tube, bound bumper cover, and
bound bumper from shock absorber.

Perform inspection after removal. Refer to

RSU-24, "Inspection"

INSTALLATION

Suspension arm

Shock absorber

Bound bumper

Bound bumper cover

Washer

Bushing

Distance tube

Piston rod lock nut

Cap

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JPEIB0257GB

JPEIB0241ZZ

RSU-24

< REMOVAL AND INSTALLATION >

[4WD]

REAR SHOCK ABSORBER

Note the following, and install in the reverse order of removal.
• To install bushings (1), securely insert protrusion (A) into the hole

on the vehicle body side.

• Install washer (1) in the direction shown in the figure.

• Perform final tightening of bolts and nuts at the shock absorber

lower side (rubber bussing), under unladen conditions with tires on
level ground.

• Hold a head (A) of shock absorber piston rod not to have it rotate,

then tighten the piston rod lock nut (1) to the specified torque.

CAUTION:

Never reuse piston rod lock nut.

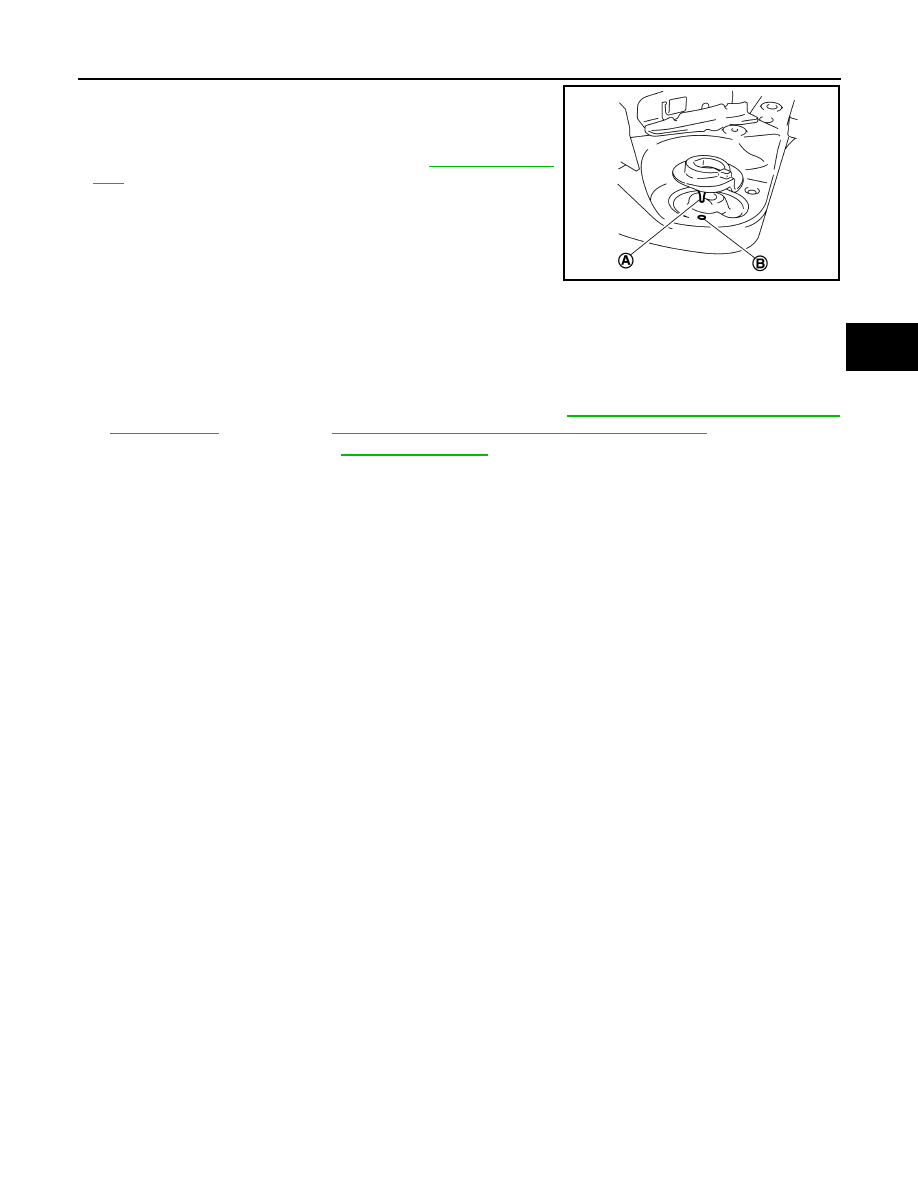

• When installing the cap, securely engage the cap groove (A) with

the flange on the vehicle side.

• Perform inspection after installation. Refer to

RSU-24, "Inspec-

tion"

• After replacing the shock absorber, always follow the disposal pro-

cedure to discard the shock absorber. Refer to

RSU-24, "Inspec-

tion"

Inspection

INFOID:0000000006608125

INSPECTION AFTER REMOVAL

Shock Absorber

Check the following items, and replace the part if necessary.
• Shock absorber for deformation, cracks, and other damage.
• Piston rod for damage, uneven wear, and distortion.
• Oil leakage

JPEIB0240ZZ

: Bushing side

JPEIB0248ZZ

JPEIB0241ZZ

JPEIB0244ZZ

REAR SHOCK ABSORBER

RSU-25

< REMOVAL AND INSTALLATION >

[4WD]

RSU

Bound Bumper, Bushing

Check for cracks and damage. Replace it if necessary.

Washer, Bound Bumper Cover, Distance Tube

• Check for cracks and damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

Check wheel alignment. Refer to

RSU-20, "Inspection"

Disposal

INFOID:0000000006608126

Set shock absorber horizontally to the ground with the piston rod fully extracted.

Drill 2 – 3 mm (0.08 – 0.12 in) hole at the position (

) from top

as shown in the figure to release gas gradually.

CAUTION:

• Wear eye protection (safety glass).
• Wear gloves.
• Be careful with metal chips or oil blown out by the com-

pressed gas.

NOTE:
• Drill vertically in this direction (

• Directly to the outer tube avoiding brackets.
• The gas is clear, colorless, odorless, and harmless.

Position the drilled hole downward and drain oil by moving the piston rod several times.

CAUTION:

Dispose of drained oil according to the law and local regulations.

: 20 – 30 mm (0.79 – 1.18 in)

JPEIA0161ZZ

RSU-26

< REMOVAL AND INSTALLATION >

[4WD]

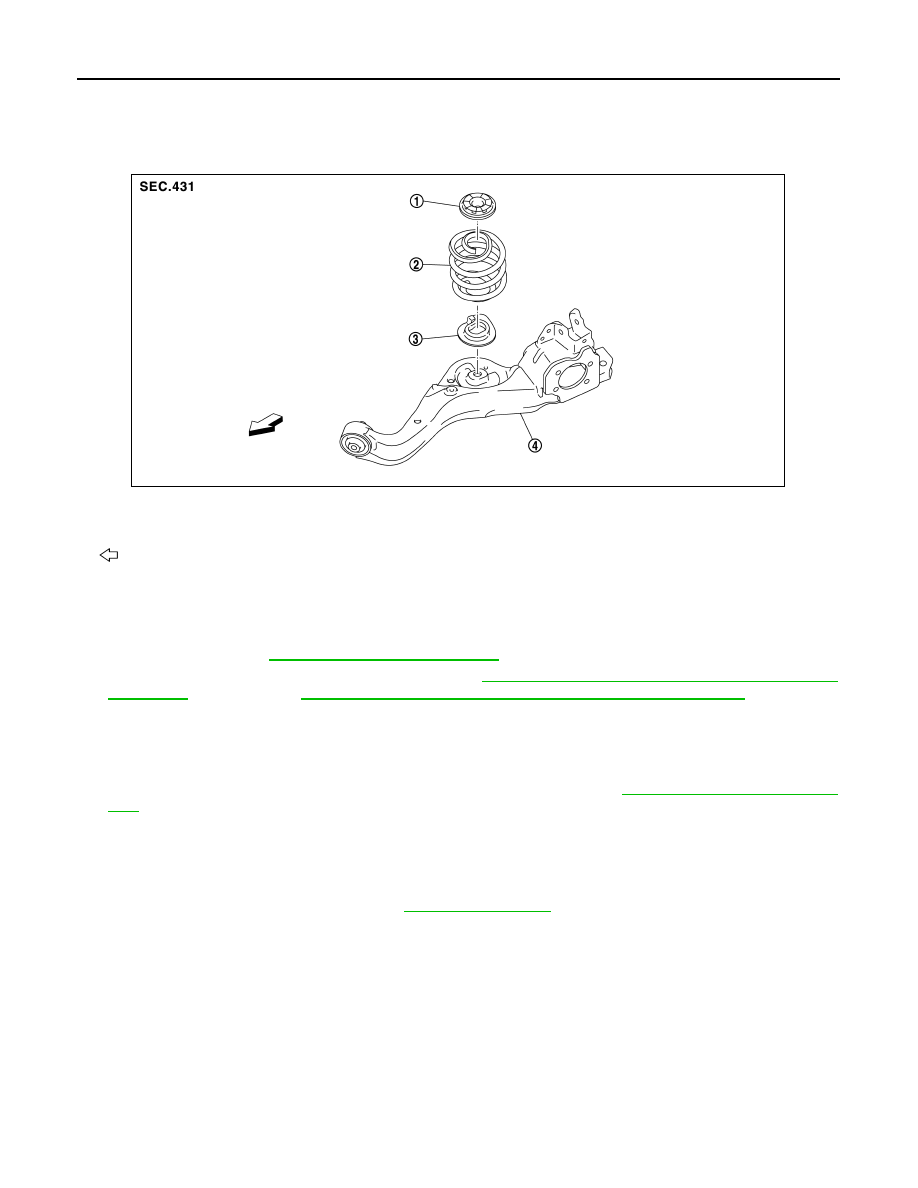

COIL SPRING

COIL SPRING

Exploded View

INFOID:0000000006601423

Removal and Installation

INFOID:0000000006601424

REMOVAL

Remove tires. Refer to

WT-7, "Removal and Installation"

Remove wheel sensor and sensor harness. Refer to

BRC-86, "REAR WHEEL SENSOR : Removal and

Installation"

(Without ESP),

BRC-227, "REAR WHEEL SENSOR : Removal and Installation"

(With ESP).

Set jack under suspension arm.

CAUTION:

• Never damage the suspension arm with a jack.
• Check the stable condition when using a jack.

Separate rear shock absorber lower side form suspension arm. Refer to

RSU-8, "Removal and Installa-

tion"

Separate upper link from suspension arm.

Slowly lower jack, then remove upper rubber seat, coil spring and lower rubber seat from suspension arm.

CAUTION:

Operate while checking that jack supporting status is stable.

Perform inspection after removal. Refer to

RSU-27, "Inspection"

INSTALLATION

Note the following, and install in the reverse order of removal.

Upper rubber seat

Coil spring

Lower rubber seat

Suspension arm

: Vehicle front

JPEIB0258ZZ

COIL SPRING

RSU-27

< REMOVAL AND INSTALLATION >

[4WD]

RSU

• Install the lower rubber seat a projection (A) is attached as suspen-

sion arm mounting hole (B).

• Match up lower rubber seat indentions and suspension arm

grooves and attach.

• Perform inspection after installation. Refer to

RSU-27, "Inspec-

tion"

Inspection

INFOID:0000000006608127

INSPECTION AFTER REMOVAL

Check lubber seat and coil spring for deformation, crack, and damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

Check wheel sensor harness for proper connection. Refer to

BRC-85, "REAR WHEEL SENSOR :

Exploded View"

(Without ESP),

BRC-225, "REAR WHEEL SENSOR : Exploded View"

(With ESP).

Check wheel alignment. Refer to

RSU-20, "Inspection"

JPEIB0261ZZ

RSU-28

< REMOVAL AND INSTALLATION >

[4WD]

SUSPENSION ARM

SUSPENSION ARM

Exploded View

INFOID:0000000006601402

Removal and Installation

INFOID:0000000006608141

REMOVAL

Remove tires. Refer to

WT-7, "Removal and Installation"

Drain brake fluid. Refer to

BR-12, "Draining"

(LHD),

BR-80, "Draining"

(RHD).

Remove wheel sensor and sensor harness. Refer to

BRC-86, "REAR WHEEL SENSOR : Removal and

Installation"

(Without ESP),

BRC-227, "REAR WHEEL SENSOR : Removal and Installation"

(With ESP).

Remove caliper assembly. Refer to

BR-65, "BRAKE CALIPER ASSEMBLY : Removal and Installation"

(LHD),

BR-131, "BRAKE CALIPER ASSEMBLY : Removal and Installation"

(RHD).

Remove disc rotor. Refer to

RAX-14, "Removal and Installation"

Remove parking brake cable mounting bolt. Refer to

PB-5, "Removal and Installation"

Separate the brake tube from the brake hose, and remove lock plate. Refer to

BR-30, "REAR : Exploded

View"

(LHD),

BR-97, "REAR : Exploded View"

(RHD).

Remove wheel hub assembly. Refer to

RAX-14, "Removal and Installation"

Remove parking brake shoe and back plate. Refer to

RAX-14, "Removal and Installation"

10. Set jack under suspension arm.

CAUTION:

Rear suspension member

Adjusting bolt

Upper link

Eccentric disk

Lower link

Suspension arm bracket

Suspension arm

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JPEIB0262GB

SUSPENSION ARM

RSU-29

< REMOVAL AND INSTALLATION >

[4WD]

RSU

• Never damage the suspension arm with a jack.
• Check the stable condition when using a jack.

11. Remove stabilizer link. Refer to

RSU-34, "Removal and Installation"

12. Remove upper link from suspension arm. Refer to

RSU-32, "Removal and Installation"

13. Remove lower link from suspension arm. Refer to

RSU-30, "Removal and Installation"

14. Remove coil spring from suspension arm. Refer to

RSU-26, "Removal and Installation"

15. Remove suspension arm bracket from vehicle.

16. Remove suspension arm from suspension arm bracket.

17. Perform inspection after removal. Refer to

RSU-29, "Inspection"

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of rear suspension member installation position (rubber bussing), under unladen

conditions with tires on level ground.

• Never reuse suspension arm mounting nut.
• Perform inspection after installation. Refer to

RSU-29, "Inspection"

Inspection

INFOID:0000000006608142

INSPECTION AFTER REMOVAL

Check suspension arm and bushing for deformation, cracks or damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

Check wheel sensor harness for proper connection. Refer to

BRC-85, "REAR WHEEL SENSOR :

Exploded View"

(Without ESP),
