Juke F15 (2012 year). Service Repair Manual - part 300

PG-52

< WIRING DIAGRAM >

HARNESS LAYOUT

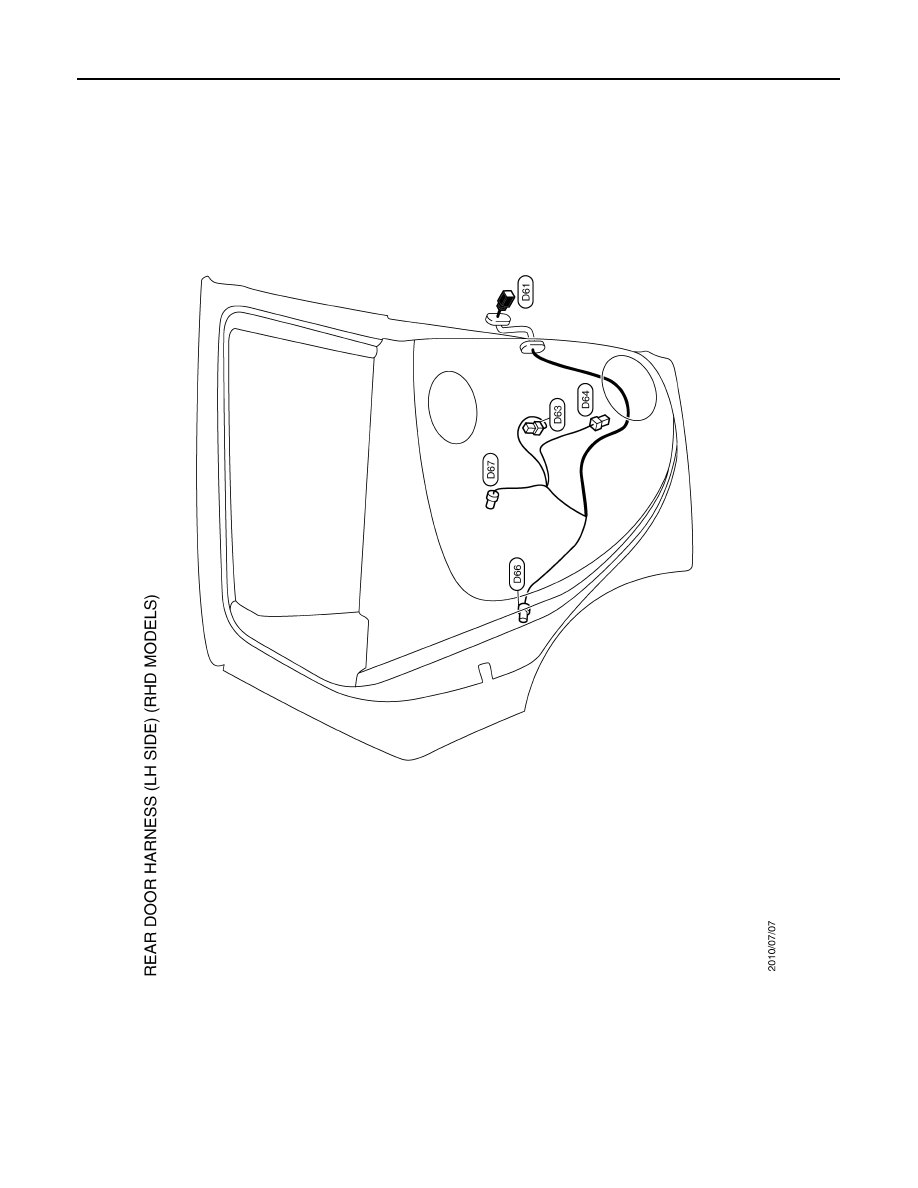

REAR DOOR HARNESS (LH SIDE)

JCMIA0801GB

PG

HARNESS LAYOUT

PG-53

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REAR DOOR HARNESS (RH SIDE)

JCMIA0802GB

PG-54

< WIRING DIAGRAM >

HARNESS LAYOUT

BACK DOOR HARNESS

JCMIA0803GB

PG

HARNESS LAYOUT

PG-55

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

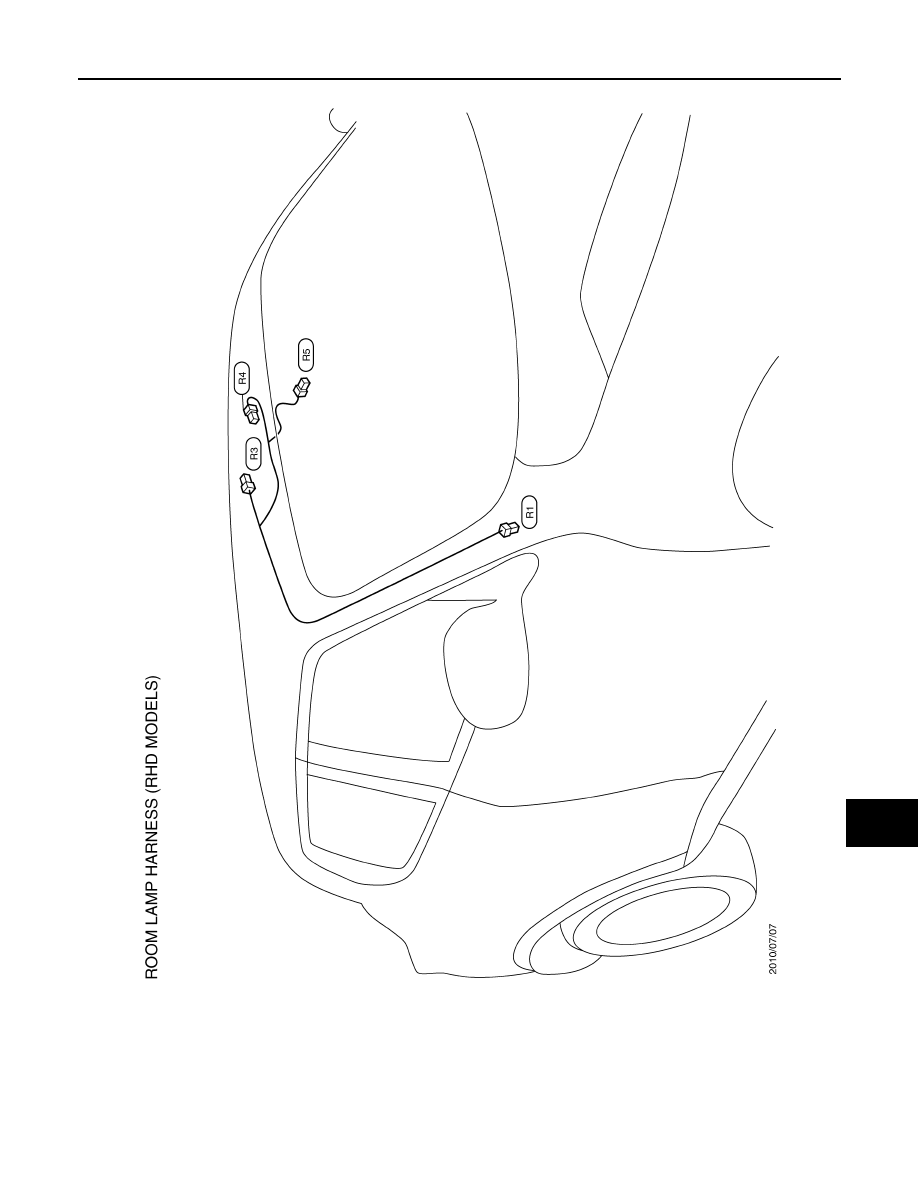

RHD : Room Lamp Harness

INFOID:0000000006658044

JCMIA0804GB

PG-56

< WIRING DIAGRAM >

CONNECTOR INFORMATION

CONNECTOR INFORMATION

How to Read Connector Type

INFOID:0000000006484288

1

: Connector model

2

: Cavity

3

: Male (M) and female (F) terminals

4

: Connector color

5

: Special type

JPMIA0113GB

PG

CONNECTOR INFORMATION

PG-57

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

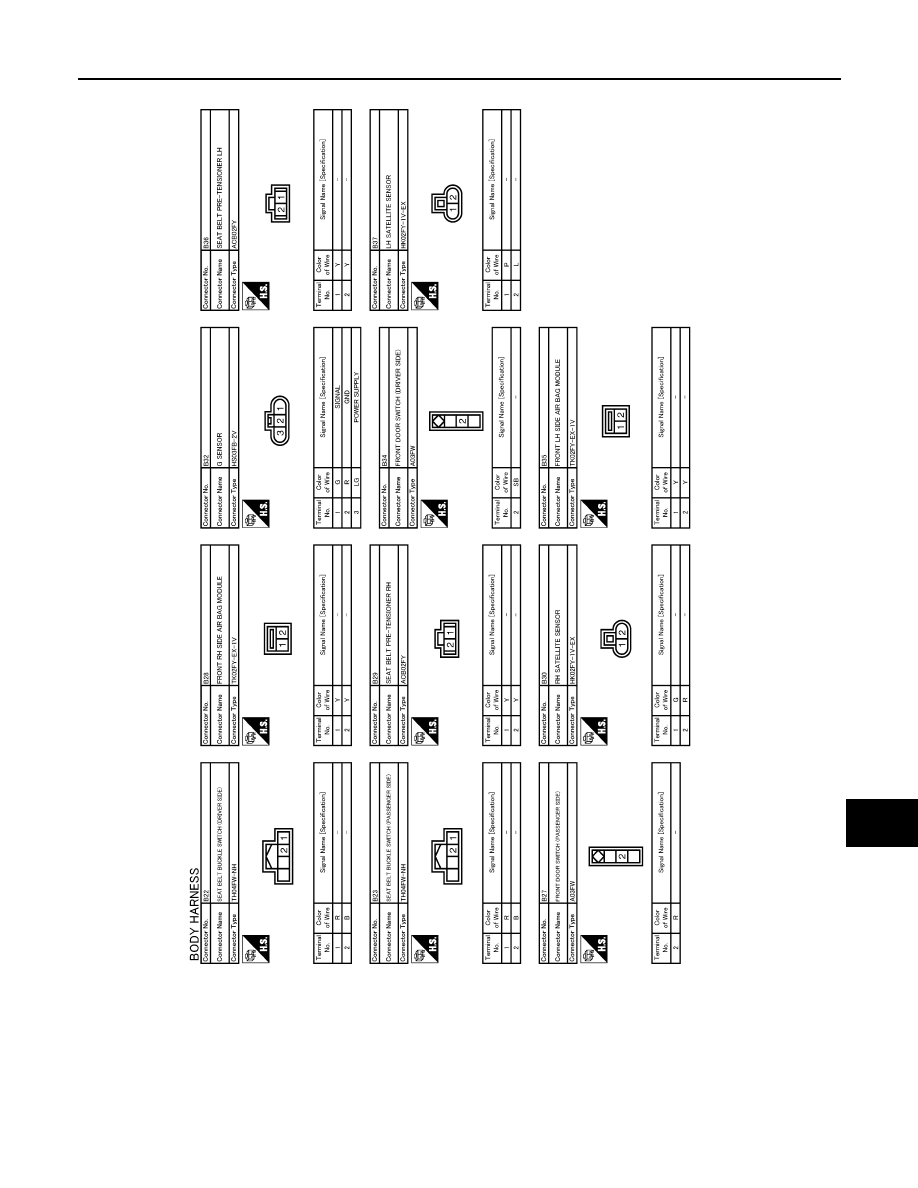

B Body Harness

INFOID:0000000006484289

JCMWA5897GB

PG-58

< WIRING DIAGRAM >

CONNECTOR INFORMATION

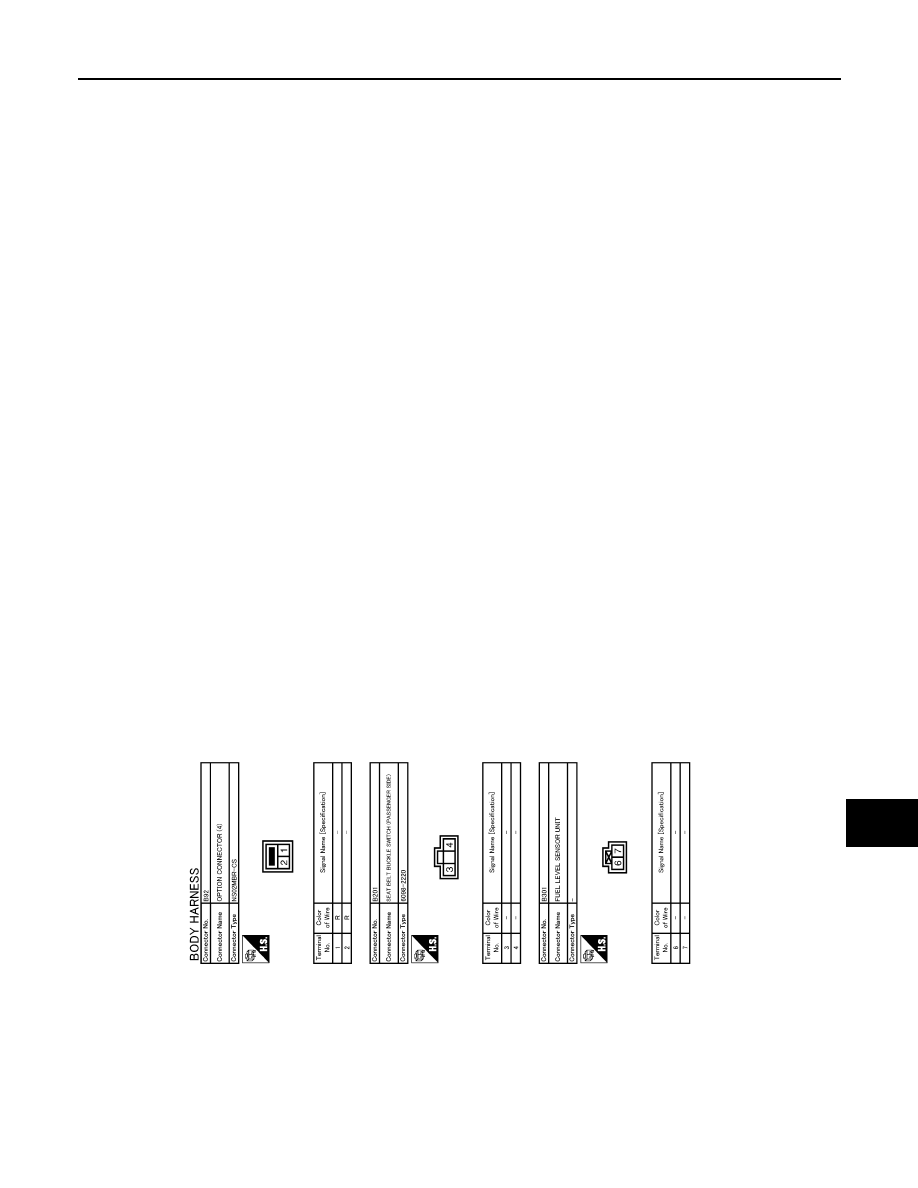

JCMWA5898GB

PG

CONNECTOR INFORMATION

PG-59

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

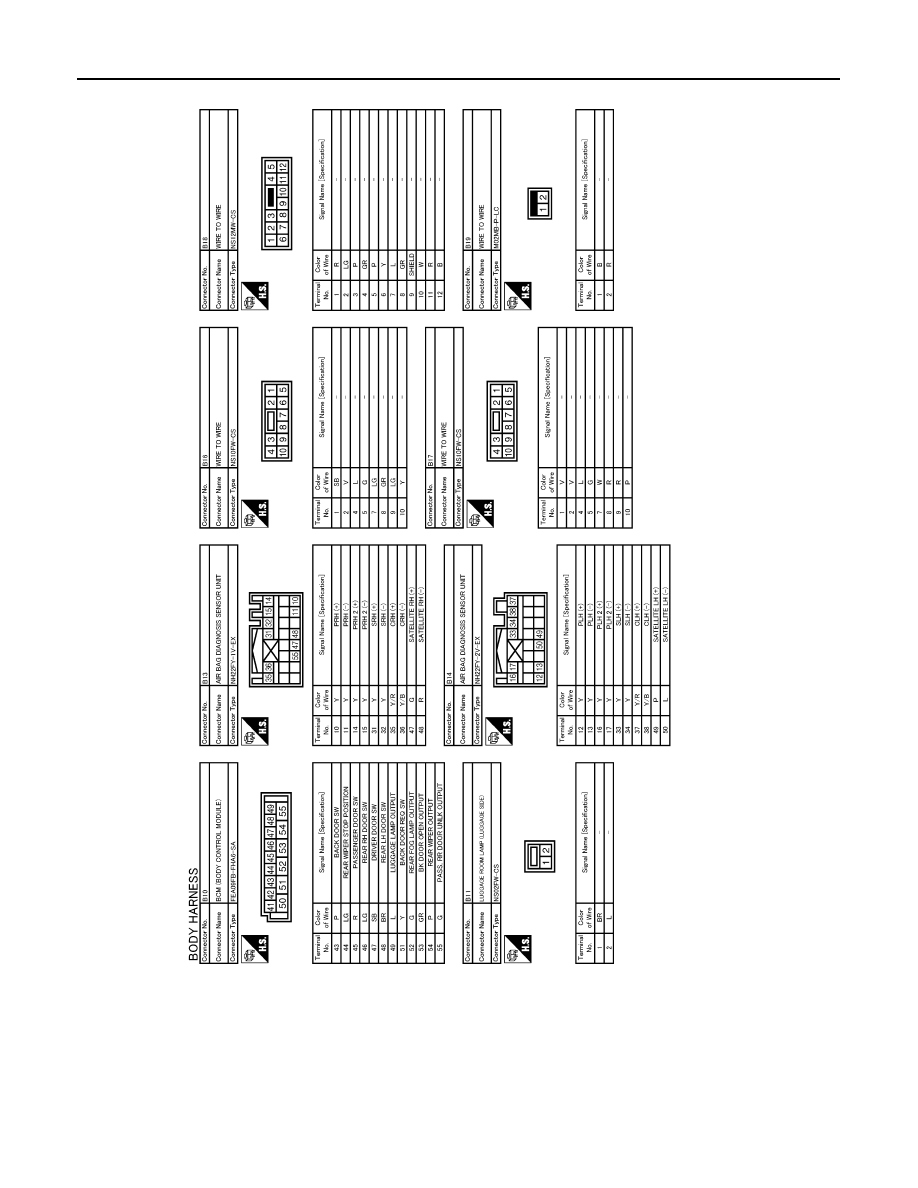

JCMWA5899GB

PG-60

< WIRING DIAGRAM >

CONNECTOR INFORMATION

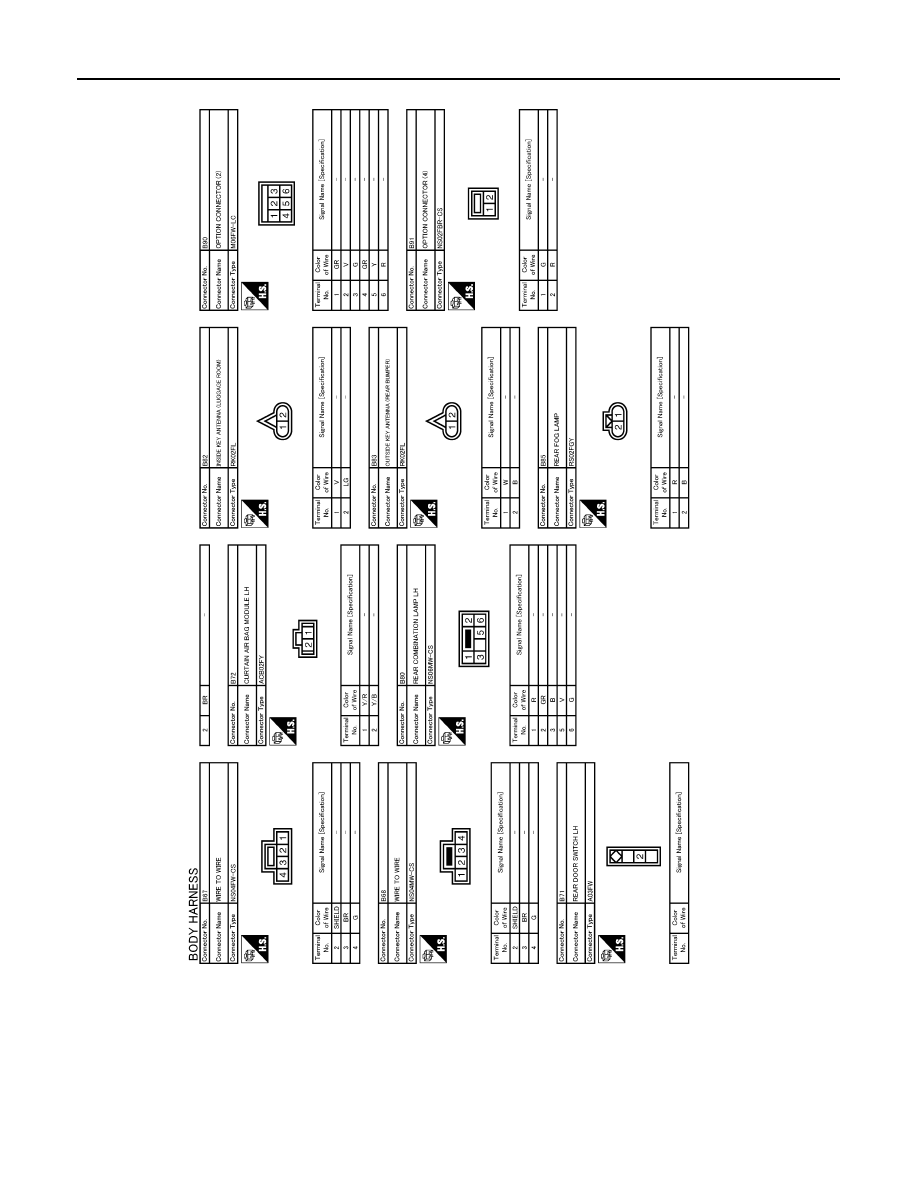

JCMWA5900GB

PG

CONNECTOR INFORMATION

PG-61

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWA5901GB

PG-62

< WIRING DIAGRAM >

CONNECTOR INFORMATION

JCMWA5902GB

PG

CONNECTOR INFORMATION

PG-63

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWA5903GB

PG-64

< WIRING DIAGRAM >

CONNECTOR INFORMATION

D Door Harness

INFOID:0000000006484291

JCMWA5904GB

PG

CONNECTOR INFORMATION

PG-65

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWA5905GB

PG-66

< WIRING DIAGRAM >

CONNECTOR INFORMATION

JCMWA5906GB

PG

CONNECTOR INFORMATION

PG-67

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWA5907GB
