Juke F15 (2012 year). Service Repair Manual - part 299

PG-36

< WIRING DIAGRAM >

HARNESS LAYOUT

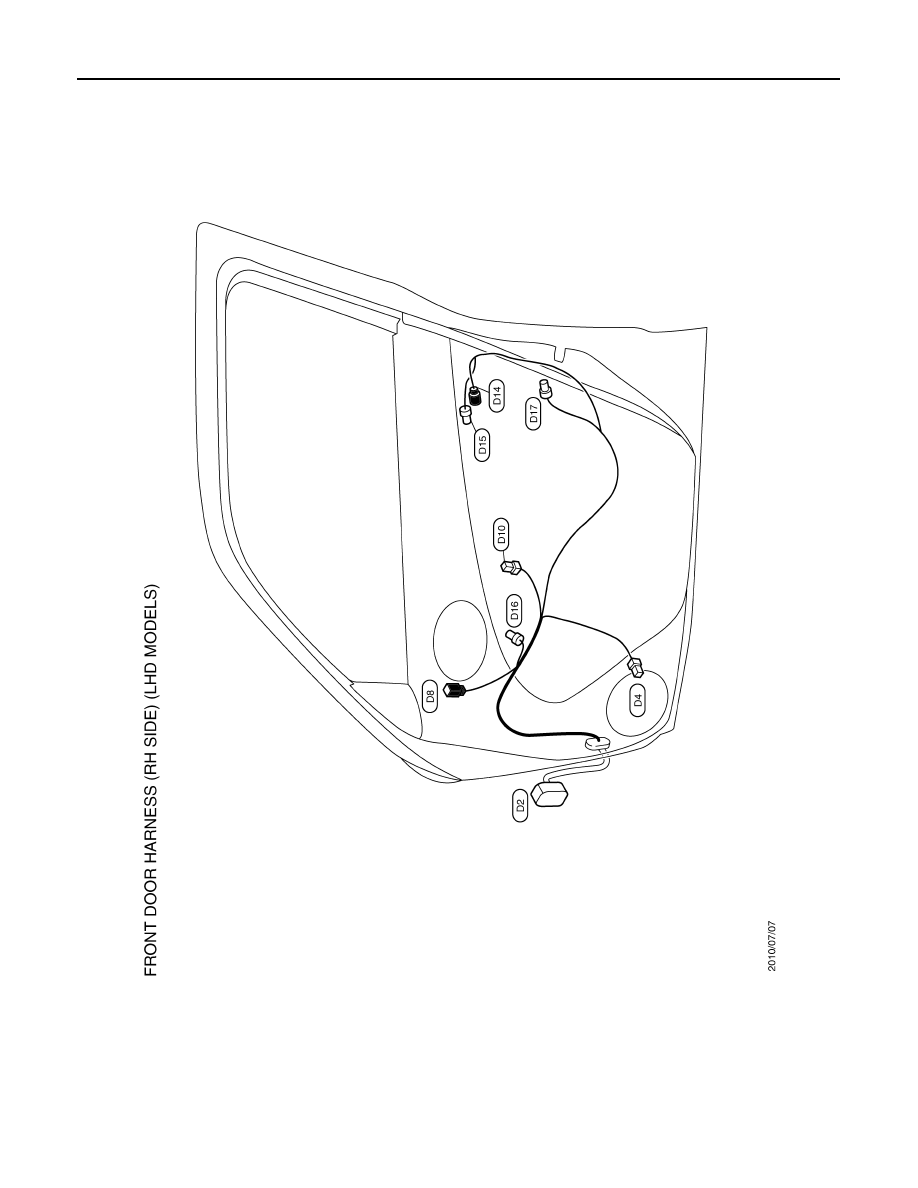

FRONT DOOR HARNESS (RH SIDE)

JCMIA0786GB

PG

HARNESS LAYOUT

PG-37

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REAR DOOR HARNESS (LH SIDE)

JCMIA0787GB

PG-38

< WIRING DIAGRAM >

HARNESS LAYOUT

REAR DOOR HARNESS (RH SIDE)

JCMIA0788GB

PG

HARNESS LAYOUT

PG-39

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

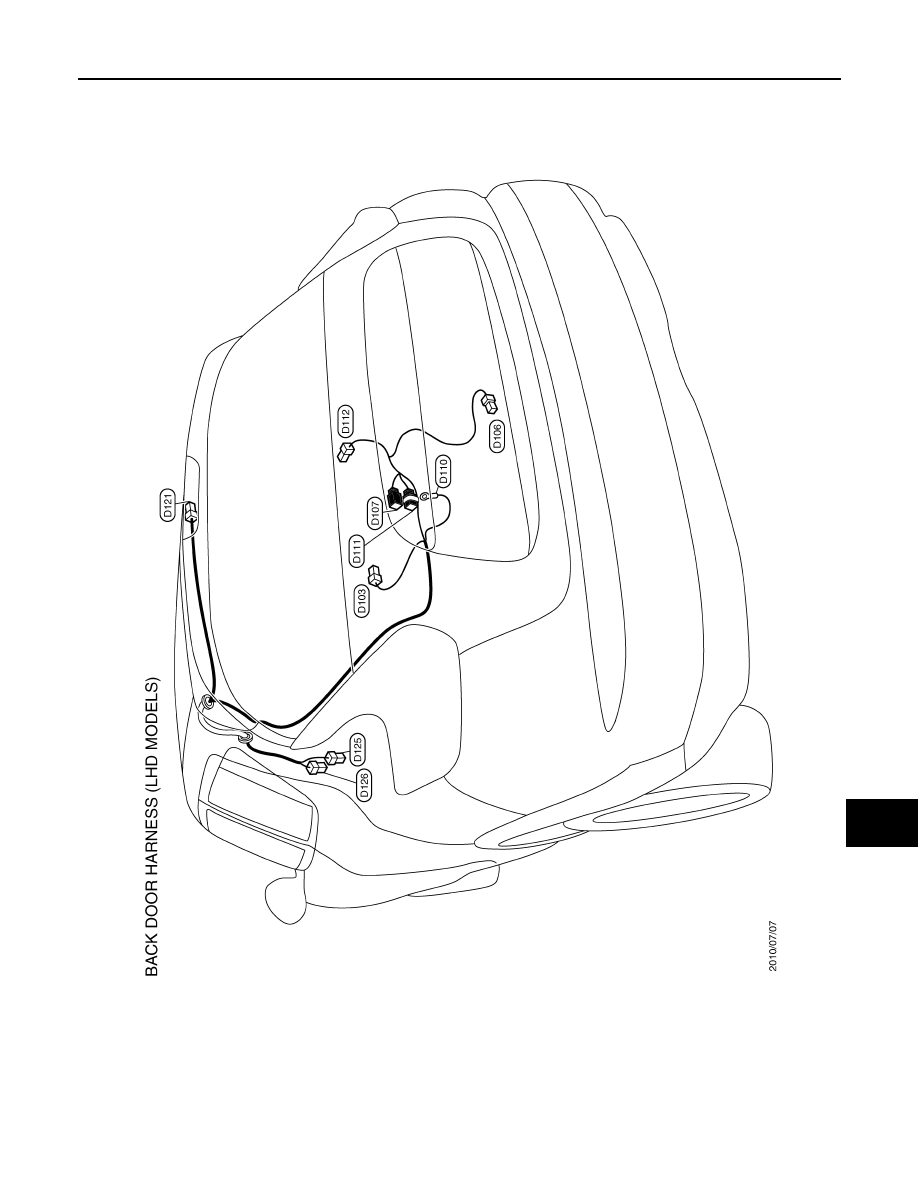

BACK DOOR HARNESS

JCMIA0789GB

PG-40

< WIRING DIAGRAM >

HARNESS LAYOUT

LHD : Room Lamp Harness

INFOID:0000000006484287

RHD

RHD : How To Read Harness Layout

INFOID:0000000006658038

CONNECTOR SYMBOL

JCMIA0790GB

PG

HARNESS LAYOUT

PG-41

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Main symbols of connector (in Harness Layout) are indicated in the below.

JPMIA0114GB

PG-42

< WIRING DIAGRAM >

HARNESS LAYOUT

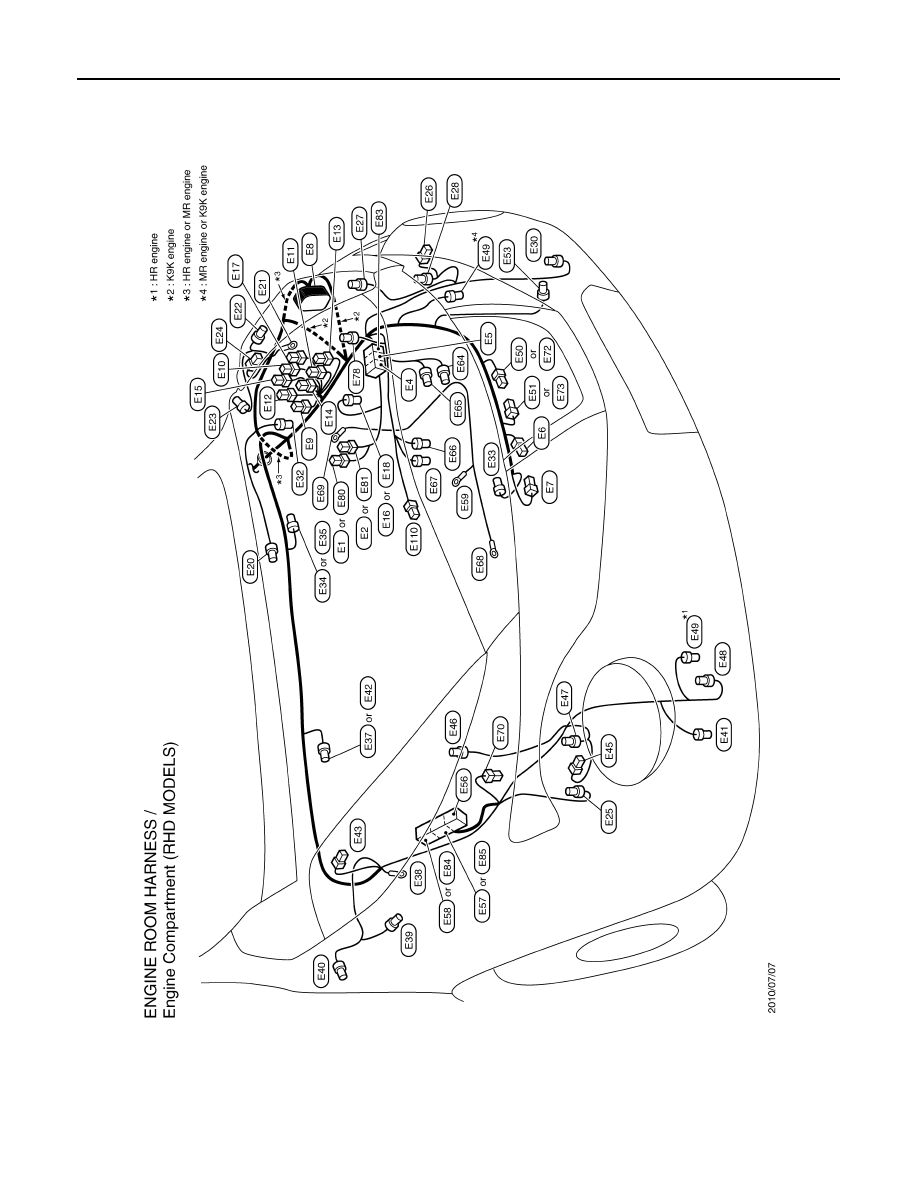

RHD : Engine Room Harness

INFOID:0000000006658039

ENGINE COMPARTMENT

JCMIA0791GB

PG

HARNESS LAYOUT

PG-43

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PASSENGER COMPARTMENT

JCMIA0792GB

PG-44

< WIRING DIAGRAM >

HARNESS LAYOUT

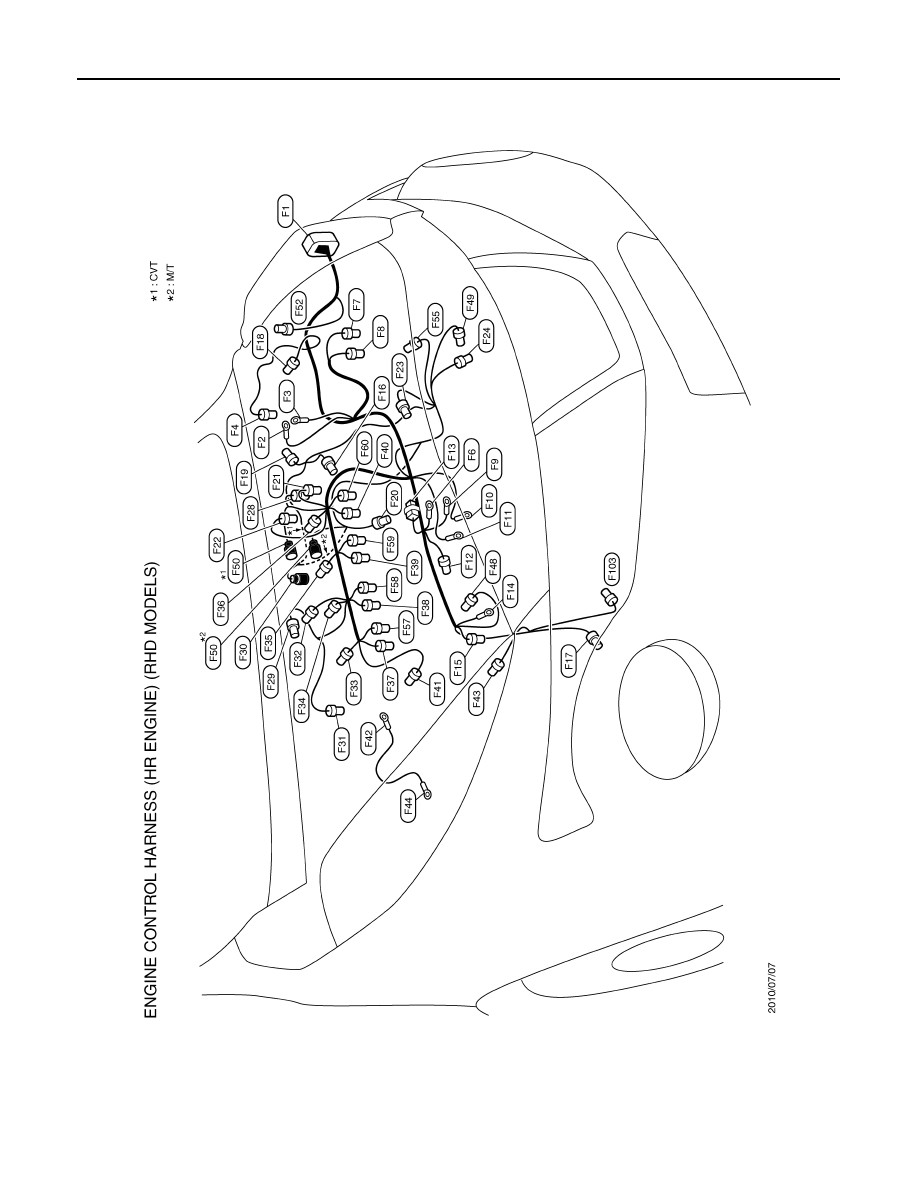

RHD : Engine Control Harness

INFOID:0000000006658040

HR ENGINE

JCMIA0793GB

PG

HARNESS LAYOUT

PG-45

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

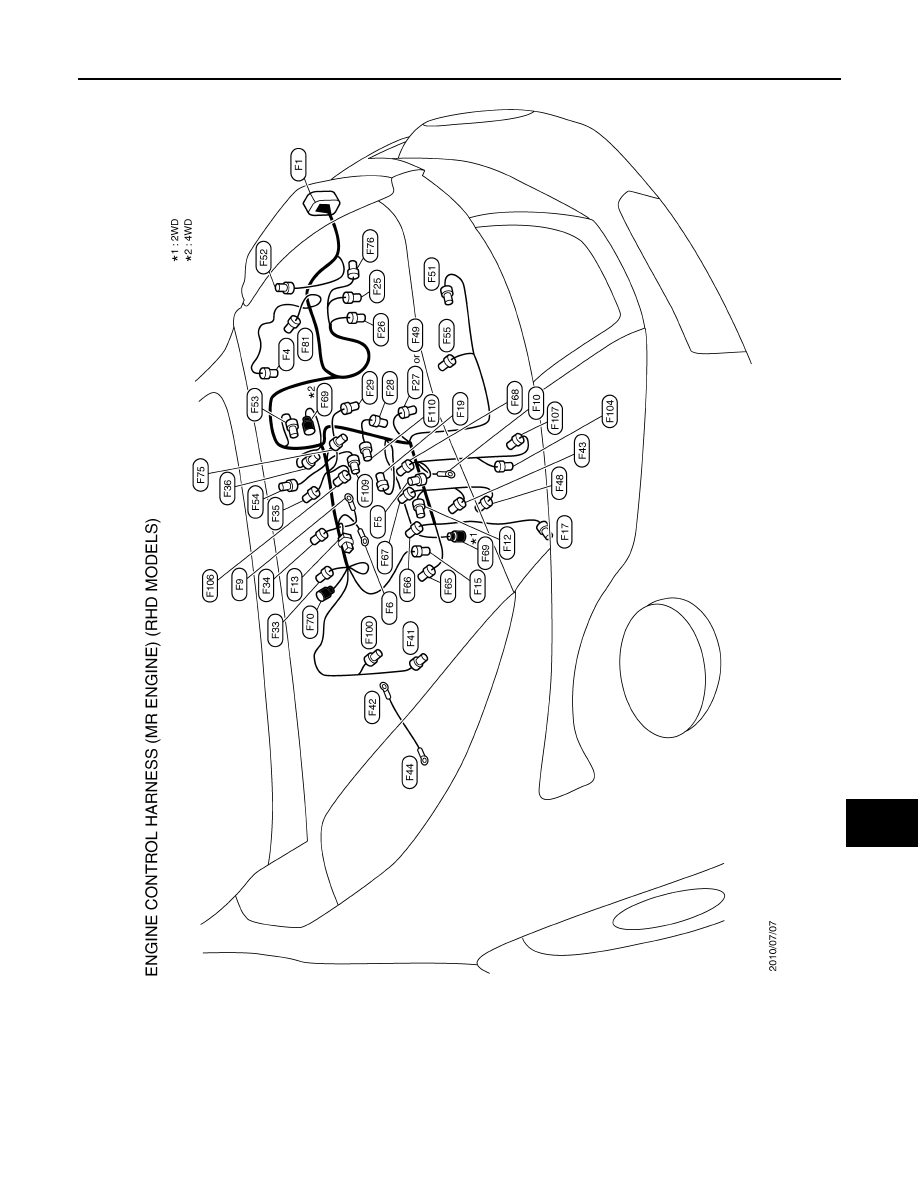

MR ENGINE

JCMIA0794GB

PG-46

< WIRING DIAGRAM >

HARNESS LAYOUT

K9K ENGINE

JCMIA0795GB

PG

HARNESS LAYOUT

PG-47

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

RHD : Main Harness

INFOID:0000000006658041

JCMIA0796GB

PG-48

< WIRING DIAGRAM >

HARNESS LAYOUT

RHD : Body Harness

INFOID:0000000006658042

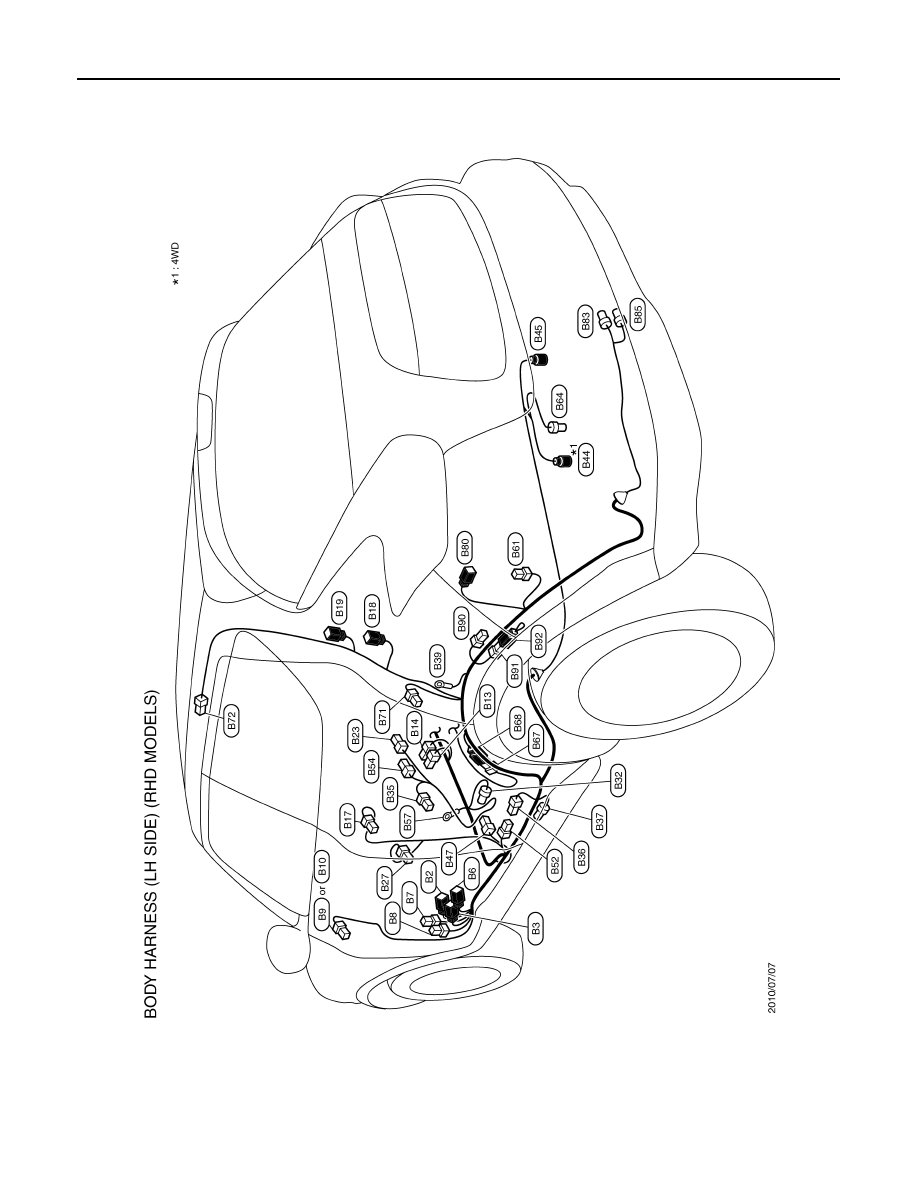

LH SIDE

JCMIA0797GB

PG

HARNESS LAYOUT

PG-49

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

RH SIDE

JCMIA0798GB

PG-50

< WIRING DIAGRAM >

HARNESS LAYOUT

RHD : Door Harness

INFOID:0000000006658043

FRONT DOOR HARNESS (LH SIDE)

JCMIA0799GB

PG

HARNESS LAYOUT

PG-51

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

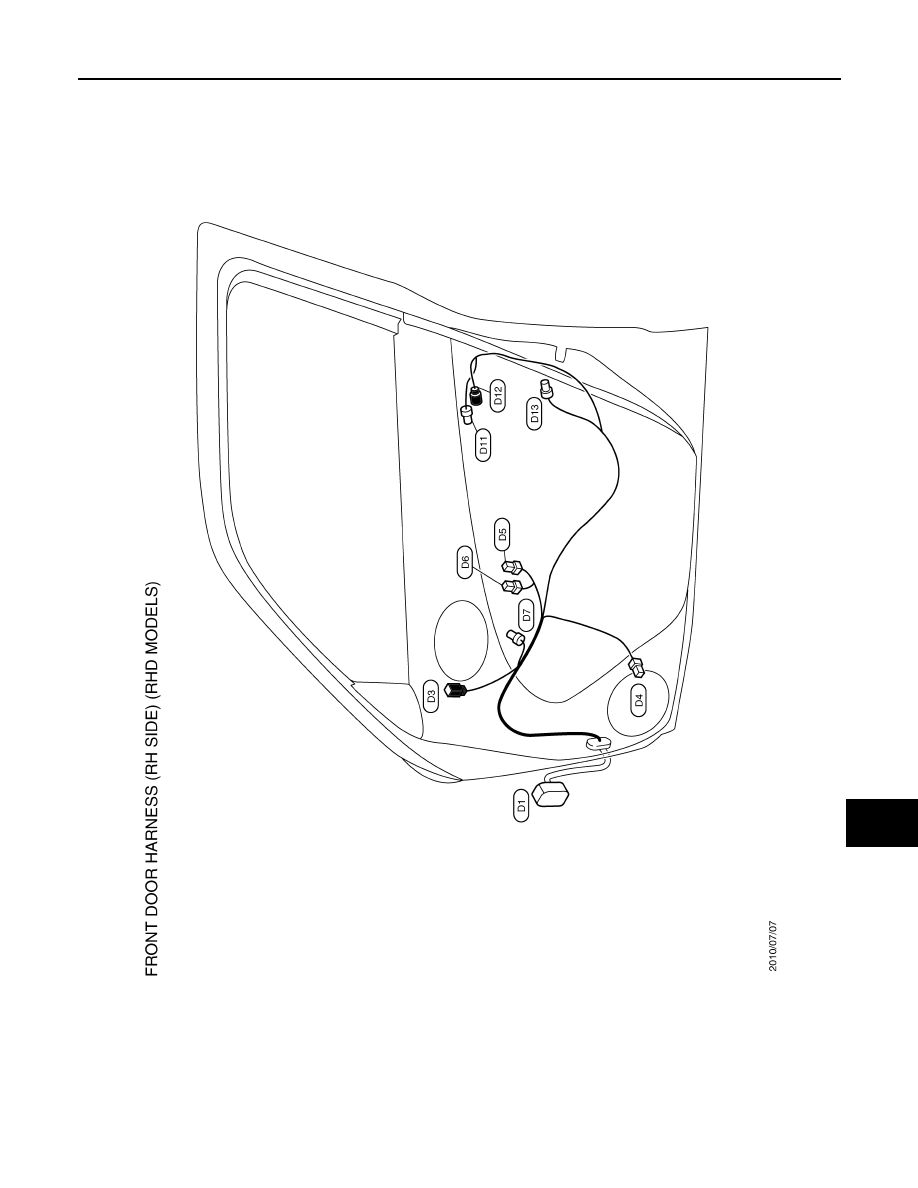

FRONT DOOR HARNESS (RH SIDE)

JCMIA0800GB
