EX-8

< REMOVAL AND INSTALLATION >

[MR16DDT ]

EXHAUST SYSTEM

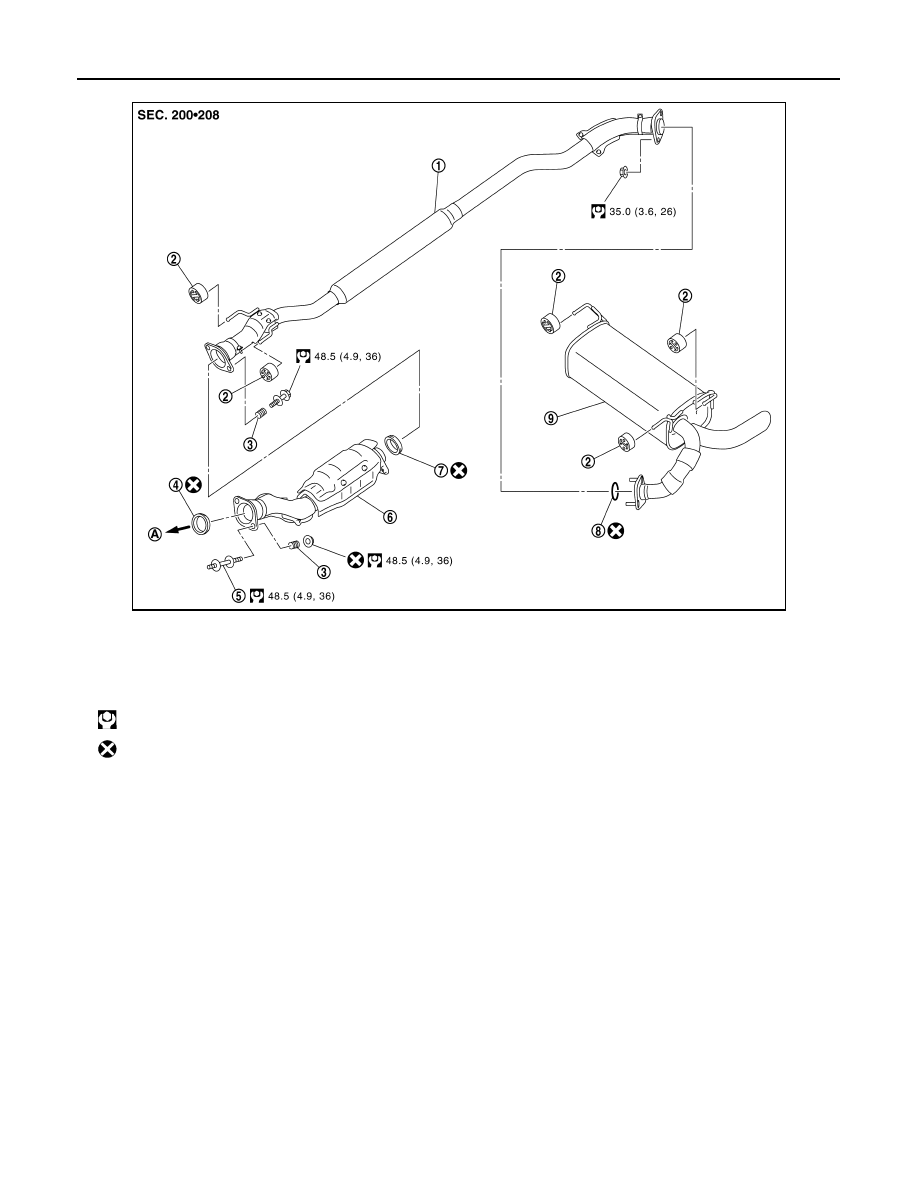

AWD (Standard models)

JSBIA3455GB

1.

Center muffler

2.

Mounting rubber

3.

Spring

4.

Seal bearing

5.

Stud bolt

6.

Exhaust front tube

7.

Seal bearing

8.

Ring gasket

9.

Main muffler

A.

To catalyst convertor

 : N·m (kg-m, ft-lb)

 : Always replace after every disassembly.

EXHAUST SYSTEM

EX-9

< REMOVAL AND INSTALLATION >

[MR16DDT ]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

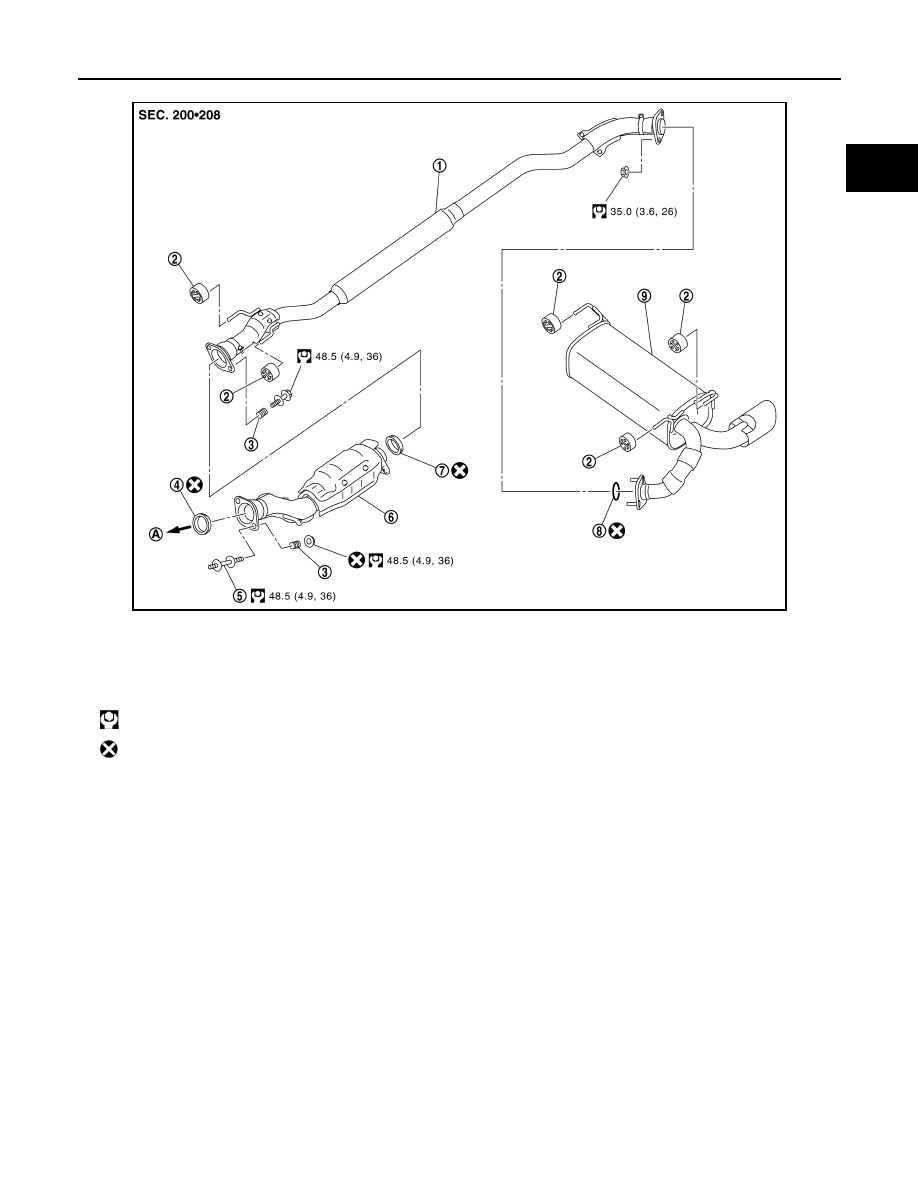

AWD (NISMO models)

JSBIA3379GB

1.

Center muffler

2.

Mounting rubber

3.

Spring

4.

Seal bearing

5.

Stud bolt

6.

Exhaust front tube

7.

Seal bearing

8.

Ring gasket

9.

Main muffler

A.

To catalyst convertor

 : N·m (kg-m, ft-lb)

 : Always replace after every disassembly.

EX-10

< REMOVAL AND INSTALLATION >

[MR16DDT ]

EXHAUST SYSTEM

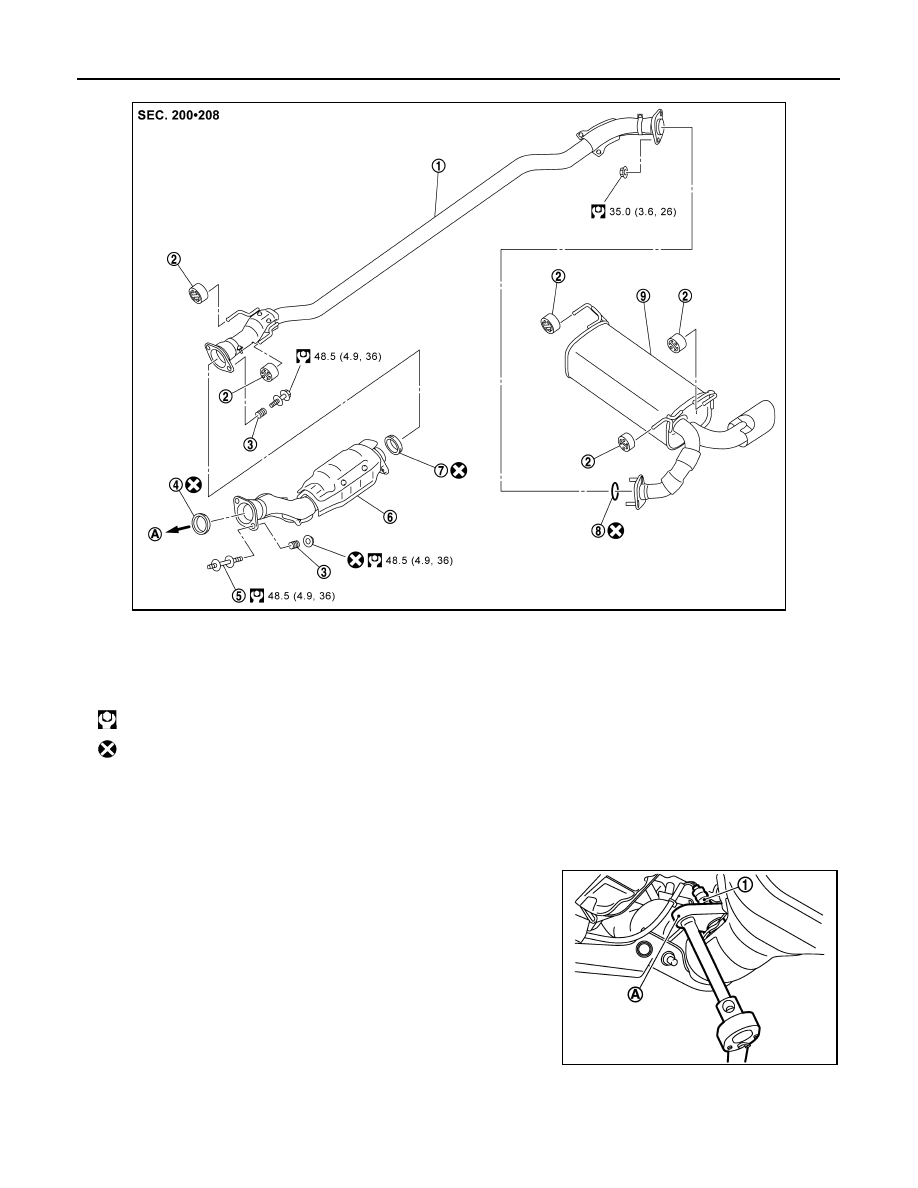

AWD (NISMO RS models)

Removal and Installation

INFOID:0000000012197615

REMOVAL

• Disconnect each joint and mounting.

• Remove heated oxygen sensor 2 with following procedure (2WD models):

- Using heated oxygen sensor wrench [SST: KV10114400 (J-

38365)] (A), removal heated oxygen sensor 2 (1).

CAUTION:

• Never damage heated oxygen sensor 2.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Always replace seal bearings with new ones when reassembling.

JSBIA5992GB

1.

Center tube

2.

Mounting rubber

3.

Spring

4.

Seal bearing

5.

Stud bolt

6.

Exhaust front tube

7.

Seal bearing

8.

Ring gasket

9.

Main muffler

A.

To catalyst convertor

 : N·m (kg-m, ft-lb)

 : Always replace after every disassembly.

PBIC4498J

EXHAUST SYSTEM

EX-11

< REMOVAL AND INSTALLATION >

[MR16DDT ]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

• Discard any heated oxygen sensor 2 which has been dropped onto a hard surface such as a con-

crete floor. Use a new one.

• Before installing a new heated oxygen sensor 2, clean exhaust system threads using the heated oxy-

gen sensor thread cleaner [commercial service tool: J-43897-18 or J-43897-12] and apply anti-seize

lubricant (commercial service tool).

• Never over torque heated oxygen sensor 2. Doing so may cause damage to the heated oxygen sen-

sor 2, resulting in the “MIL” coming on.

• Prevent rust preventives from adhering to the sensor body.

• If heat insulator is badly deformed, repair or replace it. If deposits such as mud pile up on the heat

insulator, remove them.

• When installing heat insulator avoid large gaps or interference between heat insulator and each

exhaust pipe.

• Remove deposits from the sealing surface of each connection. Connect them securely to avoid gas

leakage.

• When installing each mounting rubber, use silicon oil to avoid twisting.

• Temporarily tighten mounting nuts and bolts. Check each part for unusual interference and mount-

ing rubber interference, and then tighten them to the specified torque.

• When installing each mounting rubber, avoid twisting or unusual extension in up/down, front/rear

and right/left directions.

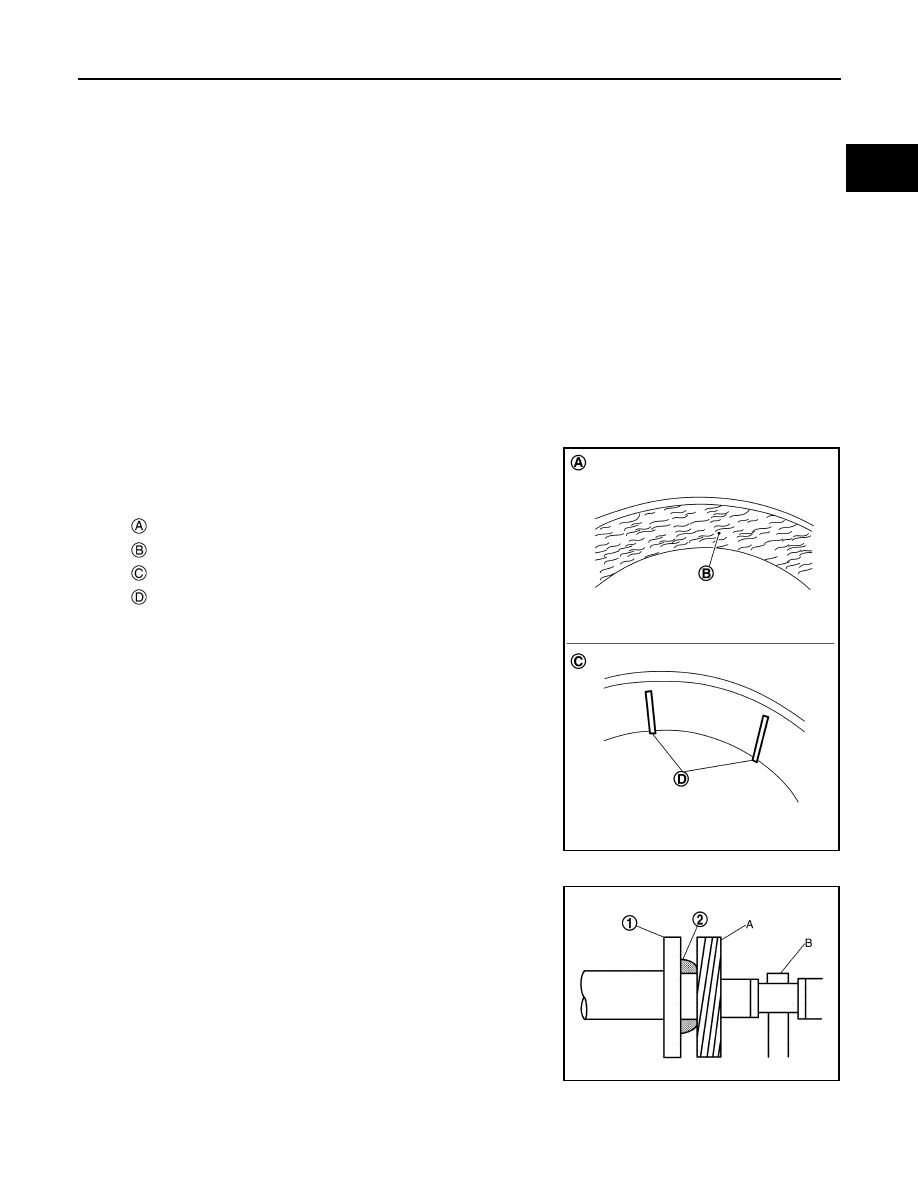

• Install seal bearing according to the following instructions.

CAUTION:

The structure of seal bearing depends on the mounting por-

tion. When installing seal bearings, be careful not to install

wrong one.

Exhaust Manifold to Exhaust Front Tube

1. Place a piece of wood (A) on seal bearing (2) and securely

insert the seal bearing on the exhaust manifold (1) side, using a

plastic hammer (B).

CAUTION:

• Never damage the seal bearing surface during insertion.

• If seal bearing is inserted by hammering directly without

using a piece of wood, the seal bearing is deformed and

exhaust gas leaks. To insert seal bearing, always use a

piece of wood and insert straight.

: Exhaust manifold side

: Mesh

: Exhaust front tube side

: Pawl (projection)

JPBIA6287ZZ

JPBIA6288ZZ
